2001 TOYOTA COROLLA Owners Manual

'01 Corolla U (L/O 0005)
1042001MY_COROLLA_U (OM12720U)
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.
ProCarManuals.com

'01 Corolla U (L/O 0005)
1052001MY_COROLLA_U (OM12720U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Car audio system
Reference106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your audio system107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Car audio system operating hints124 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 7
ProCarManuals.com

'01 Corolla U (L/O 0005)
1062001MY_COROLLA_U (OM12720U)
Reference
Type 1: AM´FM ETR radio
Type 2: AM´FM ETR radio/cassette player
Type 3: AM´FM ETR radio/cassette player
(with compact disc auto changer control-
ler)Type 4: AM´FM ETR radio/compact disc
player (with compact disc auto changer
controller)
ProCarManuals.com

'01 Corolla U (L/O 0005)
1072001MY_COROLLA_U (OM12720U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the ªACCº or ªONº position.
TURNING THE SYSTEM ON AND OFF
Push ªVOL/PWRº, ªPWR´VOLº or ªPWR/
VOLº to turn the audio system on and off.
Push ªAMº, ªFMº, ªAM´FMº, ªTAPEº or
ªCDº to turn on that function without push-
ing ªVOL/PWRº, ªPWR´VOLº or ªPWR/
VOLº.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push ªAMº, ªFMº, ªAM´FMº, ªTAPEº or
ªCDº if the system is already on but you
want to switch from one function to anoth-
er.TONE AND BALANCE
For details about your system's tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with different mixes
of treble and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
To lower a manual antenna, carefully push
it down.
NOTICE
To prevent damage to the antenna,
make sure it is retracted before driv-
ing your Toyota through an automatic
car wash.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should be to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
Using your audio systemÐ
ÐSome basics
ProCarManuals.com

'01 Corolla U (L/O 0005)
1082001MY_COROLLA_U (OM12720U)
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a compact
disc into the slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diameter±smaller than standard
discs.
After you eject a compact disc single, do
not insert a standard 12 cm (5 in.) disc
until ªDISCº disappears from the display.
NOTICE
Do not use an adaptor for compact
disc singlesÐit could cause tracking
errors or interfere with the ejection of
compact discs.
ProCarManuals.com

'01 Corolla U (L/O 0005)
1092001MY_COROLLA_U (OM12720U)
Details of specific buttons, controls and
features are described in the alphabetical
listing that follows.
ÐControls and features

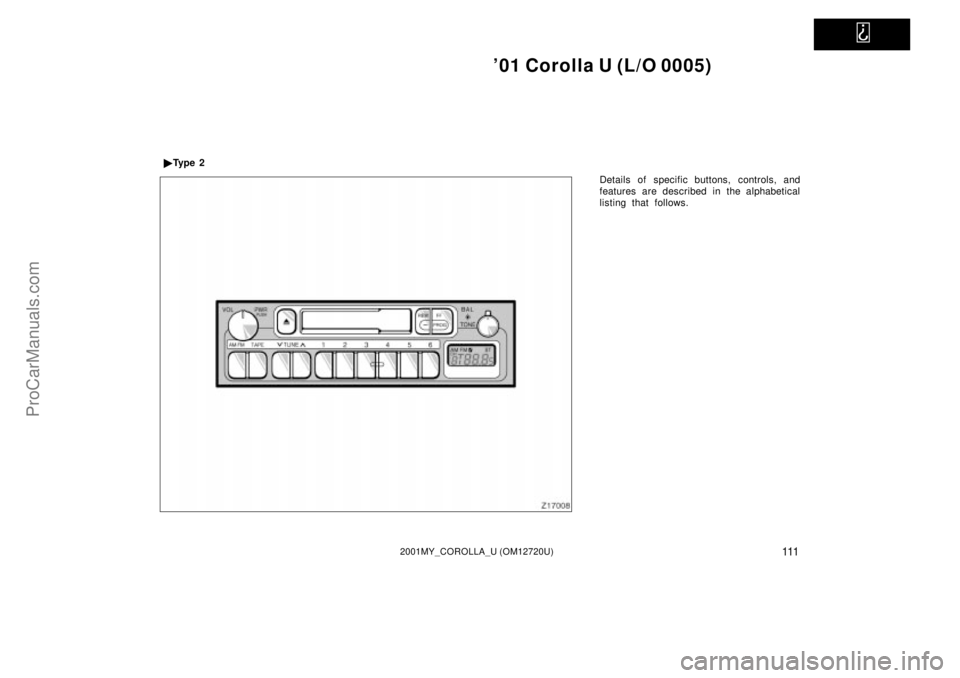

Ty p e 1
ProCarManuals.com

'01 Corolla U (L/O 0005)
11 02001MY_COROLLA_U (OM12720U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see ªTUNEº button).
Push and hold down the button until you
hear a beepÐthis will set the station to
the button. The button number will appear
on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and one
FM station for each button. The preset
station memory will be canceled out if the
power source is interrupted (battery dis-
connected or fuse blown).
AM´FM
Push ªAM´FMº to switch between the AM
and FM bands. ªAMº or ªFMº will appear
on the display.
If the audio system is off, you can turn
on the radio by pushing ªAM´FMº.BAL (Balance)
Turn the ªBALº knob with pulling to adjust
the balance between the right and left
speakers.
PWR´VOL (Power´Volume)
Push ªPWR´VOLº to turn the audio system
on and off. Turn ªPWR´VOLº to adjust the
volume.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. ªSTº appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TONE
Move the ªTONEº ring around ªBALº to
adjust the tone.TUNE
Tuning
Your Toyota has an electronic tuning radio
(ETR). Push and release the ª
º (up) or
ªº (down) side of ªTUNEº to step up or
down the station band. (If you hear a
beep, you held the button too long and
the radio will go into the seek mode.)
Seeking
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, push and hold the ª
º
or ªº side of ªTUNEº until you hear a
beep. Do this again to find another sta-
tion.
ProCarManuals.com

'01 Corolla U (L/O 0005)
1112001MY_COROLLA_U (OM12720U)
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
Ty p e 2
