2001 TOYOTA CAMRY Owners Manual

’01Camry_U (L/O 0009)
172001 MY CAMRY (OM33528U)
REPLACING TRANSMITTER BATTERY
For replacement, use CR2032 lithium bat-
tery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
Replace the transmitter battery by the fol-
lowing procedures:
1. Using a coin or equivalent, open the
transmitter case.2. Remove the discharged transmitter bat-
tery.
NOTICE
Do not bend the terminals.
ProCarManuals.com

’01Camry_U (L/O 0009)
182001 MY CAMRY (OM33528U)
3. Put new transmitter battery with posi-
tive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
Power windows
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
ProCarManuals.com

’01Camry_U (L/O 0009)
192001 MY CAMRY (OM33528U)

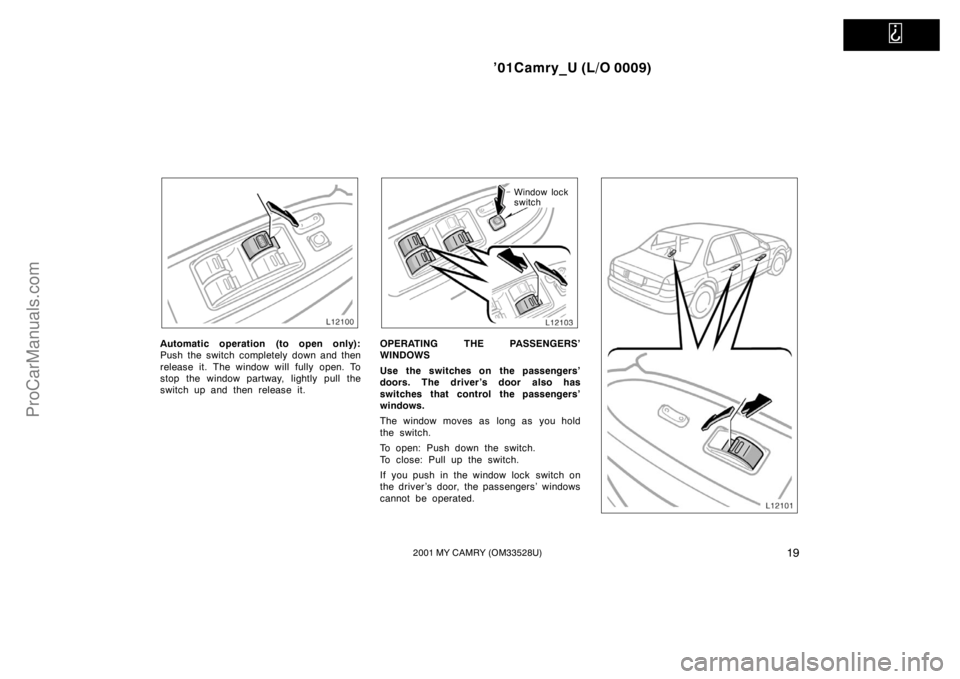

Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver ’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
ProCarManuals.com

’01Camry_U (L/O 0009)
202001 MY CAMRY (OM33528U)

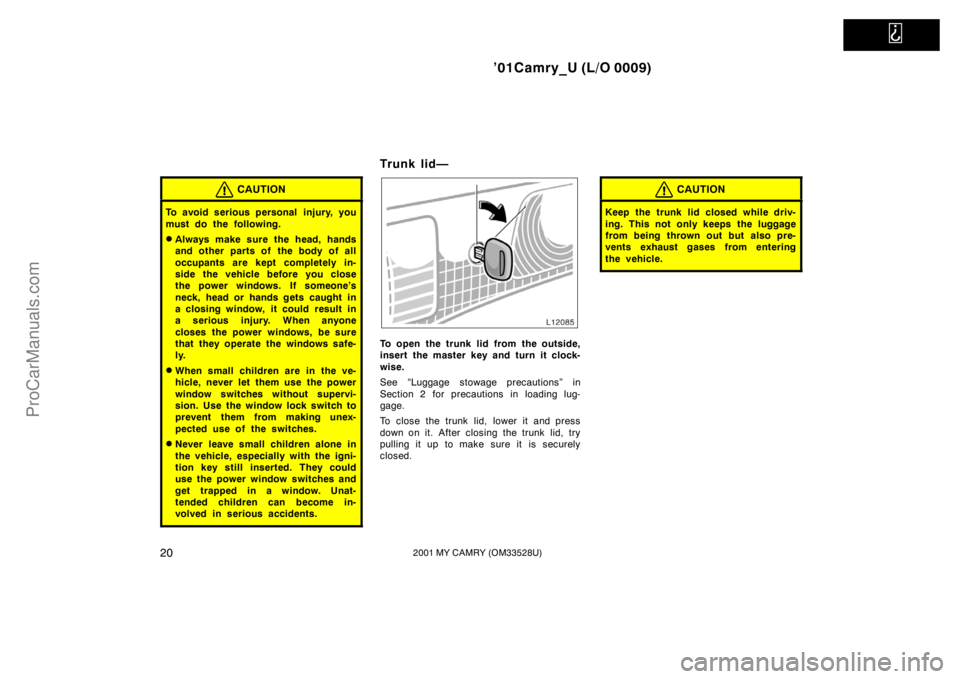

CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Trunk lid—
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
ProCarManuals.com

’01Camry_U (L/O 0009)
212001 MY CAMRY (OM33528U)

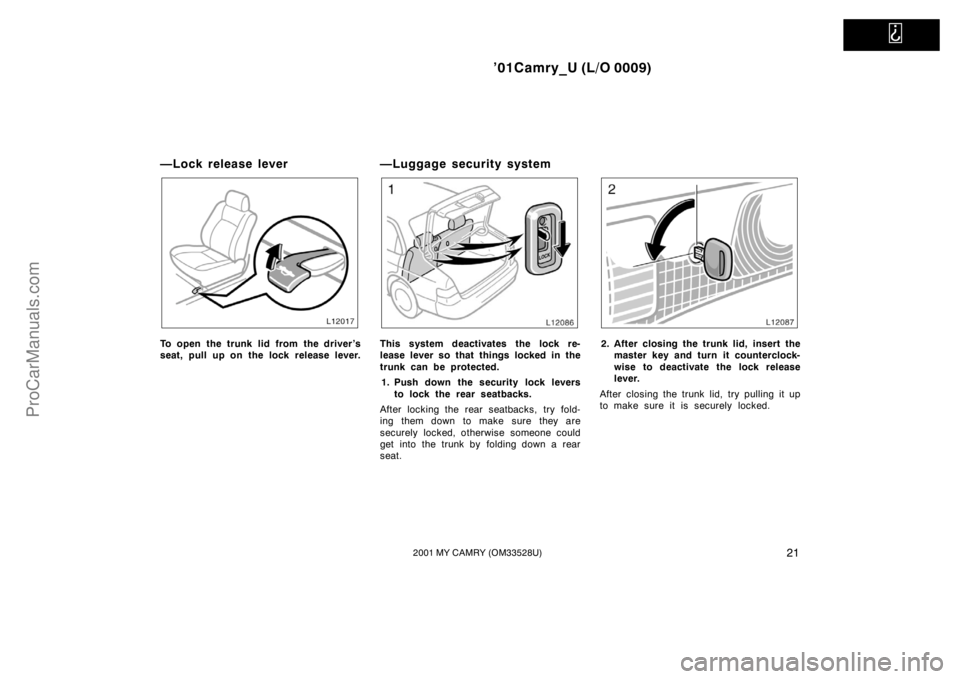

—Lock release lever
To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
—Luggage security system
This system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.
1. Push down the security lock levers
to lock the rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.2. After closing the trunk lid, insert the
master key and turn it counterclock-
wise to deactivate the lock release
lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
ProCarManuals.com

’01Camry_U (L/O 0009)
222001 MY CAMRY (OM33528U)

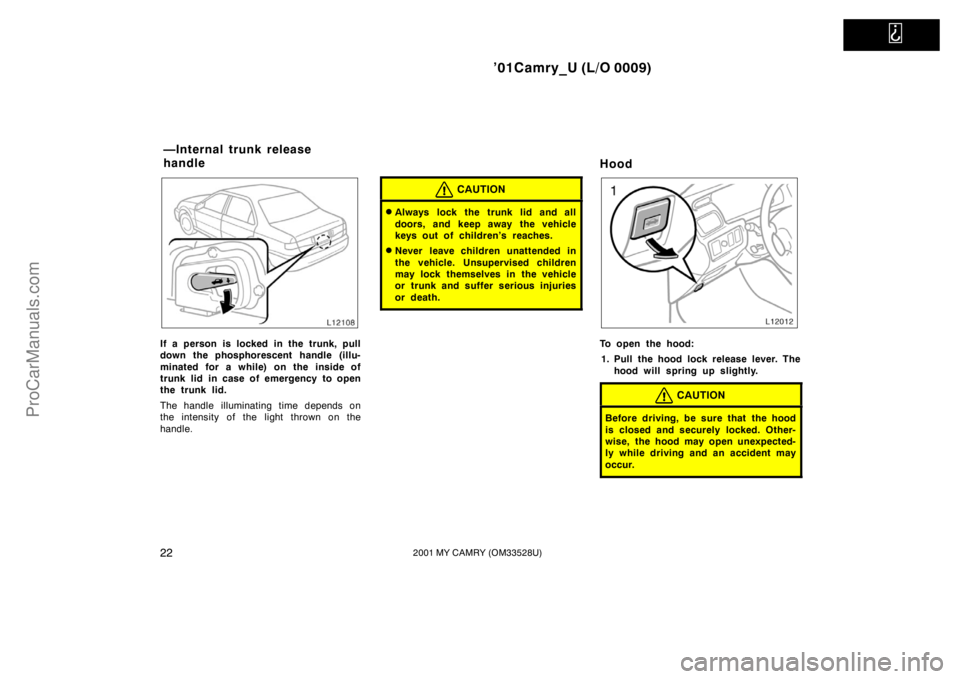

If a person is locked in the trunk, pull
down the phosphorescent handle (illu-
minated for a while) on the inside of
trunk lid in case of emergency to open
the trunk lid.
The handle illuminating time depends on
the intensity of the light thrown on the
handle.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reaches.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
Hood
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
—Internal trunk release
handle
ProCarManuals.com

’01Camry_U (L/O 0009)
232001 MY CAMRY (OM33528U)
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK”
position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobiliser system”
for details.)
2. Have all passengers get out of the
vehicle.
3. Close and lock all the doors, trunk and
hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked.
ProCarManuals.com

’01Camry_U (L/O 0009)
242001 MY CAMRY (OM33528U)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key or wireless remote con-
trol transmitter
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating.If any of the doors are unlocked without
the key or wireless remote control trans-
mitter and the key is not in the ignition
switch, all the doors will be automatically
locked again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
Open the trunk with the key.CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other
doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
