2001 TOYOTA CAMRY Owners Manual

’01Camry_U (L/O 0009)
1372001 MY CAMRY (OM33528U)
“A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.
ProCarManuals.com

’01Camry_U (L/O 0009)
1382001 MY CAMRY (OM33528U)
—Air flow selector settings —Operating tips
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, push the fan speed se-
lector to adjust the fan speed high for
a minute to help clear the intake ducts
of snow or moisture. This can reduce
the amount of fogging on the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
ProCarManuals.com

’01Camry_U (L/O 0009)
1392001 MY CAMRY (OM33528U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
For automatic operation—
Press in the “AUTO” button.
Temperature—To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed—To the desired fan speed
Temperature—To w a r d s WARM
(to the right)
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been war-
med.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.Air conditioning
For best results, set controls to:
For automatic operation—
Press in the “AUTO” button.
Temperature—To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—ON
For manual operation—
Fan speed—To the desired fan speed
Temperature—To w a r d s COLD
(to the left)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, select recirculated
air for a few minutes.
ProCarManuals.com

’01Camry_U (L/O 0009)
1402001 MY CAMRY (OM33528U)
Ventilation
For best results, set controls to:
For automatic operation—
Press in the “AUTO” button.
Temperature—Towards low temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed—To the desired fan speed
Temperature—To w a r d s COLD
(to the left)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging and defrosting
—The inside of the windshield
For best results, set controls to:
For automatic operation—
Temperature—To w a r d s high temperature
to heat;
low temperature to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
For manual operation—
Fan speed—To the desired fan speed
Temperature—To w a r d s WARM
(to the right) to heat;
COLD (to the left) to
cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.Pressing the windshield button turns on
the defroster−linked air conditioning. At
this time, the “A/C” button indicator comes
on regardless of whether or not the “A/C”
button is pressed in. This is to clean up
the front view more quickly.
To turn off the air conditioning alone,
press the “A/C” button once again.
When the “A/C” button is not pressed in,
pressing another air flow button turns off
the air conditioning.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
—The outside of the windshield
For best results, set controls to:
For automatic operation—
Temperature—To w a r d s high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
ProCarManuals.com

’01Camry_U (L/O 0009)
1412001 MY CAMRY (OM33528U)
For manual operation—
Fan speed—To the desired fan speed
Temperature—To w a r d s WARM
(to the right)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Pressing the windshield button turns on
the defroster−linked air conditioning. At
this time, the “A/C” button indicator comes
on regardless of whether or not the “A/C”
button is pressed in. This is to clean up
the front view more quickly.
To turn off the air conditioning alone,
press the “A/C” button once again.
When the “A/C” button is not pressed in,
pressing another air flow button turns off
the air conditioning.
To heat the vehicle interior while de-
frosting the windshield, choose floor/
windshield air flow.

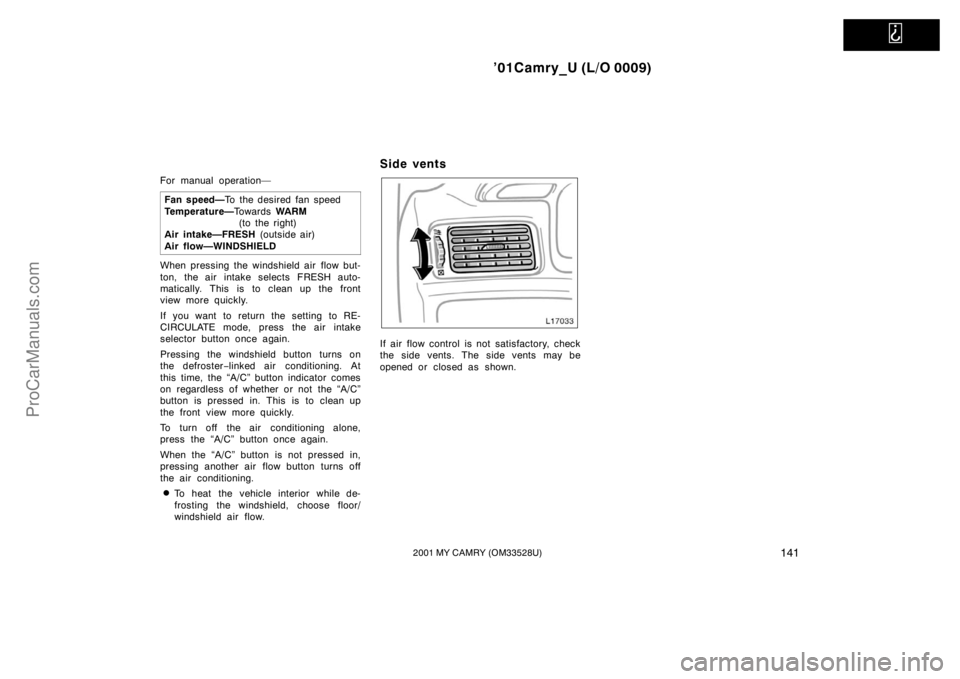

Side vents
If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.
ProCarManuals.com

’01Camry_U (L/O 0009)
1422001 MY CAMRY (OM33528U)
ProCarManuals.com

’01Camry_U (L/O 0009)
1432001 MY CAMRY (OM33528U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature gauge145 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet147 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box147 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener box148 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary box151 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder152 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grocery bag hooks153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Traction control system153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat155 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 9
ProCarManuals.com

’01Camry_U (L/O 0009)
1442001 MY CAMRY (OM33528U)
Clock
Ty p e A
Ty p e B
Ty p e C
The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time indi-
cator will be reduced.Type B only—
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
Type C only—
Push the “MODE” button to change the
display from clock to outside temperature
gauge. (See “Outside temperature gauge”
in this section.)
