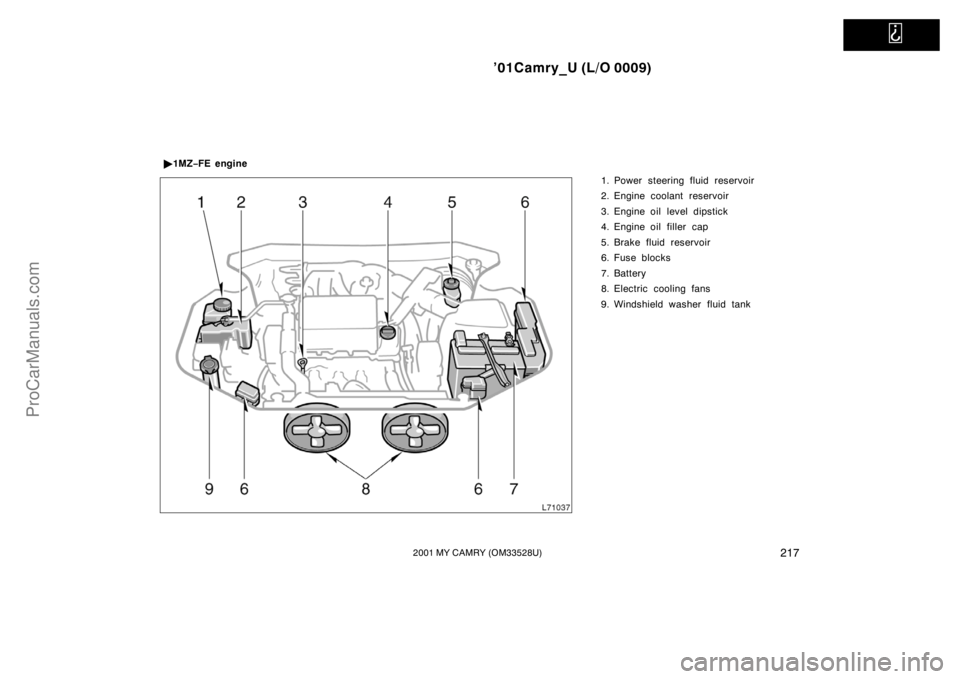

1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Engine oil level dipstick
4. Engine oil filler cap
5. Brake fluid reservoir
6. Fuse blocks
7. Battery
8. Electric cooling fans
9. Windshield washer fluid tank 1MZ−FE engine
ProCarManuals.com

’01Camry_U (L/O 0009)
2182001 MY CAMRY (OM33528U)

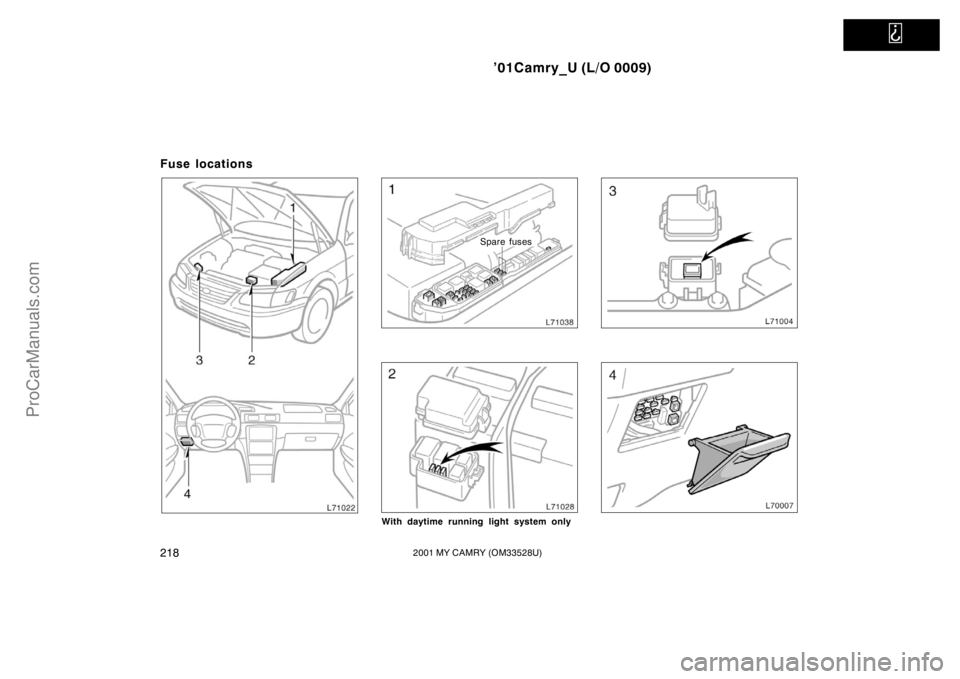

Fuse locations
Spare fuses
With daytime running light system only
ProCarManuals.com

’01Camry_U (L/O 0009)
2192001 MY CAMRY (OM33528U)
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do−it−yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do−
it−yourself maintenance, see “Parts and
tools”.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:CAUTION
When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)
Right after driving, the engine
compartment—the engine, radiator,
exhaust manifold and spark plug
boots, etc.—will be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the engine is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.
Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.
Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric acid.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Do−it−yourself service
precautions
ProCarManuals.com

’01Camry_U (L/O 0009)
2202001 MY CAMRY (OM33528U)
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
NOTICE
Remember that battery and ignition
cables carry high currents or volt-
ages. Be careful of accidentally
causing a short circuit.
Add only demineralized or distilled
water to fill the radiator. And if you
spill some of the coolant, be sure
to wash off with water to prevent it
from damaging the parts or paint.
Do not allow dirt or anything else
to fall through the spark plugholes.
Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
Do not reuse platinum−tipped spark
plugs by cleaning or regapping.
Do not overfill automatic transmis-
sion fluid, or the transmission
could be damaged.
Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
Be careful not to scratch the glass
surface with the wiper frame.
When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.
Positioning the jack
Front
Rear
ProCarManuals.com

’01Camry_U (L/O 0009)
2212001 MY CAMRY (OM33528U)
When jacking up your vehicle with the
jack, position the jack correctly as
shown in the illustrations.
CAUTION
When jacking, be sure to observe the
following to reduce the possibility of
personal injury:
Follow jacking instructions.
Do not put any part of your body
under the vehicle supported by the
jack. Personal injury may occur.
Do not start or run the engine while
your vehicle is supported by the
jack.
Stop the vehicle on a level firm
ground, firmly set the parking brake
and put the transmission in “P”
(automatic) or reverse (manual).
Block the wheels on the opposite
side of the jack up point if neces-
sary.
Make sure to set the jack properly
in the jack point. Raising the ve-
hicle with jack improperly posi-
tioned will damage the vehicle or
may allow the vehicle to fall off the
jack and cause personal injury.
Never get under the vehicle when
the vehicle is supported by the jack
alone; use vehicle support stands.
Do not raise the vehicle with some-
one in the vehicle.
When raising the vehicle, do not
put an object on or under the jack.
NOTICE
Make sure to place the jack correctly,
or your vehicle may be damaged.
Parts and tools
Here is a list of parts and tools you will
need on performing do−it−yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
Checking the engine oil level
Parts (if level is low):
Engine oil API grade SJ,
“Energy−Conserving” or ILSAC
multigrade having viscosity proper for
your climate
Tools:
Rag or paper towel
Funnel (only for adding oil)
Checking the engine coolant level
Parts (if level is low):
“TOYOTA Long Life Coolant” or equiva-
lent
See Section 7−2 for details about cool-
ant type selection.
Demineralized or distilled water
Tools:
Funnel (only for adding coolant)
ProCarManuals.com

’01Camry_U (L/O 0009)
2222001 MY CAMRY (OM33528U)
Checking brake fluid
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
Checking power steering fluid
Parts (if level is low):
Automatic transmission fluid
DEXRONII or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
Checking battery condition
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts)Checking and replacing fuses
Parts (if replacement is necessary):
Genuine Toyota fuse or equivalent with
same amperage rating as original
Adding washer fluid
Parts:
Water
Washer fluid containing antifreeze (for
winter use)
Tools:
Funnel
Replacing light bulbs
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” in Section 7−3.)
Tools:
Screwdriver
Flat−bladed screwdriver
ProCarManuals.com

’01Camry_U (L/O 0009)
2232001 MY CAMRY (OM33528U)
DO−IT−YOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level224 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level225 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid226 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking power steering fluid227 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire pressure228 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires229 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires230 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing snow tires and chains230 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels231 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheel precautions232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7− 2
ProCarManuals.com

’01Camry_U (L/O 0009)
2242001 MY CAMRY (OM33528U)
Checking the engine oil level
Low level Full level
Ty p e A
Ty p e B
Add oil O.K. Too full
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.
1. To get a true reading, the vehicle
should be on a level spot. After turning
off the engine, wait a few minutes for
the oil to drain back into the bottom of
the engine.
2. Pull out the dipstick, and wipe it clean
with a rag.
3. Reinsert the dipstick—push it in as far
as it will go, or the reading will not be
correct.
4. Pull the dipstick out and look at the oil
level on the end.
CAUTION
Be careful not to touch the hot ex-
haust manifold.
If the oil level is below or only slightly
above the low level line, add engine oil
of the same type as already in the en-
gine.
Remove the oil filler cap and add engine
oil in small quantities at a time, checking
the dipstick.
The approximate quantity of oil needed to
fill between the low level and the full level
on the dipstick is indicated below for ref-
erence.
When the level reaches within the correct
range, install the filler cap hand−tight.
Oil quantity, L (qt., lmp. qt.):
5S−FE engine 0.7 (0.7, 0.6)
1MZ−FE engine 1.5 (1.6, 1.3)
NOTICE
Avoid overfilling, or the engine
could be damaged.
Check the oil level on the dipstick
once again after adding the oil.
ENGINE OIL SELECTION
Use API grade SJ, “Energy−Conserving”
or ILSAC multigrade engine oil.
Recommended viscosity (SAE):
5W-30 Preferred
Temperature range anticipated before
next oil change
SAE 5W−30 is the best choice for your
vehicle, for good fuel economy, and
good starting in cold weather.
If you use SAE 10W−30 engine oil in
extremely low temperatures, the engine
may become difficult to start, so SAE
5W−30engine oil is recommended.
