DTC P0335 CKP SENSOR (POS)
EC-957
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

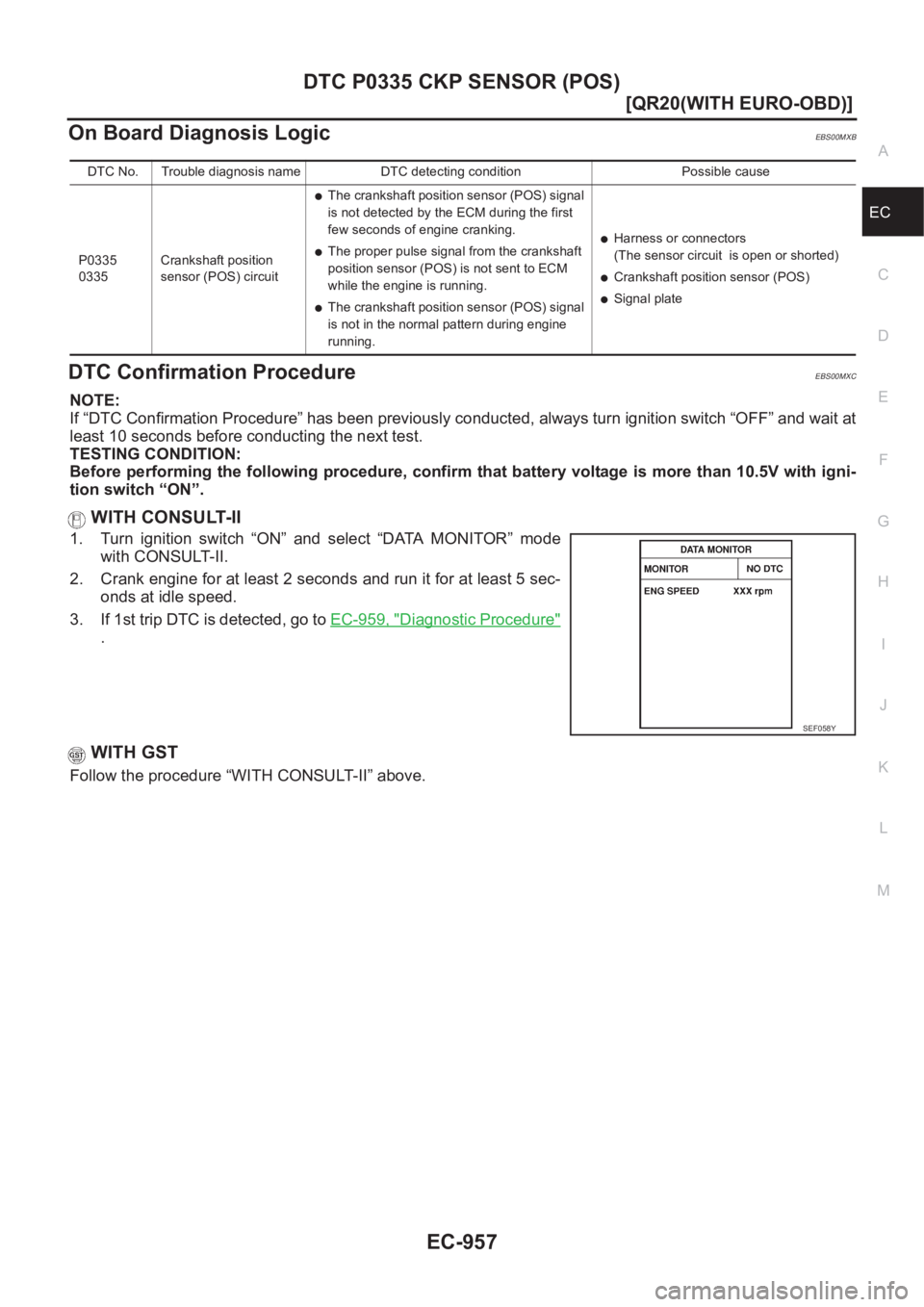

On Board Diagnosis LogicEBS00MXB
DTC Confirmation ProcedureEBS00MXC
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch “ON”.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.
2. Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.
3. If 1st trip DTC is detected, go to EC-959, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0335
0335Crankshaft position
sensor (POS) circuit
●The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.
●The proper pulse signal from the crankshaft
position sensor (POS) is not sent to ECM
while the engine is running.
●The crankshaft position sensor (POS) signal
is not in the normal pattern during engine
running.
●Harness or connectors
(The sensor circuit is open or shorted)
●Crankshaft position sensor (POS)
●Signal plate
SEF058Y

EC-958
[QR20(WITH EURO-OBD)]
DTC P0335 CKP SENSOR (POS)
Wiring Diagram
EBS00MXD
TBWA0065E
SMA for models with roof mounted driving lamp

DTC P0335 CKP SENSOR (POS)
EC-959
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00MXE

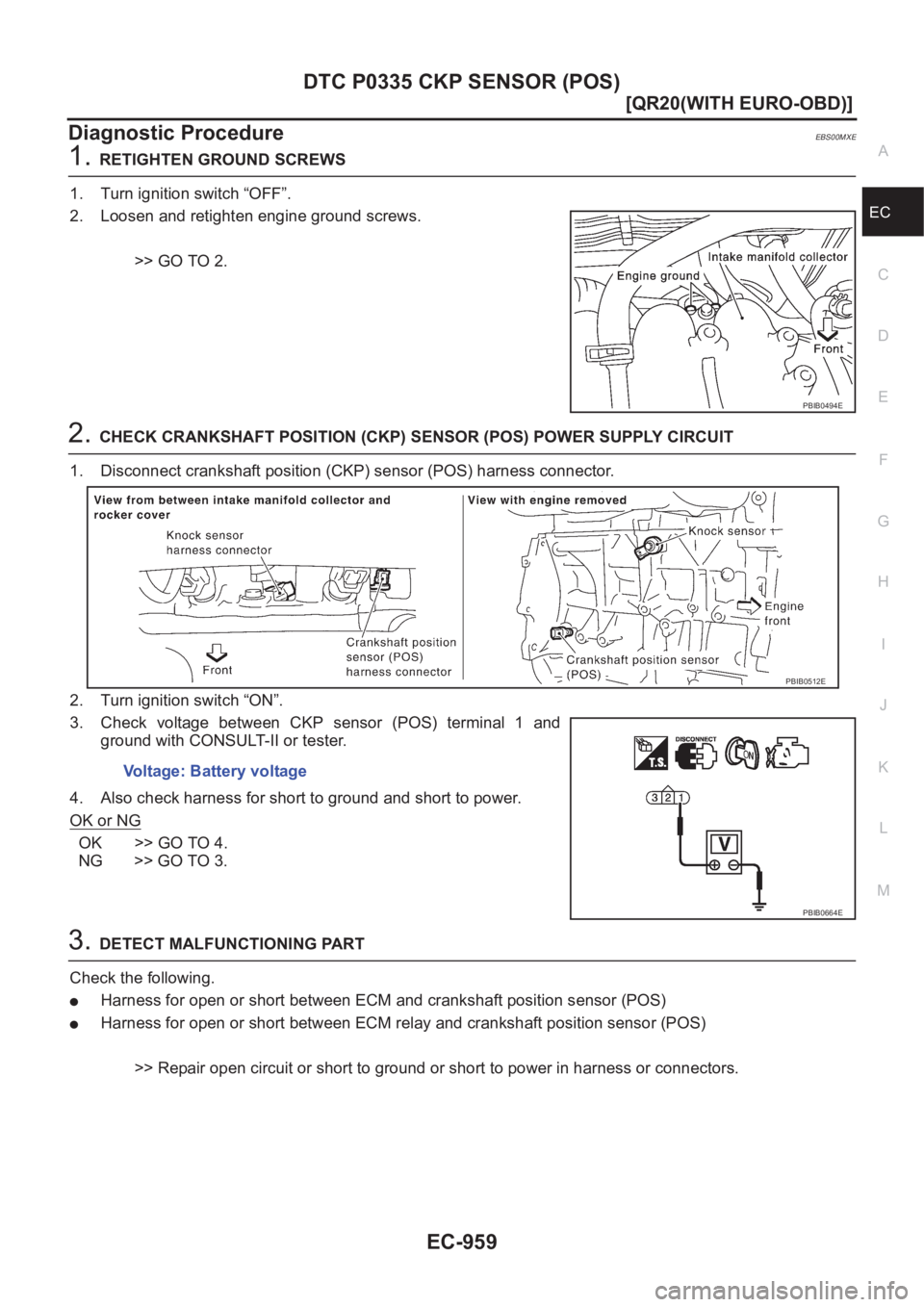

1.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
2.CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position (CKP) sensor (POS) harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between CKP sensor (POS) terminal 1 and
ground with CONSULT-II or tester.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
●Harness for open or short between ECM and crankshaft position sensor (POS)
●Harness for open or short between ECM relay and crankshaft position sensor (POS)
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0494E
Voltage: Battery voltage
PBIB0512E
PBIB0664E

EC-960
[QR20(WITH EURO-OBD)]
DTC P0335 CKP SENSOR (POS)

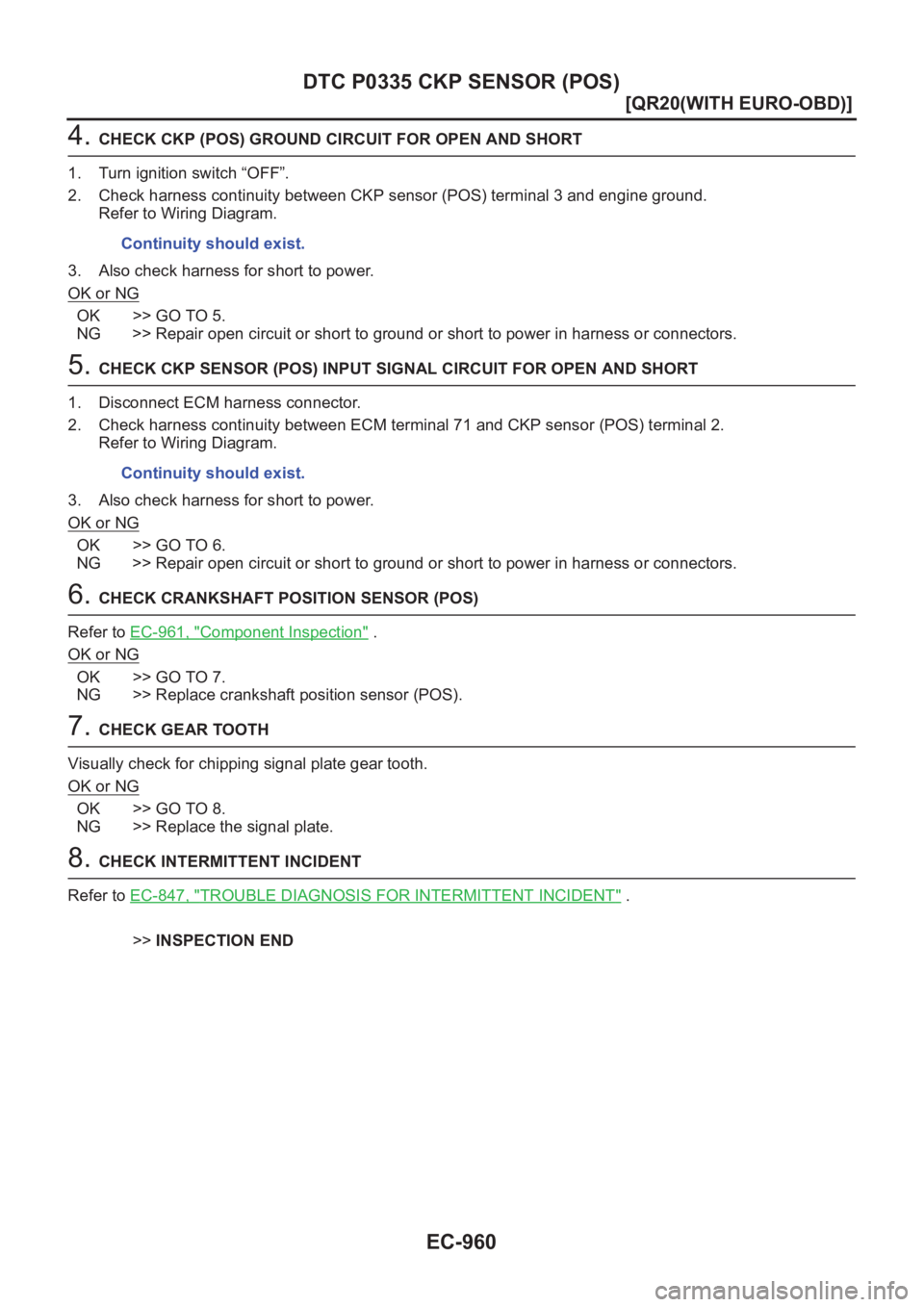

4. CHECK CKP (POS) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between CKP sensor (POS) terminal 3 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 71 and CKP sensor (POS) terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-961, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace crankshaft position sensor (POS).
7. CHECK GEAR TOOTH
Visually check for chipping signal plate gear tooth.
OK or NG
OK >> GO TO 8.
NG >> Replace the signal plate.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-847, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.

DTC P0335 CKP SENSOR (POS)
EC-961
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

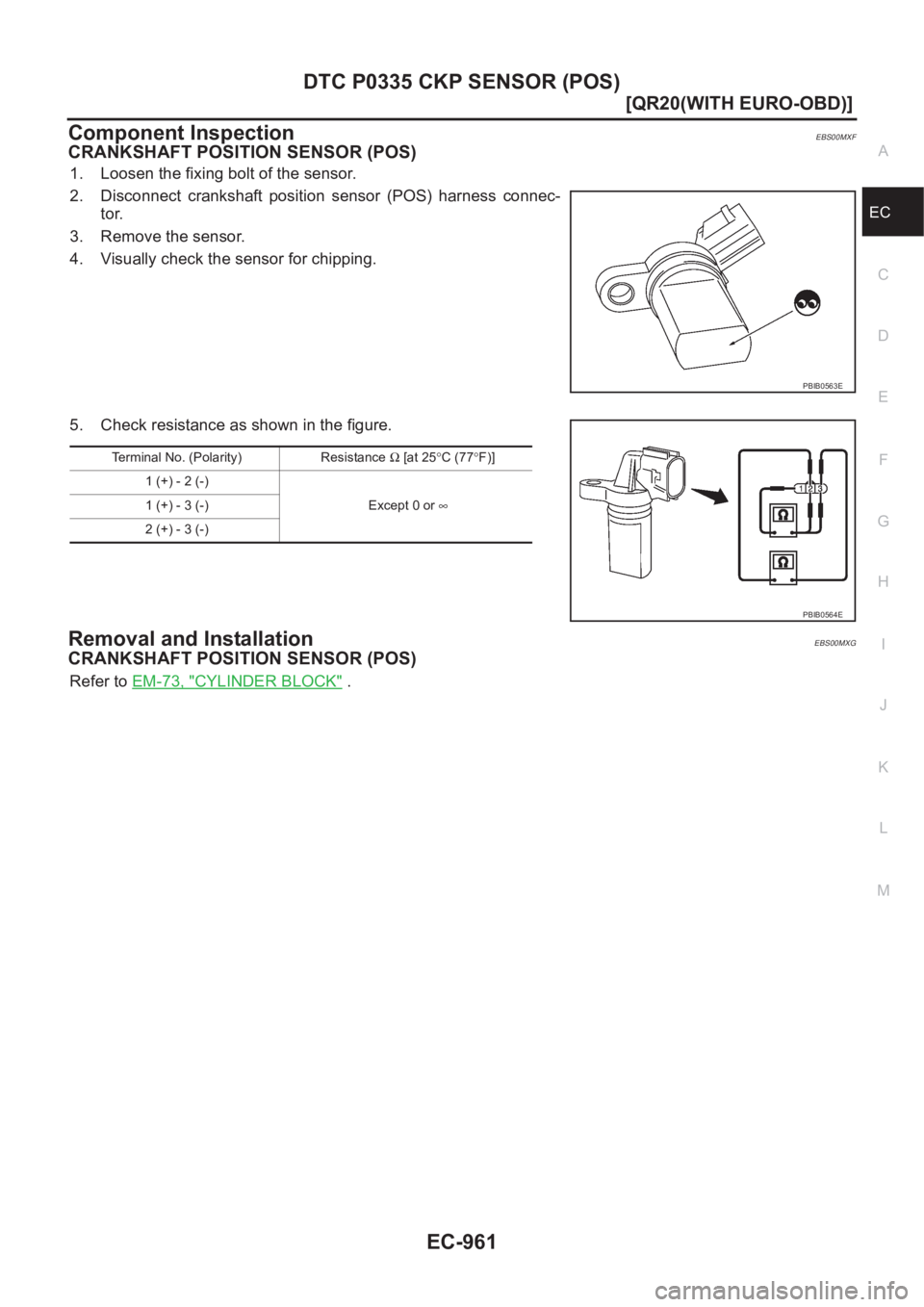

Component InspectionEBS00MXF
CRANKSHAFT POSITION SENSOR (POS)
1. Loosen the fixing bolt of the sensor.
2. Disconnect crankshaft position sensor (POS) harness connec-
tor.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
Removal and InstallationEBS00MXG
CRANKSHAFT POSITION SENSOR (POS)
Refer to EM-73, "CYLINDER BLOCK" .
PBIB0563E
Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
1 (+) - 2 (-)
Except 0 or ∞ 1 (+) - 3 (-)
2 (+) - 3 (-)
PBIB0564E

EC-962
[QR20(WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
DTC P0340 CMP SENSOR (PHASE)
PFP:23731
Component DescriptionEBS00MXH

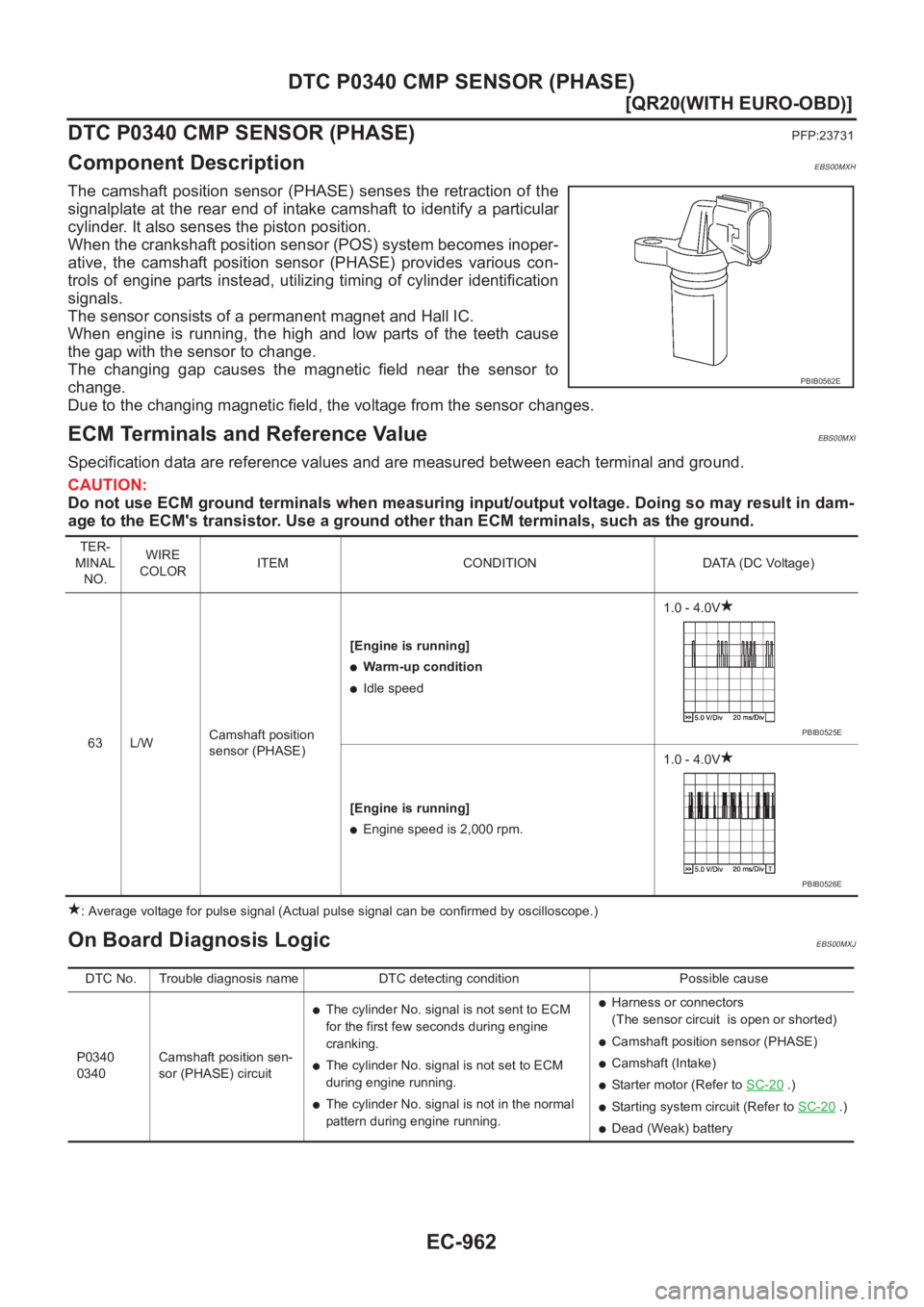

The camshaft position sensor (PHASE) senses the retraction of the
signalplate at the rear end of intake camshaft to identify a particular
cylinder. It also senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
ECM Terminals and Reference ValueEBS00MXI
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS00MXJ
PBIB0562E
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
63 L/WCamshaft position
sensor (PHASE)[Engine is running]
●Warm-up condition
●Idle speed1.0 - 4.0V
[Engine is running]
●Engine speed is 2,000 rpm.1.0 - 4.0V
PBIB0525E
PBIB0526E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340Camshaft position sen-
sor (PHASE) circuit
●The cylinder No. signal is not sent to ECM
for the first few seconds during engine
cranking.
●The cylinder No. signal is not set to ECM
during engine running.
●The cylinder No. signal is not in the normal
pattern during engine running.
●Harness or connectors
(The sensor circuit is open or shorted)
●Camshaft position sensor (PHASE)
●Camshaft (Intake)
●Starter motor (Refer to SC-20 .)
●Starting system circuit (Refer to SC-20 .)
●Dead (Weak) battery

DTC P0340 CMP SENSOR (PHASE)
EC-963
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

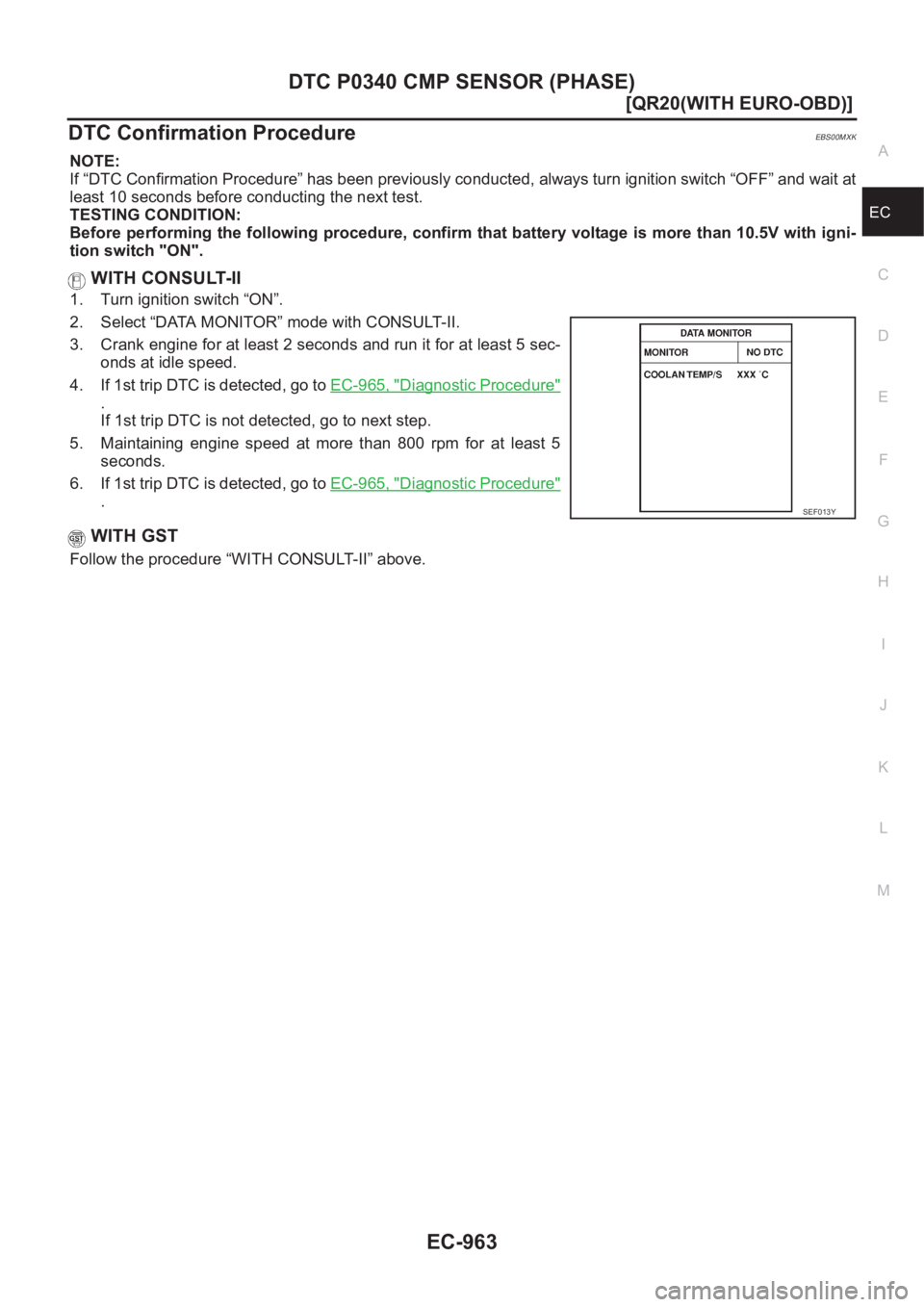

DTC Confirmation ProcedureEBS00MXK
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch "ON".
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.
4. If 1st trip DTC is detected, go to EC-965, "
Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to next step.
5. Maintaining engine speed at more than 800 rpm for at least 5
seconds.
6. If 1st trip DTC is detected, go to EC-965, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF013Y

EC-964
[QR20(WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)

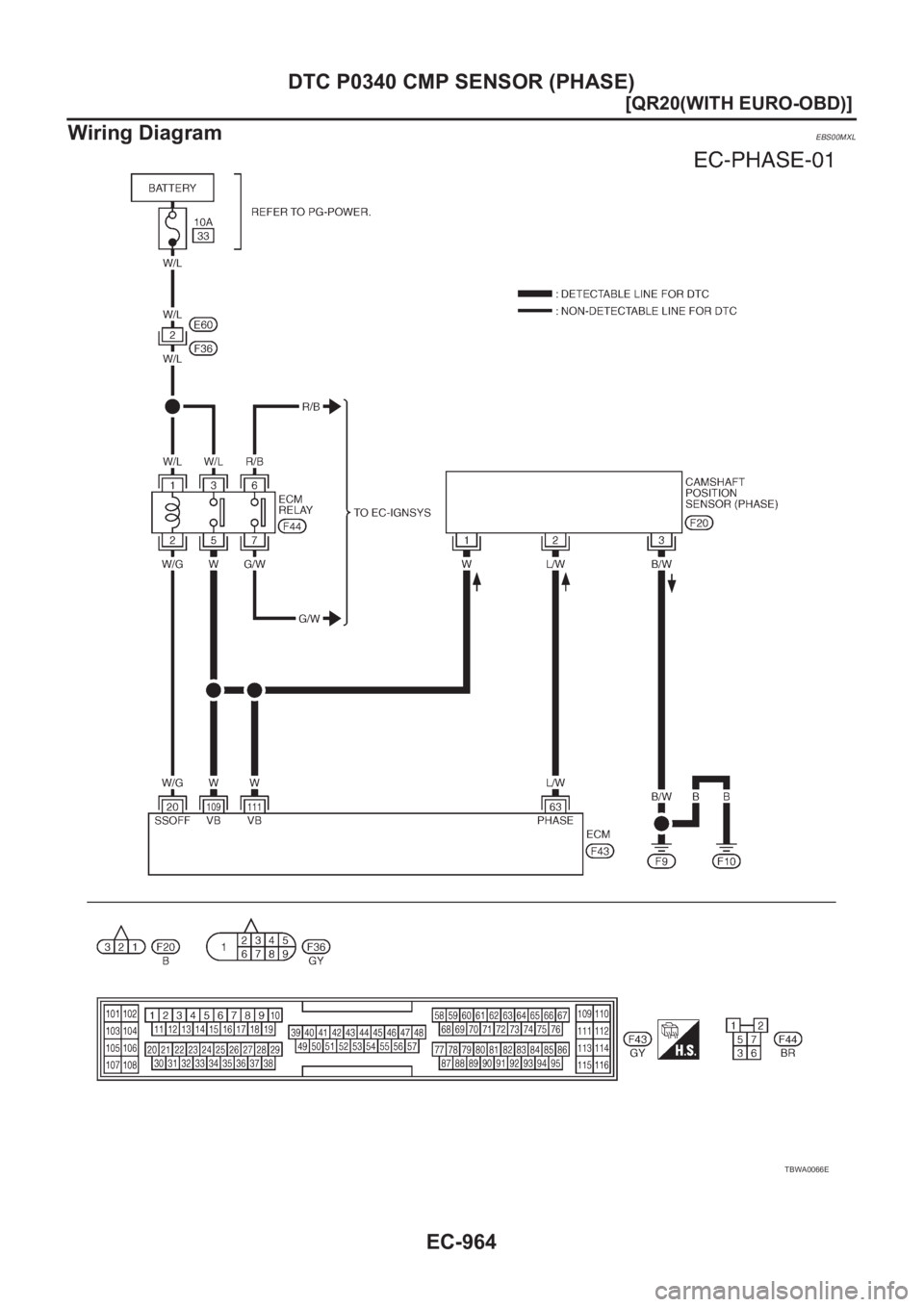

Wiring Diagram
EBS00MXL
TBWA0066E
