2001 NISSAN X-TRAIL sensor

EC-584
[QR25(WITHOUT EURO-OBD)]
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
PFP:16119
DescriptionEBS00NHK
Electric Throttle Control Actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.
On Board Diagnosis LogicEBS00NHL
FAIL-SAFE MODE
When the malfunction A or B is detected in the two consecutive trips, the ECM enters fail-safe mode and the
MI lights up.
When the malfunction C is detected even in the 1st trip, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00NHM
NOTE:
●Perform “PROCEDURE FOR MALFUNCTION A AND B” first. If the 1st trip DTC cannot be con-
firmed, perform “PROCEDURE FOR MALFUNCTION C”.
If there is no malfunction on “PROCEDURE FOR MALFUNCTION A AND B”, perform “PROCE-
DURE FOR MALFUNCTION C”.
●If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and
wait at least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A AND B
With CONSULT-II
1. Turn ignition witch “ON” and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Shift selector lever to “D” position (A/T), “1st” position (M/T) and
wait at least 2 seconds.
4. Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.
5. If 1st trip DTC is detected, go to EC-585, "
Diagnostic Procedure"
.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1121
11 2 1Electric throttle control
actuatorA)Electric throttle control actuator does not func-
tion properly due to the return spring malfunc-
tion.
●Electric throttle control actuator B)Throttle valve opening angle in fail-safe mode is
not in specified range.
C)ECM detects the throttle valve is stuck open.
This self-diagnosis has the one trip detec-
tion logic.
Detected items Engine operating condition in fail-safe mode
Malfunction AThe ECM controls the electric throttle actuator by regulating the throttle opening around the idle position.
The engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction CWhile the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in “N” or “P” position, and engine speed will not exceed 1,000 rpm or more.
SEF058Y

EC-586
[QR25(WITHOUT EURO-OBD)]
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
PFP:16119
DescriptionEBS00NHO
NOTE:
If DTC P1122 is displayed with DTC P1121 or 1126, first perform the trouble diagnosis for DTC P1121 or
P1126. Refer to EC-584
or EC-593 .
Electric Throttle Control Actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
CONSULT-II Reference Value in Data Monitor ModeEBS00NHP
Specification data are reference values.
ECM Terminals and Reference ValueEBS00NHQ
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) MONITOR ITEM CONDITION SPECIFICATION
THRTL RELAY
●Ignition switch: ON ON
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11 2 W / RThrottle control motor
relay[Ignition switch “OFF”]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]0 - 1.0V
11 3 W / BThrottle control motor
relay power supply[Ignition switch “ON”]BATTERY VOLTAGE
(11 - 14V)
11 4 RThrottle control motor
(Open)[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal is depressing0 - 14V
11 5 B / YThrottle control motor
ground[Engine is running]
●Idle speedApproximately 0V
11 6 GThrottle control motor
(Close)[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal is releasing0 - 14V
PBIB0533E
PBIB0534E

EC-598
[QR25(WITHOUT EURO-OBD)]
DTC P1128 THROTTLE CONTROL MOTOR
DTC P1128 THROTTLE CONTROL MOTOR
PFP:16119
Component DescriptionEBS00NI4
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
ECM Terminals and Reference ValueEBS00NI5
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS00NI6
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00NI7
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11 4 RThrottle control motor
(Open)[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal is depressing0 - 14V
11 5 B / YThrottle control motor
ground[Engine is running]
●Idle speedApproximately 0V
11 6 GThrottle control motor
(Close)[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal is releasing0 - 14V
PBIB0533E
PBIB0534E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1128
11 2 8Throttle control motor
circuit shortECM detects short in both circuits between
ECM and throttle control motor.
●Harness or connectors
(Throttle control motor circuit is shorted.)
●Electric throttle control actuator
(Throttle control motor)
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.

DTC P1217 ENGINE OVER TEMPERATURE
EC-603
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
System DescriptionEBS00NIC
COOLING FAN CONTROL
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS00NID
Specification data are reference values.
Sensor Input Signal to PCMECM func-
tionActuator
Wheel sensor Vehicle speed
Cooling
fan controlCooling fan relay(s) Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch Air conditioner “ON” signal
Ignition switch Start signal
Refrigerant pressure sensor Refrigerant pressure
PBIB0576E
MONITOR ITEM CONDITION SPECIFICATION
AIR COND SIG
●Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON

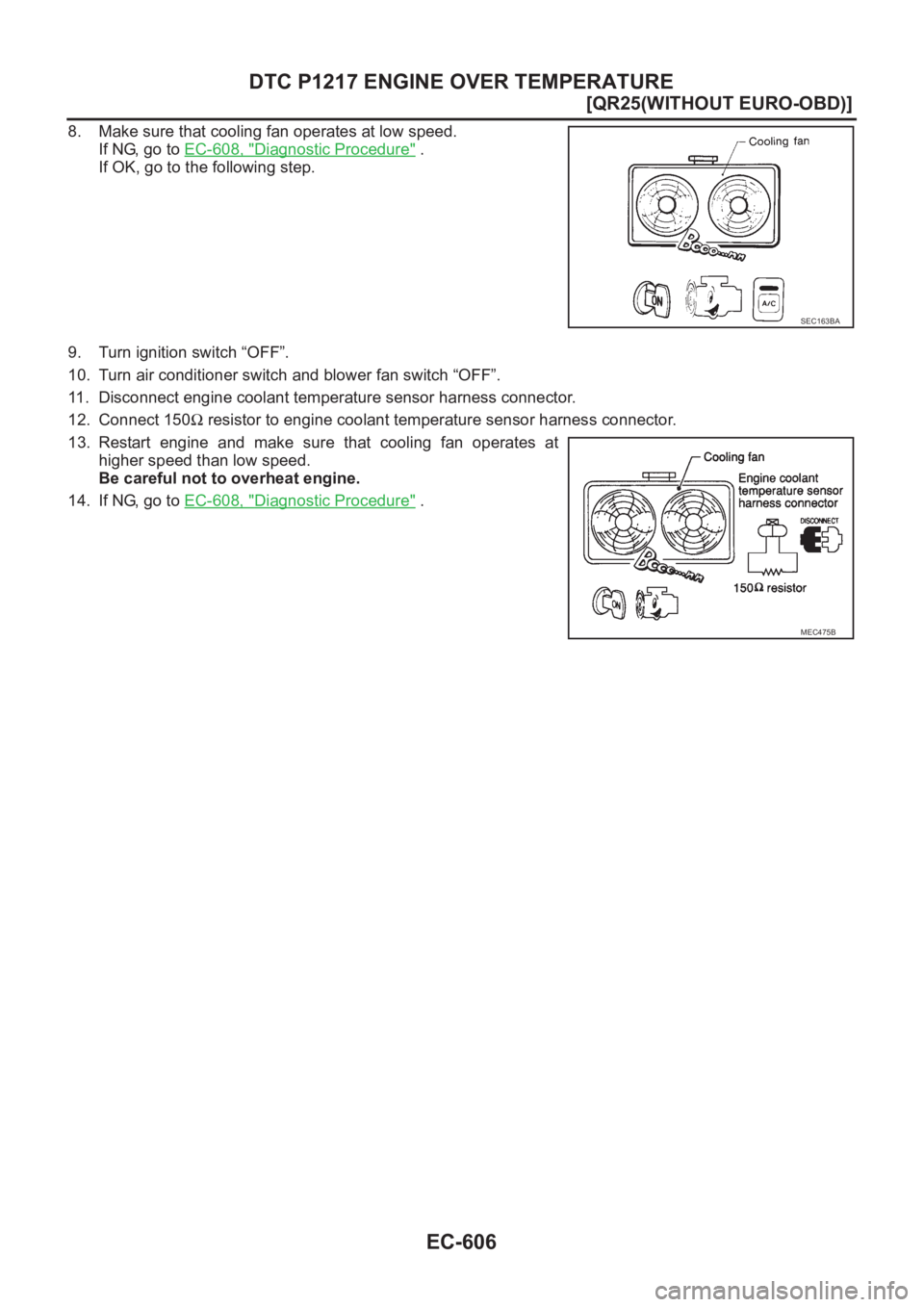

EC-606
[QR25(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
8. Make sure that cooling fan operates at low speed.
If NG, go to EC-608, "
Diagnostic Procedure" .
If OK, go to the following step.
9. Turn ignition switch “OFF”.
10. Turn air conditioner switch and blower fan switch “OFF”.
11. Disconnect engine coolant temperature sensor harness connector.
12. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
13. Restart engine and make sure that cooling fan operates at
higher speed than low speed.
Be careful not to overheat engine.
14. If NG, go to EC-608, "
Diagnostic Procedure" .
SEC163BA
MEC475B

DTC P1217 ENGINE OVER TEMPERATURE

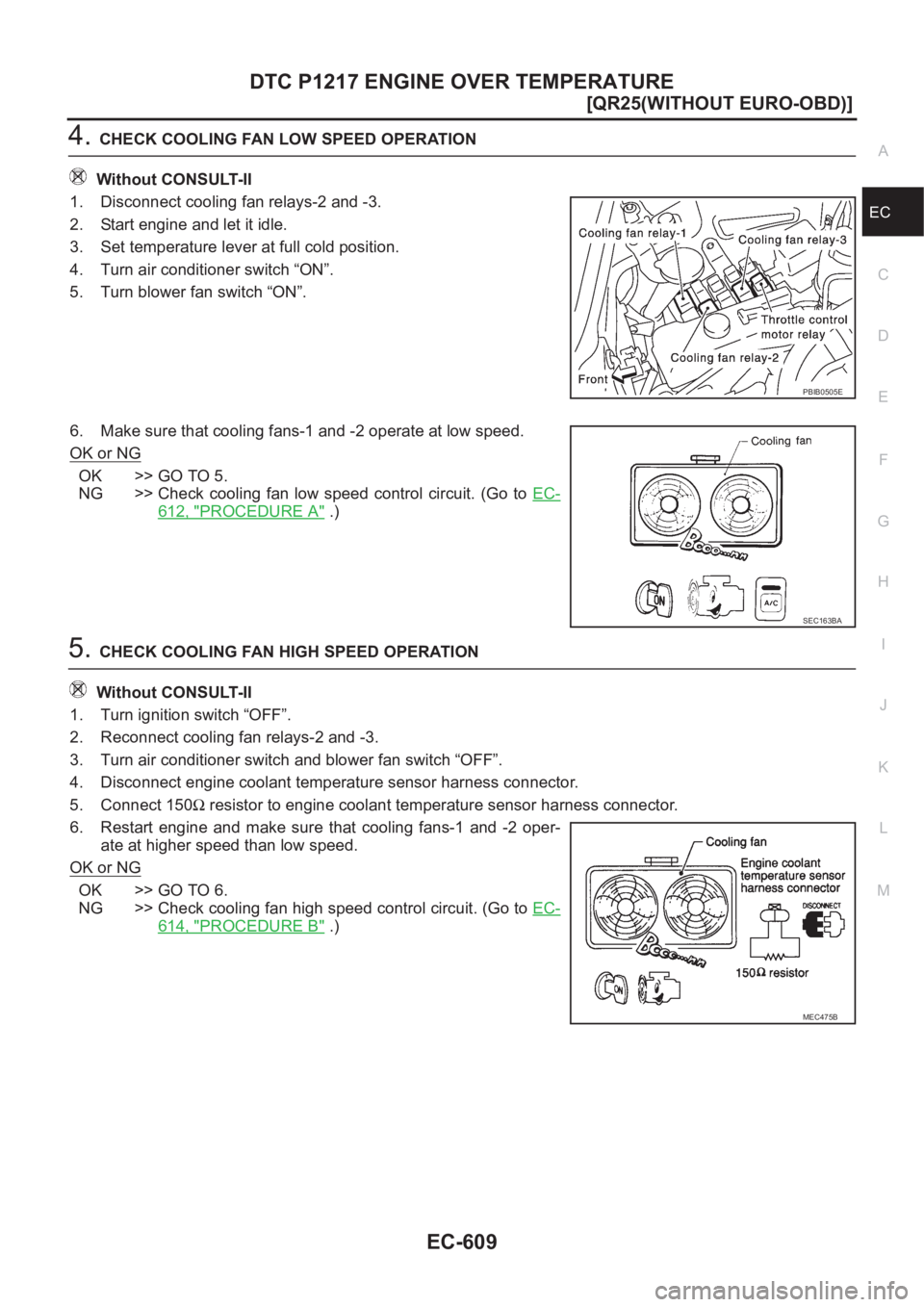

EC-609
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-II
1. Disconnect cooling fan relays-2 and -3.
2. Start engine and let it idle.
3. Set temperature lever at full cold position.
4. Turn air conditioner switch “ON”.
5. Turn blower fan switch “ON”.
6. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 5.
NG >> Check cooling fan low speed control circuit. (Go to EC-
612, "PROCEDURE A" .)
5.CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch “OFF”.
4. Disconnect engine coolant temperature sensor harness connector.
5. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
6. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
614, "PROCEDURE B" .)
PBIB0505E
SEC163BA
MEC475B

EC-610
[QR25(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
6. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 7.
NG >> Check the following for leak
●Hose
●Radiator
●Water pump
Refer to CO-18, "
WATER PUMP" .
7. CHECK RADIATOR CAP
Apply pressure to cap with a tester.
OK or NG
OK >> GO TO 8.
NG >> Replace radiator cap.
8. CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check valve opening temperature and valve lift.
3. Check if valve is closed at 5°C (9°F) below valve opening tem-
perature.
For details, refer to CO-20, "
THERMOSTAT AND WATER CON-
TROL VALVE" .
OK or NG
OK >> GO TO 9.
NG >> Replace thermostat
9. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-527, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace engine coolant temperature sensor.Testing pressure:157 kPa (1.57 bar, 1.6 kg/cm
2 , 23
psi)
SLC754A
Radiator cap relief pressure: 59 - 98 kPa (0.59 - 0.98 bar,
0.6 - 1.0 kg/cm
2 , 9 - 14 psi)
SLC755A
Valve opening temperature: 82°C (180°F) [standard]
Valve lift: More than 8 mm/95°C
(0.31 in/203°F)
SLC343

DTC P1225 TP SENSOR

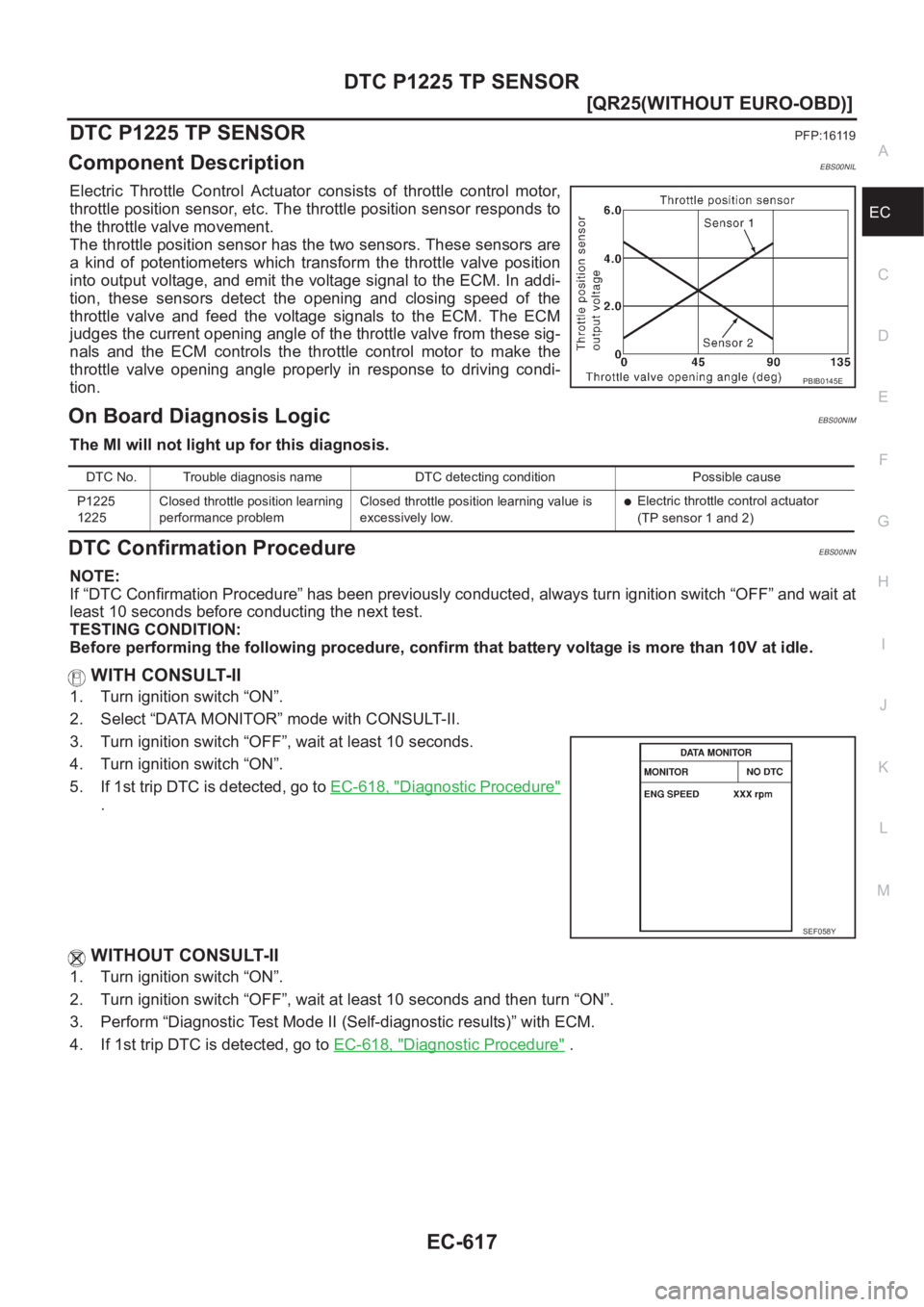

EC-617
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1225 TP SENSORPFP:16119
Component DescriptionEBS00NIL
Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicEBS00NIM
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureEBS00NIN
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch “OFF”, wait at least 10 seconds.
4. Turn ignition switch “ON”.
5. If 1st trip DTC is detected, go to EC-618, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Turn ignition switch “ON”.
2. Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.
3. Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.
4. If 1st trip DTC is detected, go to EC-618, "
Diagnostic Procedure" .
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1225
1225Closed throttle position learning
performance problemClosed throttle position learning value is
excessively low.
●Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y
