2001 NISSAN X-TRAIL App sensor

EC-1240
[QR20(WITHOUT EURO-OBD)]

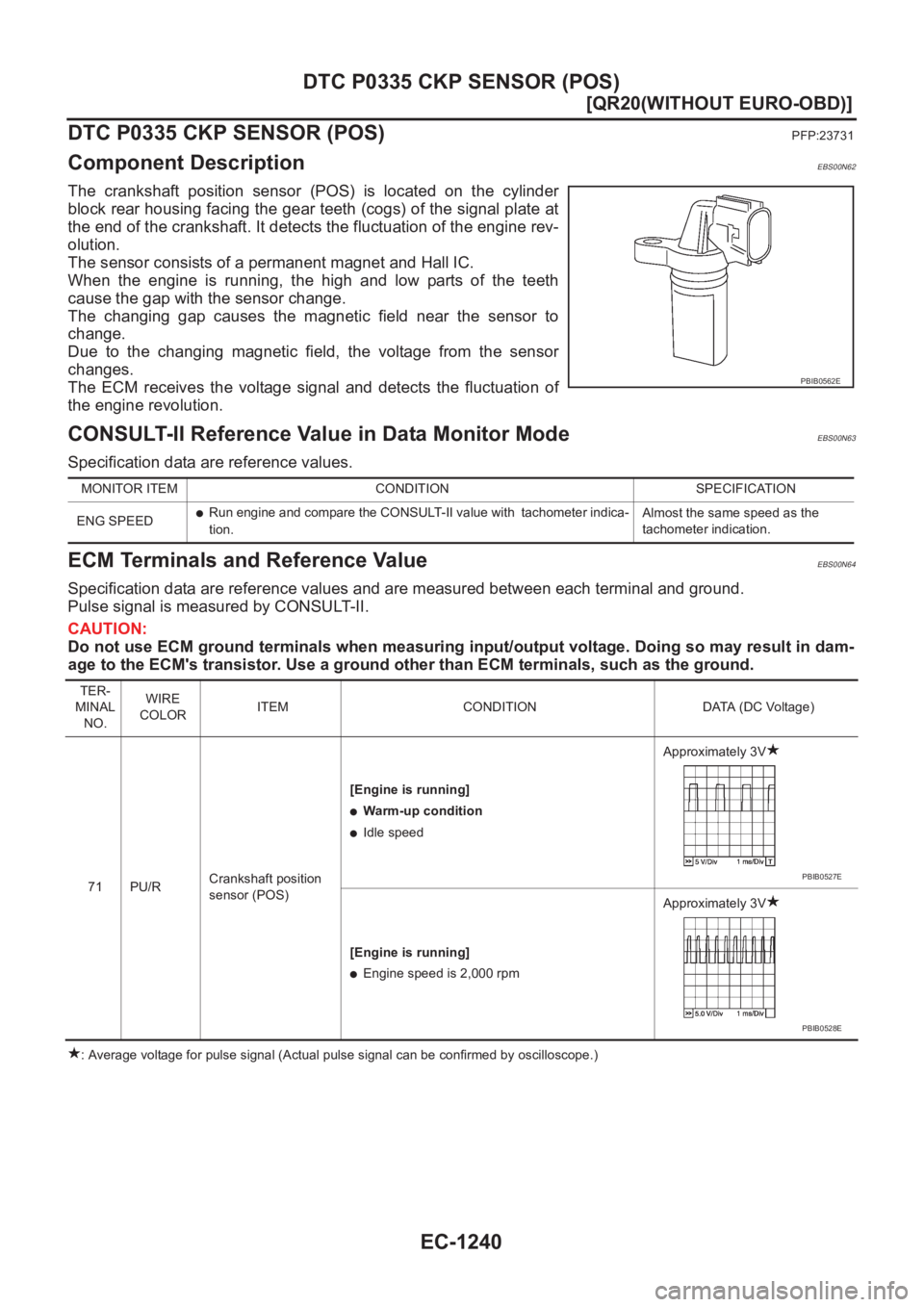

DTC P0335 CKP SENSOR (POS)
DTC P0335 CKP SENSOR (POS)
PFP:23731
Component DescriptionEBS00N62
The crankshaft position sensor (POS) is located on the cylinder
block rear housing facing the gear teeth (cogs) of the signal plate at
the end of the crankshaft. It detects the fluctuation of the engine rev-
olution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
CONSULT-II Reference Value in Data Monitor ModeEBS00N63
Specification data are reference values.
ECM Terminals and Reference ValueEBS00N64
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
PBIB0562E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
●Run engine and compare the CONSULT-II value with tachometer indica-
tion.Almost the same speed as the
tachometer indication.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
71 PU/RCrankshaft position
sensor (POS)[Engine is running]
●Warm-up condition
●Idle speedApproximately 3V
[Engine is running]
●Engine speed is 2,000 rpmApproximately 3V
PBIB0527E
PBIB0528E

EC-1252
[QR20(WITHOUT EURO-OBD)]

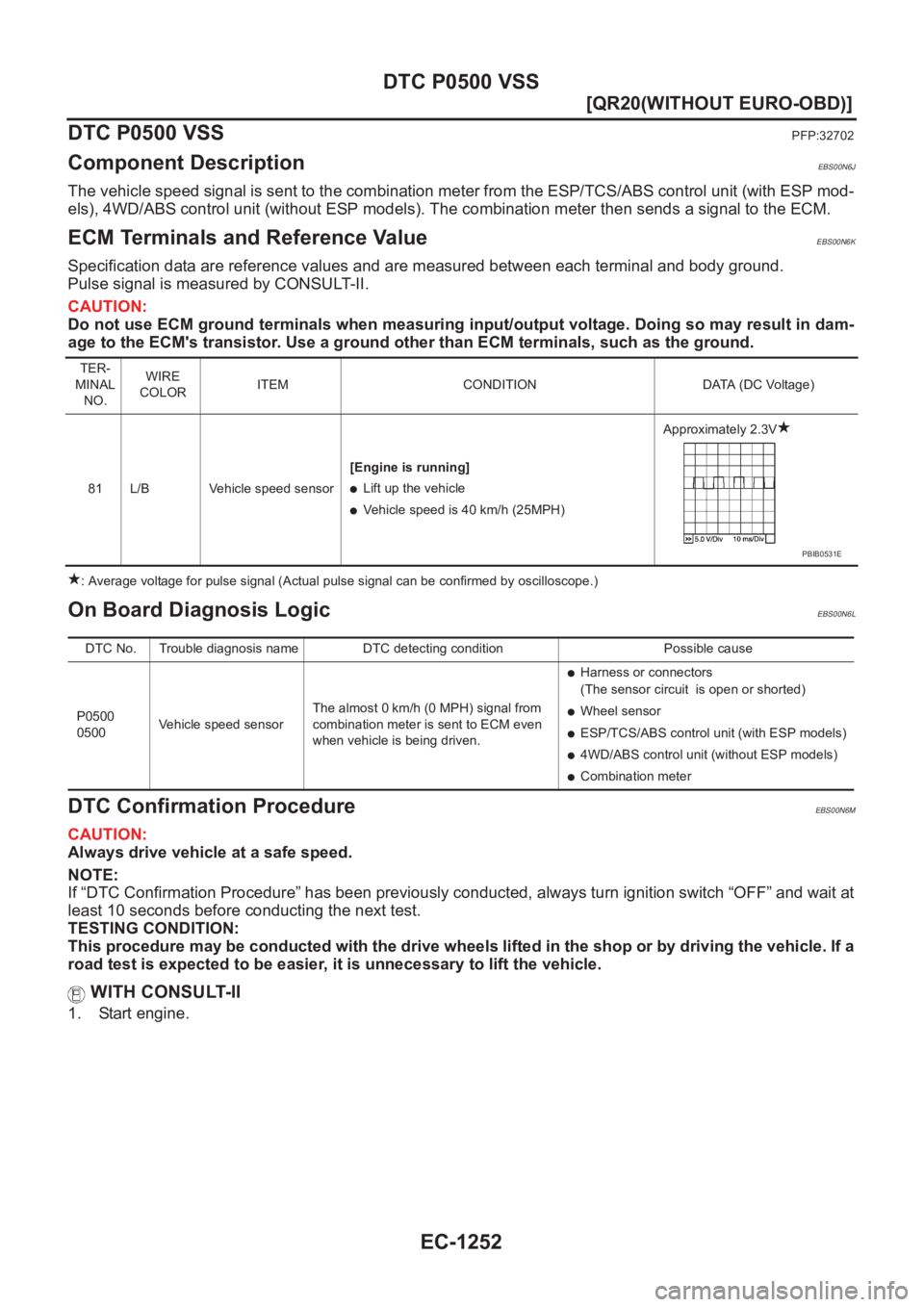

DTC P0500 VSS
DTC P0500 VSS
PFP:32702
Component DescriptionEBS00N6J
The vehicle speed signal is sent to the combination meter from the ESP/TCS/ABS control unit (with ESP mod-
els), 4WD/ABS control unit (without ESP models). The combination meter then sends a signal to the ECM.
ECM Terminals and Reference ValueEBS00N6K
Specification data are reference values and are measured between each terminal and body ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS00N6L
DTC Confirmation ProcedureEBS00N6M
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
81 L/B Vehicle speed sensor[Engine is running]
●Lift up the vehicle
●Vehicle speed is 40 km/h (25MPH)Approximately 2.3V
PBIB0531E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0500
0500Vehicle speed sensorThe almost 0 km/h (0 MPH) signal from
combination meter is sent to ECM even
when vehicle is being driven.
●Harness or connectors
(The sensor circuit is open or shorted)
●Wheel sensor
●ESP/TCS/ABS control unit (with ESP models)
●4WD/ABS control unit (without ESP models)
●Combination meter

DTC P0550 PSP SENSOR
EC-1257
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

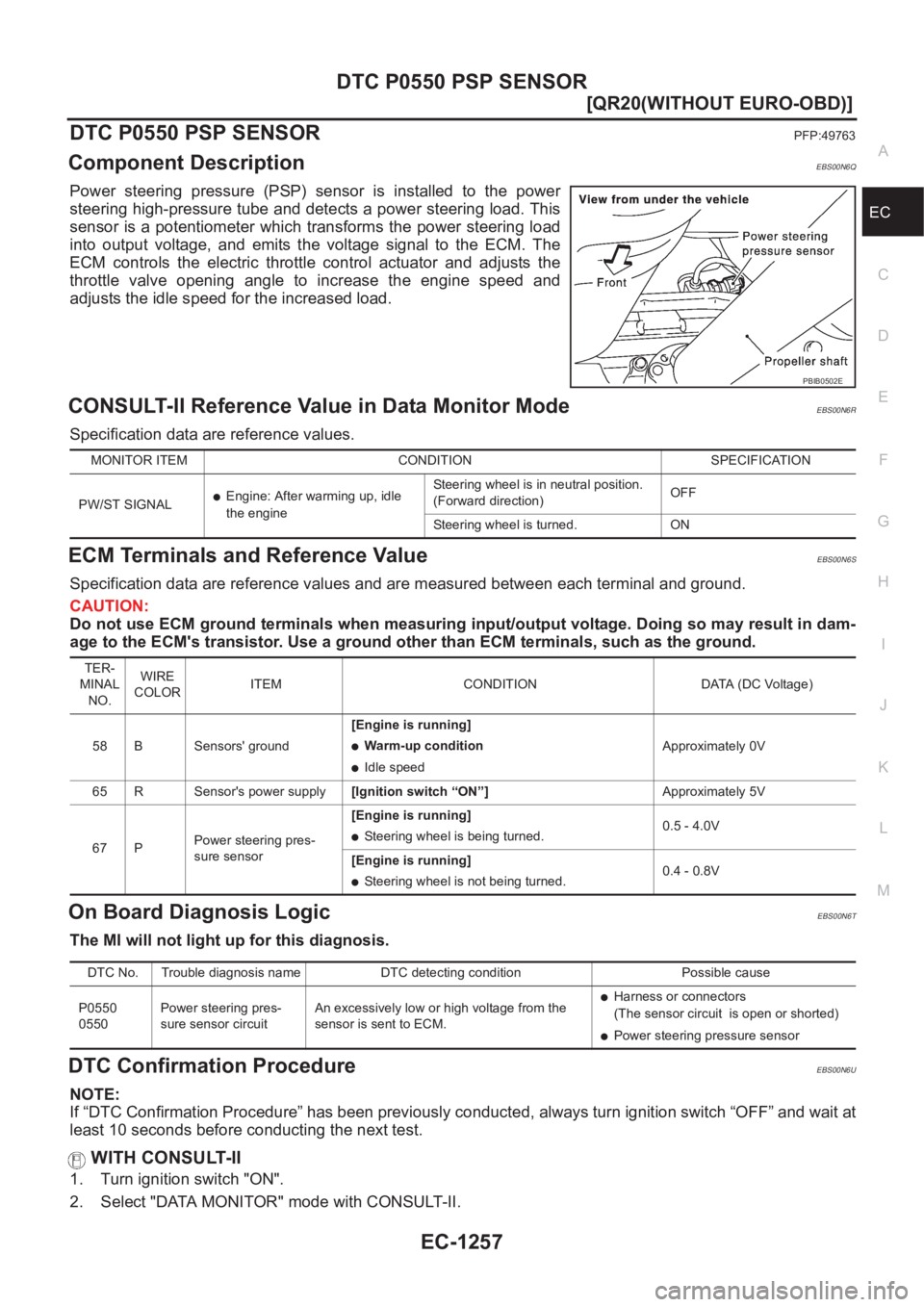

DTC P0550 PSP SENSORPFP:49763
Component DescriptionEBS00N6Q
Power steering pressure (PSP) sensor is installed to the power
steering high-pressure tube and detects a power steering load. This
sensor is a potentiometer which transforms the power steering load
into output voltage, and emits the voltage signal to the ECM. The
ECM controls the electric throttle control actuator and adjusts the
throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.
CONSULT-II Reference Value in Data Monitor ModeEBS00N6R
Specification data are reference values.
ECM Terminals and Reference ValueEBS00N6S
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00N6T
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureEBS00N6U
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.
PBIB0502E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL
●Engine: After warming up, idle
the engineSteering wheel is in neutral position.
(Forward direction)OFF
Steering wheel is turned. ON
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
65 R Sensor's power supply[Ignition switch “ON”]Approximately 5V
67 PPower steering pres-
sure sensor[Engine is running]
●Steering wheel is being turned.0.5 - 4.0V
[Engine is running]
●Steering wheel is not being turned.0.4 - 0.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0550
0550Power steering pres-
sure sensor circuitAn excessively low or high voltage from the
sensor is sent to ECM.
●Harness or connectors
(The sensor circuit is open or shorted)
●Power steering pressure sensor

EC-1260
[QR20(WITHOUT EURO-OBD)]
DTC P0550 PSP SENSOR

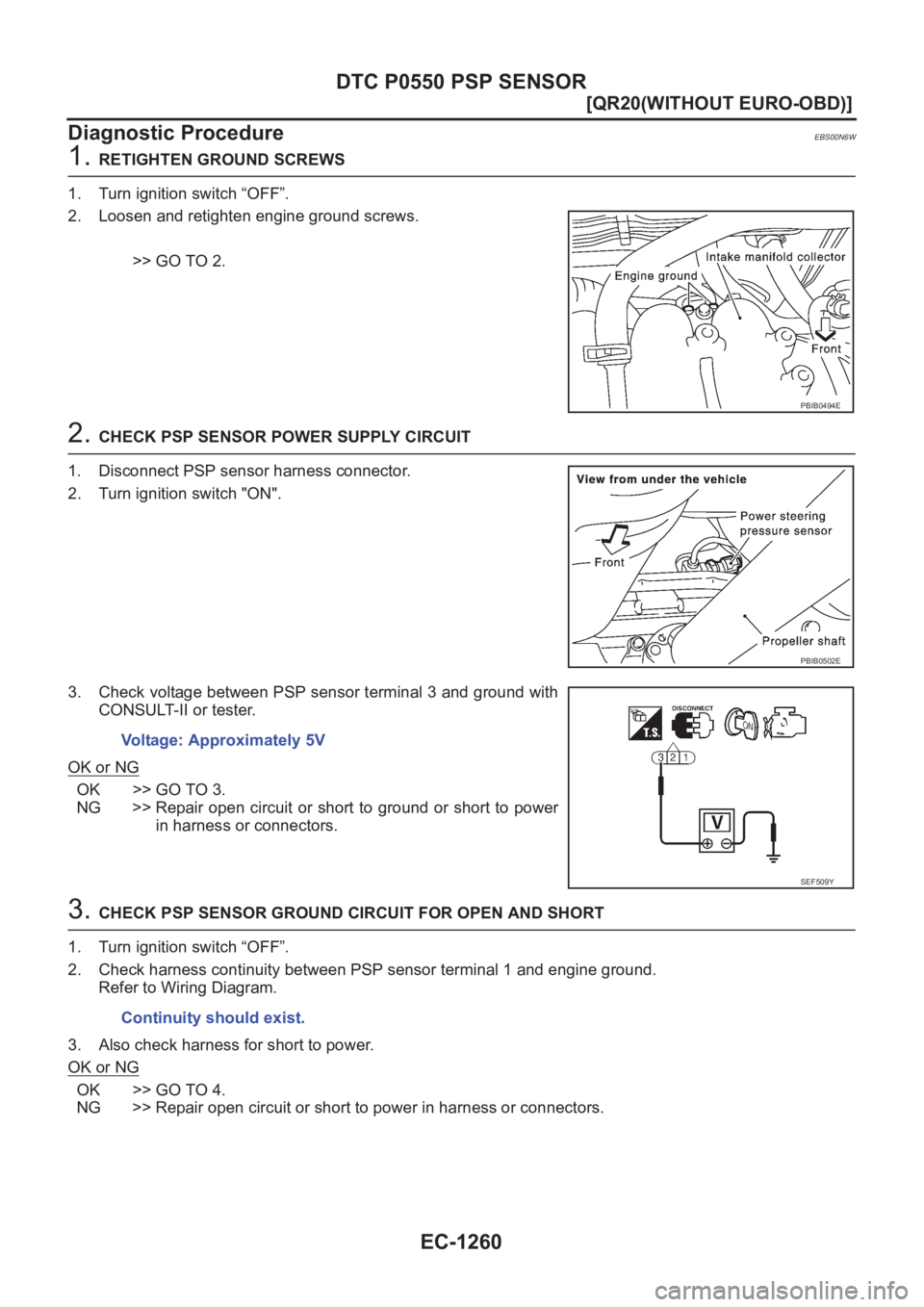

Diagnostic Procedure
EBS00N6W
1. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect PSP sensor harness connector.
2. Turn ignition switch "ON".
3. Check voltage between PSP sensor terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK PSP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between PSP sensor terminal 1 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to power in harness or connectors.
PBIB0494E
PBIB0502E
Voltage: Approximately 5V
SEF509Y
Continuity should exist.

DTC P0550 PSP SENSOR
EC-1261
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

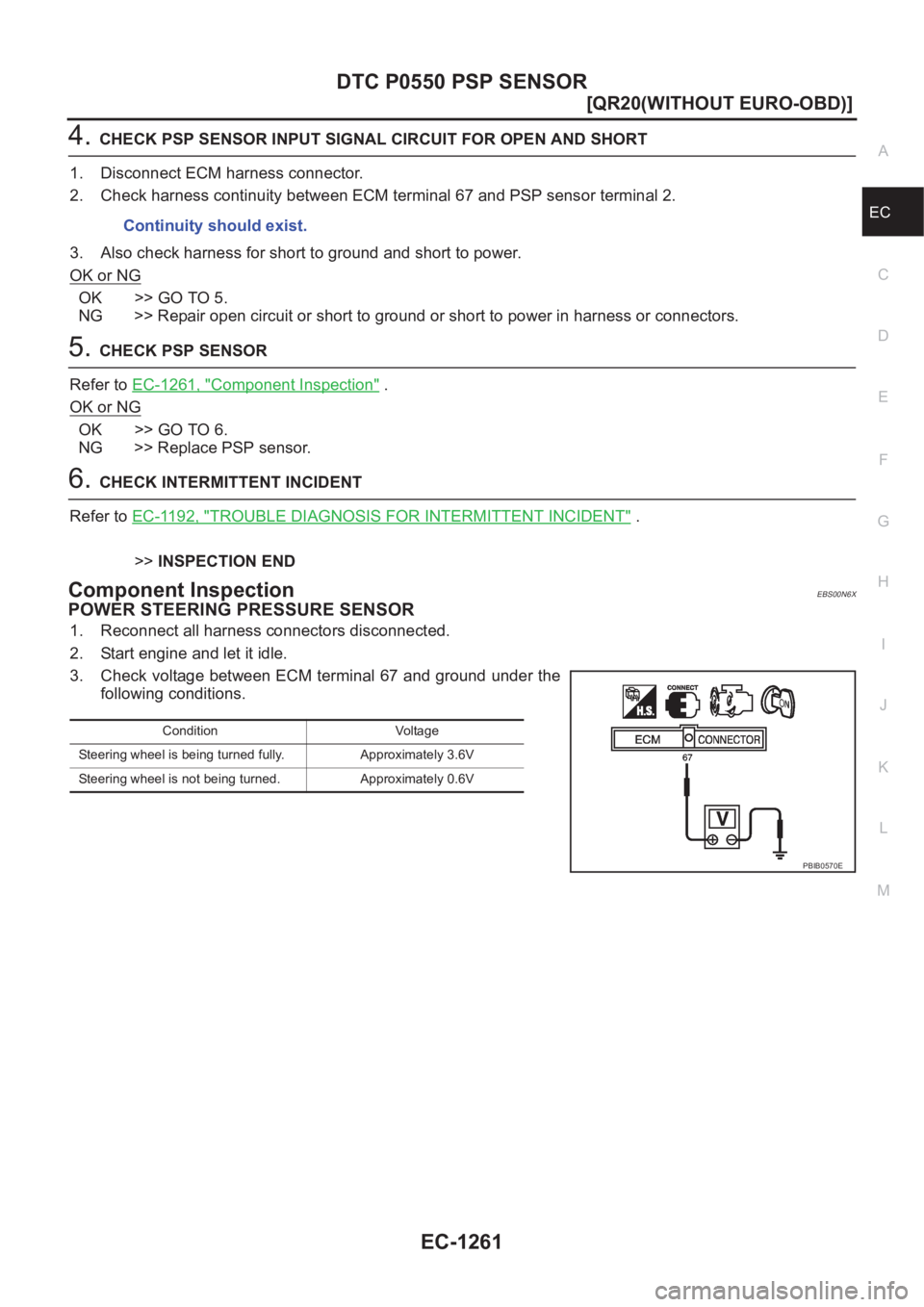

4.CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 67 and PSP sensor terminal 2.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK PSP SENSOR
Refer to EC-1261, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace PSP sensor.
6.CHECK INTERMITTENT INCIDENT
Refer to EC-1192, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00N6X
POWER STEERING PRESSURE SENSOR
1. Reconnect all harness connectors disconnected.
2. Start engine and let it idle.
3. Check voltage between ECM terminal 67 and ground under the
following conditions.Continuity should exist.
Condition Voltage
Steering wheel is being turned fully. Approximately 3.6V
Steering wheel is not being turned. Approximately 0.6V
PBIB0570E

DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
EC-1275
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

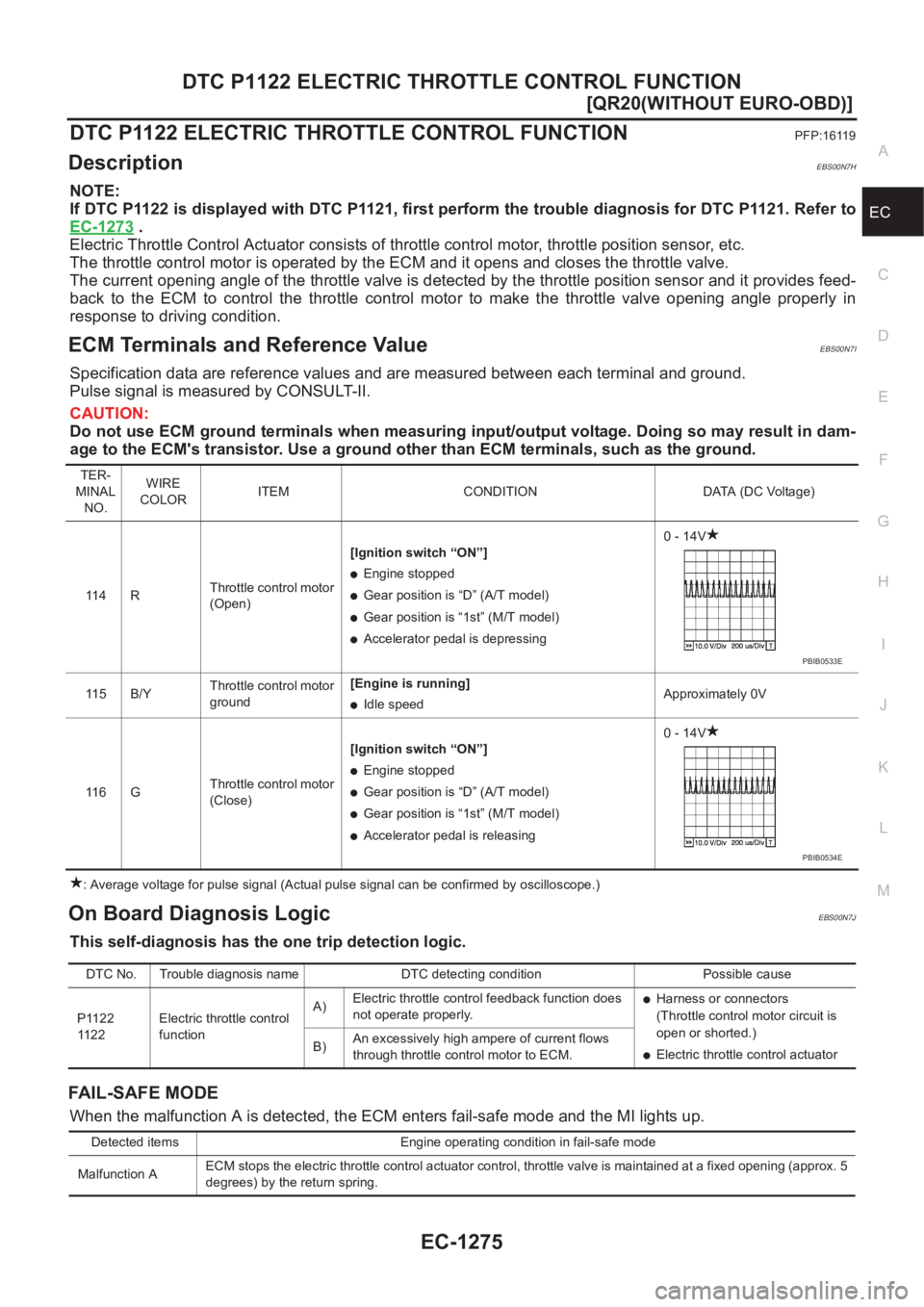

DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTIONPFP:16119
DescriptionEBS00N7H
NOTE:
If DTC P1122 is displayed with DTC P1121, first perform the trouble diagnosis for DTC P1121. Refer to
EC-1273
.
Electric Throttle Control Actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
ECM Terminals and Reference ValueEBS00N7I
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS00N7J
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction A is detected, the ECM enters fail-safe mode and the MI lights up.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11 4 RThrottle control motor
(Open)[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal is depressing0 - 14V
11 5 B / YThrottle control motor
ground[Engine is running]
●Idle speedApproximately 0V
11 6 GThrottle control motor
(Close)[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal is releasing0 - 14V
PBIB0533E
PBIB0534E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1122
11 2 2Electric throttle control
functionA)Electric throttle control feedback function does
not operate properly.
●Harness or connectors
(Throttle control motor circuit is
open or shorted.)
●Electric throttle control actuator B)An excessively high ampere of current flows
through throttle control motor to ECM.
Detected items Engine operating condition in fail-safe mode
Malfunction AECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5
degrees) by the return spring.

EC-1294
[QR20(WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

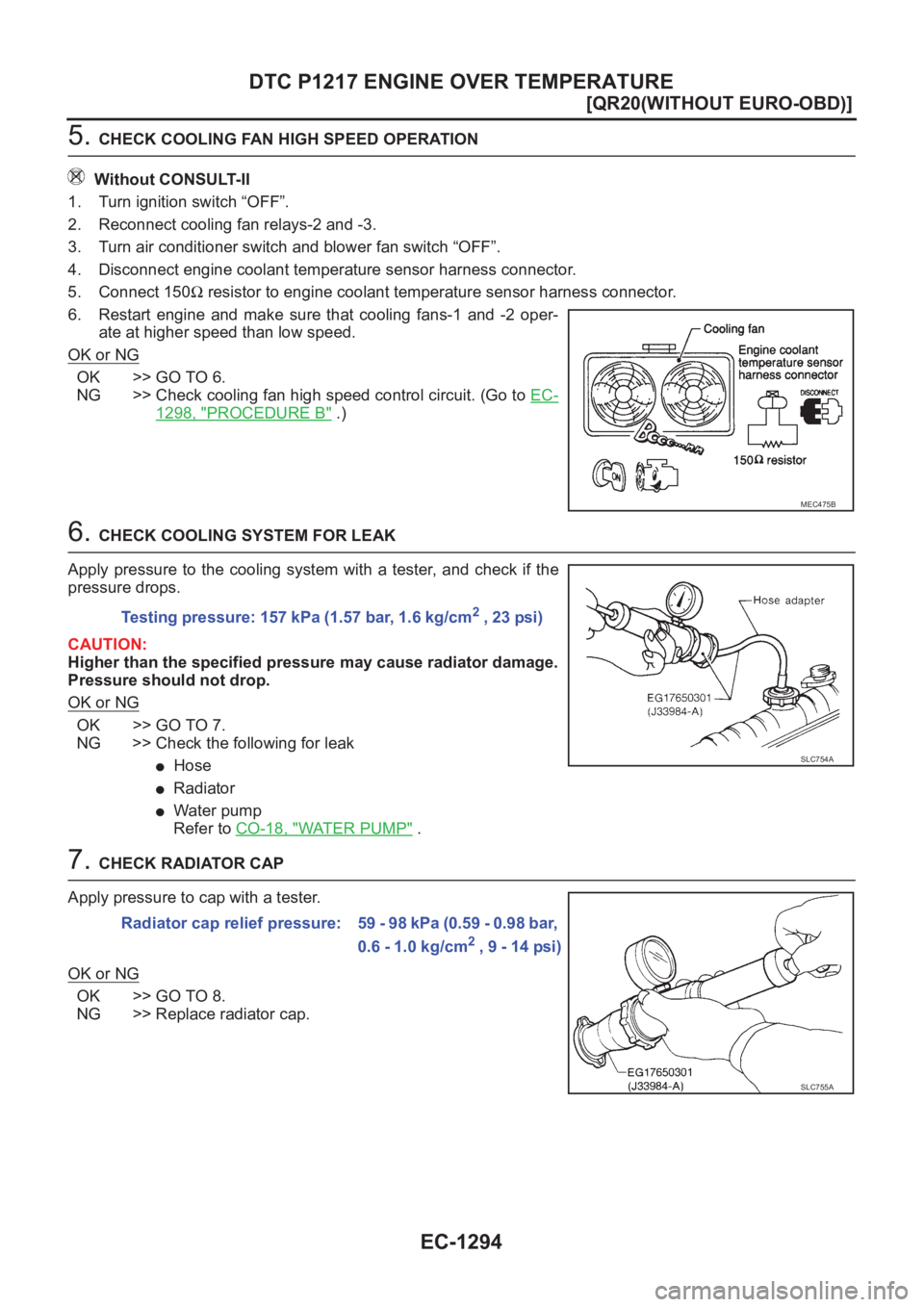

5. CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch “OFF”.
4. Disconnect engine coolant temperature sensor harness connector.
5. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
6. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
1298, "PROCEDURE B" .)
6. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 7.
NG >> Check the following for leak
●Hose
●Radiator
●Water pump
Refer to CO-18, "
WATER PUMP" .
7. CHECK RADIATOR CAP
Apply pressure to cap with a tester.
OK or NG
OK >> GO TO 8.
NG >> Replace radiator cap.
MEC475B
Testing pressure: 157 kPa (1.57 bar, 1.6 kg/cm2 , 23 psi)
SLC754A
Radiator cap relief pressure: 59 - 98 kPa (0.59 - 0.98 bar,
0.6 - 1.0 kg/cm
2 , 9 - 14 psi)
SLC755A

HO2S1 HEATER
EC-1307
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
HO2S1 HEATERPFP:22690
DescriptionEBS00N8I
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the heated oxygen sensor 1 heater corresponding to the engine
speed and engine coolant temperature. The duty percent varies with engine coolant temperature when engine
is started.
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS00N8J
Specification data are reference values.
ECM Terminals and Reference ValueEBS00N8K
Specification data are reference values and are measured between each terminal and body ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)Engine speed
Heated oxygen sensor 1
heater controlHeated oxygen sensor 1 heater
Engine coolant temperature sensorEngine coolant tempera-
ture
Engine speed rpm Heated oxygen sensor 1 heater
Above 3,600 OFF
Below 3,600 ON
MONITOR ITEM CONDITION SPECIFICATION
HO2S1 HTR (B1)
●Engine: After warming up
●Engine speed: Below 3,600 rpmON
●Engine speed: Above 3,600 rpm OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
2P/LHeated oxygen sen-
sor 1 heater[Engine is running]
●Warm-up condition
●Engine speed is below 3,600 rpm.Approximately 7.0V
[Engine is running]
●Engine speed is above 3,600 rpm.BATTERY VOLTAGE
(11 - 14V)
PBIB0519E
