2001 NISSAN X-TRAIL engine control

EC-978
[QR20(WITH EURO-OBD)]
DTC P0500 VSS
DTC P0500 VSS
PFP:32702
Component DescriptionEBS00MY2
The vehicle speed signal is sent to the combination meter from the ESP/TCS/ABS control unit (with ESP mod-
els), 4WD/ABS control unit (without ESP models). The combination meter then sends a signal to the ECM.
ECM Terminals and Reference ValueEBS00MY3
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS00MY4
DTC Confirmation ProcedureEBS00MY5
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
81 L/B Vehicle speed sensor[Engine is running]
●Lift up the vehicle
●Vehicle speed is 40 km/h (25MPH)Approximately 2.3V
PBIB0531E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0500
0500Vehicle speed sensorThe almost 0 km/h (0 MPH) signal from
combination meter is sent to ECM even
when vehicle is being driven.
●Harness or connectors
(The sensor circuit is open or shorted)
●Wheel sensor
●ESP/TCS/ABS control unit (with ESP models)
●4WD/ABS control unit (without ESP models)
●Combination meter

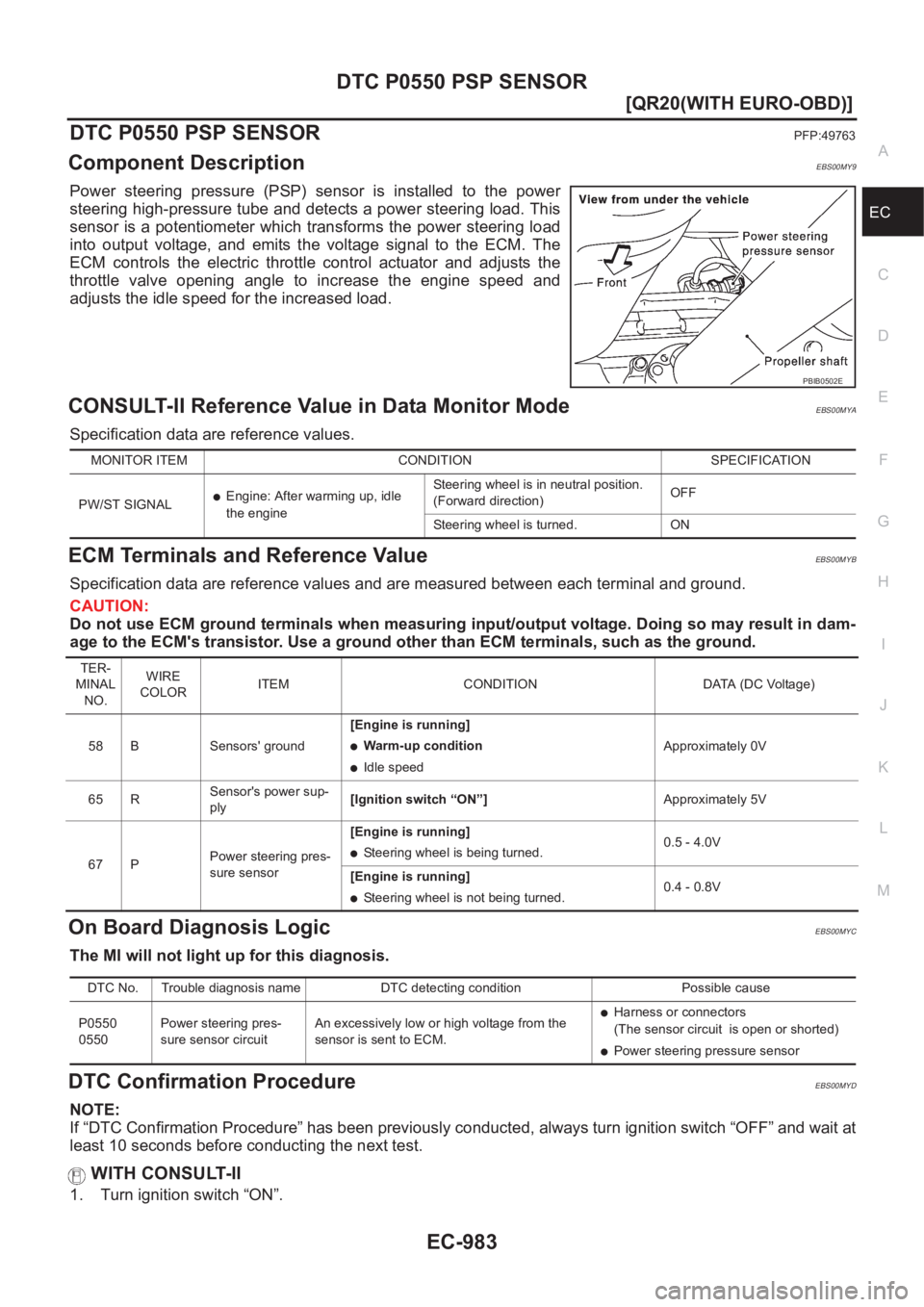

DTC P0550 PSP SENSOR
EC-983
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0550 PSP SENSORPFP:49763
Component DescriptionEBS00MY9
Power steering pressure (PSP) sensor is installed to the power
steering high-pressure tube and detects a power steering load. This
sensor is a potentiometer which transforms the power steering load
into output voltage, and emits the voltage signal to the ECM. The
ECM controls the electric throttle control actuator and adjusts the
throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.
CONSULT-II Reference Value in Data Monitor ModeEBS00MYA
Specification data are reference values.
ECM Terminals and Reference ValueEBS00MYB
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00MYC
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureEBS00MYD
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
PBIB0502E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL
●Engine: After warming up, idle
the engineSteering wheel is in neutral position.
(Forward direction)OFF
Steering wheel is turned. ON
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
65 RSensor's power sup-
ply[Ignition switch “ON”]Approximately 5V
67 PPower steering pres-
sure sensor[Engine is running]
●Steering wheel is being turned.0.5 - 4.0V
[Engine is running]
●Steering wheel is not being turned.0.4 - 0.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0550
0550Power steering pres-
sure sensor circuitAn excessively low or high voltage from the
sensor is sent to ECM.
●Harness or connectors
(The sensor circuit is open or shorted)
●Power steering pressure sensor

EC-988
[QR20(WITH EURO-OBD)]
DTC P0605 ECM
DTC P0605 ECM
PFP:23710
Component DescriptionEBS00MYH
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.
On Board Diagnosis LogicEBS00MYI
FAIL-SAFE MODE
ECM enters fail-safe mode when malfunction A is detected.
DTC Confirmation ProcedureEBS00MYJ
Perform “PROCEDURE FOR MALFUNCTION A” first. If the 1st trip DTC cannot be confirmed, perform
“PROCEDURE FOR MALFUNCTION B”. If there is no malfunction on “PROCEDURE FOR MALFUNC-
TION B”, perform “PROCEDURE FOR MALFUNCTION C”.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If 1st trip DTC is detected, go to EC-989, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
With CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
SEF093X
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0605
0605Engine control moduleA) ECM calculation function is malfunctioning.
●ECM B) ECM EEP-ROM system is malfunctioning.
C) ECM self shut-off function is malfunctioning.
Detected items Engine operation condition in fail-safe mode
Malfunction AECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5
degrees) by the return spring.
SEF058Y

DTC P0650 MI
EC-991
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0650 MIPFP:24810
Component DescriptionEBS00MYL
Malfunction Indicator (MI) is located on the instrument panel. When the ignition switch is turned ON without
engine running, MI will light up. This is a bulb check. When the engine is started, MI should go off. If MI
remains on, the on board diagnostic system has detected an engine system malfunction.
On Board Diagnosis LogicEBS00MYM
The MI will not light up for this diagnosis.
FAIL-SAFE MODE
ECM enters fail-safe mode when both DTC P0650 and another DTC, which calls for MI to light up, are
detected at the same time.
DTC Confirmation ProcedureEBS00MYN
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON” and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If 1st trip DTC is detected, go to EC-993, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0650
0650Malfunction indicator
(MI) control circuit
●An excessively high voltage is sent to ECM
through the MI circuit under the condition
that calls for MI light up.
●An excessively low voltage is sent to ECM
through the MI circuit under the condition
that calls for MI not to light up.
●Harness or connectors
(MI circuit is open or shorted.)
●MI
Detected items Engine operating condition in fail-safe mode
MI circuit Engine speed will not rise more than 2,500 rpm due to the fuel cut
SEF058Y

DTC P1102 MAF SENSOR
EC-999
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1102 MAF SENSORPFP:22680
Component DescriptionEBS00MYV
The mass air flow sensor is placed in the stream of intake air. It mea-
sures the intake flow rate by measuring a part of the entire intake
flow. It consists of a hot film that is supplied with electric current from
the ECM. The temperature of the hot film is controlled by the ECM a
certain amount. The heat generated by the hot film is reduced as the
intake air flows around it. The more air, the greater the heat loss.
Therefore, the ECM must supply more electric current to maintain
the temperature of the hot film as air flow increases. The ECM
detects the air flow by means of this current change.
CONSULT-II Reference Value in Data Monitor ModeEBS00MYW
Specification data are reference values.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
ECM Terminals and Reference ValueEBS00MYX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SEC266C
MONITOR ITEM CONDITION SPECIFICATION
MAS A/F SE-B1
●Engine: After warming up
●Air conditioner switch: OFF
●Shift lever: N
●No-loadIdle Approx. 1.0 - 1.5V
2,500 rpm Approx. 1.6 - 2.0V
CAL/LD VALUE
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 10% - 35%
2,500 rpm 10% - 35%
MASS AIRFLOW
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 1.0 - 4.0 g·m/s
2,500 rpm 4.0 - 10.0 g·m/s
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
72 OR Mass air flow sensor[Engine is running]
●Warm-up condition
●Idle speed1.1 - 1.5V
[Engine is running]
●Warm-up condition
●Engine speed is 2,500 rpm.1.6 - 2.0V
80 B/PMass air flow sensor
ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V

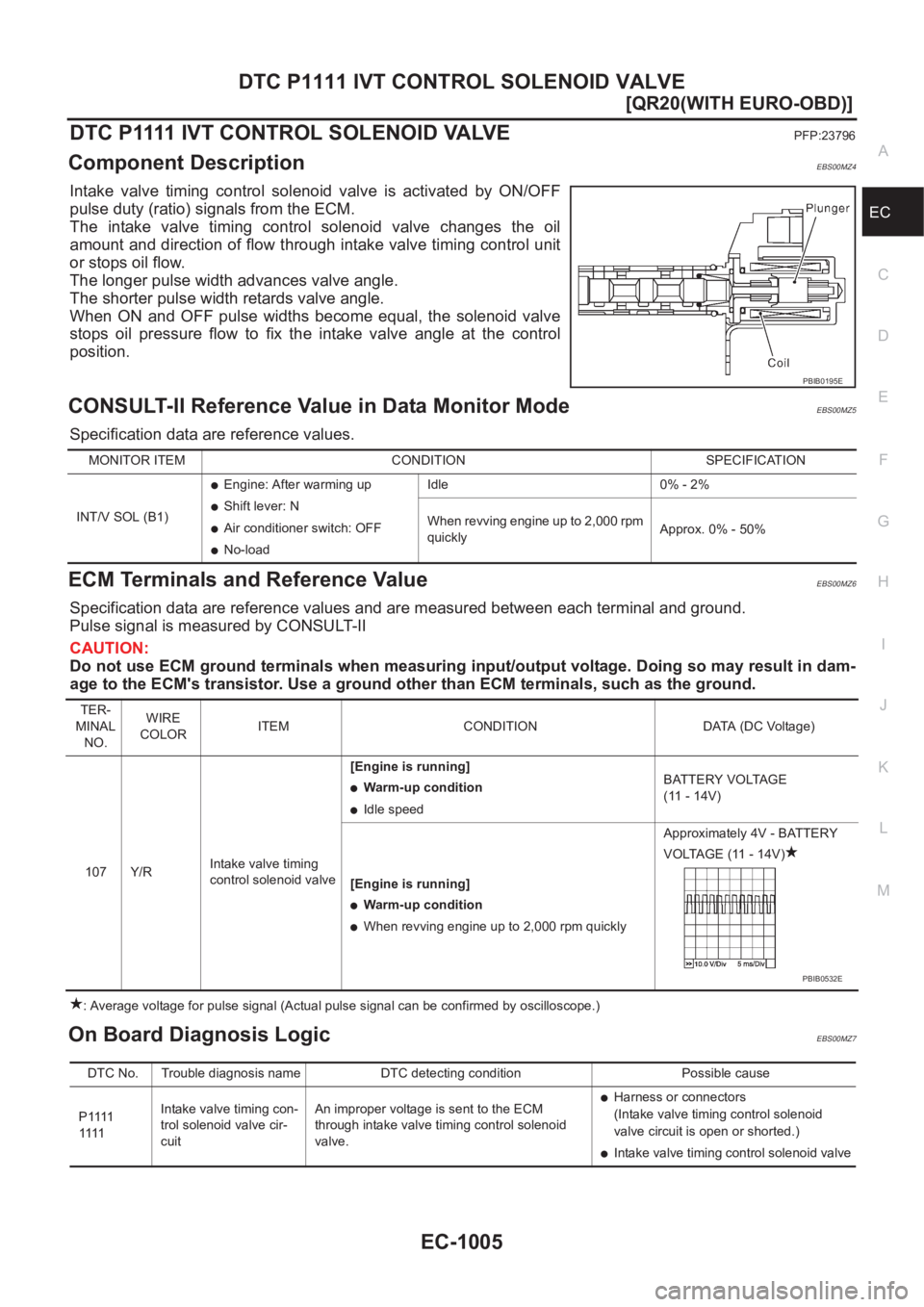

DTC P1111 IVT CONTROL SOLENOID VALVE
EC-1005
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
D T C P 1111 I V T C O N T R O L S O L EN O I D VA LV EPFP:23796
Component DescriptionEBS00MZ4
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeEBS00MZ5
Specification data are reference values.
ECM Terminals and Reference ValueEBS00MZ6
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS00MZ7
PBIB0195E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
107 Y/RIntake valve timing
control solenoid valve[Engine is running]
●Warm-up condition
●Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Warm-up condition
●When revving engine up to 2,000 rpm quicklyApproximately 4V - BATTERY
VOLTAGE (11 - 14V)
PBIB0532E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P 1111
1111Intake valve timing con-
trol solenoid valve cir-
cuitAn improper voltage is sent to the ECM
through intake valve timing control solenoid
valve.
●Harness or connectors
(Intake valve timing control solenoid
valve circuit is open or shorted.)
●Intake valve timing control solenoid valve

EC-1006
[QR20(WITH EURO-OBD)]
DTC P1111 IVT CONTROL SOLENOID VALVE
DTC Confirmation Procedure
EBS00MZ8
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF”
and wait at least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If 1st trip DTC is detected, go to EC-1008, "
Diagnostic Proce-
dure" .
WITH GST
Following the procedure “WITH CONSULT-II” above.
SEF058Y

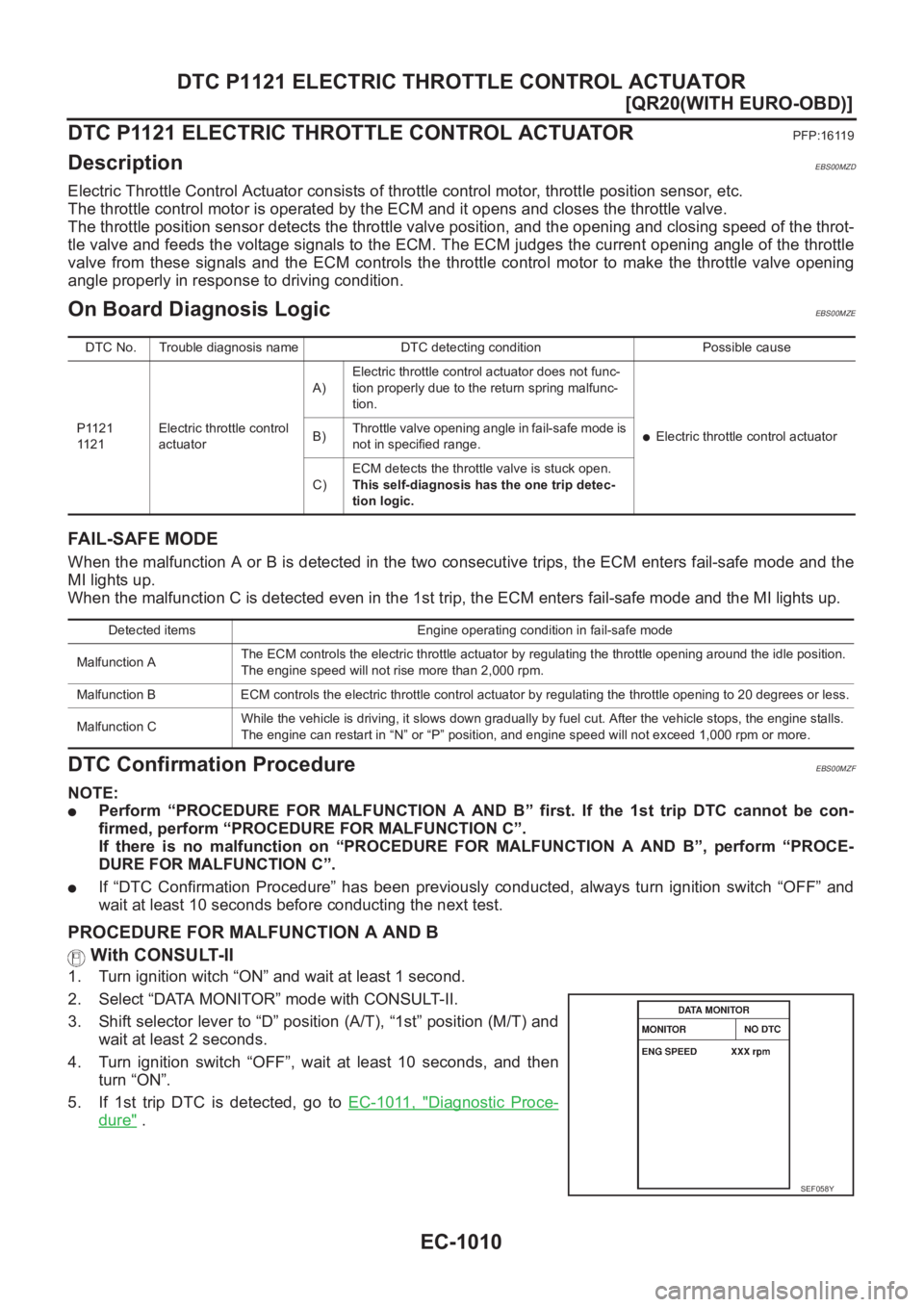

EC-1010
[QR20(WITH EURO-OBD)]
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
PFP:16119
DescriptionEBS00MZD
Electric Throttle Control Actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.
On Board Diagnosis LogicEBS00MZE
FAIL-SAFE MODE
When the malfunction A or B is detected in the two consecutive trips, the ECM enters fail-safe mode and the
MI lights up.
When the malfunction C is detected even in the 1st trip, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00MZF
NOTE:
●Perform “PROCEDURE FOR MALFUNCTION A AND B” first. If the 1st trip DTC cannot be con-
firmed, perform “PROCEDURE FOR MALFUNCTION C”.
If there is no malfunction on “PROCEDURE FOR MALFUNCTION A AND B”, perform “PROCE-
DURE FOR MALFUNCTION C”.
●If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and
wait at least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A AND B
With CONSULT-II
1. Turn ignition witch “ON” and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Shift selector lever to “D” position (A/T), “1st” position (M/T) and
wait at least 2 seconds.
4. Turn ignition switch “OFF”, wait at least 10 seconds, and then
turn “ON”.
5. If 1st trip DTC is detected, go to EC-1011, "
Diagnostic Proce-
dure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1121
11 2 1Electric throttle control
actuatorA)Electric throttle control actuator does not func-
tion properly due to the return spring malfunc-
tion.
●Electric throttle control actuator B)Throttle valve opening angle in fail-safe mode is
not in specified range.
C)ECM detects the throttle valve is stuck open.
This self-diagnosis has the one trip detec-
tion logic.
Detected items Engine operating condition in fail-safe mode
Malfunction AThe ECM controls the electric throttle actuator by regulating the throttle opening around the idle position.
The engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction CWhile the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in “N” or “P” position, and engine speed will not exceed 1,000 rpm or more.
SEF058Y
