2001 NISSAN X-TRAIL App sensor

EC-502
[QR25(WITHOUT EURO-OBD)]

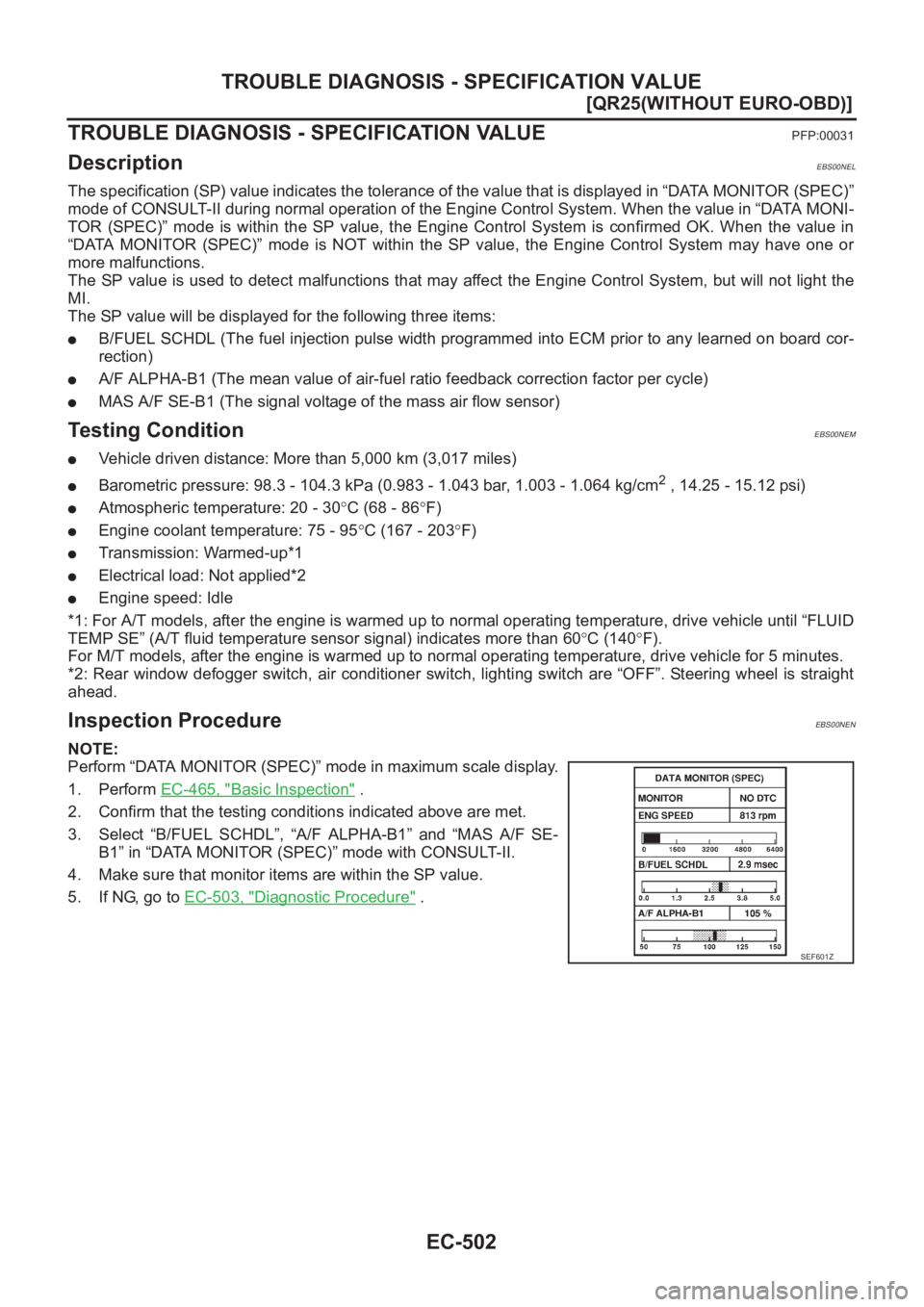

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
PFP:00031
DescriptionEBS00NEL
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MI.
The SP value will be displayed for the following three items:
●B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)
●A/F ALPHA-B1 (The mean value of air-fuel ratio feedback correction factor per cycle)
●MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionEBS00NEM
●Vehicle driven distance: More than 5,000 km (3,017 miles)
●Barometric pressure: 98.3 - 104.3 kPa (0.983 - 1.043 bar, 1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)
●Atmospheric temperature: 20 - 30°C (68 - 86°F)
●Engine coolant temperature: 75 - 95°C (167 - 203°F)
●Transmission: Warmed-up*1
●Electrical load: Not applied*2
●Engine speed: Idle
*1: For A/T models, after the engine is warmed up to normal operating temperature, drive vehicle until “FLUID
TEMP SE” (A/T fluid temperature sensor signal) indicates more than 60°C (140°F).
For M/T models, after the engine is warmed up to normal operating temperature, drive vehicle for 5 minutes.
*2: Rear window defogger switch, air conditioner switch, lighting switch are “OFF”. Steering wheel is straight
ahead.
Inspection ProcedureEBS00NEN
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-465, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1” and “MAS A/F SE-
B1” in “DATA MONITOR (SPEC)” mode with CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-503, "
Diagnostic Procedure" .
SEF601Z

EC-516
[QR25(WITHOUT EURO-OBD)]
DTC P0102, P0103 MAF SENSOR
DTC P0102, P0103 MAF SENSOR
PFP:22680
Component DescriptionEBS00NEV
The mass air flow sensor is placed in the stream of intake air. It mea-
sures the intake flow rate by measuring a part of the entire intake
flow. It consists of a hot film that is supplied with electric current from
the ECM. The temperature of the hot film is controlled by the ECM a
certain amount. The heat generated by the hot film is reduced as the
intake air flows around it. The more air, the greater the heat loss.
Therefore, the ECM must supply more electric current to maintain
the temperature of the hot film as air flow increases. The ECM
detects the air flow by means of this current change.
CONSULT-II Reference Value in Data Monitor ModeEBS00NEW
Specification data are reference values.
ECM Terminals and Reference ValueEBS00NEX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00NEY
These self-diagnoses have the one trip detection logic.
SEC266C
MONITOR ITEM CONDITION SPECIFICATION
MAS A/F SE-B1
●Engine: After warming up
●Air conditioner switch: OFF
●Shift lever: N
●No-loadIdle Approx. 1.0 - 1.5V
2,500 rpm Approx. 1.6 - 2.0V
CAL/LD VALUE
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 10% - 35%
2,500 rpm 10% - 35%
MASS AIRFLOW
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 1.0 - 4.0 g·m/s
2,500 rpm 4.0 - 10.0 g·m/s
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
72 OR Mass air flow sensor[Engine is running]
●Warm-up condition
●Idle speed1.1 - 1.5V
[Engine is running]
●Warm-up condition
●Engine speed is 2,500 rpm.1.6 - 2.0V
80 B/PMass air flow sensor
ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V

EC-520
[QR25(WITHOUT EURO-OBD)]
DTC P0102, P0103 MAF SENSOR

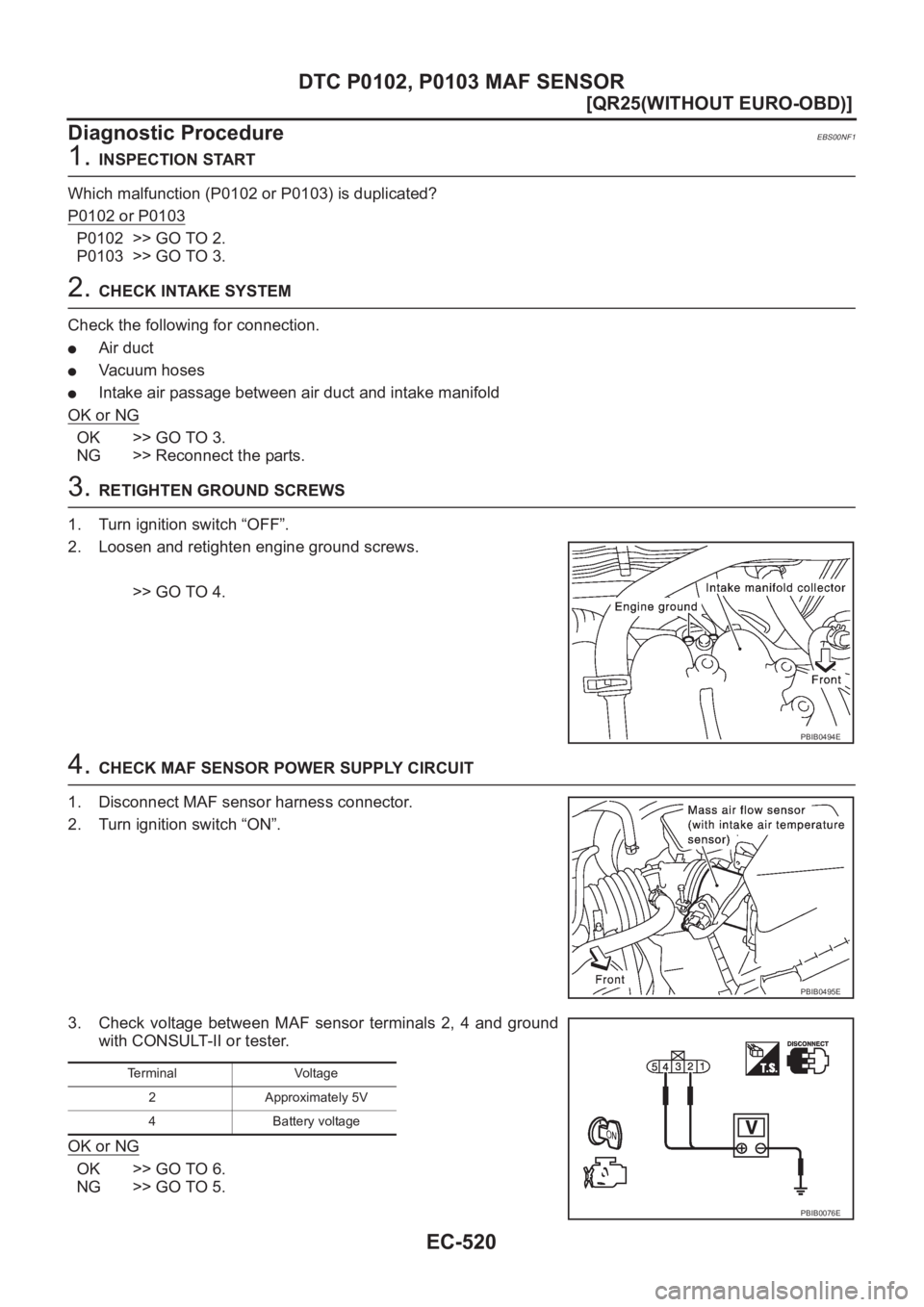

Diagnostic Procedure
EBS00NF1
1. INSPECTION START
Which malfunction (P0102 or P0103) is duplicated?
P0102 or P0103
P0102 >> GO TO 2.
P0103 >> GO TO 3.
2. CHECK INTAKE SYSTEM
Check the following for connection.
●Air duct
●Vacuum hoses
●Intake air passage between air duct and intake manifold
OK or NG
OK >> GO TO 3.
NG >> Reconnect the parts.
3. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 4.
4. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
1. Disconnect MAF sensor harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between MAF sensor terminals 2, 4 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
PBIB0494E
PBIB0495E
Terminal Voltage
2 Approximately 5V
4 Battery voltage
PBIB0076E

EC-522
[QR25(WITHOUT EURO-OBD)]
DTC P0102, P0103 MAF SENSOR

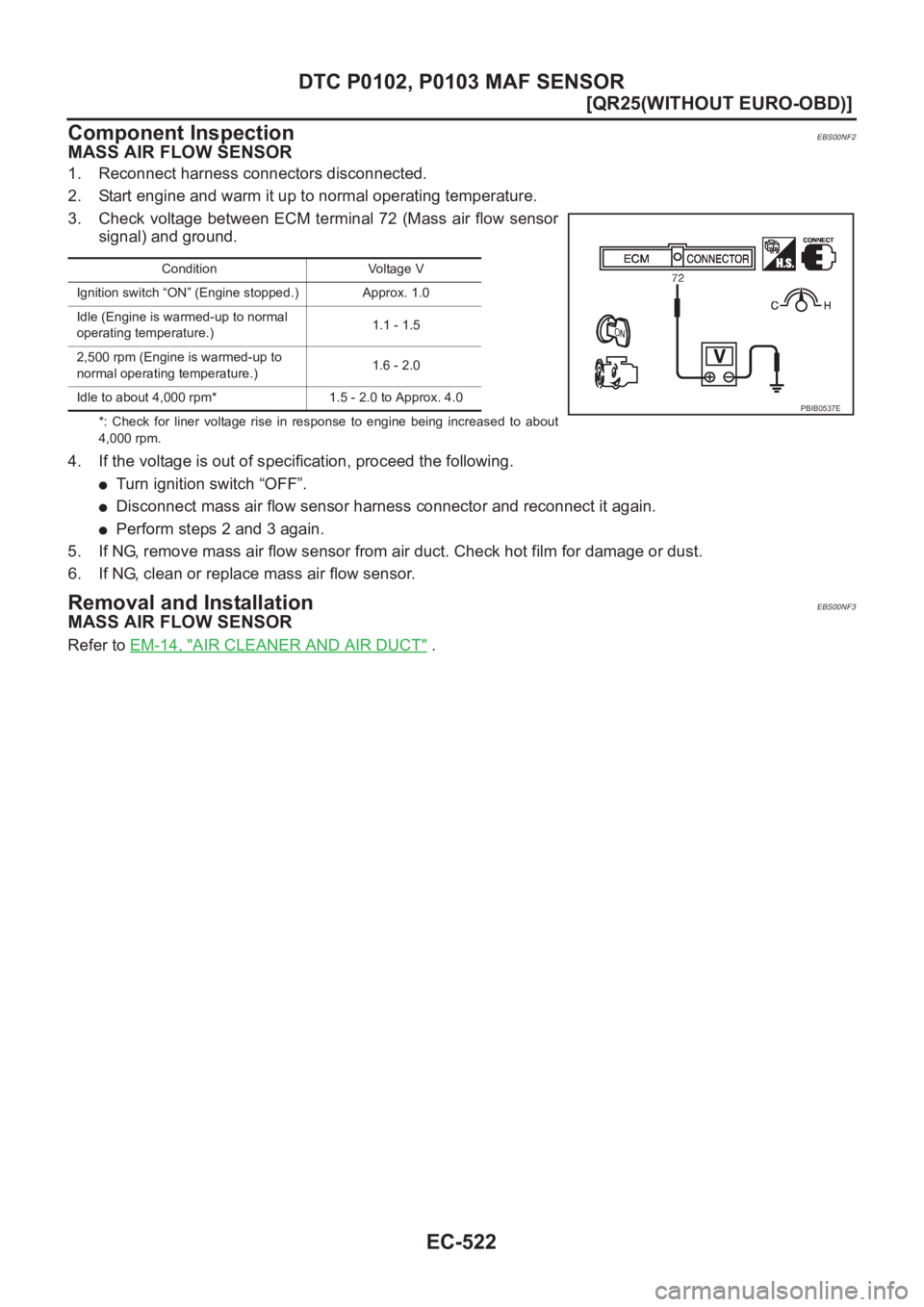

Component Inspection
EBS00NF2
MASS AIR FLOW SENSOR
1. Reconnect harness connectors disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminal 72 (Mass air flow sensor
signal) and ground.
*: Check for liner voltage rise in response to engine being increased to about
4,000 rpm.
4. If the voltage is out of specification, proceed the following.
●Turn ignition switch “OFF”.
●Disconnect mass air flow sensor harness connector and reconnect it again.
●Perform steps 2 and 3 again.
5. If NG, remove mass air flow sensor from air duct. Check hot film for damage or dust.
6. If NG, clean or replace mass air flow sensor.
Removal and InstallationEBS00NF3
MASS AIR FLOW SENSOR
Refer to EM-14, "AIR CLEANER AND AIR DUCT" .
Condition Voltage V
Ignition switch “ON” (Engine stopped.) Approx. 1.0
Idle (Engine is warmed-up to normal
operating temperature.)1.1 - 1.5
2,500 rpm (Engine is warmed-up to
normal operating temperature.)1.6 - 2.0
Idle to about 4,000 rpm* 1.5 - 2.0 to Approx. 4.0
PBIB0537E

EC-524
[QR25(WITHOUT EURO-OBD)]
DTC P0117, P0118 ECT SENSOR
DTC Confirmation Procedure
EBS00NF6
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-526, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Turn ignition switch “ON” and wait at least 5 seconds.
2. Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.
3. Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.
4. If DTC is detected, go to EC-526, "
Diagnostic Procedure" .
Detected items Engine operating condition in fail-safe mode
Engine coolant temper-
ature sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning ignition switch “ON”
or “START”.
CONSULT-II displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided
(CONSULT-II display)
Just as ignition switch is turned ON or Start 40°C (104°F)
More than approx. 4 minutes after ignition ON or
Start80°C (176°F)
Except as shown above40 - 80°C (104 - 176°F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling fan operates
while engine is running.
SEF058Y

EC-526
[QR25(WITHOUT EURO-OBD)]
DTC P0117, P0118 ECT SENSOR
Diagnostic Procedure
EBS00NF8
1. CHECK ECT SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect engine coolant temperature (ECT) sensor harness
connector.
3. Turn ignition switch “ON”.
4. Check voltage between ECT sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2. CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between ECT sensor terminal 2 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-527, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace engine coolant temperature sensor.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB0496E
Voltage: Approximately 5V
PBIB0080E
Continuity should exist.

DTC P0122, P0123 TP SENSOR
EC-531
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00NFG
1.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
65 R Sensor's power supply[Ignition switch “ON”]Approximately 5V
73 W Throttle position sensor 1[Ignition switch “ON”]
●Engine stopped
●Shift lever position is “D” (A/T model)
●Shift lever position is “1st” (M/T model)
●Accelerator pedal fully releasedMore than 0.36V
[Ignition switch “ON”]
●Engine stopped
●Shift lever position is “D” (A/T model)
●Shift lever position is “1st” (M/T model)
●Accelerator pedal fully depressedLess than 4.75V
74 G Throttle position sensor 2[Ignition switch “ON”]
●Engine stopped
●Shift lever position is “D” (A/T model)
●Shift lever position is “1st” (M/T model)
●Accelerator pedal fully releasedLess than 4.75V
[Ignition switch “ON”]
●Engine stopped
●Shift lever position is “D” (A/T model)
●Shift lever position is “1st” (M/T model)
●Accelerator pedal fully depressedMore than 0.36V
PBIB0494E

EC-532
[QR25(WITHOUT EURO-OBD)]
DTC P0122, P0123 TP SENSOR

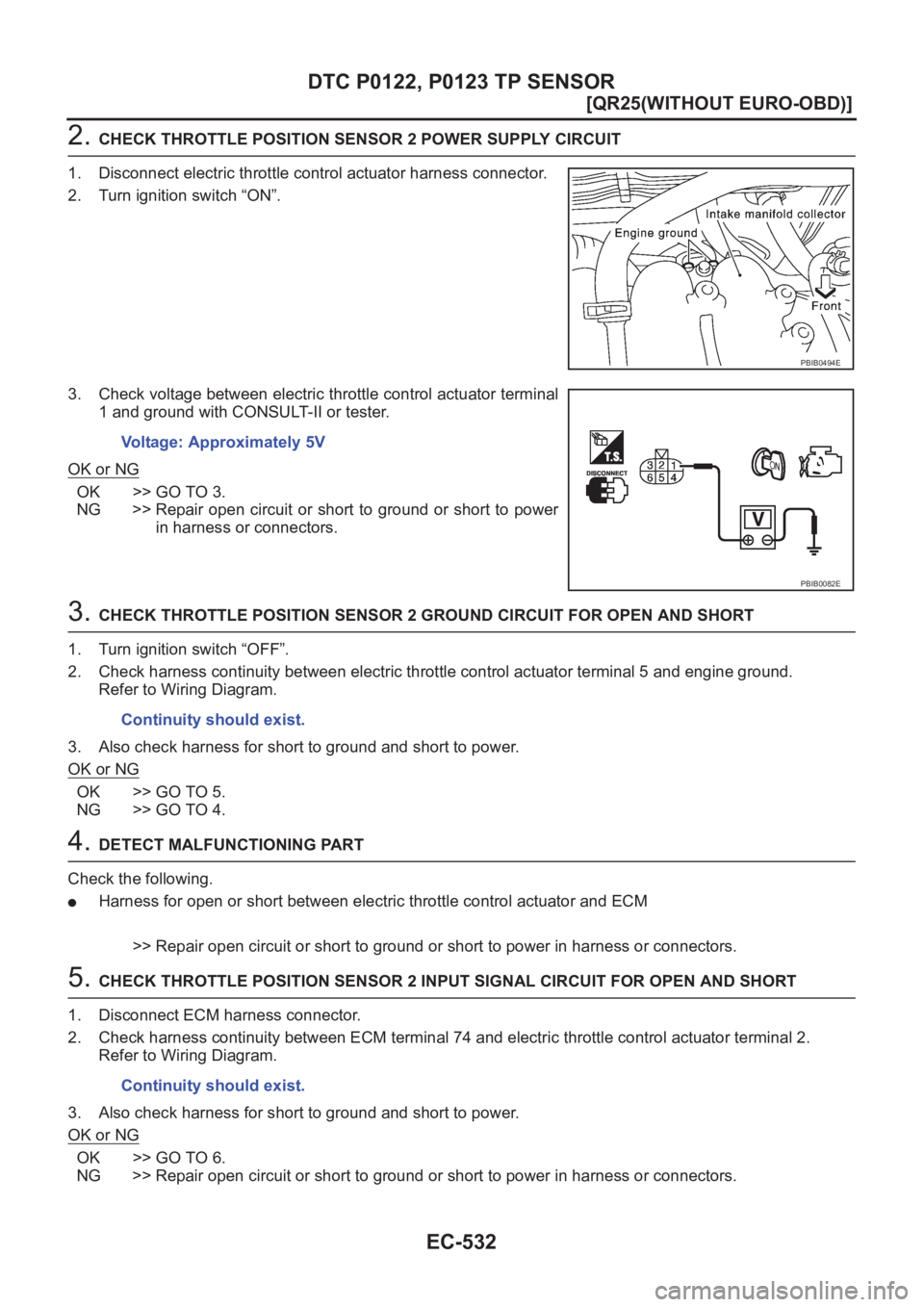

2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between electric throttle control actuator terminal 5 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
●Harness for open or short between electric throttle control actuator and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 74 and electric throttle control actuator terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0494E
Voltage: Approximately 5V
PBIB0082E
Continuity should exist.
Continuity should exist.
