TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS

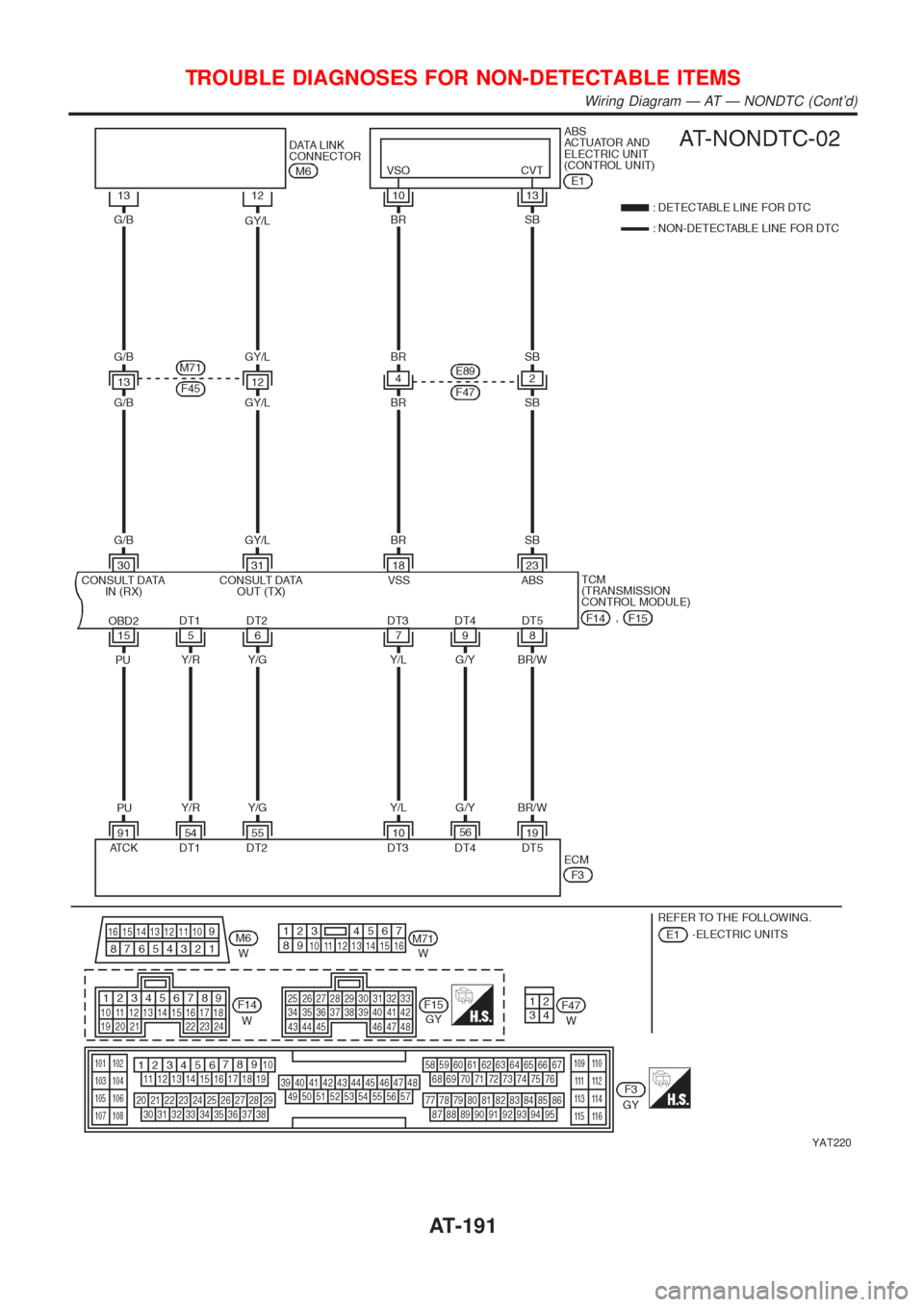

Wiring Diagram Ð AT Ð NONDTC (Cont'd)
AT-191

SAT261K

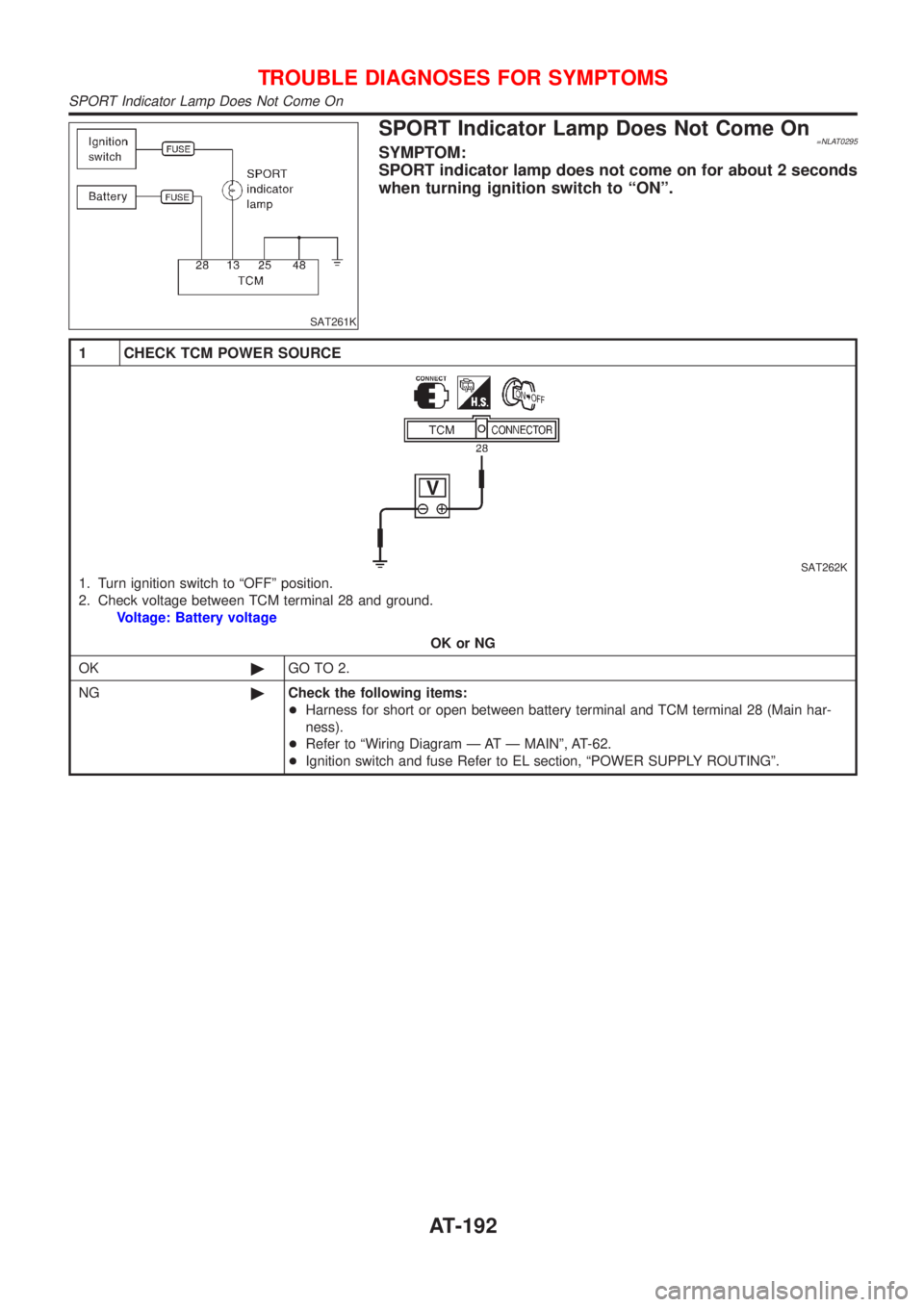

SPORT Indicator Lamp Does Not Come On=NLAT0295SYMPTOM:
SPORT indicator lamp does not come on for about 2 seconds
when turning ignition switch to ªONº.
1 CHECK TCM POWER SOURCE
SAT262K
1. Turn ignition switch to ªOFFº position.
2. Check voltage between TCM terminal 28 and ground.
Voltage: Battery voltage
OK or NG
OK©GO TO 2.
NG©Check the following items:
+Harness for short or open between battery terminal and TCM terminal 28 (Main har-
ness).
+Refer to ªWiring Diagram Ð AT Ð MAINº, AT-62.
+Ignition switch and fuse Refer to EL section, ªPOWER SUPPLY ROUTINGº.
TROUBLE DIAGNOSES FOR SYMPTOMS
SPORT Indicator Lamp Does Not Come On
AT-192

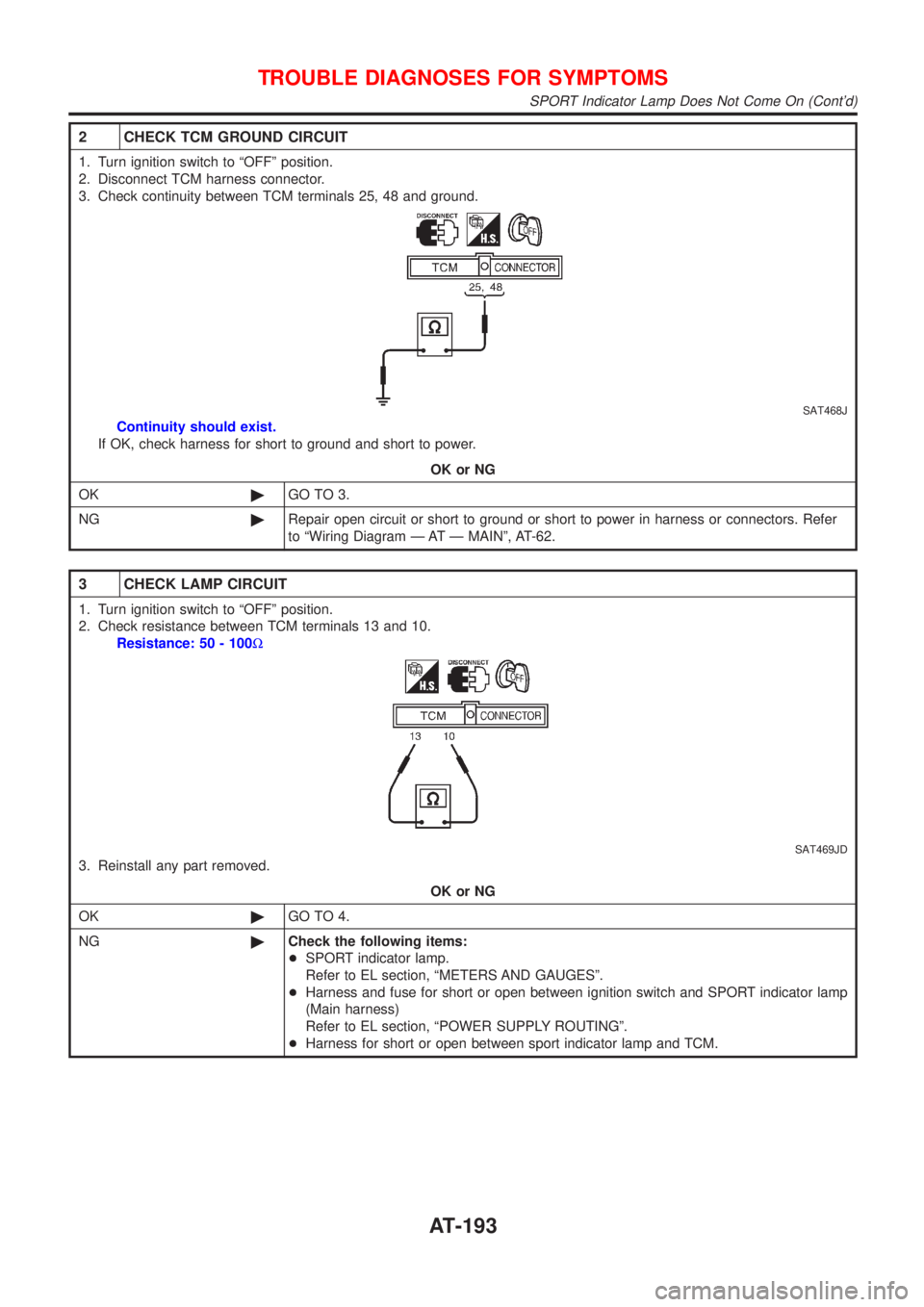

2 CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between TCM terminals 25, 48 and ground.
SAT468J
Continuity should exist.
If OK, check harness for short to ground and short to power.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors. Refer
to ªWiring Diagram Ð AT Ð MAINº, AT-62.
3 CHECK LAMP CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Check resistance between TCM terminals 13 and 10.
Resistance: 50 - 100W
SAT469JD
3. Reinstall any part removed.
OK or NG
OK©GO TO 4.
NG©Check the following items:
+SPORT indicator lamp.
Refer to EL section, ªMETERS AND GAUGESº.
+Harness and fuse for short or open between ignition switch and SPORT indicator lamp
(Main harness)
Refer to EL section, ªPOWER SUPPLY ROUTINGº.
+Harness for short or open between sport indicator lamp and TCM.
TROUBLE DIAGNOSES FOR SYMPTOMS
SPORT Indicator Lamp Does Not Come On (Cont'd)
AT-193

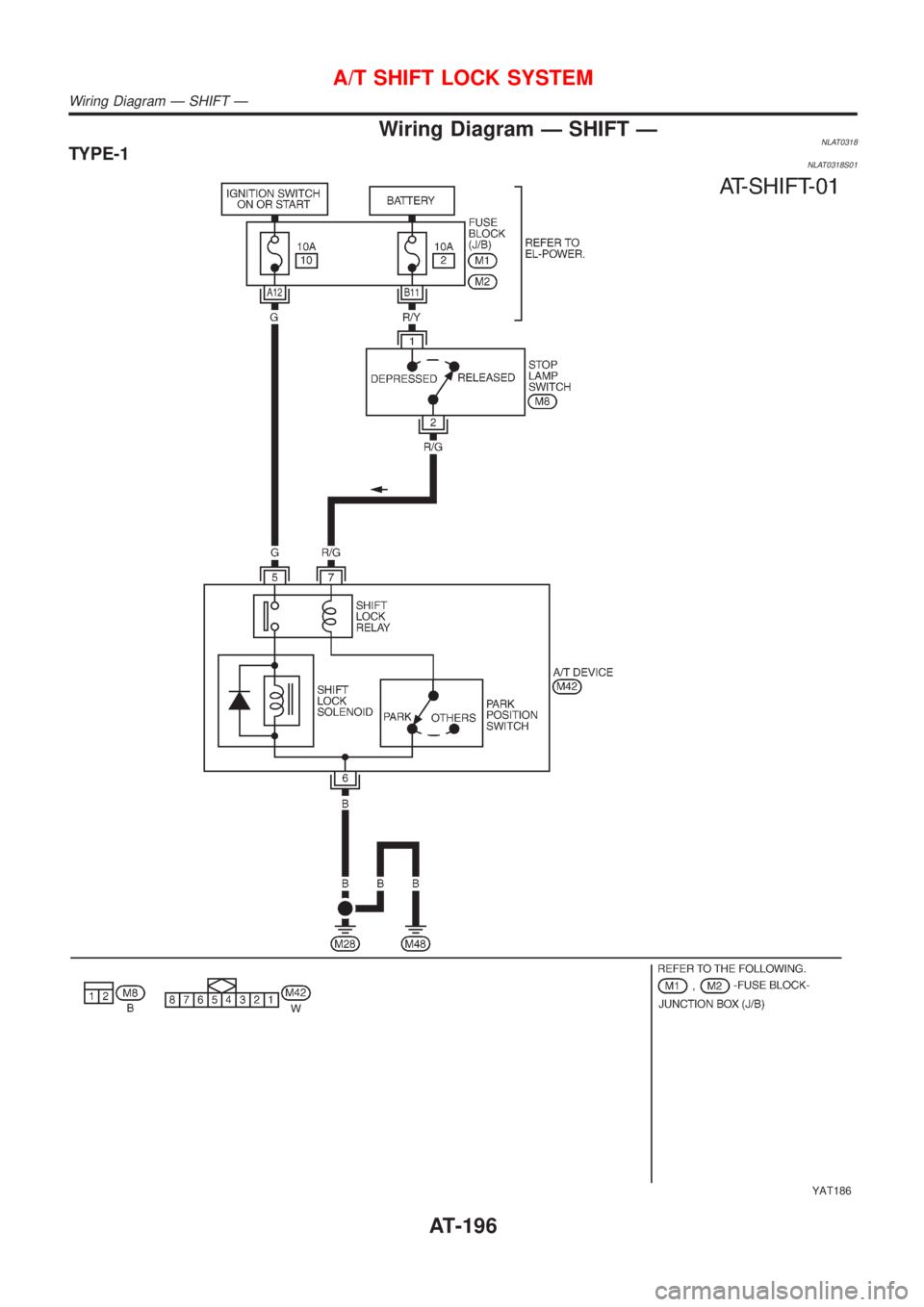

Wiring Diagram Ð SHIFT ÐNLAT0318TYPE-1NLAT0318S01
YAT186
A/T SHIFT LOCK SYSTEM
Wiring Diagram Ð SHIFT Ð
AT-196

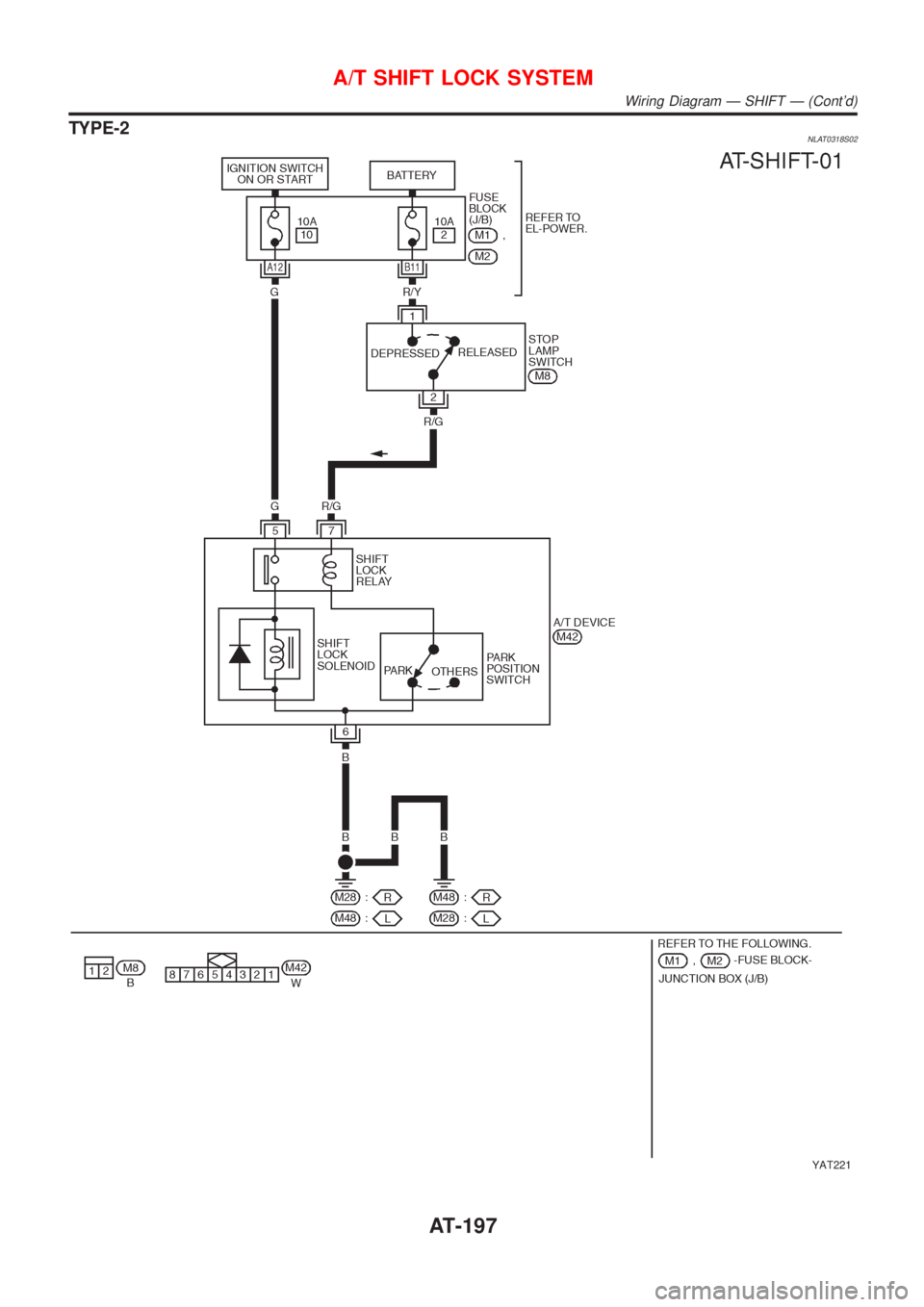

TYPE-2NLAT0318S02
YAT221
A/T SHIFT LOCK SYSTEM
Wiring Diagram Ð SHIFT Ð (Cont'd)
AT-197

BRAKE SYSTEM
SECTION
BR
