2001 BMW M ROADSTER COUPE Owners Manual

17n

IndexDataTechnologyRepairsCar careControlsOverview

1 Parking lamps/Low beams69
2 Horn
3 Wiper/Washer system59
4 Hazard warning flashers24
5 Cruise control

*
61
6

>

Turn signal indicator58

>

High beams58

>

Headlamp flasher58
7 Tire Pressure Warning (RDW)67
8 Hood release104

Cockpit
ProCarManuals.com

18n

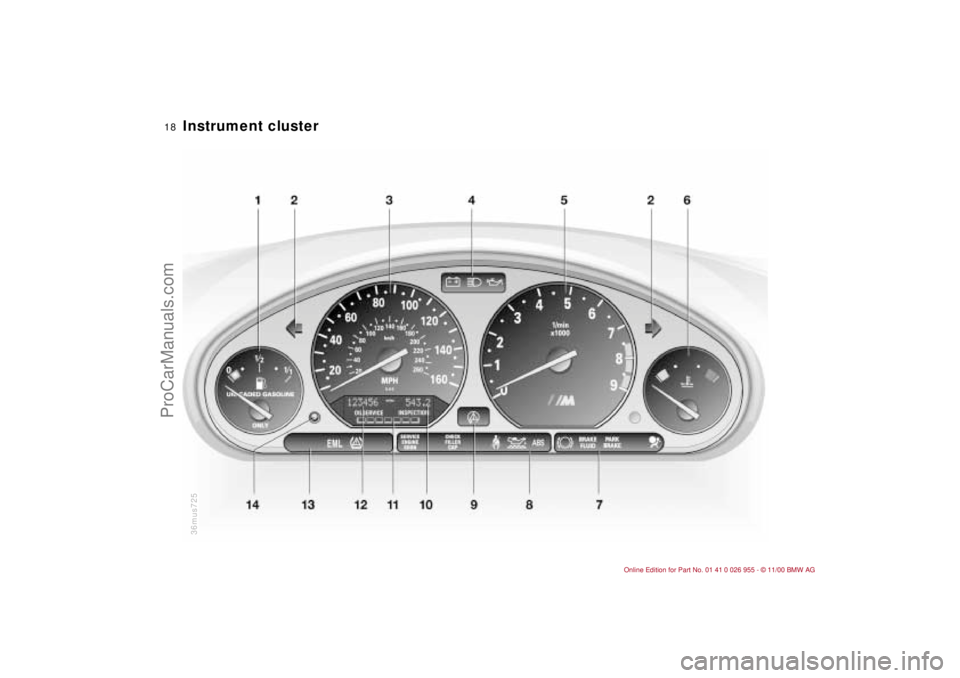

Instrument cluster
36mus725
ProCarManuals.com

19n

IndexDataTechnologyRepairsCar careControlsOverview

Instrument cluster

1 Fuel gauge with indicator lamp
for reserve range62
2 Indicator lamp for turn signals23
3 Speedometer
4 Indicator and warning lamps for:

>

Battery charge current20

>

High beams23

>

Engine oil pressure20
5 Tachometer62
6 Coolant temperature gauge63
Also refer to Engine oil temperature
gauge on page63
7 Indicator and warning lamps for:

>

Brake pad wear22

>

Brake hydraulic
system/Cornering Brake Control
(CBC)20, 21

>

Parking brake21

>

Airbags21
8 Indicator and warning lamps for:

>

Service Engine Soon22

>

Check Filler Cap22

>

Safety belts21

>

Engine oil level22

>

Antilock Brake System (ABS)22
9 Indicator lamp for Dynamic Stability
Control (DSC)21, 2210 Trip odometer62
11 Service Interval Display64, 114
12 Odometer62
13 Indicator and warning lamps for:

>

Engine electronics22

>

Tire Pressure Warning
(RDW)21, 22
14 Trip odometer reset button62
The illustration shows the instrument
cluster in the US version. In the Cana-
dian models, some of the indicator and
warning lamps have a different appear-
ance. Refer to pages 20 to 23.
ProCarManuals.com

20n

Indicator and warning lamps

Technology that monitors itself

Many of the systems of your BMW
monitor themselves automatically, both
during engine starts and while you are
driving. Indicator and warning lamps
that are identified by "

l

" are tested for
proper functioning whenever the igni-
tion key is turned. They each light up
once for different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started or
it lights up while the vehicle is moving.
You will see how to react to this below.

Red: stop immediately

Battery charge current

l

The battery is no longer being
charged. The alternator drive
belt is defective or there is a malfunc-
tion in the charging circuit of the alter-
nator. Please contact the nearest BMW
center.
If the drive belt is defective, do not
continue driving. The engine could
be damaged due to overheating.
Increased force is required to steer the
vehicle if the drive belt is defective.

<


Engine oil pressure

l

Stop the vehicle immediately
and switch off the engine.
Check the engine oil level. Top up as
required. If oil level is correct: please
contact the nearest BMW center.
Do not continue driving, other-
wise, the engine could be
damaged because of inadequate lubri-
cation.

<



Brake hydraulic system

l

The brake fluid level is too low.
Before driving further, be sure to
read the notes on pages 92 and 112.
Brake hydraulic system warning
lamp for Canadian models.
ProCarManuals.com

21n
IndexDataTechnologyRepairsCar careControlsOverview

Indicator and warning lamps

Red and yellow: continue to drive
cautiously

If the red warning lamp for the
brake hydraulic system comes
on together with the yellow indi-
cator lamps for ABS and DSC:
The entire ABS, CBC and DSC
control system has failed.
Continue to drive cautiously and
defensively and avoid full brake
applications. Have the system
checked by your BMW center as soon
as possible.
For additional information, refer to
pages 65, 89.
Warning lamps for Canadian
models.

Red: an important reminder

Parking brake
Comes on when the parking
brake is applied.
For additional information, refer to
page 57.
Parking brake warning lamp for
Canadian models.
Please fasten your safety belt

l

Together with an acoustic signal.
Comes on until the safety belts
are fastened.
For additional information on safety
belts, refer to page 49.
Airbags

l

Please have the system
inspected by your BMW center.
For additional information, refer to
pages 51, 150.

Yellow: stop immediately

Tire Pressure Warning (RDW)

l

Flashing warning lamp: a flat tire
has occurred. To come to an
immediate stop, reduce speed, while
avoiding any sudden, jerky braking or
steering maneuvers.
For additional information, refer to
page 67.
ProCarManuals.com

22n

Indicator and warning lamps

Yellow: check as soon as possible

Antilock Brake System (ABS)

l

ABS has been deactivated in
response to system malfunction.
Conventional braking efficiency is avail-
able without limitations. Please have
the system inspected by your BMW
center.
For additional information, refer to
page 89.
Antilock Brake System warning
lamp for Canadian models.
Engine oil level

l

Comes on while driving: the
oil level is at the absolute
minimum; refill as soon as possible. Do
not drive more than approx. 30 miles
(50 km) until you add oil.
For additional information, refer to
page 109.
Engine oil level

l

Comes on after the engine has
been shut off: add engine oil at
your earliest opportunity (when you
stop to refuel).
For additional information, refer to
page 109.
Engine oil level

l

Comes on for a short time
(approx. 15 seconds) after the

engine has been started: please have
the system checked by your BMW
center.
Brake pads

l

Have the brake pads checked.
For additional information, refer
to page 92.
Tire Pressure Warning RDW

l

RDW has been switched off via
the button or has been deacti-
vated because of a malfunction. In the
event of a malfunction, have the system
checked by your BMW center.
For additional information, refer to
pages 26, 67.
Dynamic Stability Control
(DSC)

l

Indicator lamp flashes:
The system is active and governs drive
force and braking force.
If the indicator lamp fails to go out after
the engine is started, or if it comes on
during normal driving and stays on:
DSC has been switched off via the
button or has been deactivated
because of a malfunction.
In the event of a malfunction, have the
system checked by the nearest BMW
center.
For additional information, refer to
page 65.

Service Engine Soon

l

If the indicator lamp comes on
either continuously or intermit-
tently, this indicates a fault in the emis-
sions-related electronic systems.
Although the vehicle remains opera-
tional, you should have the systems
checked by your BMW center at the
earliest possible opportunity.
For additional information, refer to
page 125.
Service Engine Soon warning
lamp for Canadian models.
Engine electronics

l

There is a fault in the engine's
electronic control system. You
can continue to drive with reduced
engine output or engine speed. Please
have the system checked by your BMW
center.
Check Filler Cap

l

If the indicator lamp lights up
with the filler cap properly
closed: there is a fault in the fuel
system. The system should be checked
at the earliest possible opportunity at
your BMW center.
For additional information, refer to
page 25.
ProCarManuals.com

23n

IndexDataTechnologyRepairsCar careControlsOverview

Indicator and warning lamps

Green: for your information

Turn signal indicators
Flashes when the turn signal
indicators are in operation.
Rapid flashing indicates a system
malfunction.
For additional information, refer to
page 58.

Blue: for your information

High beams
Lights up when the high beams
are on or the headlamp flasher
is actuated.
For additional information, refer to
page 58.
ProCarManuals.com

24n

Hazard warning flashers Warning triangle

*


The button flashes intermittently when
the hazard flashers are on.
To help you locate the button in an
emergency, the button is also illumi-
nated whenever the vehicle lamps
are on.367de025

M coupe

The warning triangle is located in the
luggage compartment at the rear right
behind a trim panel.
Release the cover:
1 Fold the luggage compartment floor
mat up.
2 To release, turn the four mounting
clips (arrows) of the right-hand trim
panel on the rear wall of the luggage
compartment approx.

f turn with a
coin or screwdriver.
3 Pull out the clips and remove the trim
panel.
367de322
M cou
pe
M roadsterThe warning triangle is located in the
luggage compartment in the area of the
sill.
Comply with legal requirements
that cover the availability of a
hazard warning triangle in the vehicle.<
