2001 BMW M ROADSTER COUPE Owners Manual

105n
IndexDataTechnologyRepairsCar careControlsOverview
HoodTo closeAllow the hood to fall from a height of
about 12 in (30 cm) so that it audibly
engages.
To avoid injuries, be sure that the
travel path of the hood is clear
when it is closed, as with all closing
procedures.
If it is determined that the hood is not
completely closed while driving, stop
immediately and close it securely.< 367de393
ProCarManuals.com

106n

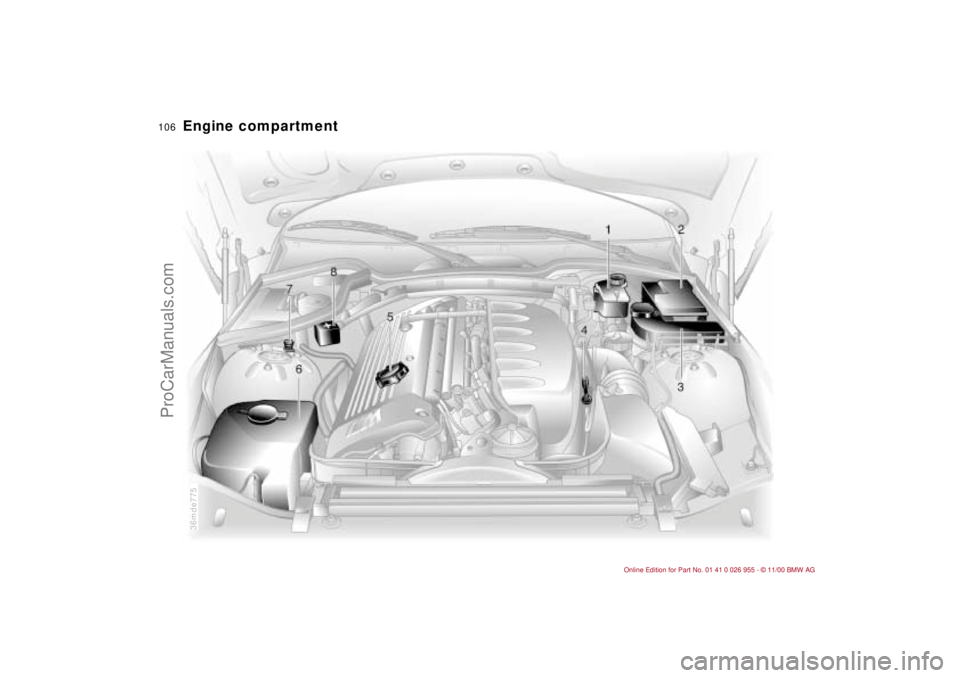

Engine compartment
36mde775
ProCarManuals.com

107n
IndexDataTechnologyRepairsCar careControlsOverview
Engine compartment1 Brake fluid reservoir112
2 Fuse box142
3 Coolant expansion tank112
4 Engine oil dipstick109
5 Engine oil filler neck109
6 Reservoir for windshield and
headlamp
* washer system108
7 Auxiliary terminal for jump-starting –
negative terminal144
8 Auxiliary terminal for jump-starting –
positive terminal144
ProCarManuals.com

108n
Fluids for the washer systems Washer nozzlesHeadlamp
* and windshield
washer system
Capacity: approx. 5.6 US quarts
(5.3 liters).
Fill with water and – if required – with an
antifreeze agent (according to the
manufacturer's recommendations).
We recommend that you mix the
washer fluid before adding it to
the reservoir.< 367de345
Antifreeze agent for the washer
systems is inflammable. For this
reason, keep it away from sources of
flame and store it only in its original
container. Store it so that it is inacces-
sible to children. Comply with the
instructions on the containers.<
Windshield washer systemWindshield:
The spray from the nozzles should be
directed so as to ensure effective
cleaning, even at high speeds.
If necessary, correct the adjustment
with a needle, or have the adjustment
made by your BMW center.
Rear window – M coupe only:
Have this system adjusted by your
BMW center as required.Headlamp washer system
*
Have this system adjusted by your
BMW center as required.
ProCarManuals.com

109n
IndexDataTechnologyRepairsCar careControlsOverview
Engine oil To check oil level1 Park the vehicle on a level surface.
2 Switch the engine off after it has
reached normal operating tempera-
ture.
3 After approx. 1 minute, pull the
dipstick out and wipe it off with a
clean lint-free cloth, paper towel, or
similar material.
4 Push the dipstick carefully all the way
into the guide tube and pull it out
again.
5 The oil level should be between the
two marks on the dipstick.
As with fuel economy, oil consumption
is directly influenced by your driving
style and vehicle operating conditions.36mde790
The space between the two marks on
the dipstick corresponds to approx.
1.4 US quarts (1.3 liter). Do not fill
beyond the upper mark on the dipstick.
Excess oil will damage the engine.36mde791
To add oilWait until the level has dropped to just
above the lower mark before adding oil.
Do not wait until the oil drops below the
lower mark.
BMW engines are designed to
operate without oil additives; the
use of additives could lead to damage
in some cases. This also applies to the
manual transmission, differential and
the power steering system.< 36mde792
ProCarManuals.com

110n
Engine oilSpecified engine oilsThe quality of the engine oil which is
selected has critical significance for the
operation and service life of an engine.
Based on extensive testing, BMW has
approved only certain engine oils.
Use only approved "BMW High Perfor-
mance Synthetic Oil."
If you are unable to obtain "BMW High
Performance Synthetic Oil", you can
add small amounts of synthetic oil in
between oil changes. Only use oils with
the API SH specification or higher.
Ask your BMW center for details
concerning the specific "BMW
High Performance Synthetic Oil" or
"synthetic oils" which have been
approved.<
You can also call BMW of North
America at 1-800-831-1117 or visit this
website: www.bmwusa.com to obtain
this information.
Viscosity – ratingsViscosity is the oil flow rating as estab-
lished in SAE classes.
The selection of the correct SAE class
depends on the climatic conditions in
the area where you drive your BMW.
Approved oils are in SAE classes
5W-40 and 5W-30.<
These oils may be utilized in all ambient
temperatures.
530us200
ProCarManuals.com

111n
IndexDataTechnologyRepairsCar careControlsOverview
Engine oil Coolant
Comply with the applicable envi-
ronmental laws regulating the
disposal of used oil.<
Recommendation: have the oil changed
by your BMW center only.
Continuous exposure to used oil
has caused cancer in laboratory
testing. Any skin areas that come in
contact with oil should thus be thor-
oughly washed with soap and water.
Store oil, grease, etc., always out of
reach of children. Comply with warning
labels and information on containers.
If you use SAE 15W-40 engine oil in low
temperatures (below +14 7/–10 6),
the engine may become difficult to
start.
Special engine oils individually
approved by BMW are preferred for use
in your engine. Please contact your
BMW center for details.<
Do not add coolant to the cooling
system when the engine is hot. If
you do, escaping coolant can cause
burns.
To avoid the possibility of damage later
on, do not use anything other than
factory-approved, nitrite and amino-
free extended-duty antifreeze with
corrosion inhibitor which can be used
with aluminum radiator cores. Your
BMW center is familiar with the
approved specifications.
Antifreeze and corrosion inhibitor
agents are hazardous to health. Store
them in their original containers. Keep
the containers tightly closed and out of
reach of children.
Extended-duty antifreeze with corro-
sion inhibitor contains the flammable
substance ethylene glycol. For this
reason, do not spill extended-duty anti-
freeze with corrosion inhibitor on hot
engine components. If you do, it could
be ignited and cause burns.<
Comply with the applicable envi-
ronmental laws regulating the
disposal of extended-duty antifreeze
with corrosion inhibitor.<
ProCarManuals.com

112n
Coolant Brake fluid Checking coolant levelThe correct coolant level when the
engine is cold (approx. +68 7/+20 6).
Unscrew the cap from the expansion
tank.
The coolant level is correct when the
upper end of the red float is at least
even with the upper edge of the filler
neck (refer to the arrow in the illustra-
tion), but no more than 0.8 in (2 cm)
above it – that is, up to the second mark
on the float (refer also to the schematic
diagram next to the filler neck).367de356
To add coolantWait until the engine cools before
removing the cap from the expansion
tank. The needle of the coolant temper-
ature gauge in the instrument cluster
must be located in the blue field; other-
wise, there is a danger of scalding.
1 Turn the cap slightly counterclock-
wise in order to allow accumulated
pressure to escape. Then open.
2 If the coolant is low, slowly add
coolant until the correct level is
reached – do not overfill.
The coolant is a mixture of water and
extended-duty antifreeze with corrosion
inhibitor. Always maintain the
prescribed all-season 50 : 50 mixture
ratio for year-round protection against
internal corrosion. No other additives
are required.
Replace the coolant regularly. Refer to
the Service and Warranty Information
Booklet (US models) or the Warranty
and Service Guide Booklet (Canadian
models).If the warning lamp for the brake
hydraulic system comes on:
The brake fluid level is too low.
Add brake fluid until the upper
mark ("MAX") is reached.
To eliminate the cause of the brake fluid
loss, please consult a BMW center. You
can also receive information concerning
approved brake fluids (DOT 4) there.
Brake fluid loss may result in extended
brake pedal travel. If this occurs, refer
to the notes on page 92.
36mde789
