Page 33 of 103
INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
EAU00324
Luggage strap holdersThere are four luggage strap holders
below the passenger seat, two of which
can be turned outward for easier ac-
cess.
EAU01571
EXUP (EXhaust Ultimate
Powervalve)This model is equipped with Yamaha’s
EXUP system within the exhaust pipe.
This valve is always activated by a
computer-controlled servomotor in ac-
cordance with engine rpm.
EC000027
CAUTION:@ l
The EXUP was set at the
Yamaha factory after many
tests. If the settings are
changed by someone without
sufficient technical knowledge,
poor engine performance and
damage may result.
l
If the EXUP does not operate,
ask a Yamaha dealer to inspect.
@
EAU00330
SidestandThis model is equipped with an ignition
circuit cut-off system. The motorcycle
must not be ridden when the sidestand
is down. The sidestand is located on
the left side of the frame. (Refer to
page 5-1 for an explanation of this sys-
tem.)
EW000044
WA R N I N G
@ This motorcycle must not be operat-
ed with the sidestand in the down
position. If the stand is not properly
retracted, it could contact the
ground and distract the operator, re-
sulting in a possible loss of control.
Yamaha has designed into this
motorcycle a lockout system to as-
sist the operator in fulfilling the re-
sponsibility of retracting the
sidestand. Please check carefully
the operating instructions listed be-
low and if there is any indication of a
malfunction, return the motorcycle
to a Yamaha dealer immediately for
repair. @
1. Luggage strap holder (´ 4)E_4sv_Functions.fm Page 19 Tuesday, August 31, 1999 3:42 PM
Page 34 of 103
INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
EAU00331
Sidestand/clutch switch
operation checkCheck the operation of the sidestand
switch and clutch switch against the in-
formation below.CD-11E
CD-11E
EW000045
WA R N I N G
@ If improper operation is noted, con-
sult a Yamaha dealer immediately. @
TURN THE MAIN SWITCH TO “ON”
AND THE ENGINE STOP SWITCH TO
“”.TRANSMISSION IS IN GEAR AND
SIDESTAND IS UP.PULL IN CLUTCH LEVER AND
PUSH THE START SWITCH.ENGINE WILL START.CLUTCH SWITCH IS OK.
SIDESTAND IS DOWN.ENGINE WILL STALL.SIDESTAND SWITCH IS OK.
E_4sv_Functions.fm Page 20 Tuesday, August 31, 1999 3:42 PM
Page 35 of 103
E_4sv_Functions.fm Page 21 Tuesday, August 31, 1999 3:42 PM
Page 36 of 103

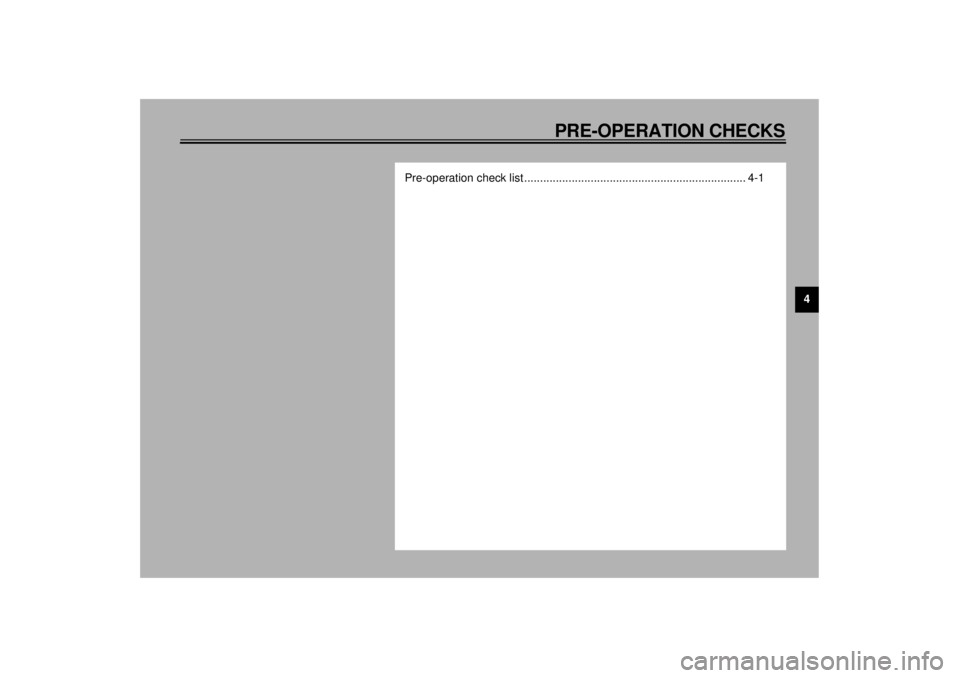

PRE-OPERATION CHECKS
4
Pre-operation check list ...................................................................... 4-1
E_4sv_PreopTOC.fm Page 1 Tuesday, August 31, 1999 3:43 PM
Page 37 of 103
4-1
4
EAU01114
4-PRE-OPERATION CHECKSOwners are personally responsible for their vehicle’s condition. Your motorcycle’s vital functions can start to deteriorate
quickly and unexpectedly, even if it remains unused (for instance, if it is exposed to the elements). Any damage, fluid leak or
loss of tire pressure could have serious consequences. Therefore, it is very important that, in addition to a thorough visual in-
spection, you check the following points before each ride.
EAU00340
PRE-OPERATION CHECK LIST
ITEM CHECKS PAGE
Front brake
• Check operation, free play, fluid level and fluid leakage.
• Fill with DOT 4 brake fluid if necessary.6-19 ~ 6-22
Rear brake
6-19 ~ 6-22
Clutch• Check operation, fluid level and fluid leakage.
• Fill with DOT 4 brake fluid if necessary.6-21 ~ 6-22
Throttle grip and housing• Check for smooth operation.
• Lubricate if necessary.6-15
Engine oil• Check oil level.
• Fill with oil if necessary.6-9 ~ 6-11
Coolant reservoir tank• Check coolant level.
• Fill with coolant if necessary.6-11 ~ 6-12
Drive chain• Check chain slack and condition.
• Adjust if necessary.6-23 ~ 6-24
Wheels and tires
• Check tire pressure, wear and damage. 6-16 ~ 6-19
Control and meter cable• Check for smooth operation.
• Lubricate if necessary.6-24
Brake and shift pedal
shafts• Check for smooth operation.
• Lubricate if necessary.6-24
Brake and clutch lever
pivots• Check for smooth operation.
• Lubricate if necessary.6-25
E_4sv_Preop.fm Page 1 Tuesday, August 31, 1999 3:44 PM
Page 38 of 103
PRE-OPERATION CHECKS
4-2
4
NOTE:Pre-operation checks should be made each time the motorcycle is used. Such an inspection can be thoroughly accom-
plished in a very short time; and the added safety it assures is more than worth the time involved.
WARNING
If any item in the PRE-OPERATION CHECK is not working properly, have it inspected and repaired before operating
the motorcycle.Sidestand pivot• Check for smooth operation.
• Lubricate if necessary.6-25
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
Fuel• Check fuel level.
• Fill with fuel if necessary.3-11 ~ 3-12
Lights, signals and
switches• Check for proper operation. — ITEM CHECKS PAGE
E_4sv_Preop.fm Page 2 Tuesday, August 31, 1999 3:44 PM
Page 39 of 103
E_4sv_Preop.fm Page 3 Tuesday, August 31, 1999 3:44 PM
Page 40 of 103

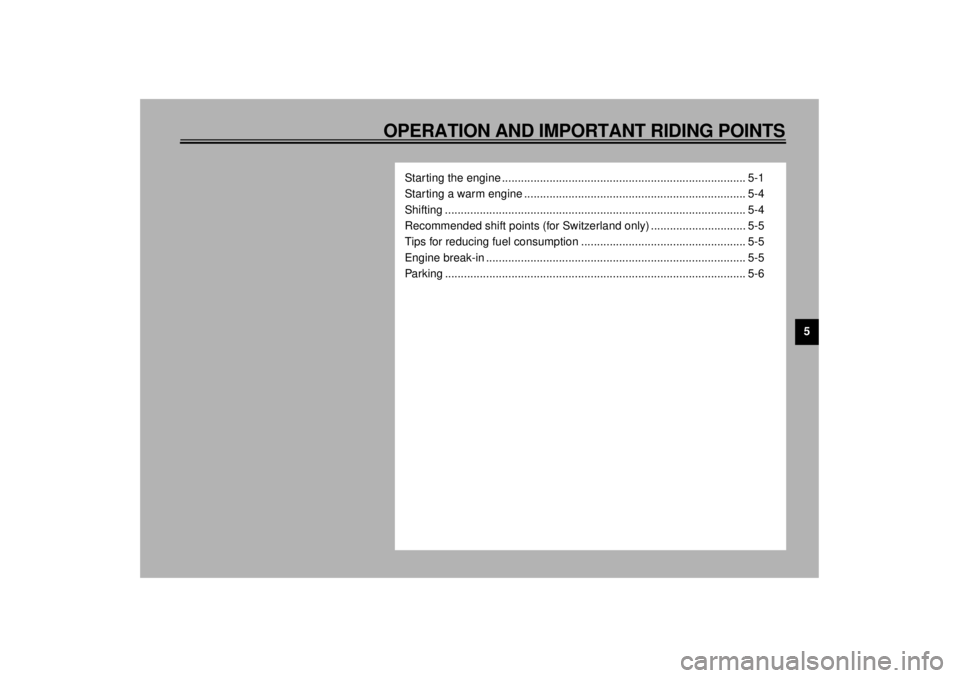

OPERATION AND IMPORTANT RIDING POINTS
5
Starting the engine ............................................................................. 5-1
Starting a warm engine ...................................................................... 5-4
Shifting ............................................................................................... 5-4
Recommended shift points (for Switzerland only) .............................. 5-5
Tips for reducing fuel consumption .................................................... 5-5
Engine break-in .................................................................................. 5-5
Parking ............................................................................................... 5-6
E_4sv_OperationTOC.fm Page 1 Tuesday, August 31, 1999 3:44 PM
