Page 89 of 103
MOTORCYCLE CARE AND STORAGE
7-3
71. Clean your motorcycle with cold
water and soap after the engine
has cooled down.
ECA00012
CAUTION:@ Do not use warm water since it in-
creases the corrosive action of the
salt. @2. Be sure to apply a corrosion pro-
tection spray on all (even chrome-
and nickel-plated) metal surfaces
to prevent corrosion.After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all (even chrome-
and nickel-plated) metal surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing it or covering it.
EWA00001
WA R N I N G
@ Make sure that there is no oil or wax
on the brakes and tires. If neces-
sary, clean the brake discs and lin-
ings with a regular brake disc
cleaner or acetone, and wash the
tires with warm water and mild soap.
Then, carefully test the motorcycle
for its braking performance and cor-
nering behavior. @
E_4sv_Cleaning.fm Page 3 Tuesday, August 31, 1999 3:47 PM
Page 90 of 103
MOTORCYCLE CARE AND STORAGE
7-4
7
ECA00013
CAUTION:@ l
Apply spray oil and wax spar-
ingly and wipe off any excess.
l
Never apply oil or wax on rub-
ber and plastic parts, but treat
them with a suitable care prod-
uct.
l
Avoid using abrasive polishing
compounds as they wear away
the paint.
@NOTE:@ Consult a Yamaha dealer for advice on
what products to use. @
StorageShort-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA00014
CAUTION:@ l
Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp while it is still
wet will allow water and humidi-
ty to seep in and cause rust.
l
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
@
Long-term
Before storing your motorcycle for
several months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Drain the carburetor float cham-
bers by loosening the drain bolts;
this will prevent fuel deposits from
building up. Pour the drained fuel
into the fuel tank.
3. Only for motorcycles equipped
with a fuel cock which has an
“OFF” position: Turn the fuel cock
to “OFF”.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
E_4sv_Cleaning.fm Page 4 Tuesday, August 31, 1999 3:47 PM
Page 91 of 103
MOTORCYCLE CARE AND STORAGE
7-5
7a. Remove the spark plug caps and
spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto the
spark plugs and place the spark
plugs on the cylinder head so that
the electrodes are grounded. (This
will limit sparking during the next
step.)
d. Turn the engine over several times
with the starter. (This will coat the
cylinder walls with oil.)
e. Remove the spark plug caps from
the spark plugs, install the spark
plugs and then the spark plug
caps.
EWA00003
WARNING
@ When turning the engine over, be
sure to ground the spark plug elec-
trodes to prevent damage or injury
from sparking. @
6. Lubricate all control cables and
the pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
7. Check and, if necessary, correct
the tire air pressure, then raise the
motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover up the muffler outlet with a
plastic bag to prevent moisture
from entering.9. Remove the battery and fully
charge it. Store it in a cool, dry
place and recharge it once a
month. Do not store the battery in
an excessively cold or warm place
(less than 0 °C or more than
30 °C). For more information, see
“Battery storage” in the chapter
“PERIODIC MAINTENANCE AND
MINOR REPAIRS”.
NOTE:@ Make any necessary repairs before
storing the motorcycle. @
E_4sv_Cleaning.fm Page 5 Tuesday, August 31, 1999 3:47 PM

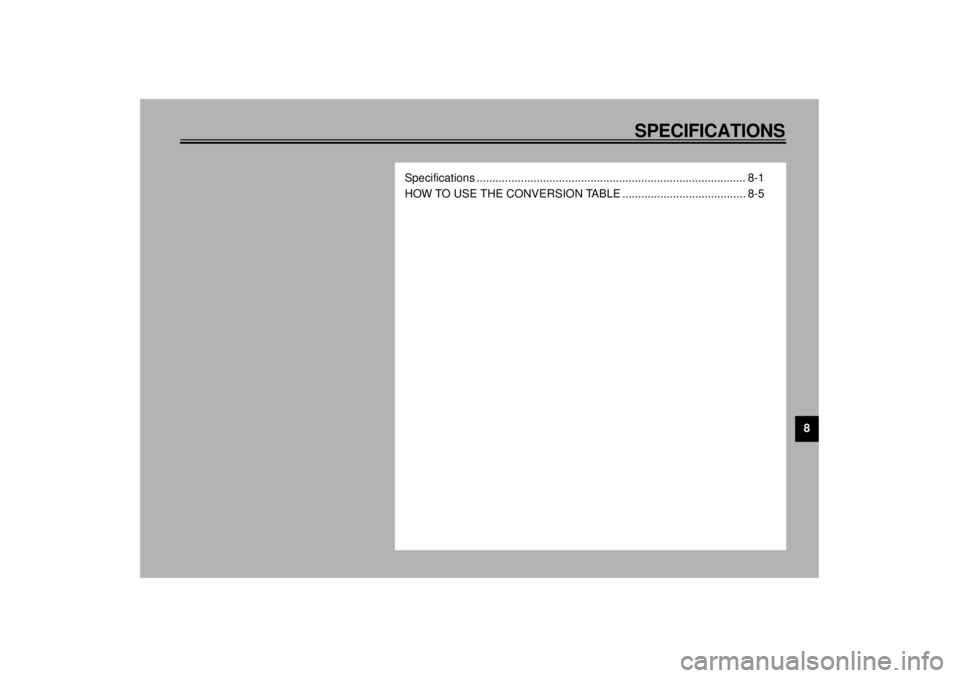

Page 92 of 103
SPECIFICATIONS
8
Specifications ..................................................................................... 8-1
HOW TO USE THE CONVERSION TABLE ....................................... 8-5
E_4sv_SpecTOC.fm Page 1 Tuesday, August 31, 1999 3:47 PM
Page 93 of 103
8-1
8
EAU01038
8-SPECIFICATIONSSpecificationsCS-01E
Model YZF1000R
Dimensions
Overall length 2,085 mm (except for CH, D, DK,
NL, S, SF)
2,170 mm (for CH, D, DK, NL, S,
SF)
Overall width 740 mm
Overall height 1,175 mm
Seat height 815 mm
Wheelbase 1,430 mm
Ground clearance 140 mm
Minimum turning radius 3,100 mm
Basic weight (with oil and full
fuel tank)
224 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 1,002 cm
3
Bore ´ Stroke 75.5 ´ 56.0 mm
Compression ratio 11.5:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG type or
higher
Quantity
Periodic oil change 3.0 L
With oil filter replacement 3.2 L
Total amount 3.5 L
Air filter
Dry type element
-20˚ -10˚ 0˚
10˚20˚ 30˚
40˚50˚C
SAE 10W/30
SAE 15W/40SAE 20W/40SAE 20W/50
SAE 10W/40
CAUTION:Be sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled
“Energy Conserving”) contain anti-friction additives which
will cause clutch and/or starter clutch slippage, resulting in
reduced component life and poor engine performance.
E_4sv_Spec.fm Page 1 Tuesday, August 31, 1999 3:47 PM
Page 94 of 103
SPECIFICATIONS
8-2
8
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 20 L
Reserve amount 4.5 L
Carburetor
Ty p e ´ quantity BDSR38 ´ 4
Manufacturer MIKUNI
Spark plug
Manufacturer/type NGK / DR8EA or
DENSO / X24ESR-U
Gap 0.6 ~ 0.7 mm
Clutch type
Wet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.659
Secondary reduction system Chain drive
Secondary reduction ratio 2.706 (except for D, S, SF)
2.765 (for D, S, SF)
Transmission type Constant mesh 5-speed
Operation Left foot operation
Gear ratio
1st 2.571
2nd 1.778
3rd 1.381
4th 1.1745th 1.037
Chassis
Frame type Diamond
Caster angle 24°
Tr a i l 9 7 m m
Tire
Front
Ty p e Tu b e l e s s
Size 120/70 ZR17
Manufacturer/
model Bridgestone / BT50F
Dunlop / D204FN
Michelin / MACADAM 90XM
Metzeler / MEZ1
Metzeler / MEZ2
Rear
Ty p e Tu b e l e s s
Size 180/55 ZR17
Manufacturer/
model Bridgestone / BT50R
Dunlop / D204M
Michelin / MACADAM 90XM
Metzeler / MEZ1
Metzeler / MEZ2
E_4sv_Spec.fm Page 2 Tuesday, August 31, 1999 3:47 PM
Page 95 of 103
SPECIFICATIONS
8-3
8
Maximum load* 196 kg
Air pressure (cold tire)
up to 90 kg load*
Front 250 kPa (2.50 kg/cm
2, 2.50 bar)
Rear 250 kPa (2.50 kg/cm2, 2.50 bar)
90 kg load ~ maximum load*
Front 290 kPa (2.90 kg/cm2, 2.90 bar)
Rear 290 kPa (2.90 kg/cm2, 2.90 bar)
High speed riding
Front 290 kPa (2.90 kg/cm2, 2.90 bar)
Rear 290 kPa (2.90 kg/cm2, 2.90 bar)
* Load is total weight of cargo, rider, passenger and accessories.
Wheels
Fr on t
Ty p e C a s t
Size 17 ´ MT 3.50
Rear
Ty p e C a s t
Size 17 ´ MT 5.50
Brakes
Fr on t
Type Dual disc brake
Operation Right hand operation
Fluid DOT 4Rear
Type Single disc brake
Operation Right foot operation
Fluid DOT 4
Suspension
Fr on t
Ty p e Te l e s c o p i c f o r k
Inner tube outer
diameter 48 mm
Rear
Type Swingarm (link suspension)
Shock absorbers
Front Coil spring/oil damper
Rear Coil spring/gas-oil damper
Wheel travel
Front 120 mm
Rear 120 mm
Electrical systems
Ignition system T.C.I. (digital)
Charging system
Type A.C. generator
Standard output 12 V, 28 A @ 5,000 r/min
Battery
Type YTX14-BS
Voltage, capacity 12 V, 12 AH
E_4sv_Spec.fm Page 3 Tuesday, August 31, 1999 3:47 PM
Page 96 of 103
SPECIFICATIONS
8-4
8
Headlight type
Quartz bulb (halogen)
Bulb voltage, wattage
´ quantity
Headlight 12 V, 60/55 W (except for GB)
12 V, 35/35 W ´ 2 (for GB)
Auxiliary light 12 V, 5 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 2
Turn signal lights 12 V, 21 W ´ 4
Meter light 12 V, 1.7 W ´ 4
Neutral indicator light 12 V, 3.4 W ´ 1
High beam indicator light 12 V, 3.4 W ´ 1
Oil level indicator light 12 V, 3.4 W ´ 1
Turn indicator light 12 V, 3.4 W ´ 1
Fuel indicator light 12 V, 3.4 W ´ 1
Fuses
Main fuse 30 A
Ignition fuse 15 A
Signaling system fuse 15 A
Headlight fuse 20 A
Fan fuse 7.5 A
E_4sv_Spec.fm Page 4 Tuesday, August 31, 1999 3:47 PM
