1-GIVE SAFETY THE RIGHT OF WAY
EAU00021
Motorcycles are fascinating vehicles, which can give you an unsurpassed feeling of power and
freedom. However, they also impose certain limits, which you must accept; even the best motorcycle
does not ignore the laws of physics.
Regular care and maintenance are essential for preserving your motorcycle’s value and operating
condition. Moreover, what is true for the motorcycle is also true for the rider: good performance
depends on being in good shape. Riding under the influence of medication, drugs and alcohol is, of
course, out of the question. Motorcycle riders - more than car drivers - must always be at their mental
and physical best. Under the influence of even small amounts of alcohol, there is a tendency to take
dangerous risks.
Protective clothing is as essential for the motorcycle rider as seat belts are for car drivers and
passengers. Always wear a complete motorcycle suit (whether made of leather or tear-resistant
synthetic materials with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet.
Optimum protective wear, however, should not encourage carelessness. Though full-coverage
helmets and suits, in particular, create an illusion of total safety and protection, motorcyclists will
always be vulnerable. Riders who lack critical self-control run the risk of going too fast and are apt to
take chances. This is even more dangerous in wet weather. The good motorcyclist rides safely,
predictably and defensively - avoiding all dangers, including those caused by others.
Enjoy your ride!
Give safety the right of way
E_4YP_Label.fm Page 1 Wednesday, October 6, 1999 10:03 AM

2
DESCRIPTION
Left view ............................................................................................. 2-1
Right view ........................................................................................... 2-2
Controls/Instruments .......................................................................... 2-3
E_4YP_DescriptionTOC.fm Page 1 Wednesday, October 6, 1999 10:03 AM

2-1
2
EAU00026
2-DESCRIPTIONLeft view1. Shift pedal (page 3-6)
2. Starter (choke) knob (page 3-9)
3. Fuel cock (page 3-8)
4. Steering lock (page 3-9)
5. Tool kit (page 6-1)6. Seat lock (page 3-10)
7. Rear turn signal lights (page 6-28)
8. Tail/brake light (page 6-28)
9. Mufflers
10. Fuses (page 6-25)
E_4YP_Description.fm Page 1 Wednesday, October 6, 1999 10:03 AM

DESCRIPTION
2-2
2

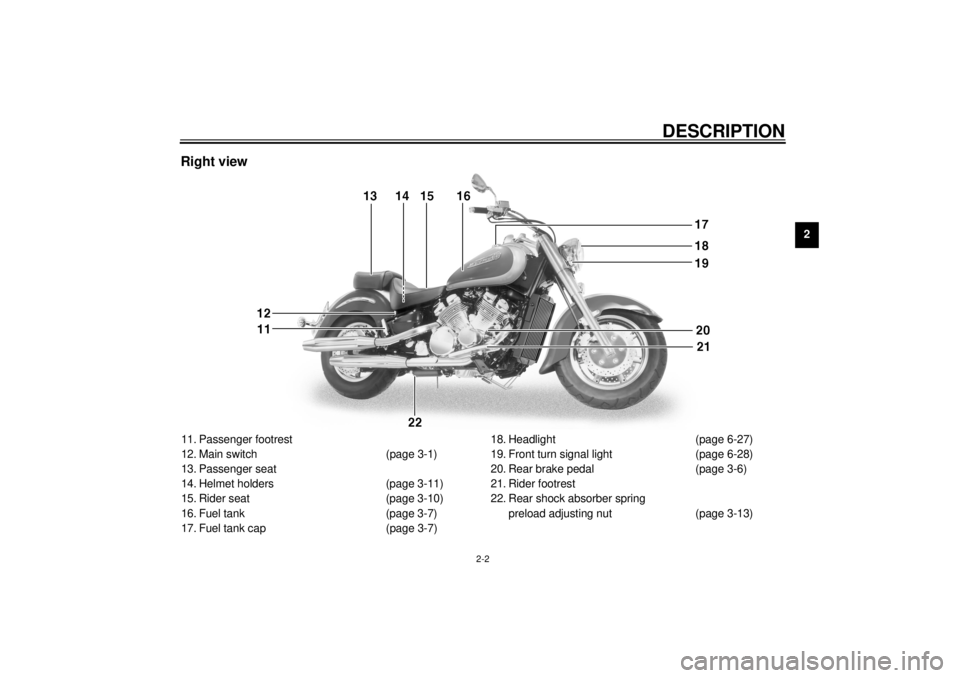

Right view11. Passenger footrest
12. Main switch (page 3-1)
13. Passenger seat
14. Helmet holders (page 3-11)
15. Rider seat (page 3-10)
16. Fuel tank (page 3-7)
17. Fuel tank cap (page 3-7)18. Headlight (page 6-27)
19. Front turn signal light (page 6-28)
20. Rear brake pedal (page 3-6)
21. Rider footrest
22. Rear shock absorber spring
preload adjusting nut (page 3-13)
E_4YP_Description.fm Page 2 Wednesday, October 6, 1999 10:03 AM

DESCRIPTION
2-3
2

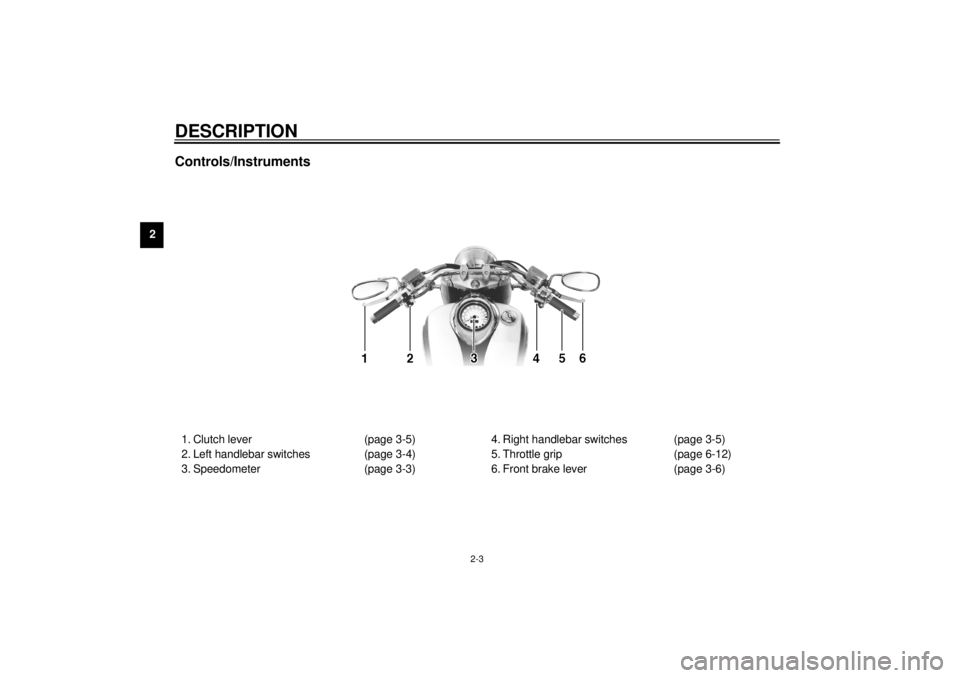

Controls/Instruments1. Clutch lever (page 3-5)
2. Left handlebar switches (page 3-4)
3. Speedometer (page 3-3)4. Right handlebar switches (page 3-5)
5. Throttle grip (page 6-12)
6. Front brake lever (page 3-6)
E_4YP_Description.fm Page 3 Wednesday, October 6, 1999 10:03 AM

3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch......................................................................................... 3-1
Indicator lights .................................................................................... 3-1
Speedometer...................................................................................... 3-3
Antitheft alarm (optional) .................................................................... 3-3
Handlebar switches ............................................................................ 3-4
Clutch lever ........................................................................................ 3-5
Shift pedal .......................................................................................... 3-6
Front brake lever................................................................................. 3-6
Rear brake pedal ................................................................................ 3-6
Fuel tank cap...................................................................................... 3-7
Fuel .................................................................................................... 3-7
Fuel cock ............................................................................................ 3-8
Starter (choke) knob........................................................................... 3-9
Steering lock ...................................................................................... 3-9
Rider seat ......................................................................................... 3-10
Helmet holders ................................................................................. 3-11
Adjusting front fork preload .............................................................. 3-12
Adjusting rear shock absorber preload ............................................ 3-13
Sidestand ......................................................................................... 3-15
Sidestand/clutch switch operation check.......................................... 3-15
E_4YP_FunctionsTOC.fm Page 1 Wednesday, October 6, 1999 10:03 AM

3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00028

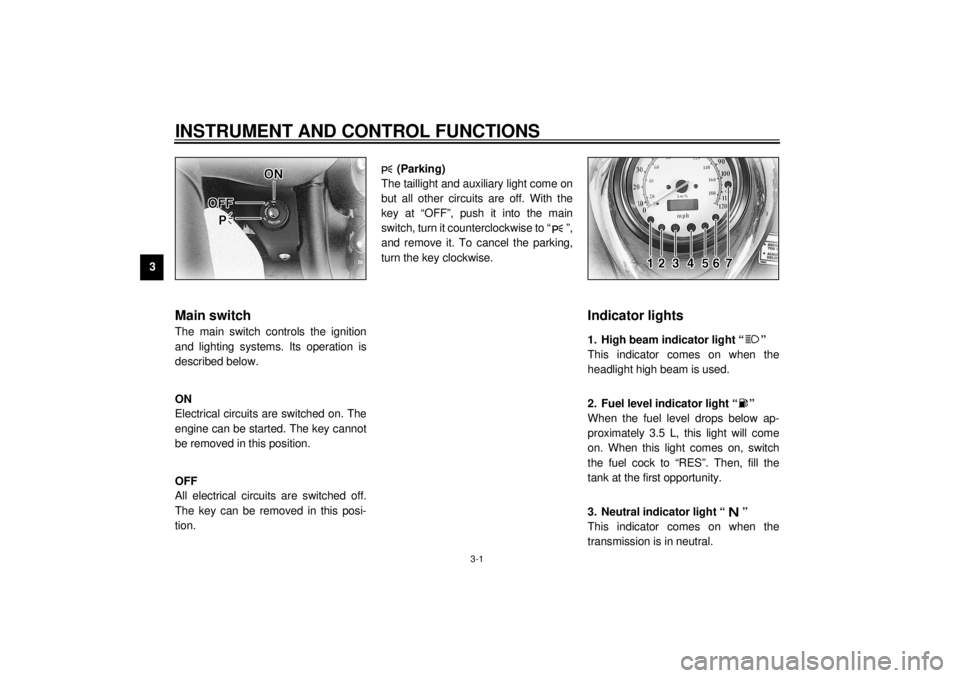

Main switchThe main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on. The
engine can be started. The key cannot
be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00054*
(Parking)
The taillight and auxiliary light come on
but all other circuits are off. With the
key at “OFF”, push it into the main
switch, turn it counterclockwise to “ ”,
and remove it. To cancel the parking,
turn the key clockwise.
EAU00056
Indicator lights
EAU00063
1. High beam indicator light “ ”
This indicator comes on when the
headlight high beam is used.
EAU00079
2. Fuel level indicator light “ ”
When the fuel level drops below ap-
proximately 3.5 L, this light will come
on. When this light comes on, switch
the fuel cock to “RES”. Then, fill the
tank at the first opportunity.
EAU00061
3. Neutral indicator light “ ”
This indicator comes on when the
transmission is in neutral.
E_4YP_Functions.fm Page 1 Wednesday, October 6, 1999 10:03 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU00057
4. Turn indicator light “ ”
This indicator flashes when the turn
switch is moved to the left or right.
EAU01209
5. Oil level indicator light “ ”
This indicator light will come on if the oil
level is low. To check that the indicator
light is working properly:l
Turn the engine stop switch to “ ”
and the main switch to “ON”.
l
Put the transmission in neutral or
apply the clutch lever.
l
Push the start switch.
If the indicator light does not come on
while pushing the start switch, have a
Yamaha dealer inspect the electrical
circuit.
NOTE:@ Even if the oil is filled to the specified
level, the indicator light may flicker
when riding on a slope or during sud-
den acceleration or deceleration, but
this is normal. @
EAU01257
6. Engine overheat indicator light
“”
This indicator light will come on if the
engine overheats. If the light comes on,
stop the engine immediately and allow
the engine to cool. To check that the in-
dicator light is working properly:l
Turn the engine stop switch to “ ”
and the main switch to “ON”.
l
Put the transmission in neutral or
apply the clutch lever.
l
Push the start switch.
If the indicator light does not come on
while pushing the start switch, have a
Yamaha dealer inspect the electrical
circuit.
EAU01272
7. Overdrive / Engine trouble indica-
tor light “O/D / ”l
This indicator light will come on
when the transmission is in over-
drive (5th gear).
l
This indicator light will also come
on or flash if trouble occurs in an
engine monitoring circuit. In such
a case, take the motorcycle to a
Yamaha dealer to have the self-di-
agnostic systems checked.
E_4YP_Functions.fm Page 2 Wednesday, October 6, 1999 10:03 AM
