SPECIFICATIONS
8-3
8
Maximum load* 205 kg
Air pressure (cold tire)
up to 90 kg load*
Front 225 kPa (2.25 kg/cm
2, 2.25 bar)
Rear 250 kPa (2.50 kg/cm2, 2.50 bar)
90 kg load ~ maximum load*
Front 250 kPa (2.50 kg/cm2, 2.50 bar)
Rear 290 kPa (2.90 kg/cm2, 2.90 bar)
High speed riding
Front 250 kPa (2.50 kg/cm2, 2.50 bar)
Rear 290 kPa (2.90 kg/cm2, 2.90 bar)
* Load is total weight of cargo, rider, passenger and accessories.
Wheels
Front
Ty p e C a s t
Size 17 ´ MT 3.00
Rear
Ty p e C a s t
Size 17 ´ MT 4.00
Brakes
Front
Type Dual disc brake
Operation Right hand operation
Fluid DOT 4Rear
Type Single disc brake
Operation Right foot operation
Fluid DOT 4
Suspension
Fr o n t
Ty p e Te l e s c o p i c f o r k
Rear
Type Swingarm (link suspension)
Shock absorbers
Front Coil spring / oil damper
Rear Coil-gas spring / oil damper
Wheel travel
Front 140 mm
Rear 110 mm
Electrical systems
Ignition system T.C.I. (digital)
Charging system
Type A.C. generator
Standard output 13,5 V, 34 A @ 5,000 r/min
Battery
Type YTX14-BS
Voltage, capacity 12 V, 12 AH

SPECIFICATIONS
8-4
8
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 2
Auxiliary light 12 V, 4 W ´ 1
Turn signal light 12 V, 21 W ´ 4
Meter light 12 V, 3.4 W ´ 4
Neutral indicator light 12 V, 3.4 W ´ 1
High beam indicator light 12 V, 3.4 W ´ 1
Oil level indicator light 12 V, 3.4 W ´ 1
Turn indicator light 12 V, 3.4 W ´ 2
Fuel indicator light 12 V, 3.4 W ´ 1
Fuses
Main fuse 30 A
Signaling system fuse 20 A
Headlight fuse 15 A
Hazard light fuse 10 A
Ignition fuse 10 A
Clock fuse 10 A

SPECIFICATIONS
8-5
8
EAU01064
HOW TO USE THE CONVERSION TABLECS-02E All specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL
unit data.
Ex.METRIC MULTIPLIER IMPERIAL
**mm´ 0.03937 = **in
2 mm´ 0.03937 = 0.08 in
CONVERSION TABLE
METRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
Torquem·kg
m·kg
cm·kg
cm·kg7.233
86.794
0.0723
0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g2.205
0.03527lb
oz
Speed km/hr 0.6214 mph
Distancekm
m
m
cm
mm0.6214
3.281
1.094
0.3937
0.03937mi
ft
yd
in
in
Volume /
Capacitycc (cm3)
cc (cm3)
lt (liter)
lt (liter)0.03527
0.06102
0.8799
0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Misc.kg/mm
kg/cm2
Centigrade (°
C)55.997
14.2234
9/5 + 32 lb/in
psi (lb/in
2)
Fahrenheit (°
F)

9
CONSUMER INFORMATION
Identification number records ............................................................. 9-1
Key identification number ................................................................... 9-1
Vehicle identification number.............................................................. 9-1
Model label ......................................................................................... 9-2

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification number recordsRecord the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided for assistance when ordering
spare parts from a Yamaha dealer or
for reference in case the vehicle is sto-
len.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification numberThe key identification number is
stamped on the key tag. Record this
number in the space provided and use
it for reference when obtaining a new
key.
EAU01043
Vehicle identification numberThe vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your state. @
1. Key identification number
1. Vehicle identification number

CONSUMER INFORMATION
9-2
9
EAU01050
Model labelThe model label is affixed to the frame
under the seat. (See page 3-15 for seat
removal procedures.) Record the infor-
mation on this label in the space pro-
vided. This information will be needed
to order spare parts from your Yamaha
dealer.1. Model label

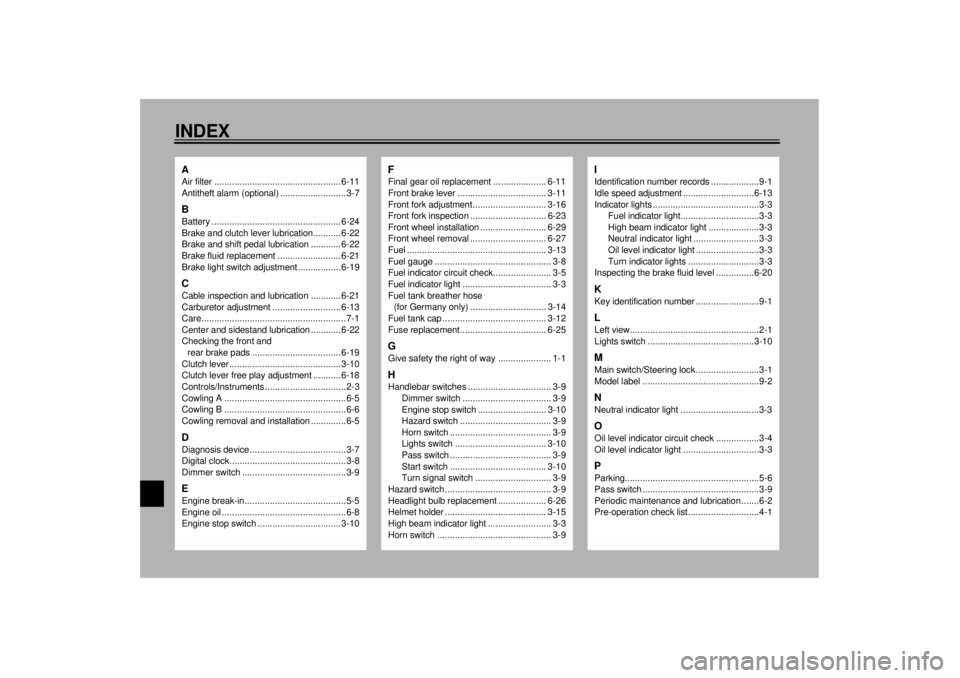

10-INDEXAAir filter .................................................. 6-11
