2000 YAMAHA XJ900S Owners Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU00157
Shift pedalThis motorcycle is equipped with a con-
stant-mesh 5-speed transmission.
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch when shifting.
EAU00160
Front brake leverThe front brake lever is located on the
right handlebar and is equipped with a
position adjuster.
To activate the front brake, pull the le-
ver toward the handlebar.
To adjust the front brake lever position,
turn the adjusting nut while pulling the
lever forward. Make sure the mark “ ”
on the adjusting nut is aligned with the
mark “ ” on the lever.
EAU00162
Rear brake pedalThe rear brake pedal is on the right
side of the motorcycle. Press down on
the brake pedal to apply the rear brake.
1. Shift pedal
1. Front brake lever
2. Position adjusting nut
3. Proper position
a. Adjusting range
1. Rear brake pedal

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAU02935
Fuel tank capTo open
Open the lock cover. Insert the key and
turn it 1/4 turn clockwise. The lock will
be released and the cap can be
opened.
To close
Push the tank cap into position with the
key inserted. To remove the key, turn it
counterclockwise to the original posi-
tion. Then, close the lock cover.
NOTE:@ This tank cap cannot be closed unless
the key is in the lock. The key cannot
be removed if the cap is not locked
properly. @
EW000023
WARNING
@ Be sure the cap is properly installed
and locked in place before riding the
motorcycle. @
1. Lock cover
2. Open

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU01183
FuelMake sure there is sufficient fuel in the
tank. Fill the fuel tank to the bottom of
the filler tube as shown in the illustra-
tion.
EW000130
WARNING
@ Do not overfill the fuel tank. Avoid
spilling fuel on the hot engine. Do
not fill the fuel tank above the bot-
tom of the filler tube or it may over-
flow when the fuel heats up later and
expands. @
EAU00186
CAUTION:@ l
Always wipe off spilled fuel im-
mediately with a dry and clean
soft cloth. Fuel may deteriorate
painted surfaces or plastic
parts.
l
(For Germany only)
The fuel tank cap equipped on
German models is specially de-
signed. Always use the correct
cap whenever replacement is
necessary.
@
EAU00191
NOTE:@ If knocking or pinging occurs, use a dif-
ferent brand of gasoline or higher oc-
tane grade. @
1. Filler tube
2. Fuel level
Recommended fuel:
Regular unleaded gasoline with a
research octane number of 91 or
higher.
Fuel tank capacity:
Total:
24 L
Reserve:
5 L

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU00196
Fuel tank breather hose
(for Germany only)This model is equipped with a fuel tank
breather hose. Before using this motor-
cycle, be sure to:l
Check hose connection.
l
Check hose for cracks or damage.
Replace if damaged.
l
Make sure the end of the hose is
not blocked. Clean it if necessary.
EAU02976
Starter (choke) “ ”Starting a cold engine requires a richer
air-fuel mixture. A separate starter cir-
cuit supplies this mixture.
Move in direction
a to turn on the
starter (choke).
Move in direction
b to turn off the
starter (choke).
1. Fuel tank breather hose
1. Starter (choke) “ ”

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU02925
SeatTo remove
Insert the key in the lock and turn it
counterclockwise.To install
Insert the projections on the front of the
seat into the seat holder, then push
down on the seat.
NOTE:@ Make sure that the seat is securely fit-
ted. @
EAU00263
Helmet holderThe helmet holder is under the seat.
Remove the seat and hook the helmet
on the helmet holder. Then, reinstall
the seat and lock it.
EW000030
WARNING
@ Never ride with a helmet in the hel-
met holder. The helmet may hit ob-
jects, causing loss of control and
possibly an accident. @
1. Seat lock
1. Projection (´ 2)
2. Seat holder
1. Helmet holder

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU01688

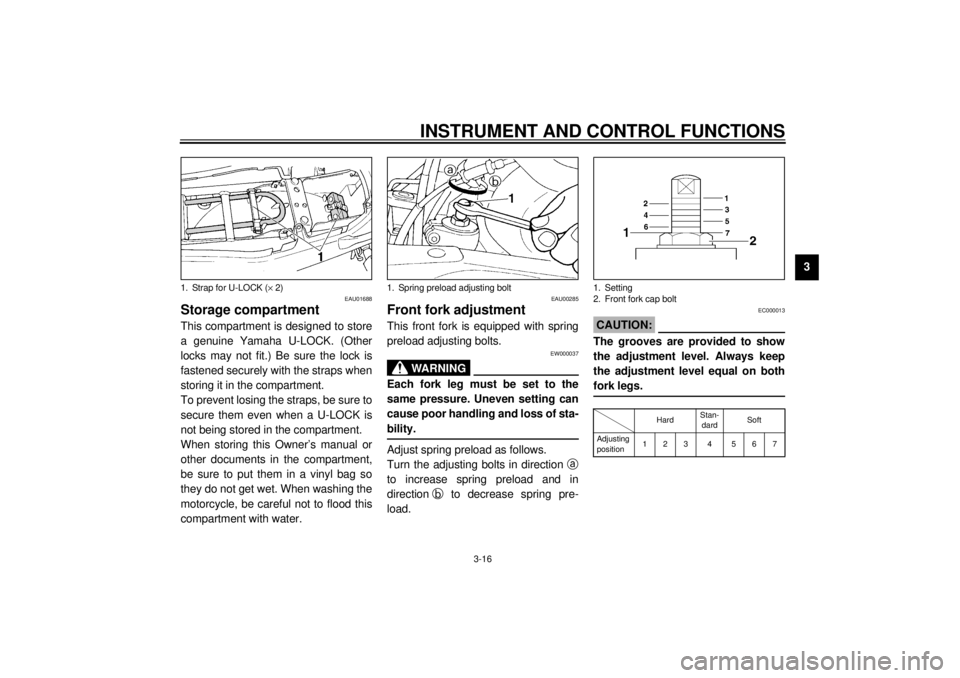

Storage compartmentThis compartment is designed to store
a genuine Yamaha U-LOCK. (Other
locks may not fit.) Be sure the lock is
fastened securely with the straps when
storing it in the compartment.
To prevent losing the straps, be sure to
secure them even when a U-LOCK is
not being stored in the compartment.
When storing this Owner’s manual or
other documents in the compartment,
be sure to put them in a vinyl bag so
they do not get wet. When washing the
motorcycle, be careful not to flood this
compartment with water.
EAU00285
Front fork adjustmentThis front fork is equipped with spring
preload adjusting bolts.
EW000037
WARNING
@ Each fork leg must be set to the
same pressure. Uneven setting can
cause poor handling and loss of sta-
bility. @Adjust spring preload as follows.
Turn the adjusting bolts in direction
a
to increase spring preload and in
direction
b to decrease spring pre-
load.
EC000013
CAUTION:@ The grooves are provided to show
the adjustment level. Always keep
the adjustment level equal on both
fork legs. @CI-18E
1. Strap for U-LOCK (´ 2)
1. Spring preload adjusting bolt
1. Setting
2. Front fork cap bolt
HardStan-
dardSoft
Adjusting
position123 4 567

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU00295*

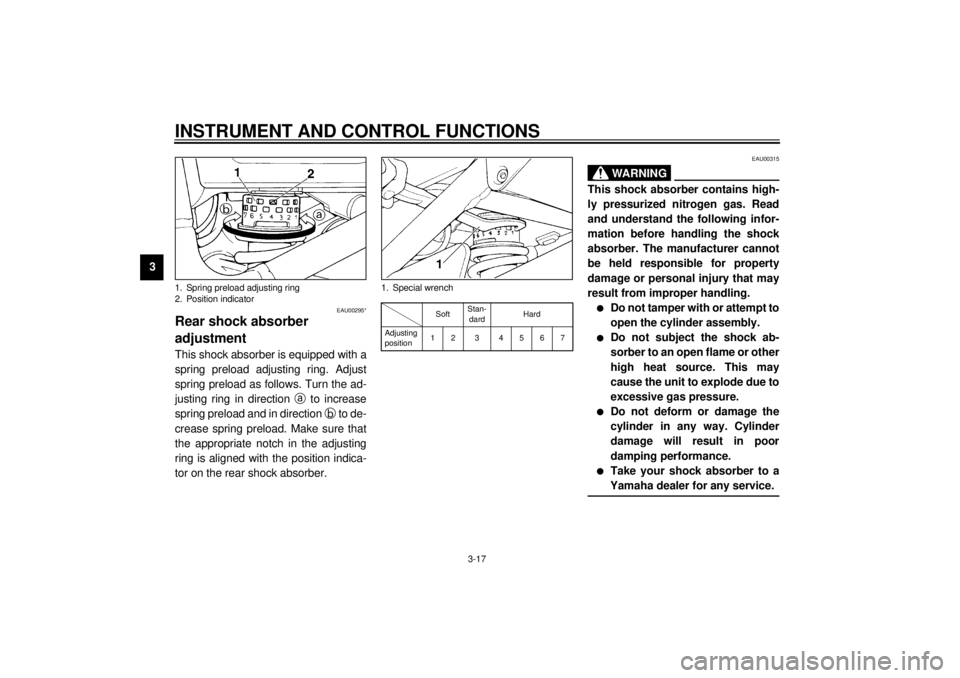

Rear shock absorber
adjustmentThis shock absorber is equipped with a
spring preload adjusting ring. Adjust
spring preload as follows. Turn the ad-
justing ring in direction
a to increase
spring preload and in direction
b to de-
crease spring preload. Make sure that
the appropriate notch in the adjusting
ring is aligned with the position indica-
tor on the rear shock absorber.
CI-18EEAU00315
WARNING
@ This shock absorber contains high-
ly pressurized nitrogen gas. Read
and understand the following infor-
mation before handling the shock
absorber. The manufacturer cannot
be held responsible for property
damage or personal injury that may
result from improper handling.l
Do not tamper with or attempt to
open the cylinder assembly.
l
Do not subject the shock ab-
sorber to an open flame or other
high heat source. This may
cause the unit to explode due to
excessive gas pressure.
l
Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
l
Take your shock absorber to a
Yamaha dealer for any service.
@
1. Spring preload adjusting ring
2. Position indicator
1. Special wrench
SoftStan-
dardHard
Adjusting
position12 3 4567

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
EAU00330
SidestandThis model is equipped with an ignition
circuit cut-off system. The motorcycle
must not be ridden when the sidestand
is down. The sidestand is located on
the left side of the frame. (Refer to
page 5-1 for an explanation of this sys-
tem.)
EW000044
WARNING
@ This motorcycle must not be operat-
ed with the sidestand in the down
position. If the stand is not properly
retracted, it could contact the
ground and distract the operator, re-
sulting in a possible loss of control.
Yamaha has designed into this
motorcycle a lockout system to as-
sist the operator in fulfilling the re-
sponsibility of retracting the
sidestand. Please check carefully
the operating instructions listed be-
low and if there is any indication of a
malfunction, return the motorcycle
to a Yamaha dealer immediately for
repair. @
EAU00332
Sidestand/clutch switch
operation checkCheck the operation of the sidestand
switch and clutch switch against the in-
formation below.
EW000046
WARNING
@ l
Be sure to use the centerstand
during this inspection.
l
If improper operation is noted,
consult a Yamaha dealer.
@CD-08E
CD-08E
TURN MAIN SWITCH TO “ON” AND
ENGINE STOP SWITCH TO “ ”.TRANSMISSION IS IN GEAR AND
SIDESTAND IS UP.PULL IN CLUTCH LEVER AND
PUSH START SWITCH.ENGINE WILL START.
SIDESTAND IS DOWN.ENGINE WILL STALL.SIDESTAND SWITCH IS OK.CLUTCH SWITCH IS OK.
