2000 TOYOTA SIENNA Owners Manual

00 SIENNA(U)
259
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
If any washer does not work or low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if scratched
or dropped. Hold a bulb only by its
plastic or metal case. Do not touch
the glass part of a bulb with bare
hands.
NOTICE
Only use a bulb of the listed type.
ProCarManuals.com

00 SIENNA(U)
260
Light bulbsBulb
No.WTy p e
HeadlightsHB260/55A
Parking, front turn
signal and side
marker lights115727/8B
Rear turn signal
lights115627B
Stop and tail lights115727/8B
Back−up lights92118C
License plate lights1685C
High mounted
stoplight92118C
Front personal lights—8D
Front interior light—8D
Rear personal lights—8D
Rear interior light—8D
Vanity mirror lights—3D
Door courtesy lights1943.8C
Luggage
compartment light—5D
A: HB2 halogen bulbs
B: Single end bulbs
C: Wedge base bulbs
D: Double end bulbs
—Headlights
1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring
and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
ProCarManuals.com

00 SIENNA(U)
261
3. Install the rubber cover with the
“TOP” mark upward, and snuggle on
the boss. Then insert the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.Use a Phillips−head screwdriver.

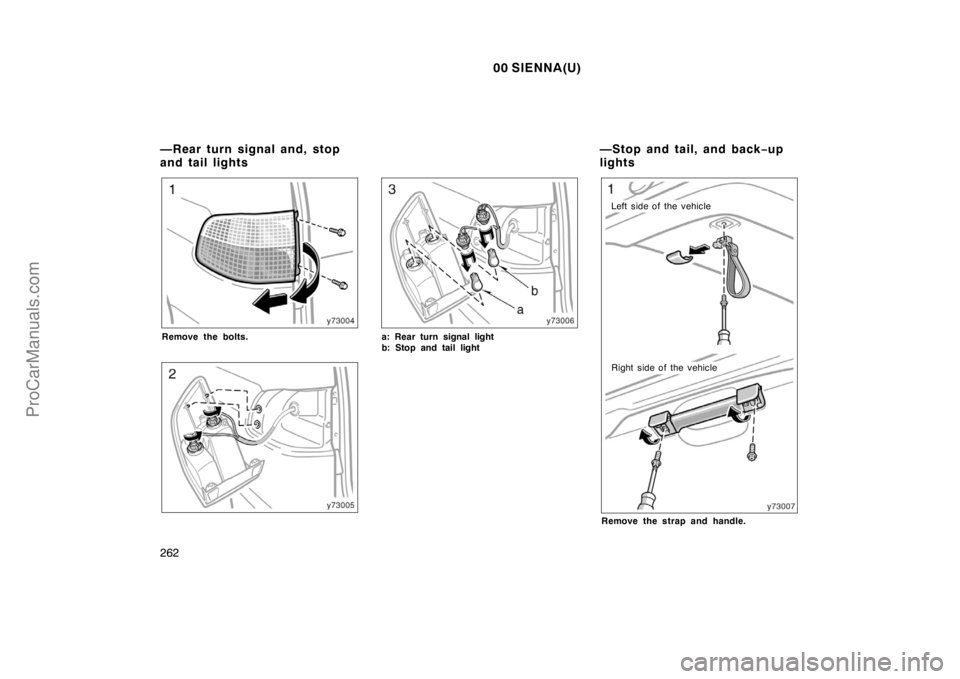

—Parking, front turn signal
and side marker lights
ProCarManuals.com

00 SIENNA(U)
262
Remove the bolts.a: Rear turn signal light
b: Stop and tail light
Left side of the vehicle
Right side of the vehicle
Remove the strap and handle.

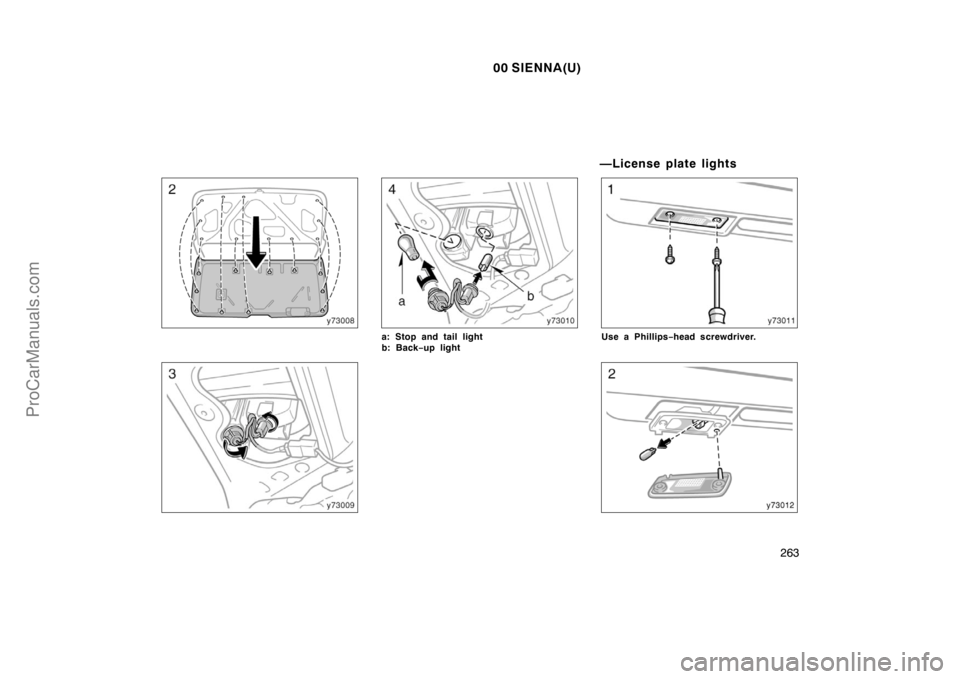

—Rear turn signal and, stop
and tail lights—Stop and tail, and back−up
lights
ProCarManuals.com

00 SIENNA(U)
263
a: Stop and tail light
b: Back−up light
—License plate lights
Use a Phillips−head screwdriver.
ProCarManuals.com

00 SIENNA(U)
264

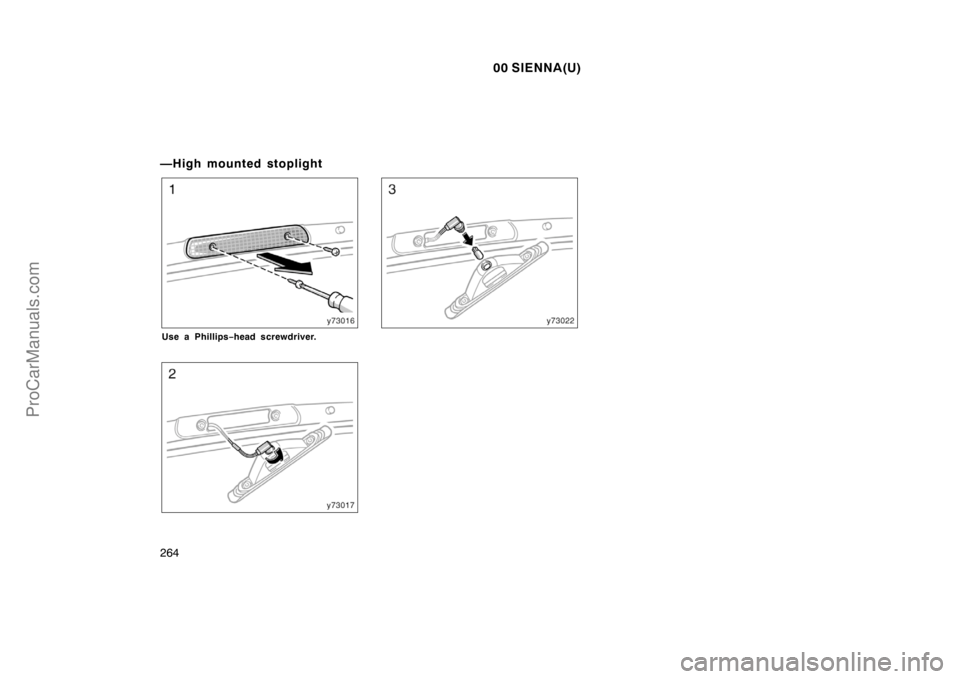

—High mounted stoplight
Use a Phillips−head screwdriver.
ProCarManuals.com

00 SIENNA(U)
265
SPECIFICATIONS
Dimensions and weight266 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine266 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel267 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications267 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires269 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses270 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8
ProCarManuals.com

00 SIENNA(U)
266
Dimensions and weight Engine
Model:
1MZ−FE
Type:
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.):
87.583.0 (3.443.27)
Displacement, cm
3 (cu. in.):
2995 (182.8) Overall width mm (in.)
2900 (114.2) Overall height mm (in.)
1610 (63.4) Wheelbase mm (in.)
Front tread mm (in.) 1565 (61.6)
Rear tread mm (in.)
526 (1160)
∗
2
574 (1265)∗
3
612 (1350)∗
4
∗
1: Unladen vehicle∗
2: Wagon∗
3: Van with rear seat∗
4: Van without rear seatOverall length mm (in.)
Vehicle capacity weight kg (lb.)
(occupants + luggage)4915 (193.5)
1865 (73.4)
1710 (67.3)
∗
1
