2000 TOYOTA SIENNA Owners Manual

00 SIENNA(U)
99
If your child restraint system requires
the use of a top strap, latch the hook
onto the anchor bracket and tighten the
top strap.

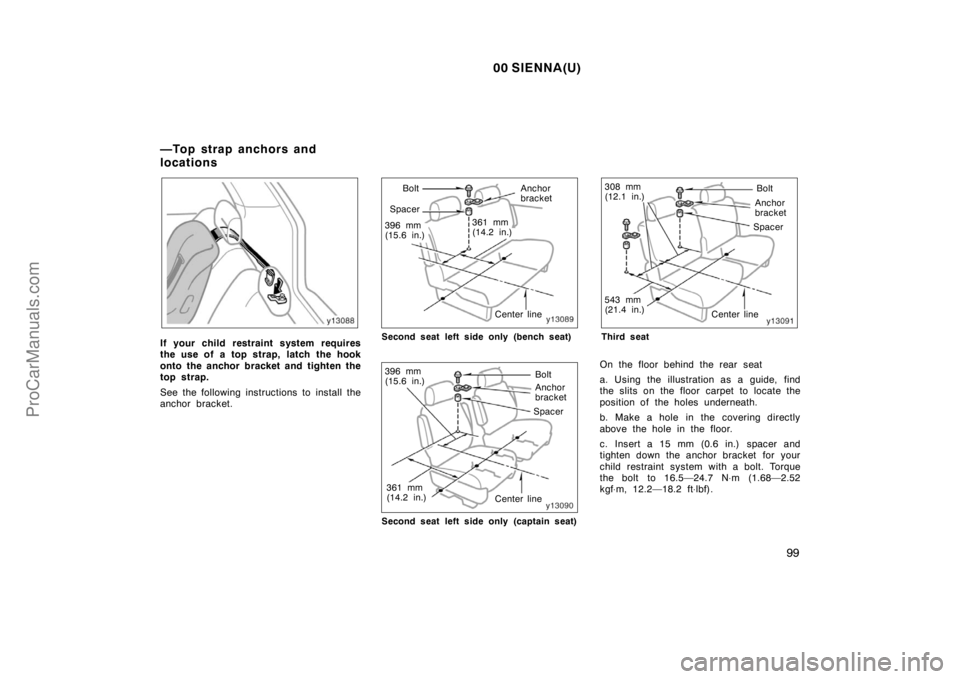

See the following instructions to install the
anchor bracket.
Center lineAnchor
bracket
396 mm
(15.6 in.)361 mm
(14.2 in.) SpacerBolt
Second seat left side only (bench seat)
396 mm
(15.6 in.)
361 mm
(14.2 in.)
Center lineSpacerAnchor
bracket Bolt
Second seat left side only (captain seat)
Center lineBolt
543 mm
(21.4 in.)SpacerAnchor
bracket
308 mm
(12.1 in.)
Third seat
On the floor behind the rear seat
a. Using the illustration as a guide, find
the slits on the floor carpet to locate the
position of the holes underneath.
b. Make a hole in the covering directly
above the hole in the floor.
c. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5—24.7 N⋅m (1.68—2.52
kgf⋅m, 12.2—18.2 ft⋅lbf).
—Top strap anchors and
locations
ProCarManuals.com

00 SIENNA(U)
100
This model sold in Canada is provided
with a bracket set in the glove box, de-
signed for use with any of the 3 anchor
locations shown in the illustrations.
If your child restraint system does not
provide any of the necessary parts, ask
your Toyota dealer. (See “—Child restraint
system”.)
Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrors—
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface.
ProCarManuals.com

00 SIENNA(U)
101
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to
be adjusted
Place the switch at “L” (left) or “R”
(right).
2. Control switch—To move the mirror
Push the switch in the desired direc-
tion.
Mirror can be adjusted when key is in the
“ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de−icer to free
the mirror.
—Power rear view mirror
control
ProCarManuals.com

00 SIENNA(U)
102
—Folding rear view mirrors
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirrors, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
Anti−glare inside rear view
mirror
ProCarManuals.com

00 SIENNA(U)
103
Sun visors—
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3).
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the anti−glare
inside rear view mirror and obstruct
the rear view.
—Vanity mirrors
To use the vanity mirrors, swing down
the sun visor and open the cover.
On some models, the vanity light comes
on when you open the cover.
VANITY LIGHTS CUT OFF OPERATION
When the ignition switch is “OFF” and
vanity light in the vehicle stays lighting
on, the light will cut off automatically after
30 minutes with the light flashing five
times.
ProCarManuals.com

00 SIENNA(U)
104
You can cancel the cut off operation by:
Turning the key to the “ACC” position.
Opening or closing any of front and
sliding doors
Turning off all the “ON” lights.
All the lights are cut off when all the
doors are locked by key or wireless re-
mote control transmitter.
The key must be in the “OFF” position.
ProCarManuals.com

00 SIENNA(U)
105
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights11 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light111 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light11 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage compartment light11 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer11 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer11 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers11 5 . . . . . . . . . . .
SECTION 1− 4
ProCarManuals.com

00 SIENNA(U)
106
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Position 3 (“AUTO”)—Headlights and/or all
of the above
They automatically turn on or off depend-
ing on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
If you feel that the automatic light control
comes into operation too early or too late,
have the sensor adjusted by your Toyota
dealer.The lights automatically turn off when any
of the doors is opened with the ignition
key in the “ACC” or “LOCK” position. To
turn them on again, turn the key to the
“ON” position or actuate the headlight
switch. If you are going to park for over
one week, make sure the headlight switch
is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
(on some models)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
Headlights and turn signals
(with automatic light control
system)
