2000 TOYOTA SIENNA Owners Manual

00 SIENNA(U)
27
2. Remove the discharged transmitter bat-
tery.
NOTICE
Do not bend the terminals.
3. Put a new transmitter battery with posi-
tive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” in Section 4.)
MODEL/FCC ID: GQ43VT14T
CAN: 1470102849
MADE IN U.S.A.
This complies with Section 15 of the
FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
ProCarManuals.com

00 SIENNA(U)
28
Power windows
The windows can be operated with the
switch on each front door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
Window
lock switch
OPERATING THE PASSENGER’S WIN-
DOW
Use the switch on the passenger ’s
door. The driver ’s door also has the
switch that controls the passenger ’s
window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
ProCarManuals.com

00 SIENNA(U)
29
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Power rear quarter windows
The rear quarter windows can be oper-
ated with the “REAR VENT” switch on
the instrument panel.
The power rear quarter windows work
when the ignition switch is in the “ON”
position. However, if both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
Both the left and the right rear quarter
windows move as long as you hold the
switch.
To open: Push the right side of the switch.
To close: Push the left side of the switch.
ProCarManuals.com

00 SIENNA(U)
30
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the hands and
other parts of the body of all occu-
pants are kept completely inside the
vehicle before you close the power
rear quarter windows. If someone’s
hands get caught in a closing win-
dow, it could result in a serious
injury. When anyone closes the
power rear quarter windows, make
sure that he/she operates the win-
dows safely.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power rear quarter window
switch and get trapped in a window.
Unattended children can be involved
in serious accidents.
To open the window, pull the latch han-
dle toward you and swing it fully out.
When closing the window, make sure it is
completely closed.
Back door
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
Vehicles with power door lock system—All
the doors lock and unlock simultaneously
with back door.
Center side windows and
manual rear quarter windows
ProCarManuals.com

00 SIENNA(U)
31

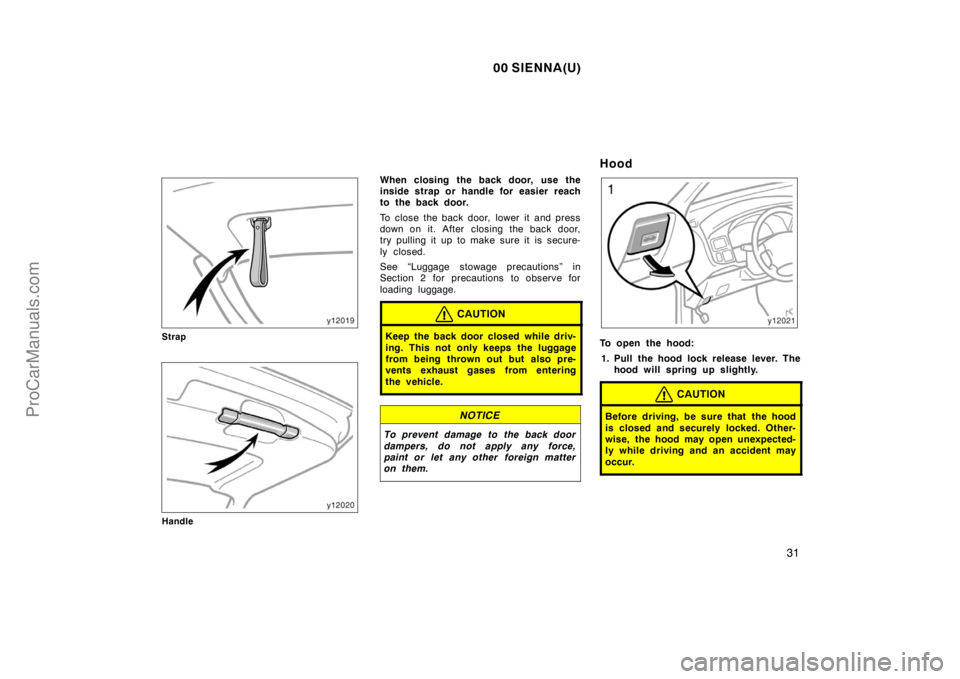

Strap
Handle
When closing the back door, use the
inside strap or handle for easier reach
to the back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “Luggage stowage precautions” in
Section 2 for precautions to observe for
loading luggage.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
NOTICE
To prevent damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
Hood
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
ProCarManuals.com

00 SIENNA(U)
32

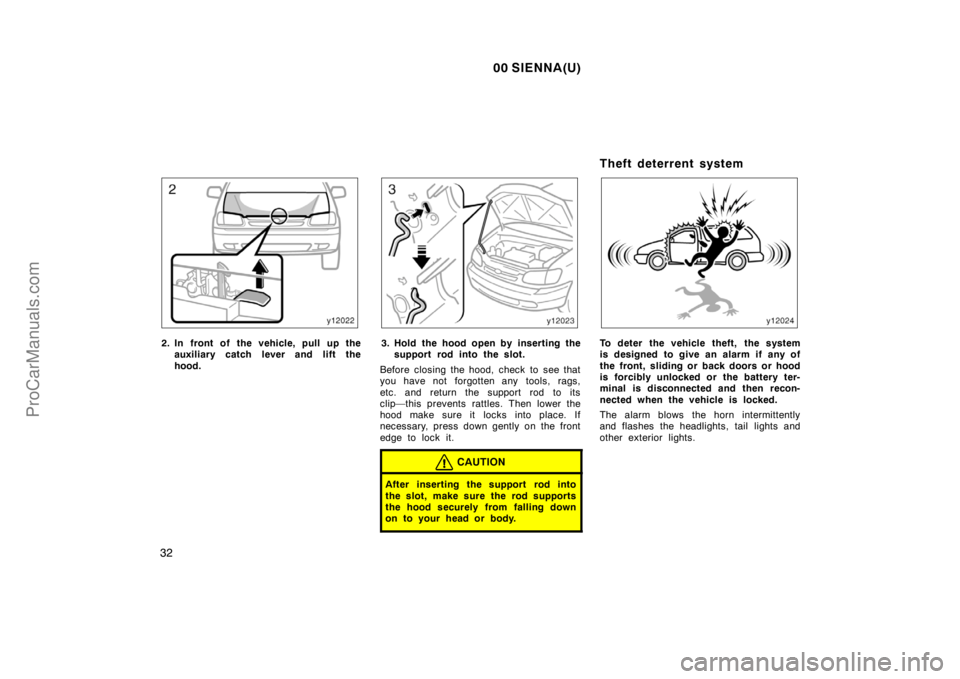

2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood make sure it locks into place. If
necessary, press down gently on the front
edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm if any of
the front, sliding or back doors or hood
is forcibly unlocked or the battery ter-
minal is disconnected and then recon-
nected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
other exterior lights.
ProCarManuals.com

00 SIENNA(U)
33
SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK”
position and remove it.
The indicator light will start flashing every
1 second when the key is removed from
the ignition switch. (See “Engine
immobiliser system” for details.)
2. Have all passengers get out of the
vehicle.
3. Close the front, sliding and back doors
and hood. Then lock all the doors with
the key or wireless remote control
transmitter.
The indicator light will come on when the
front, sliding and back doors and hood are
closed and locked.As the doors are locked, the system will
give you a preparation time of 30 seconds
before the setting, during which the front,
sliding or back doors and hood may be
opened.
Be careful not to unlock any door with the
key or wireless remote control transmitter
during setting. This will cancel the system.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
The system will automatically be set after
the preparation time passes. The indicator
light will flash to show the system is set.
If any of the front, sliding or back doors
or hood is open at that time, the setting
is interrupted until it is closed and locked.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the front, sliding or back
doors is unlocked or if the hood is
forcibly opened without the key or wire-
less remote control transmitter
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating.
If any of the doors is unlocked without the
key or wireless remote control transmitter
and the key is not in the ignition switch,
all the doors will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system cannot be cancelled
without the key or wireless remote control
transmitter. If the front, sliding and back
doors and hood are closed after the alarm
stops, the system automatically resets the
alarm.
ProCarManuals.com

00 SIENNA(U)
34
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
To stop alarm midway, do the following:
Unlock either front door or back door
with the key or wireless remote control
transmitter.
Turn the key from the “LOCK” to “ON”
position.
These ways cancel the system at the
same time.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with the
key or wireless remote control transmit-
ter. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The
system should activate the alarm.
4. Cancel the system as described above.
5. Repeat this operation for the other
doors and hood. When testing on the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.If the system does not work properly,
have it checked by your Toyota dealer.
Fuel tank cap
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
ProCarManuals.com
