2000 TOYOTA SIENNA Owners Manual

00 SIENNA(U)
3
1. Headlight and turn signal switch
2. Wiper and washer switches
3. Clock
4. Air conditioning controls
5. Emergency flasher switch
6. Rear window and outside rear view
mirror defoggers switch
7. Power rear quarter window switch
8. Rear fan speed selector
9. Car audio
10. Ashtray
11. Cigarette lighter
12. Power outlet
13. Power sliding door switch
14. Ignition switch
15. Cruise control switch

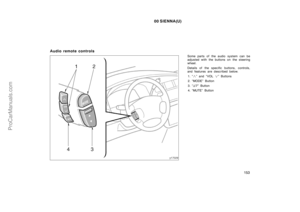

16. Audio remote control buttons
17. Power sliding door off switch
18. Theft deterrent system/Engine
immobiliser system indicator light
19. Tire pressure warning system reset
switch
20. Power rear view mirror control switch
21. Instrument panel light control dial
ProCarManuals.com

00 SIENNA(U)
4

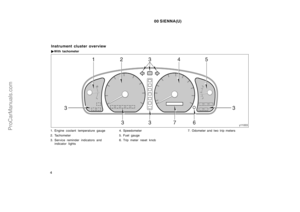

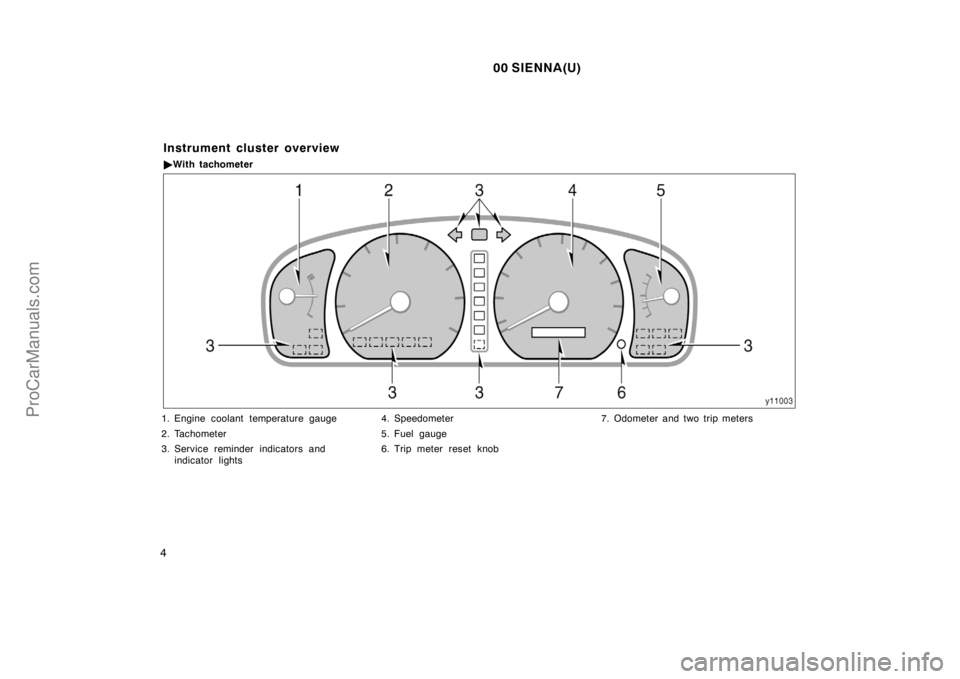

1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights4. Speedometer
5. Fuel gauge
6. Trip meter reset knob7. Odometer and two trip meters

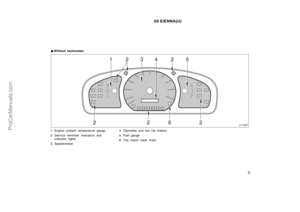

Instrument cluster overview
With tachometer
ProCarManuals.com

00 SIENNA(U)
5
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Speedometer4. Odometer and two trip meters
5. Fuel gauge
6. Trip meter reset knob Without tachometer
ProCarManuals.com

00 SIENNA(U)
6
Indicator symbols on the instrument panel
Brake system warning light∗
1
(type A)
(type B)
(type A)
(type B)
Seat belt reminder light∗
1
Malfunction indicator lamp∗
1
Low fuel level warning light∗
1
Discharge warning light∗
1
(type A)
(type B)
Low oil pressure warning light∗
1
Anti−lock brake system warning light∗
1
Open door warning light∗
1
SRS warning light∗
1
Low windshield washer fluid level warning
light∗
1
Low tire pressure warning light∗
1
Open power sliding door warning light∗
1
ProCarManuals.com

00 SIENNA(U)
7
Overdrive−off indicator light
Cruise control indicator light
∗
2
Automatic transmission indicator lights Headlight high beam indicator light Turn signal indicator lights
∗
1: For details, see “Service reminder indicators and warning
buzzers” in Section 1−5.
∗
2: If this light flashes, see “Cruise control” in Section 1−6.
ProCarManuals.com

00 SIENNA(U)
8
ProCarManuals.com

00 SIENNA(U)
9
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front doors14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sliding door16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power sliding door19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

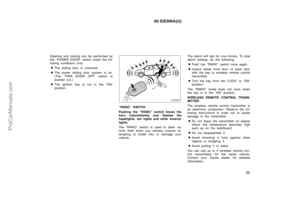

Wireless remote control23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

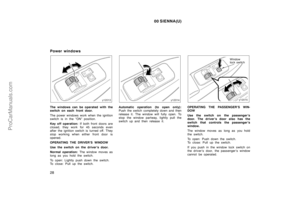

Power windows28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power rear quarter windows29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center side windows and manual rear quarter windows30 . . . . . . . . . .
Back door30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1− 2
ProCarManuals.com

00 SIENNA(U)
10

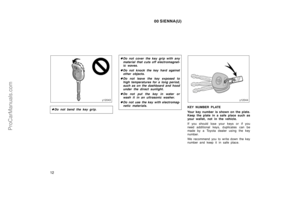

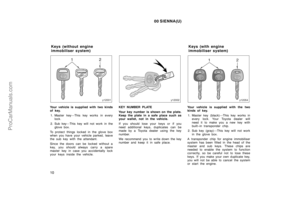

Your vehicle is supplied with two kinds
of key.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with the two
kinds of key.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built−in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system)Keys (with engine
immobiliser system)
