2000 HONDA PASSPORT Owners Manual

been coated with corrosion

protectants.

At least every spring, flush thesematerials from the underbody
with plain water. Take care to
thoroughly clean any areas where mud and other debris can collect.
Sediment packed in closed areas
of the frame should be loosened
before being flushed.
Interio
r

With the use of modern trim
materials it is very important that
proper cleaning techniques and
cleaners be used. Failure to do

this on the first cleaning may

result in water spots, spot rings or
setting of stains, all of which

make it more difficult to remove

on a second cleaning.

The portion of the following cleaning instructions that are in
ALL CAPITAL LETTERS are
especially important and MUST

be followed.

Dust and loose dirt thataccumulate on interior fabrics
should be removed often with a

vacuum cleaner or soft brush.

Vinyl or leather trim should be
wiped regularly with a clean

damp cloth. Normal trim soil,

spots or stains can be cleaned with

conventional cleaners. Remembe
r Thes e Basi c Step s
Befor e Cleanin g
1. Remove stains as quickly as possible before they become"set."
2. Use a clean cloth or sponge and change to a clean area
often. (A SOFT brush may be
used if stains persist.)
3. Use solvent-type cleaners only in a well ventilated area; also,
do not saturate the stained
area.

4. If a ring forms after spot cleaning, clean the entire area
IMMEDIATELY.
5. Follow specific instructions on the cleaning products' labels.
Car e an d Maintenanc e

Cleanin
g Fabri c

Cleaning General Soilage or
Water Spots From Fabric Trim

Multipurpose powdered cleaner is
excellent for this type of cleaning and for cleaning panel sections
where small cleaning rings may
be left from spot cleaning. Vacuum the area thoroughly to
remove loose dirt.
ALWAYS clean a full trim
assembly or complete trim
section. Mask surrounding trim
along stitch or welt-lines.
Mix the multipurpose
powdered cleaner in strict accordance with the directions
on the label of its container.
Mix in proportion for smaller
quantities. USE SUDS ONLY ON A
CLEAN SPONGE OR SOFT
BRISTLE BRUSH. DO NOT
SATURATE FABRIC OR RUB
HARSHLY WITH THE

BRUSH.

IMMEDIATELY AFTER
CLEANING, WIPE OFF
EXCESS CLEANER WITH A
SLIGHTLY DAMP ABSORBENT
TOWEL OR CLOTH. IMMEDIATELY AFTER
WIPING, FORCE-DRY THE
FABRIC WITH AN AIR HOSE, HEAT DRYER, OR HEAT
LAMP. Use caution if you are using a heat dryer or heat lamp
so you do not damage the
fabric.

When trim materials that have a
sheen or lustrous finish are dry,

wipe them with a soft, clean

cloth to restore the sheen.
Spot Cleaning Fabric

With Solvent Cleaner

Before trying to remove a spot or
stain from fabric, determine as
accurately as you can what kind of
spot or stain it is and how long it
has been there. Some spots or stains can be removed with water
or mild soap solution (see
"Removal of Specific Stains"). Spots or stains should always be
removed as soon as possible.
Some types of stains or soilage,
such as lipstick, inks and grease,
are very difficult (sometimes
impossible) to completely remove.
When cleaning this type of stain or soilage be sure not to enlarge the
soiled area. Fabric cleaner (solvent
type) is excellent for spot-cleaning
grease, oil or fat stains.
Car e an d Maintenanc e

Gently scrape the stain off trim
material with a clean, DULL
knife or scraper. USE VERY
LITTLE CLEANER, light
pressure, and a clean cloth
(preferably cheesecloth).
Cleaning should be from the
outside of the stain,
"FEATHERING" towards the
center. Keep changing to a clean section of the cloth. When the stain is cleaned from
the fabric, immediately dry the
area with an air hose, heat dryer
or heat lamp to help prevent a
cleaning ring. (Use caution witha heat dryer or lamp to prevent
damage to fabric.) If a ring forms, immediately
repeat the cleaning operation over a slightly larger area with
emphasis on "FEATHERING"towards its center. If a ring still remains, mask off surrounding
trim sections and clean the entire
affected area with a

multipurpose powered cleaner
(as described under "Cleaning

General Soilage or Water Spots
From Fabric Trim").

Removal of Specific Stains
Greas e o r Oi l Stain s

These include grease, oil, butter,
margarine, shoe polish, coffee
with cream, chewing gum,

cosmetic creams, vegetable oils,
wax crayon, tar and asphalts.
Carefully scrape off excess

stain; then use fabric cleaner

(solvent type) as previously

described.
Shoe polish, wax crayons, tar

and asphalt will stain if allowed

to remain on trim; they should

be removed as soon as possible.
Use caution as cleaner will
dissolve them and may cause

them to "bleed."

Non-Greas y Stain s

These include catsup, coffee (black), egg, fruit juice, milk, soft
drinks, wine, vomit and blood. Carefully scrape off excess
stain; then sponge stain with
cool water. If a stain remains, use a
multipurpose powdered cleaner(foam type) as previously

described.

Car e an d Maintenanc e

If an odor persists after
cleaning vomit or urine, treat
area with a water-baking soda
solution: 1 teaspoon (5 milliliters)
baking soda to 1 cup (250
milliliters) of warm water.
Finally, if needed, clean lightly
with a fabric cleaner (solvent
type).
Combinatio n Stain s
These include candy, ice cream,
mayonnaise, chili sauce and
unknown stains. Carefully scrape off excess
stain; then clean with cool
water and allow to dry. If stain remains, clean with a
fabric cleaner (solvent type). Cleanin
g Viny l o r Leathe r Tri m
Ordinary soilage can be removed
from vinyl or leather with warm
water and a mild soap such as saddle soap, oil soap or
equivalent. Apply a small amount of soap
solution and allow it to soak for
a few minutes to loosen dirt;
then rub briskly with a clean,
damp cloth to remove dirt and traces of soap. (This may be
repeated several times, if
necessary.)
Some compounds such as tar,
asphalt, shoe polish etc. will stain if allowed to remain on
trim. They should be wiped off
as quickly as possible and the
area cleaned with a clean cloth
dampened with vinyl cleaner (solvent type). Sea
t Bel t Car e Clean seat belts only with mild
soap and lukewarm water. Do not bleach or dye belts
since this may severely weaken

them.

Car e an d Maintenanc e

Cleanin
g Glas s Surface s

Glass surfaces should be cleaned
on a regular basis. Use of glass
cleaner will remove normal tobacco smoke and dust films
sometimes caused by ingredients
used in vinyls and interior
plastics.
Never use abrasive cleaners to
clean the glass. They may cause
scratches or damage the defogger
wires in the rear window.
Care an d Maintenanc e
Tinted Glass

Tinted, heat-reflecting glass has a metal coating on the interior side.
Always clean this metal coating
with plain water or a neutral
detergent, not harsh chemicals.Wipe with a clean, soft cloth or a
paper towel.

Technica
l Dat a
Vehicle Identification ...... 228
Vehicle Loading .......... 229 Specifications ........... 231
Technica l Dat a

Vehicl
e Identificatio n

Vehicl e Identificatio n

Numbe r (VIN )

This is the legal identification of the

vehicle. It appears on a plate attached

to the left top of the instrument panel
and can be easily seen through the

windshield from outside the vehicle.

The VIN also appears on the
vehicle's Certification Label onthe driver's door lock pillar.
Engin
e Identificatio n

You can identify your engine from
the VIN. The eighth character of
the VIN is the engine code that
gives the engine model (refer to
the illustration).
Some information in this section
may refer to the engine model.
The engine number is stamped on the left side of the cylinder block
near the starter.
Servic
e Part s Identificatio n

The Vehicle Information Plate (Service Parts ID Plate) is
provided on all vehicle models.
It is located on the center dash
wall inside the engine compartment. The plate lists the
VIN (Vehicle Identification
Number), paint information and
all production options and special
Technica l Dat a

Engin
e typ e — W; 6VD 1 3.2 L

equipment on the vehicle when it
was shipped from the factory. Be
sure to provide this information to
your authorized Honda dealer when it is necessary to order

parts.

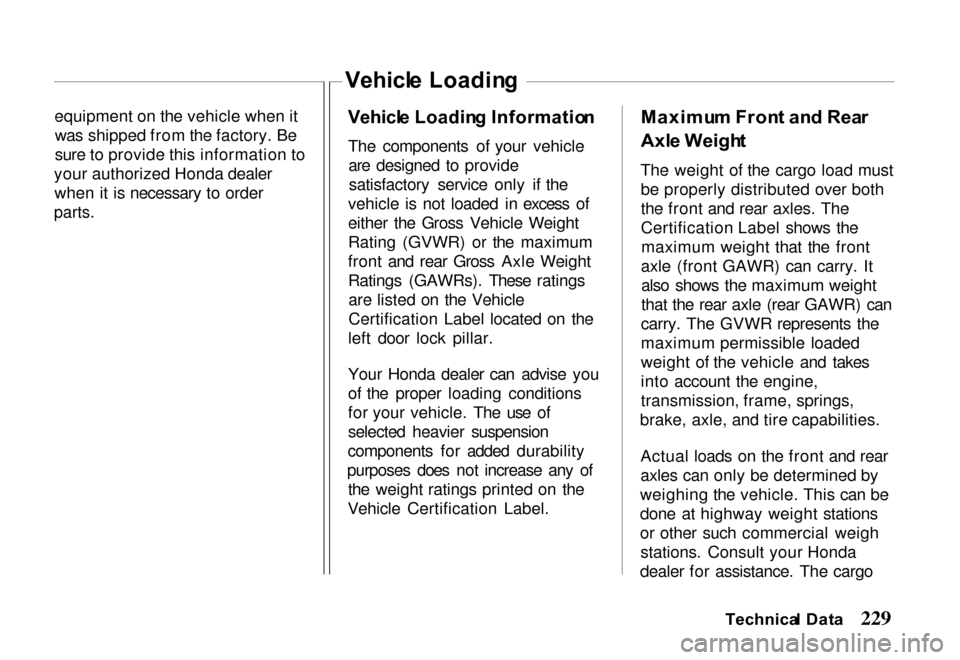

Vehicl
e Loadin g
Vehicl e Loadin g Informatio n

The components of your vehicle are designed to providesatisfactory service only if the
vehicle is not loaded in excess of
either the Gross Vehicle Weight
Rating (GVWR) or the maximum
front and rear Gross Axle Weight
Ratings (GAWRs). These ratings are listed on the Vehicle
Certification Label located on the
left door lock pillar.
Your Honda dealer can advise you
of the proper loading conditions
for your vehicle. The use of
selected heavier suspension
components for added durability
purposes does not increase any of the weight ratings printed on the
Vehicle Certification Label. Maximu
m Fron t an d Rea r
Axl e Weigh t
The weight of the cargo load must be properly distributed over both
the front and rear axles. The
Certification Label shows themaximum weight that the front
axle (front GAWR) can carry. It also shows the maximum weight
that the rear axle (rear GAWR) can
carry. The GVWR represents the
maximum permissible loaded
weight of the vehicle and takes
into account the engine,
transmission, frame, springs,
brake, axle, and tire capabilities.
Actual loads on the front and rear
axles can only be determined by
weighing the vehicle. This can be
done at highway weight stations
or other such commercial weigh stations. Consult your Honda
dealer for assistance. The cargo
Technical Dat a
