2000 HONDA PASSPORT Owners Manual

maintain them. This section
summarizes how the emissions
controls work. Scheduled
maintenance is on page 200.
Crankcas e Emission s
Contro l Syste m
Your vehicle has a Positive
Crankcase Ventilation System.
This keeps gasses that build up in the engine's crankcase from goinginto the atmosphere. The Positive
Crankcase Ventilation valve
routes them from the crankcase
back to the intake manifold. They are then drawn into the engine and

burned.

Evaporativ e Emission s
Contro l Syste m
As gasoline evaporates in the fuel
tank, an evaporative emission
control canister filled with charcoal adsorbs the vapor. It is stored in this canister while the
engine is off. After the engine is
started and warmed up, the vapor
is drawn into the engine and
burned during driving.
Exhaus t Emission s Control s
The exhaust emission controls include four systems: Fuel
Injection, Ignition Timing Control, Exhaust Gas
Recirculation, and Three-Way Catalytic Converter. These four
systems work together to control
the engine's combustion and
minimize the amount of HC, CO,
and NOx that comes out the
tailpipe. The exhaust emission
control systems are separate fromthe crankcase and evaporative
emission control systems. Fuel Injection System
The Fuel Injection System uses sequential multiport fuel injection.
It has three subsystems: Air
Intake, Engine Control, and Fuel
Control. The Engine Control Module (ECM) uses various
sensors to determine how much
air is going into the engine. It then
controls how much fuel to inject
under all operating conditions.
Ignition Timing Control System This system constantly adjusts theignition timing, reducing the amount
of HC, CO and NOx produced.
Owne r Assistanc e

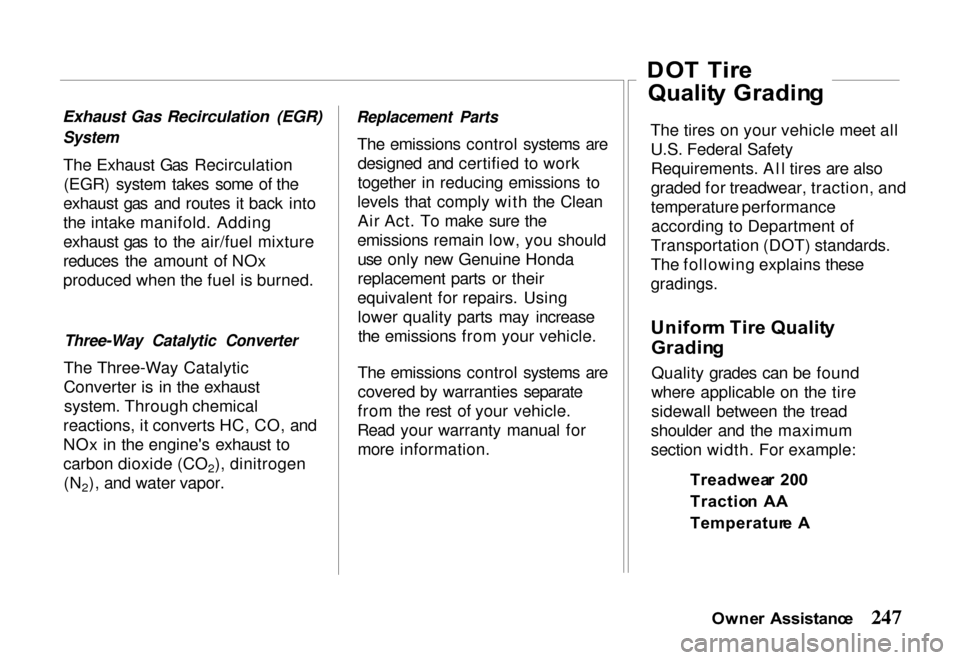

Exhaust Gas Recirculation (EGR)

System

The Exhaust Gas Recirculation(EGR) system takes some of the
exhaust gas and routes it back into
the intake manifold. Adding
exhaust gas to the air/fuel mixture
reduces the amount of NOx
produced when the fuel is burned.

Three-Way Catalytic Converter

The Three-Way Catalytic
Converter is in the exhaust system. Through chemical
reactions, it converts HC, CO, and
NOx in the engine's exhaust to
carbon dioxide (CO 2), dinitrogen
(N 2), and water vapor.
Replacement Parts

The emissions control systems aredesigned and certified to work
together in reducing emissions to
levels that comply with the Clean Air Act. To make sure the
emissions remain low, you should use only new Genuine Honda
replacement parts or their
equivalent for repairs. Using lower quality parts may increasethe emissions from your vehicle.
The emissions control systems are
covered by warranties separate
from the rest of your vehicle.
Read your warranty manual for more information.
DO
T Tir e

Qualit y Gradin g

The tires on your vehicle meet all U.S. Federal Safety
Requirements. All tires are also
graded for treadwear, traction, and
temperature performanceaccording to Department of
Transportation (DOT) standards.
The following explains these

gradings.

Unifor m Tir e Qualit y
Gradin g
Quality grades can be found
where applicable on the tire
sidewall between the tread
shoulder and the maximum
section width. For example:
Treadwea r 20 0
Tractio n A A
Temperatur e A
Owne r Assistanc e

Treadwea
r

The treadwear grade is a comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a specified government test course.
For example, a tire graded 150
would wear one-and-a-half (1-1/2) times as well on the
government course as a tire
graded 100. The relative
performance of tires depends upon the actual conditions of their
use, however, and may departsignificantly from the norm due to
variation in driving habits, service
practices and differences in road characteristics and climate.
Tractio n
The traction grades from highest
to lowest are AA, A, B, and C.
Those grades represent the tire's ability to stop on wet pavement as
measured under controlled
conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction

performance.

Warning: The traction grade assigned to this tire is based on
straight-ahead braking traction
tests, and does not include

acceleration, cornering,

hydroplaning, or peak traction

characteristics.

Temperatur e

The temperature grades are A (the highest), B and C, representing
the tire's resistance to the
generation of heat and its ability
to dissipate heat when tested
under controlled conditions on a specified indoor laboratory test
wheel. Sustained high temperature
can cause the material of the tire
to degenerate and reduce tire life and excessive temperature can
lead to sudden tire failure. The
grade C corresponds to a level of
performance which all vehicle tires must meet under the FederalMotor Vehicle Safety Standard
No. 109. Grades Band A
represent higher levels of
performance on the laboratory test wheel than the minimum required
by law.
Warning: The temperature grade for this tire is established for a tire
that is properly inflated and not overloaded. Excessive speed,
underinflation, or excessive
loading either separately or in
combination, can cause heat
build-up and possible tire failure.
Owne r Assistanc e

Authorize
d Manual s

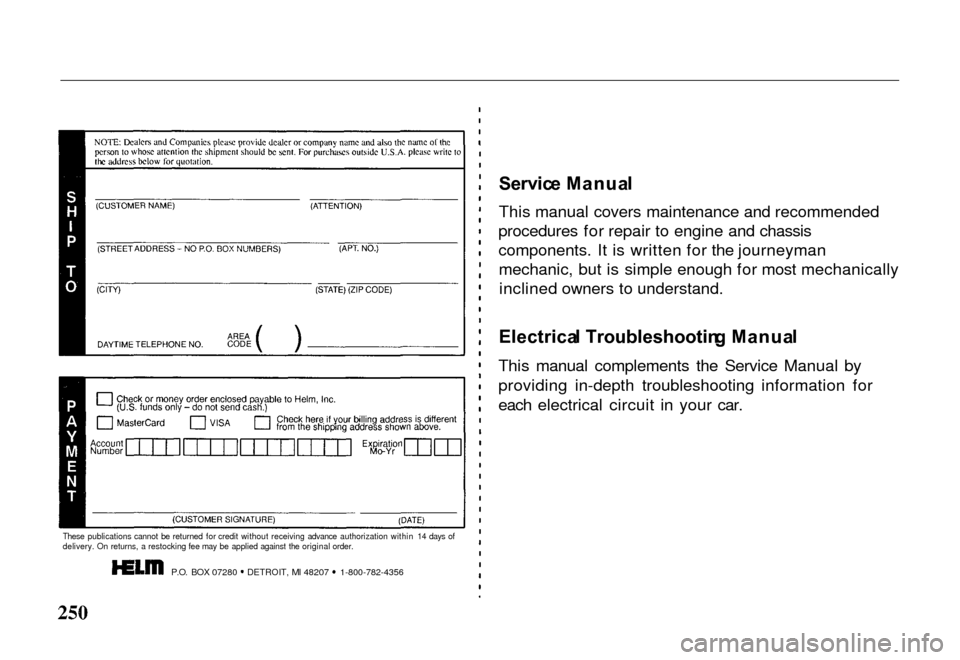

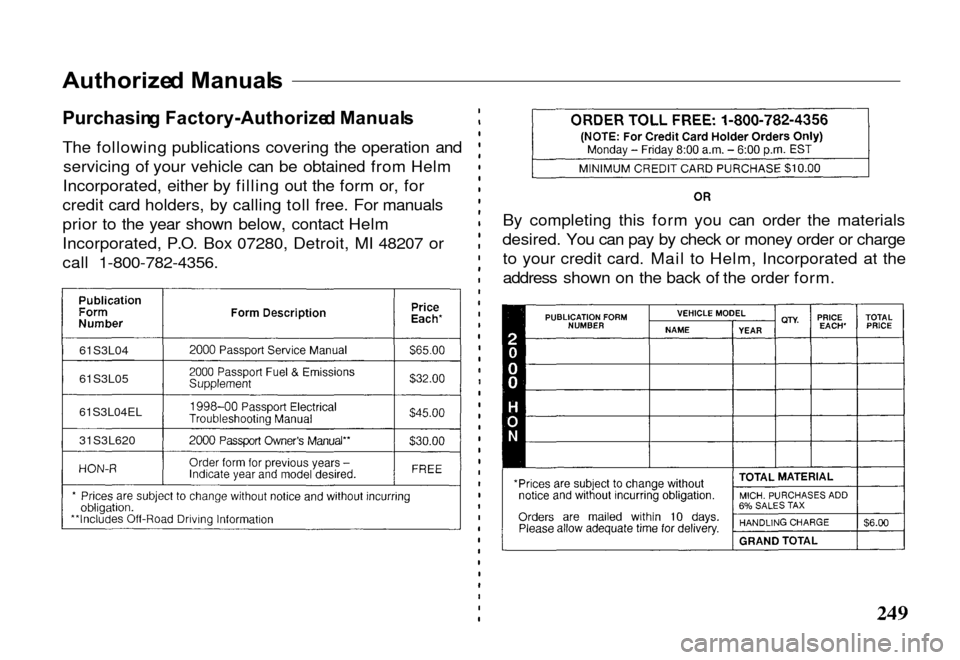

Purchasin g Factory-Authorize d Manual s

The following publications covering the operation and servicing of your vehicle can be obtained from Helm
Incorporated, either by filling out the form or, for
credit card holders, by calling toll free. For manuals
prior to the year shown below, contact Helm
Incorporated, P.O. Box 07280, Detroit, MI 48207 or
call 1-800-782-4356. By completing this form you can order the materials
desired. You can pay by check or money order or charge to your credit card. Mail to Helm, Incorporated at the
address shown on the back of the order form.
61S3L04

61S3L05

61S3L04EL

31S3L620

These publications cannot be returned for credit without receiving advance authorization within 14 days of
delivery. On returns, a restocking fee may be applied against the original order.

P.O. BOX 07280 DETROIT, Ml 48207 1-800-782-4356
Servic
e Manua l

This manual covers maintenance and recommended
procedures for repair to engine and chassis
components. It is written for the journeyman mechanic, but is simple enough for most mechanicallyinclined owners to understand.

Electrica l Troubleshootin g Manua l

This manual complements the Service Manual by
providing in-depth troubleshooting information for
each electrical circuit in your car.

Inde
x

ABS. See Anti-Lock Brake
System

Accessories, Installation .... 169

ACCESSORY
(Ignition Key Position) ...... 97

Accessory Power Outlets ..... 113

Adding AutomaticTransmission Fluid .... 212
Brake Fluid ............ 215
Clutch Fluid ............ 219

Engine Oil ............ 208

Manual Transmission Fluid .... 211
Power Steering Fluid ..... 219
Radiator Coolant ........ 214
Windshield Washer Fluid ..
194

Adjustments
Head
Restraints .......... 12
Mirrors
Exterior ............ 101Interior ............. 101
Power. ............. 101

Seat-Backs .......... 11,
89

Reclining the Rear ...... 93

Seats, Front ......... 10,
89

Steering Wheel ..... 15,
111
Adults, Protecting ........... 10

Airbags (SRS) ............. 7
Serious Risk to Children .... 19
Air Cleaner Filter ......
166, 210
Air Conditioning
Maintenance ........... 217

Usage ................. 116

Air Filter. See Air Cleaner Filter

Air Outlets (Vents) ......... 120
Air Pressure, Tires ......... 235

Alcohol and Driving ........ 4

Alcohol in Gasoline ........ 196

Alternator Belt. See Drive Belts
Antifreeze ................ 213

Anti-Lock Brake System
Indicator Lights .......... 65

Operation .............. 155

Anti-Theft Steering Column Lock ..... 98
System .................
..... 148

Appearance Care. See Cleaning

Ashtray .................. 112
Assist Grip ..............
111

Audio System ............. 121

Automatic Transmission .... 74
Capacity, Fluid .......... 233
Driving Pattern Selector . . 79
Fluid Temperature Indicator 68
Oil Temperature Indicator . . 68Shift Lever Position Indicator ....... 74
Shift Lock ............. 76
Transfer Control, 4WD .... 79
Beverage Holder .......... 109

Body Repair .............. 221

Brakes

Anti-Lock Brake System . . 155
Brake System Indicator .... 59
Break-in ............... 154
Fluid .................. 215
Parking ................. 84

Power ................. 157
Wear Indicators ......... 158

Break-in, New Vehicle ...... 154

Brightness Control, Instrument
Panel. See Illumination Control

Brights, Headlights ......... 60

Bulb Replacement
Specifications ............ 239
Cables, Jump Starting with . . 180

Capacity Charts ........... 231

Carbon Monoxide Hazard ... 44

Care and Maintenance ...... 191

Cargo

Loading ............... 229
Carrying ................ 171
Cassette Player Care .................. 137
Operation .............. 124

Catalytic Converter,
Three-Way .............. 168

CAUTION, Explanation of .... iv

CD Change
r .............. 127

Certification Label ........ 230
Chains, Tire .............. 164

Battery .................. 194

Charging System Indicator . 60
Jump Starting ........... 180
Maintenance ........... 194Specifications .......... 234
Before Driving ............ 152
Belts, Seat ................ 6 Additional Information ... 38

Change Oil

How to ................ 208

When ......... 200, 201, 207
Changing a Flat Tire ....... 182 Lifting Points ........... 183
Changing Engine Coolant .. . 214
Charging System Indicator ... 60
Check Engine Light ......... 61
Checking Battery Condition ....... 194
Brake Fluid ............ 219
Clutch Fluid ............ 219
Engine Belts ............ 218
Engine Coolant ..... 213, 214
Engine Oil ............ 209 5-Speed Manual Transmission Fluid .... 211

Fuses .............
189, 236
Power Steering Fluid .....
219

Radiator Coolan
t ....... 213

Shift-on-the-Fly
System Fluid .......... 216
Tire Pressure ........... 194
Windshield Wipers ..... 205
Checklist, Before Driving ... 152
Children, Protecting .......... 18
Child-Safe Door Locks .... 101
Child Seats, General Guidelines ......... 21
Cigarette Lighter .......... 112
Circuit Breaker, Checking the 104
Cleaner, Air ............. 210
Cleaning Exterior ............... 220
Interior ................ 222Seat Belts .............. 225
Vinyl ................. 225 Clock, Setting the .......... 149
Clutch Fluid .............. 219
CO in the Exhaust ......
44, 245
Consumer Information ...... 242 Control Locations .......... 54
Controls, Instruments and .... 53

Controls Near the Steering Wheel
Hazard Warning .......... 74
Headlights ............. 70

Illumination Control ..... 71
Rear Window Defogger .... 72
Steering Wheel Adjustment 111

Turn Signals ............. 73

Windshield Wiper/Washer . 68
Rear Window Wiper/
Washer ............. 72
