2000 AUDI ALLROAD driver seat adjustment

----------------------------------------------TABLE OFCONT ENTS
I GENERAL ILLUSTRATION
General illustration 0 0 0. • • • 8
Warning and indicator lights 10
I SAFETY
FIRST
W elcome ... 0 0 0 •• •• 13
Safety first 0 0
• 0 • 0 0 0 0 • 0 •
13
Safety belts
• . . 0 0 0 • 0 0
14
Airbag system 0 ••••••• 0 0 • • • • • • • 25
Child safety ........ 0 • 0 0 0 0 0 0 0 0 0 44
I CONTROLS AND EQUIPMENT
Keys 0 0 0 0 0 0 0 0 0 0 0 •••• ••••• 0 0 • • 0
56
Power locks 0 0 0 0
Power windows
Mirrors 0 •• 0 0 0 •••
Head restraints
Front seats 0 0 0 •
0.- . 0 0 0 • • 59
69
• •• - •••• 0 ••• 0 72
75
•• 0 •• 0 76
Memory for front seats , .... 0 •• 0 81
Center armrest 0 0 0 0 0 0 0 0 0 •••••• 0 85 Rear
seats 0 0 •• 0 •• 0 • • • • • •
86
Luggage compartment , 0 0 88
Rear facing child seat bench 0 0 0 0 0 92
Ski sack 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.
96
Adjustable steering column
(tilt and telescopic) 0 0 0 0 • 0 0
98
Pedals 0 0 • 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 , 1 02
Parking brake lever 0 • 0 0 0 0 0 0 0 •• 0 1 03
5-speed automatic transmission
(Trptronic ®) 0 0 0 0 0 0 0 0 0 0 • 0 0 0 0 0. 0 • 104
Acoustic park assist
112
Ignition switch 0 0 0 0 0 0 0
1 13
Starting procedures . 0 • • 114
Stopping engine 0 0 0 0 0 0 • • • 115
Instrument cluster 0 0 0 0 0 0 116
Service Interval Display
121
Warning I Indic ator lights 0 0 0 0 0 0 • 122
On Board Diagnostic system 0 0 0 128
Driver information system 0 • 0 • • • 130
Menu display 0 0 0 0 0 0 0 0 0 0 0 0 0
0 131
Rear lid I door open indicator 0 0 0 137
Outside air temp erature 0 • 0 0 0 0 0 0 137 Radio
frequency display 13
8
Auto-Check system 0 0 0 o 0 138
Speed warning . 0 0 0 • 0 0 • • • • 0 • 0 0 144
Tr ip computer 0 0 0 0 0 0 •• 0
146
Switches 0 • 0 •• 0 0 0 0 • 0 0 0 0 148
Ride height adjustment
(4 Level Air Suspension) 0
153
Turn signals,
headlight dimmer switch lever 0 0 156
Cruise control 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 • • 158
Wiper and washer system 0 ••• 0 0 150
Climate controls 0 0 0 0 0 0 0 0 0 0 0 • 0 152
Power roof 0 0 0 0 0 0 0 • 0 0 0 0 0 • • • • • • 168
Int erior lights, reading lights 171
Luggage compartment light 0 0 0 0 172
Audi Homelink ®
Uni versal Transmitter . 0 0 • • • •
173
Sun visors 00 00 00 00 ... • .. •
177
Sun shade 0 0 0 0 0 0 0 0 •• , • • • ••• 0 0 177
Glo ve compartment
Coat hooks
Ashtray 178
179
180
5

1
2
3
4 5
6
7
8
9
10
11 12
13 14
15
16
17 Power
window switches
Door handle
Power locking switch
Light switch
Air vents
Turn signals I headlight dimmer switch lever ...
Cruise control ................. .............
Instrument illumination
Horn, driver's airbag •••••
0 •• 0 •• 0 0 •• 0 ••• 0 ••• 0
Radio I CD I buttons ................
........
Radio I CD I telephone buttons ...............
Instrument cluster ....... ... ... ... ... .. .....
Warning I indi cator lights ••••••••
0 0
••••••••••
Windshield wiper I washer lever ..............
Tri p computer function control switch .........
Steering lock I ignition I starter switch
Switch for the Electronic Stability Program (i::SP)
Switches for the ride heigh t adjustment and
level display •••••••••••••••
0 •• 0 •• 0 0 •• 0 0 ••••
Emergenc y flasher
Cup holder
Glove compartment (lockable)
Front passenger's airbag
Radio Page
69
59 62
148 165
15 6
15 8
149
25
185
18 6
11 6
12 2
16 0
146
113
15 2
15 3
15 2
18 2
17 8
25 -------GE NERA L ILLUST
RATION
Page
18 Thumb wheel for seat heating
150
19 Switch for rear window defogger 151
20 Climate controls
162
21 Ashtray ...................................
180
Cigarette lighter ............................ 181
22 Gearshift lever or
Selector lever ..............................
104
23 Adjuster control for outside mirrors
72
24 Parking brake lever
103
25 Navigation System switch or
Cup holder
•••••••••••••••• 0 •••• 0 •••• 0 •••••
182
26 Storage compartment
27 Service wallet compartment
183
28 Adjustable steering wheel
98
29 Data Link Connector (DLC) for On Board
Diagnostics (OBD)
128
30 Release lever for engine hood 231
31 Memory for driver's seat
81
Notes
• Some features mentioned are standard equipment on some
models only and options on others.
• For technical reasons, the arrangement of the switches and indi­
cator /warning lights may differ. The govern ing factor is the symbol
on the switch itself.
9

--------------------------------------------------SAFETYRRST

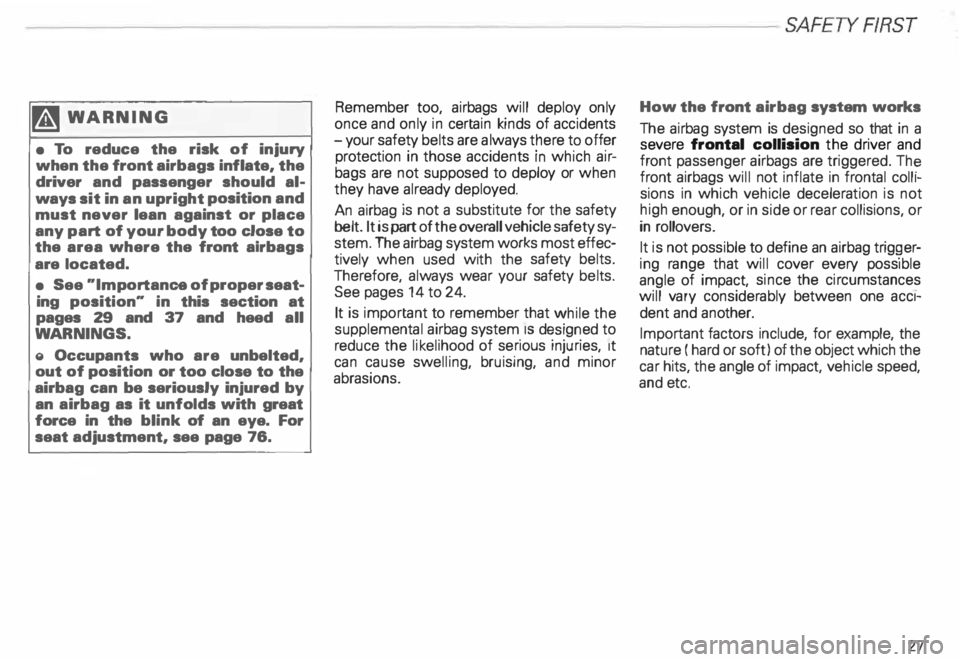

�W ARNING
• To reduce the risk of injury
when the front airbags inflate, the
driver and passenger should al­
ways sit in an upright position and
must never lean against or place
any part of your body too close to
the area where the front alrbags
are located.
• See "Imp ortance of proper seat­
ing position" in this section at
pages 29 and 37 and heed all
WA RNINGS.
G Occupants who are unbelted,
out of position or too close to the
airbag can be seriously injured by
an airbag as it unfolds with great
force in the blink of an eye. For
seat adjustment, see page 76. Remember
too, airbags will deploy only
once and only in certain kinds of accidents
- your safety belts are a�ways t� ere t? off �r
protection in those acc1dents m wh1ch air­
bags are not supposed to deploy or when
they have already deployed.
An airbag is not a substitute �or the safety
belt. It is part of the overall veh1cle safety sy­
stem. The airbag system works most effec­
tively when used with the safety belts.
Therefore, always wear your safety belts.
See pages 14 to 24.
It is important to remember that 'JI:'hile the
supplemental airbag system . IS d� s�g �ed to
reduce the likelihood of senous lnJUnes, 1t
can cause swelling, bruising, and minor
abrasions. How
the front airbag system works
The airbag system is designed so that in a
severe frontal collision the driver and
front passenger airbags are triggered. Th�
front airbags will not inflate in frontal colli­
sions in which vehicle deceleration is not
high enough, or in side or rear collisions, or
in rollovers.
It is not possible to define an airbag trig�er­
ing range that will cover every poss1ble
angle of impact, since the circumstances
will vary considerably between one acci­
dent and another.
Important factors include, for example, the
nature ( hard or soft) of the object which the
car hits, the angle of impact, vehicle speed,
and etc.
27

--------------------------SAFETY FIRST

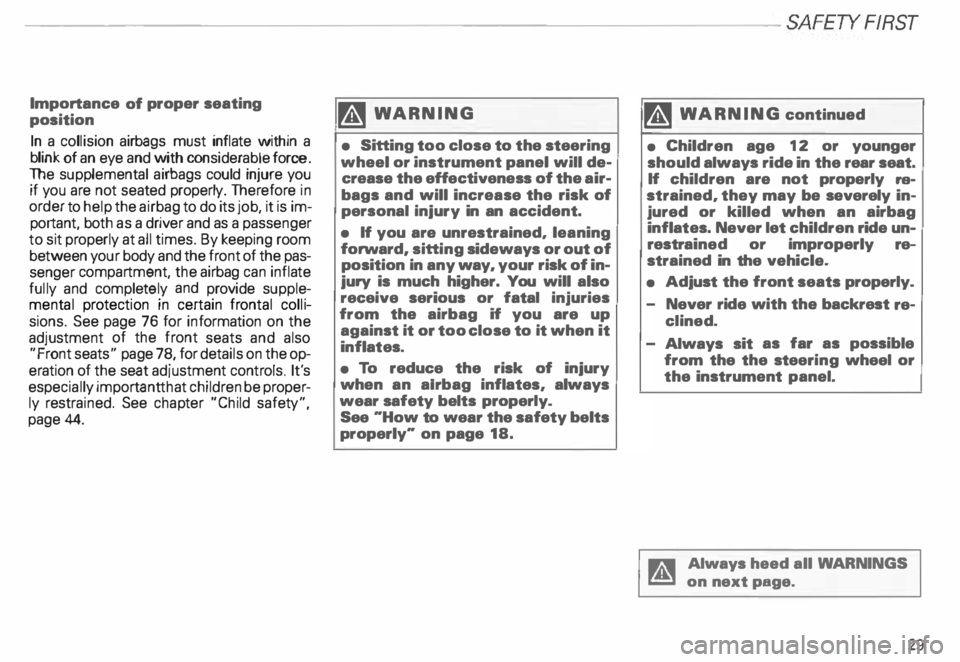

Importance
of proper seating
position
In a collision airbags must inflate within a
blink of an eye and with considerable force.
The supplemental airbags could injure you
if you are not seated properly. Therefore in
order to help the airbag to do its job, it is im­
portant, both as a driver and as a passenger
to sit properly at all times. By keeping room
between your body and the front of the pas­
senger compartment, the airbag can inflate
fully and completely and provide supple­
mental protection in certain frontal colli­
sions. See page 76 for information on the
adjustment of the front seats and also
"Front seats" page 78, for details on the op­
eration of the seat adjustment controls. It's
especially importantthat children be proper­
ly restrained. See chapter "Child safety",
page 44. �W
ARNING
• Sitting too close to the stee ring
wheel or instrument panel will de­
crease the effe ctiveness of the air­
bags and will increase the risk of
personal injury in an accident.
• If you are unrestrained, leaning
forward, sitting sideways or out of
position in any way. your risk of in­
jury is much higher. You will also
receive serious or fatal injuries
from the airbag if you are up
against it or too close to it when it
inflates.
• To reduce the risk of injury
when an alrbag inflates, always
wear safety belts properly.
See "How to wear the safety belts
properly" on page 18. '4
WARNING continued
• Children age 12 or younger
should always ride in the rear seat.
If children are not properly re­
strained, they may be severely in­
jured or killed when an airbag
inflates. Never let children ride un­
restr ained or improperly re­
strained in the vehicle.
• Adjust the front seats properly.
- Never ride with the backrest re-
clined.
- Always sit as far as possible
from the the stee ring wheel or
the instrument panel.
Always heed all WA RNINGS
on next page.
29

CONTROLS AND EQUIPMENT---------------------

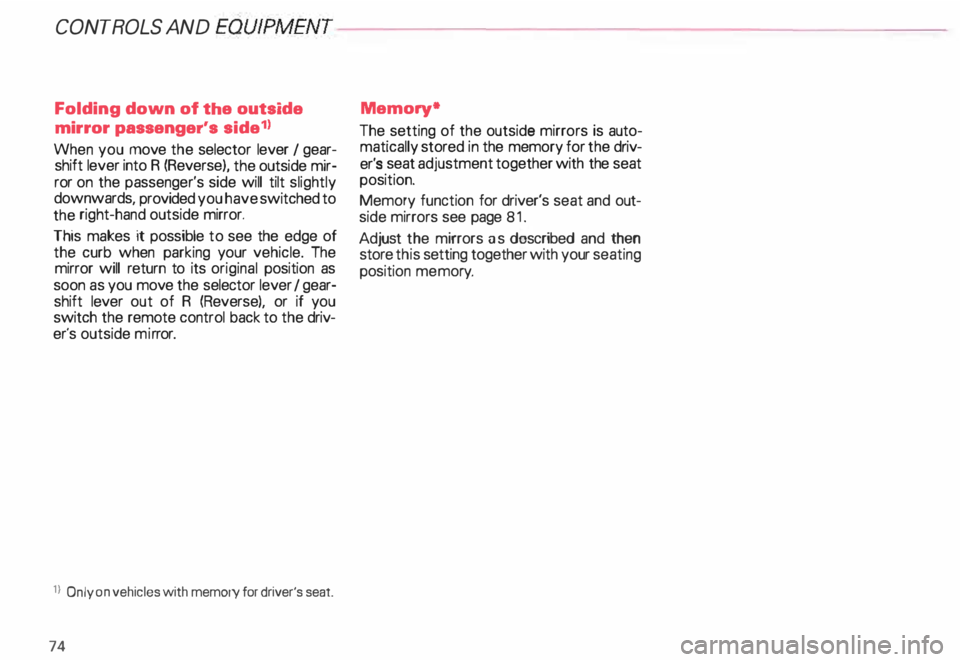

Folding down of the outside
mirror passenger•s side1l
When you move the selector lever I gear­
shift lever into R (Reverse), the outside mir­
ror on the passenger's side will tilt slightly
downwards, provided you have switched to
the right-hand outside mirror.
This makes it possible to see the edge of
the curb when parking your vehicle. The
mirror will return to its original position as
soon as you move the selector lever I gear­
shift lever out of R (Reverse), or if you
switch the remote control back to the driv­
er's outside mirror.
1 l Only on
vehicles with memory for driver's seat.
74 Memory*
The setting of the outside mirrors is auto­
matically stored in the memory for the driv­
er's seat adjustment together with the seat
position.
Memory function for driver's seat and out­
side mirrors see page 81.
Adjust the mirrors os described and then
store this setting together with your seating
position memory.

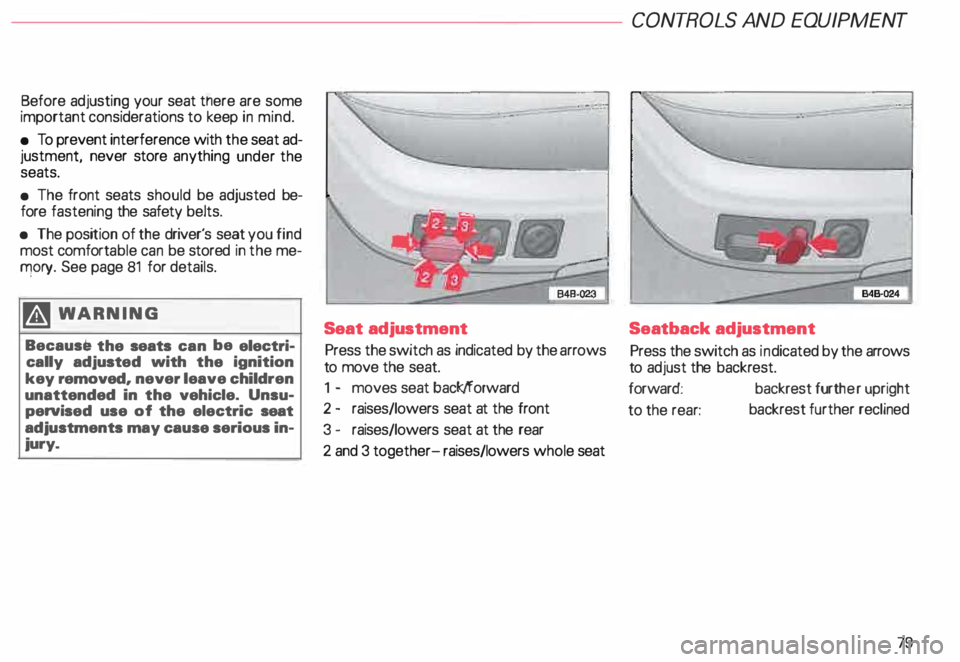

Before
adjusting your seat there are some
important considerations to keep in mind.
• To prevent interference with the seat ad­
justment, never store anything under the
seats.
• The front seats should be adjusted be­
fore fastening the safety belts.
• The position of the driver's seat you find
most comforta ble can be stored in the me­
IT]Ory. See page 81 for details.
�W ARNING
Because the seats can be electri­
cally adjusted with the ignition
key removed, never leave children
unattended in the vehicle. Unsu­
pervised use of the electric seat
adjustments may cause serious in­
iury. Seat
adjustment
Press the switch as indicated by the arrows
to move the seat.
1 - moves seat back/forward
2 - raises/lowers seat at the front
3 - raises/lowers seat at the rear
2 and 3 together- raises/lowers whole seat CONT
ROLS AND EQUIPMENT
Seatback adjustment
Press the switch as indicated by the arrows
to adjust the backrest.
forward: backrest further upright
to the rear: backrest
further reclined
79

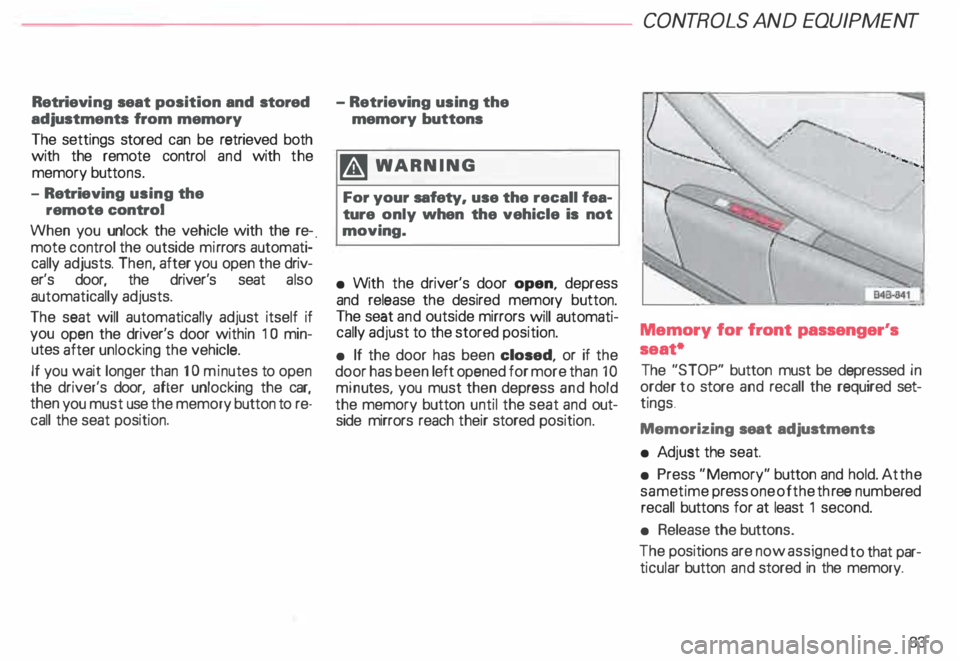

Retrievi
ng seat position and stored
adjustments from memory
The settings stored can be retrieved both
with the remote control and with the
memory buttons.
- Retri eving using the
remote control
When you unlock the vehicle with the re-.
mote control the outside mirrors automati­
cally adjusts. Then, after you open the driv­
er's door, the driver's seat also
automatically adjusts.
The seat will automatically adjust itself if
you open the driver's door within 1 0 min­
utes after unlocking the vehicle.
If you wait longer than 10 minutes to open
the driver's door, after unlocking the car,
then you must use the memory button to re­
call the seat position. -
Retrieving using the
memory buttons
�W ARNING
For your safety, use the recall fea­
ture only when the vehicle is not
moving.
• With the driver's door open, depress
and release the desired memory button.
The seat and outside mirrors will automati­
cally adjust to the stored position.
• If the door has been closed, or if the
door has been left opened for more than 1 0
minu tes. you must then depress and hold
the memory button until the seat and out­
side mirrors reach their stored position. CONT
ROLS AND EQUIPMENT
Memory for front passenger's
seat•
The "STOP" button must be depressed in
order to store and recall the required set­
tings .
Memorizing seat adjustments
• Ad just the seat.
• Press "Memory" button and hold. At the
same time press one of the three numb ered
recall buttons for at least 1 second.
• Release the buttons.
The positions are now assigned to that par­
ticular button and stored in the memory.
83
