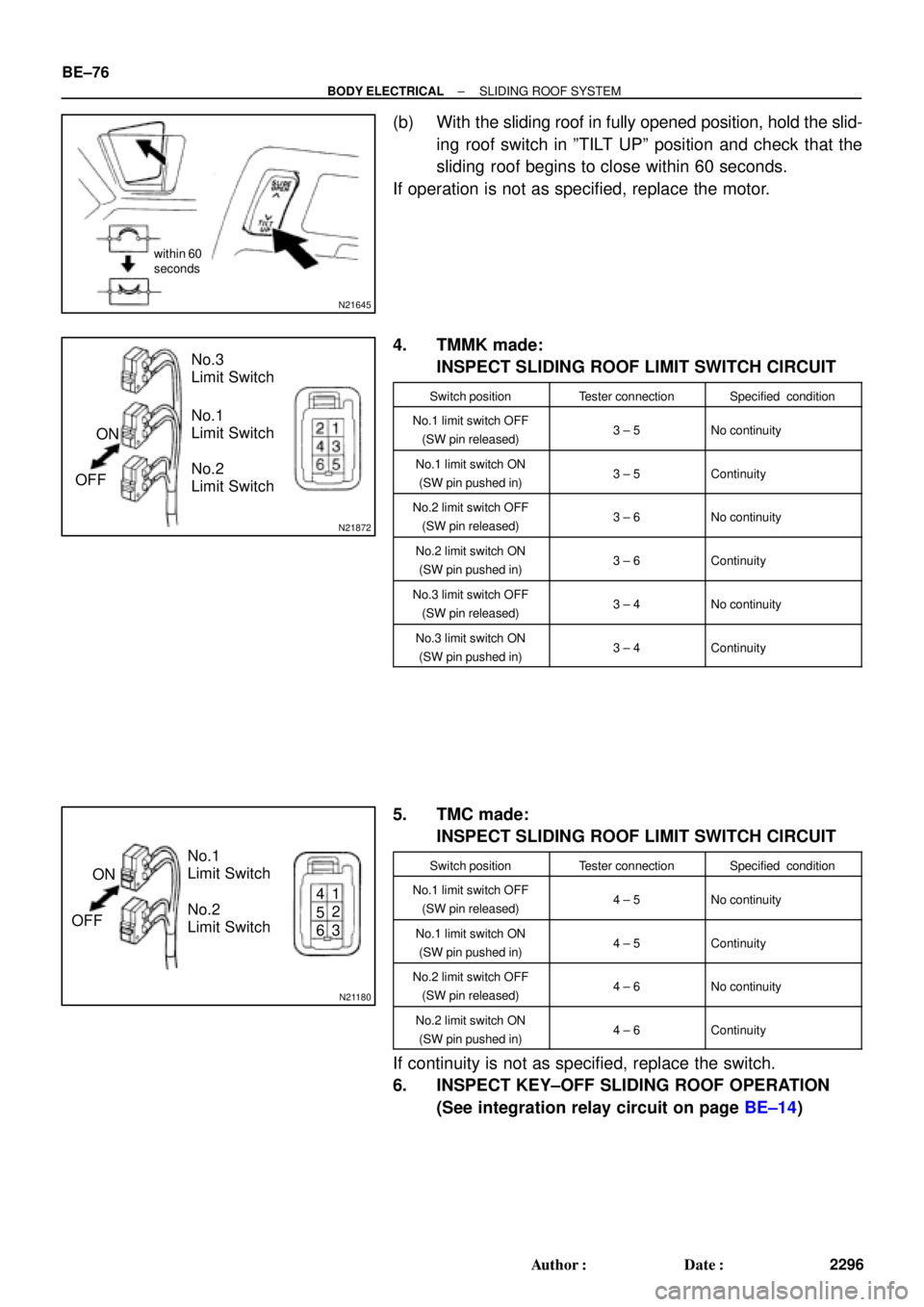

1999 TOYOTA CAMRY relay

N21645
within 60
seconds
N21872
No.3
Limit Switch
No.1
Limit Switch
No.2
Limit Switch ON
OFF
N21180
No.1
Limit Switch
No.2
Limit Switch ON
OFF1
2
3 4
5
6 BE±76
± BODY ELECTRICALSLIDING ROOF SYSTEM
2296 Author: Date:
(b) With the sliding roof in fully opened position, hold the slid-
ing roof switch in ºTILT UPº position and check that the
sliding roof begins to close within 60 seconds.
If operation is not as specified, replace the motor.
4. TMMK made:
INSPECT SLIDING ROOF LIMIT SWITCH CIRCUIT
Switch positionTester connectionSpecified condition
No.1 limit switch OFF
(SW pin released)3 ± 5No continuity
No.1 limit switch ON
(SW pin pushed in)3 ± 5Continuity
No.2 limit switch OFF
(SW pin released)3 ± 6No continuity
No.2 limit switch ON
(SW pin pushed in)3 ± 6Continuity
No.3 limit switch OFF
(SW pin released)3 ± 4No continuity
No.3 limit switch ON
(SW pin pushed in)3 ± 4Continuity
5. TMC made:
INSPECT SLIDING ROOF LIMIT SWITCH CIRCUIT
Switch positionTester connectionSpecified condition
No.1 limit switch OFF
(SW pin released)4 ± 5No continuity
No.1 limit switch ON
(SW pin pushed in)4 ± 5Continuity
No.2 limit switch OFF
(SW pin released)4 ± 6No continuity
No.2 limit switch ON
(SW pin pushed in)4 ± 6Continuity
If continuity is not as specified, replace the switch.
6. INSPECT KEY±OFF SLIDING ROOF OPERATION
(See integration relay circuit on page BE±14)

BE0AI±04
I08447

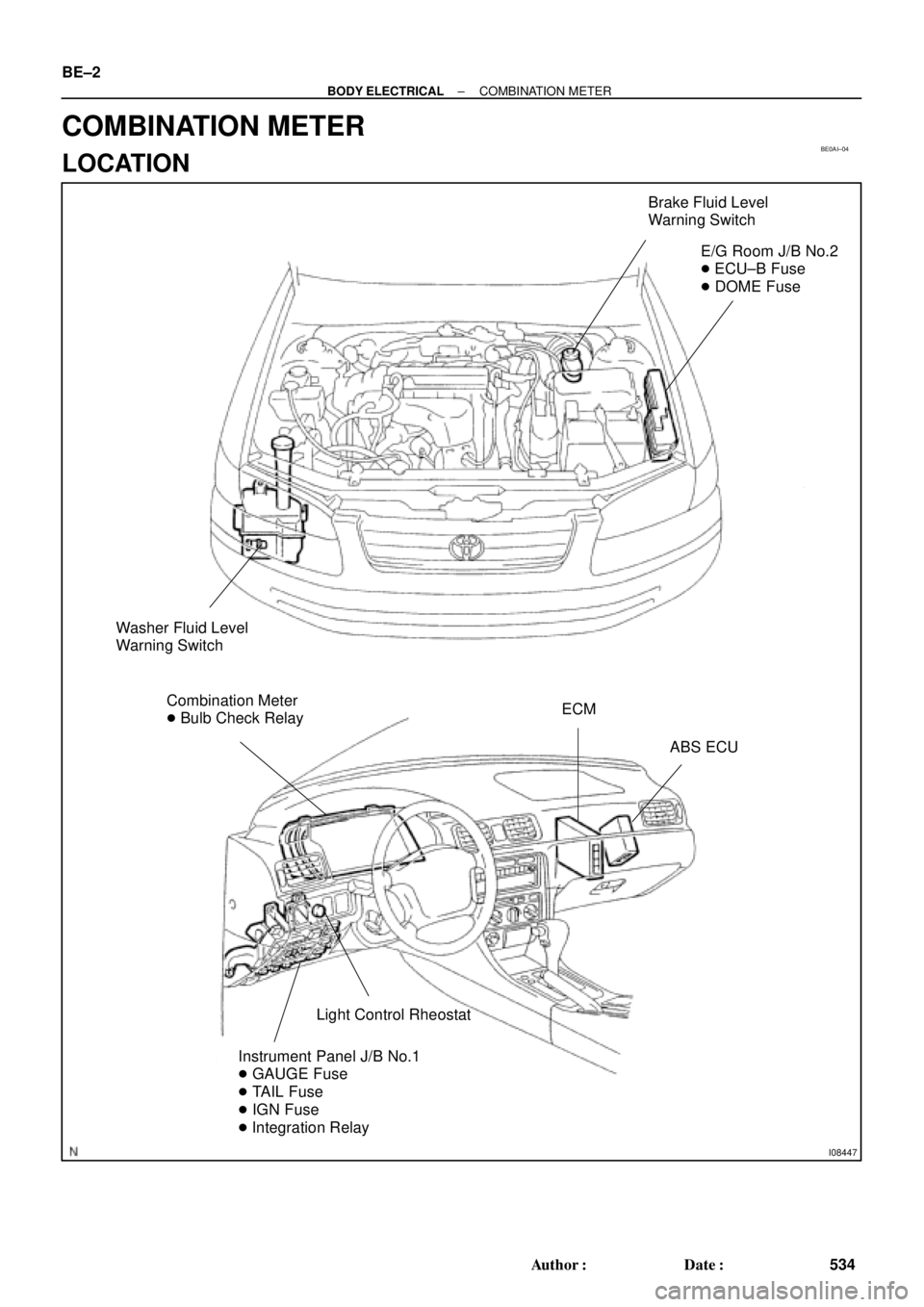

Brake Fluid Level
Warning Switch
E/G Room J/B No.2

ECU±B Fuse

DOME Fuse
Washer Fluid Level
Warning Switch
Combination Meter

Bulb Check RelayECM
ABS ECU
Light Control Rheostat
Instrument Panel J/B No.1

GAUGE Fuse

TAIL Fuse

IGN Fuse

Integration Relay
BE±2
± BODY ELECTRICALCOMBINATION METER
534 Author: Date:
COMBINATION METER
LOCATION

BE0AJ±04
Z18937
Connector ºAº Connector ºBº Connector ºCº
Connector ºAº
Connector ºBº
Connector ºCº
J±13±1±A J±16±1 J±13±1
1 2 3 4 5 6 7 8 9 10 11 12 1314 15 16 1 234 56 78 910111213 1 23456 78910111213
C7
C5
A2 B3
A1
C8
B15
C6
B6
A4
C4
B5
C10 B14
A13
B2
C1
B1
C9
A6
A11
A7
A10
A8
A9
C13
B8
B11
B12A5
C11
B4
B16 C2
A12
A3
B7
C3
C12
B9
B10
B13 F
E
T
S
ODOMETER
Fuel Level Warning
Seat Belt Warning
ABS Warning
Low Oil Pressure Warning
Cruise Control Indicator
Malfunction Indicator
O/D OFF Indicator
Light Failure Warning
Brake Warning
SLIP Indicator
TRAC Indicator
Washer Level Warning
Discharge Warning
Right Turn Indicator
Left Turn Indicator
Security Indicator
L
2
D
N
R
P
Illumination
Hi±Beam Indicator
Open Door Warning
SRS Warning
: Fuel Gauge
: Engine Coolant Temperature Sender Gauge
: Tachometer
: Speedometer
No.
A
B
C1
2
3
4
5
6
7 8
9
10
11
12 13
14
15
16
2 3
4
5
6
7 8
9
10
11 12
131
2
3
4 5
6
7
8
9
10
11
12
13
F
E
T
SEngine coolant temperature sender gauge
Ground
Light failure sensor
Integration relay
Traction ECU
Park/neutral position switch (A/T)
O/D OFF switch (A/T)
IGN fuse
Turn signal switch
ST relay
ECM
Generator
Oil pressure switch
ECM
Parking brake switch and brake fluid level warning switch
Headlight dimmer switch
Headlight dimmer switch
Door courtesy switch
DOME fuse
ECU±B fuse
Airbag sensor assembly
ECM
No.1 Vehicle speed sensor Ground
Turn signal switch ECM
Traction ECU
ABS ECU
Ground No.1 Vehicle speed sensor
GAUGE fuse
Igniter
Security ECU
Cruise control ECU
Washer fluid level warning switch
Light control rheostat
TAIL fuse Park/neutral position switch (A/T) Park/neutral position switch (A/T) Park/neutral position switch (A/T) Park/neutral position switch (A/T)
Park/neutral position switch (A/T)Wire Harness Side
Bulb Check
Relay
N20107 N201081
BE±4
± BODY ELECTRICALCOMBINATION METER

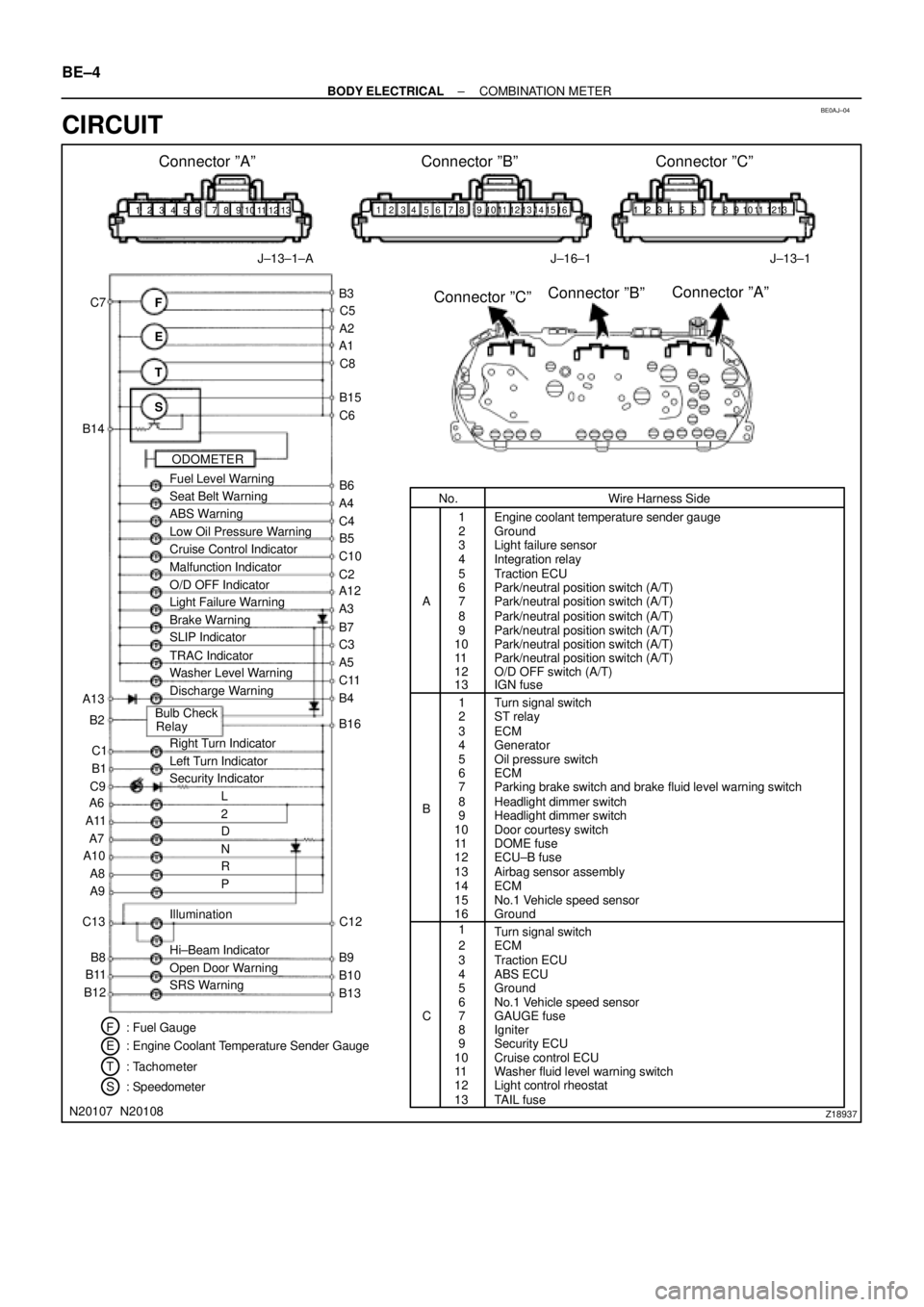

CIRCUIT

BE09Z±03
BE±2
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2222 Author: Date:
PROBLEM SYMPTOMS TABLE
POWER OUTLET
SymptomSuspect AreaSee page
Electric power source cannot be taken out of the power outlet
11. Battery
12.POWER OUTLET Fuse (I/P J/B No.1)
13.Wire Harness±
±
±
HEADLIGHT AND TAILLIGHT SYSTEM (USA)
SymptomSuspect AreaSee page
Headlight does not light.
(Taillight is normal)1. HEAD±(LH, RH) Fuse (E/G Room J/B No.2)
2. Headlight Bulb
3. Wire Harness±
±
±
Headlight does not light.
(Taillight does not light up)
1. HEAD±(LH, RH) Fuse (E/G Room J/B No.2)
2. Headlight Control Relay (E/G Room J/B No.2)
3. Headlight Bulb
4. Wire Harness±
BE±24
±
±
Only one side light does not light.
1. HEAD±(LH, RH) Fuse (E/G Room J/B No.2)
2. Headlight Bulb
3. Wire Harness±
±
±
ºLo±Beamº does not light.
1. Headlight Bulb
2. Light Control Switch
3. Wire Harness±
BE±24
±
ºHi±Beamº does not light.
1. Headlight Dimmer Switch
2. Light Control Switch
3. Wire HarnessBE±24
BE±24
±
ºFlashº does not light.1. Headlight Dimmer Switch
2. Wire HarnessBE±24
±
ºAuto Turn±off Systemº does not operate.
1. GAUGE Fuse (I/P J/B No.1)
2. DOME Fuse (E/G Room J/B No.2)
3. Integration Relay (I/P J/B No.2)
4. Door Courtesy Switch (Driver's)
5. Ignition Switch
6. Wire Harness±
±
BE±14
BE±24
BE±14
±
Taillight does not light. (Headlight does not light)
1. Light Control Switch
2. Integration Relay (I/P J/B No.1)
3. Wire HarnessBE±24
BE±14
±
Taillight does not light.
(Headlight is normal)
1. TAIL Fuse (I/P J/B No.1)
2. Taillight Control Relay (I/P J/B No.1)
3. Light Control Switch
4. Integration Relay (I/P J/B No.1)
5. Wire Harness±
BE±24
BE±24
BE±14
±
Only one side light does not light.1. Bulb
2. Wire Harness±
±
Rear Combination light does not light.
1. Bulb
2. Light Failure Sensor
3. Wire Harness±
BE±37
±
ºAuto Turn±off Systemº does not operate.
1. GAUGE Fuse (I/P J/B No.1)
2. Integration Relay (I/P J/B No.1)
3. Door Courtesy Switch (Driver's)
4. Wire Harness±
BE±14
BE±32
±

± BODY ELECTRICALBODY ELECTRICAL SYSTEM
BE±3
2223 Author: Date:
HEADLIGHT AND TAILLIGHT SYSTEM (CANADA)
SymptomSuspect AreaSee page
Headlight does not light.
(Taillight is normal)1. Wire Harness±
Headlight does not light.
(Taillight does not light up)1. Wire Harness±
Only one side light does not light.
1. Headlight Bulb
2. HEAD LO (LH, RH) Fuse (E/G Room R/B No.2)
3. Wire Harness±
±
±
ºLo±Beamº does not light.
1. Headlight Bulb
2. HEAD LO (LH, RH) Fuse (E/G Room R/B No.2)
3. Headlight Control Relay (E/G Room J/B No.2)
4. Integration Relay (I/P J/B No.1)
5. Light Control Switch
6. Wire Harness±
±
BE±24
BE±14
BE±24
±
ºHi±Beamº does not light.
1. Headlight Bulb
2. ECU±B Fuse (E/G Room J/B No.2)
3. HEAD HI (LH, RH) Fuse (E/G Room J/B No.2)
4. DRL Fuse (E/G Room R/B No.2)
5. Daytime Running Light Relay No.2
(E/G Room R/B No.2)
6. Daytime Running Light Relay No.3
(E/G Room R/B No.2)
7. Daytime Running Light Relay No.4
(E/G Room R/B No.2)
8. Daytime Running Light Relay (Main)
9. Headlight Dimmer Switch
10.Wire Harness±
±
±
±
±
BE±24
±
BE±24
±
BE±24
BE±24
BE±24
±
ºFlashº does not light.
1. Headlight Bulb
2. ECU±B Fuse (E/G Room J/B No.2)
3. HEAD HI (LH, RH) Fuse (E/G Room J/B No.2)
4. DRL Fuse (E/G Room R/B No.2)
5. Daytime Running Light Relay No.2
(E/G Room R/B No.2)
6. Daytime Running Light Relay No.3
(E/G Room R/B No.2)
7. Daytime Running Light Relay No.4
(E/G Room R/B No.2)
8. Daytime Running Light Relay (Main)
9. Headlight Dimmer Switch
10.Wire Harness±
±
±
±
±
BE±24
±
BE±24
±
BE±24
BE±24
BE±24
±
ºAuto Turn±off Systemº does not operate.
1. GAUGE Fuse (I/P J/B No.1)
2. DOME Fuse (E/G Room J/B No.2)
3. Integration Relay (I/P J/B No.2)
4. Door Courtesy Switch (Driver's)
5. Ignition Switch
6. Wire Harness±
±
BE±14
BE±24
BE±14
±
Headlight does not light with engine running and light control SW
OFF.
1. Headlight Bulb
2. ECU±B Fuse (E/G Room J/B No.2)
3. GAUGE Fuse (I/P J/B No.1)
4. HEAD HI (LH, RH) Fuse (E/G Room J/B No.2)
5. Daytime Running Light Relay (Main)
6. Wire Harness
7. Other Parts*±
±
±
±
BE±24
±
±

BE±4
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2224 Author: Date:
Taillight does not light.
(Headlight does not light)1. Integration Relay (I/P J/B No.1)
2. Light Control Switch
3. Wire HarnessBE±14
BE±24
±
Taillight does not light.
(Headlight is normal)
1. TAIL Fuse (I/P J/B No.1)
2. Taillight Control Relay (I/P J/B No.1)
3. Integration Relay (I/P J/B No.1)
4. Light Control Switch
5. Wire Harness±
BE±24
BE±14
BE±24
±
Only one side light does not light.1. Bulb
2. Wire Harness±
±
Rear Combination light does not light.
1. Bulb
2. Light Failure Sensor
3. Wire Harness±
BE±37
±
ºAuto Turn±off Systemº does not operate.
1. GAUGE Fuse (I/P J/B No.1)
2. Integration Relay (I/P J/B No.1)
3. Door Courtesy Switch (Driver's)
4. Wire Harness±
BE±14
BE±24
±
*Terminal L of generator and parking brake switch
TURN SIGNAL AND HAZARD WARNING SYSTEM
SymptomSuspect AreaSee page
ºHazardº and ºTurnº do not light up.
1. Hazard Warning Switch
2. Turn Signal Flasher
3. Wire HarnessBE±30
BE±30
±
The flashing frequency is abnormal.
1. Bulb
2. Turn Signal Switch
3. Wire Harness±
BE±30
±
Hazard warning light does not light up.
(Turn is normal.)1. HORN Fuse (E/G Room J/B No.2)
2. Wire Harness±
±
Hazard warning light does not light up in one direction.1. Hazard Warning Switch
2. Wire HarnessBE±30
±
*1Turn signal does not light up.
1. Ignition Switch
2. TURN Fuse (I/P J/B No.1)
3. Turn Signal Switch
4. Wire HarnessBE±14
±
BE±30
±
*2Turn signal does not light up.
1. TURN Fuse (I/P J/B No.1)
2. Turn Signal Switch
3. Wire Harness±
BE±30
±
Turn signal does not light up in one direction.1. Turn Signal Switch
2. Wire HarnessBE±30
±
Only one bulb does not light up.1. Bulb
2. Wire Harness±
±
*1: Combination meter, wiper and washer do not operate.
*
2: Combination meter, wiper and washer are normal.
INTERIOR LIGHT SYSTEM
SymptomSuspect AreaSee page
ºIlluminated Entry Systemº does not operate.
1. Door Courtesy Switch
2. Integration Relay (I/P J/B No.1)
3. Wire HarnessBE±32
BE±14
±
Only one interior light does not light up.1. Bulb
2. Wire Harness±
±
Interior light does not light up (All).1. DOME Fuse (E/G Room J/B No.2)
2. Wire Harness±
±

± BODY ELECTRICALBODY ELECTRICAL SYSTEM
BE±7
2227 Author: Date:
Seat Belt warning light does not light up.
1. Bulb
2. Seat Belt Buckle Switch
3. Integration Relay (I/P J/B No.1)
4. Wire Harness±
BE±47
BE±47
±
Discharge warning light does not light up.
1. IGN Fuse (I/P J/B No.1)
2. Bulb
3. Wire Harness
4. Generator (5S±FE)
(1MZ±FE)±
±
±
CH±1
CH±1
Light Failure warning light does not light up.
1. Bulb
2. Light Failure Sensor
3. Bulb Check Relay
4. Wire Harness
5. Taillight system±
BE±37
BE±47
±
BE±24
Brake warning light does not light up.
1. Bulb
2. Parking Brake Switch
3. Brake Fluid Level Warning Switch
4. Bulb Check Relay
5. Meter Circuit Plate
6. Wire Harness±
BE±47
BE±47
BE±47
BE±46
±
SRS Warning light does not light up.
1. ECU±B Fuse (E/G Room J/B No.2)
2. Bulb
3. Airbag Sensor Assembly
4. Meter Circuit Plate
5. Wire Harness±
±
DI±626
BE±46
±
Open Door warning light does not light up.
1. DOME Fuse (E/G Room J/B No.2)
2. Bulb
3. Door Courtesy Switch
4. Meter Circuit Plate
5. Wire Harness±
±
BE±32
BE±46
±
Washer Level warning light does not light up.
1. Bulb
2. Washer Fluid Level Warning Switch
3. Meter Circuit Plate
4. Wire Harness±
BE±47
BE±46
±
COMBINATION METER
INDICATOR LIGHTS:
SymptomSuspect AreaSee page
O/D OFF indicator light does not light up.
1. Bulb
2. O/D OFF Switch (A140E)
(A541E)
3. Meter Circuit Plate
4. Wire Harness±
DI±431
DI±487
BE±46
±
Cruise Control indicator light does not light up.
1. Bulb
2. Cruise Control ECU
3. Meter Circuit Plate
4. Wire Harness±
IN±31
BE±46
±
High beam indicator light does not light up.
1. Bulb
2. Meter Circuit Plate
3. Wire Harness
4. Headlight System±
BE±46
±
BE±22
Turn indicator light does not light up.
1. Bulb
2. Meter Circuit Plate
3. Wire Harness
4. Turn Signal and Hazard Warning System±
BE±46
±
BE±29

BE±8
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2228 Author: Date:
Shift indicator lights do not light up.
1. Bulb
2. Meter Circuit Plate
3. Park/Neutral Position Switch (A140E)
(A541E)
4. Wire Harness±
BE±46
DI±424
DI±479
±
Only one shift indicator does not light up.1. Bulb
2. Meter Circuit Plate±
BE±46
Malfunction indicator light does not light up.
1. Bulb
2. ECM
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
SLIP indicator light does not light up.
1. Bulb
2. Traction ECU
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
TRAC OFF indicator light does not light up.
1. Bulb
2. Traction ECU
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
Security indicator light does not light up.
1. Bulb
2. Security ECU
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
Indicator lights do not light up. (Except Turn, Hi±beam and
security)1. GAUGE Fuse (I/P J/B No.1)
2. Wire Harness±
±
DEFOGGER SYSTEM
SymptomSuspect AreaSee page
All defogger systems do not operate.
1. DEFOG M±Fuse (I/P J/B No.1)
2. HTR Fuse (I/P J/B No.1)
3. Defogger Relay (I/P J/B No.1)
4. Defogger Switch
5. Wire Harness±
±
BE±56
BE±56
±
Rear window defogger does not operate.
1. Defogger Wire
2. Choke Coil
3. Wire HarnessBE±56
±
±
Mirror defogger does not operate.
1. MIR/HTR Fuse (I/P J/B No.1)
2. Mirror Defogger
3. Wire Harness±
BE±56
±
POWER WINDOW CONTROL SYSTEM
SymptomSuspect AreaSee page
Power window does not operate (ALL).
(Power Door Lock does not operate)1. POWER M±Fuse (I/P J/B No.1)
2. Power Main Relay (I/P J/B No.1)
3. Wire Harness±
BE±60
±
Power window does not operate (ALL).
(Power Door Lock is normal)1. Ignition Switch
2. Power Window Master Switch
3. Wire HarnessBE±14
BE±60
±
ºOne Touch Power Window Systemº does not operate.1. Power Window Master SwitchBE±60
Only one window glass does not move.
1. Power Window Master Switch
2. Power Window Switch
3. Power Window Motor
4. Wire HarnessBE±60
BE±60
BE±60
±
ºWindow Lock Systemº does not operate.1. Power Window Master SwitchBE±60
