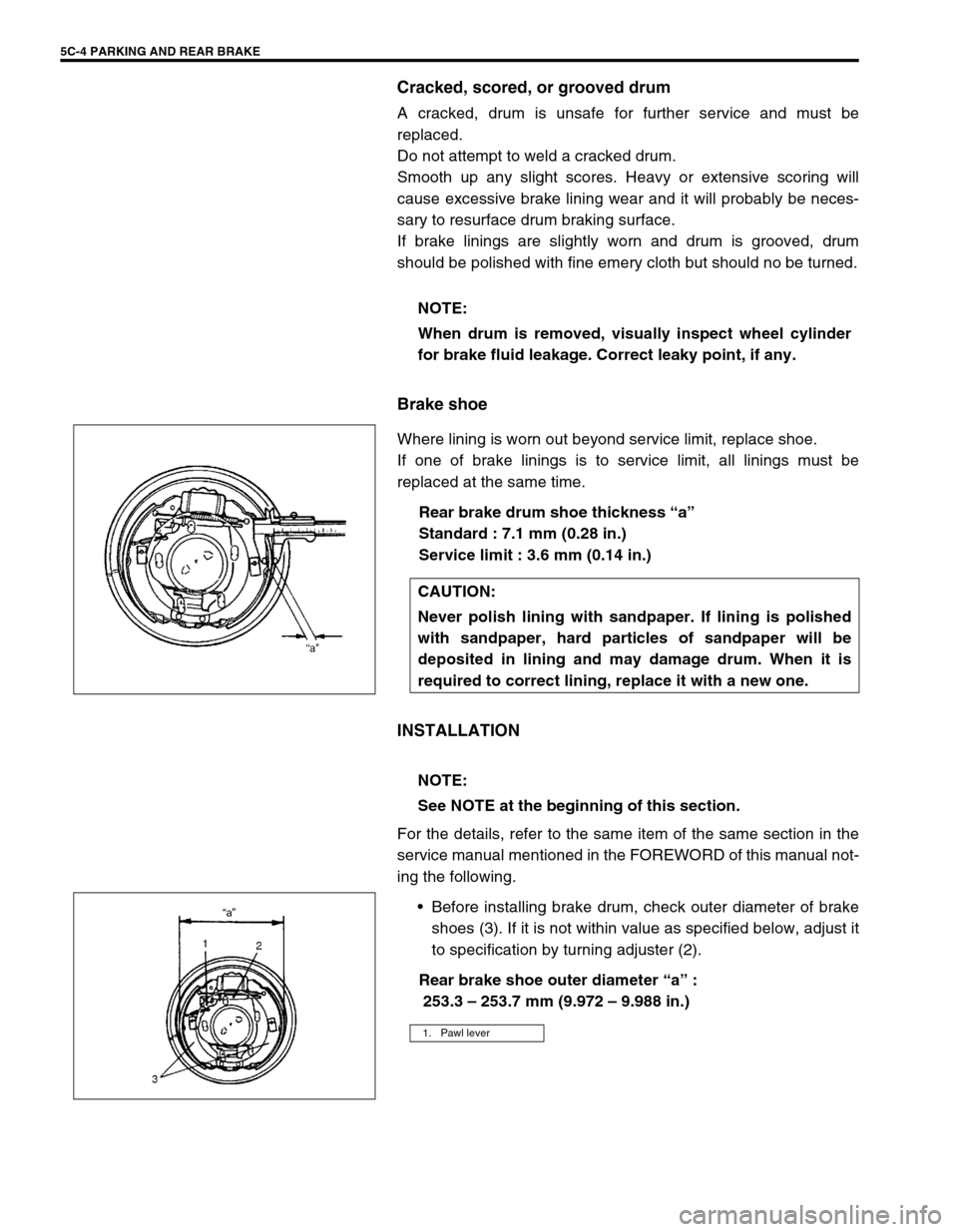

SUZUKI GRAND VITARA 1999 2.G Owners Manual 5C-4 PARKING AND REAR BRAKE
Cracked, scored, or grooved drum
A cracked, drum is unsafe for further service and must be
replaced.
Do not attempt to weld a cracked drum.
Smooth up any slight scores. He

Page 122 of 656

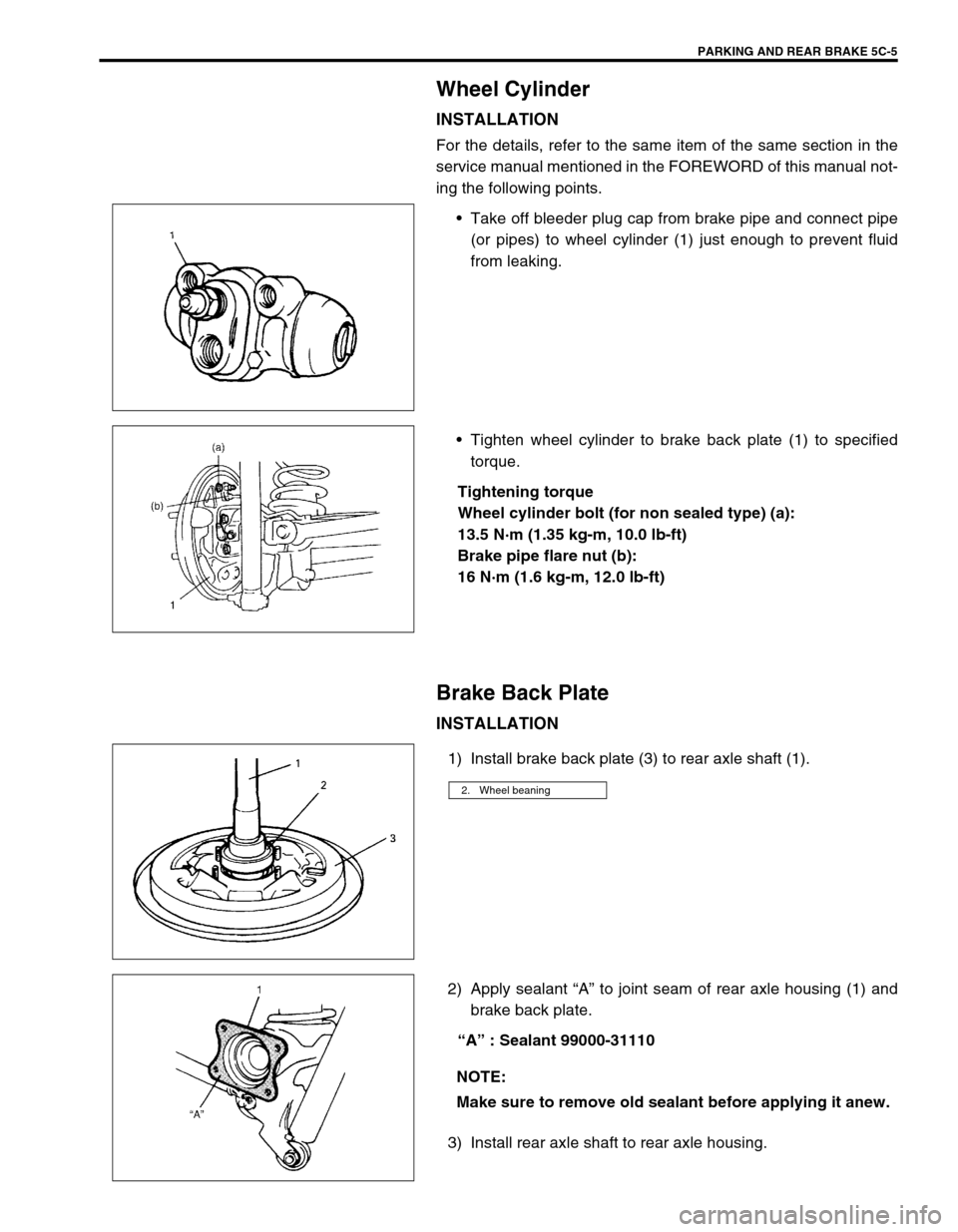

SUZUKI GRAND VITARA 1999 2.G Owners Manual PARKING AND REAR BRAKE 5C-5
Wheel Cylinder
INSTALLATION
For the details, refer to the same item of the same section in the
service manual mentioned in the FOREWORD of this manual not-
ing the followin

Page 123 of 656

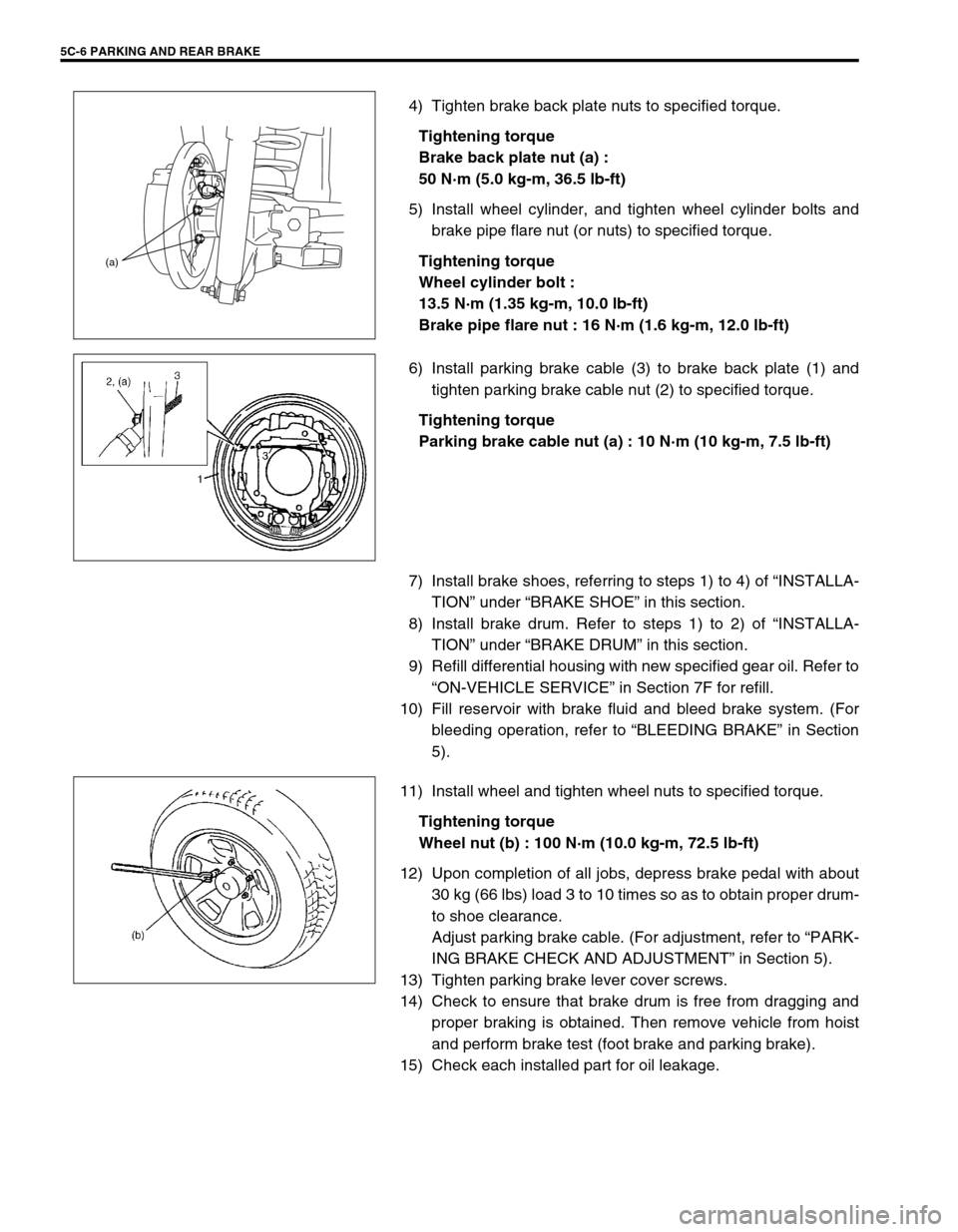

SUZUKI GRAND VITARA 1999 2.G Owners Manual 5C-6 PARKING AND REAR BRAKE
4) Tighten brake back plate nuts to specified torque.
Tightening torque
Brake back plate nut (a) :
50 N·m (5.0 kg-m, 36.5 lb-ft)
5) Install wheel cylinder, and tighten whe

Page 124 of 656

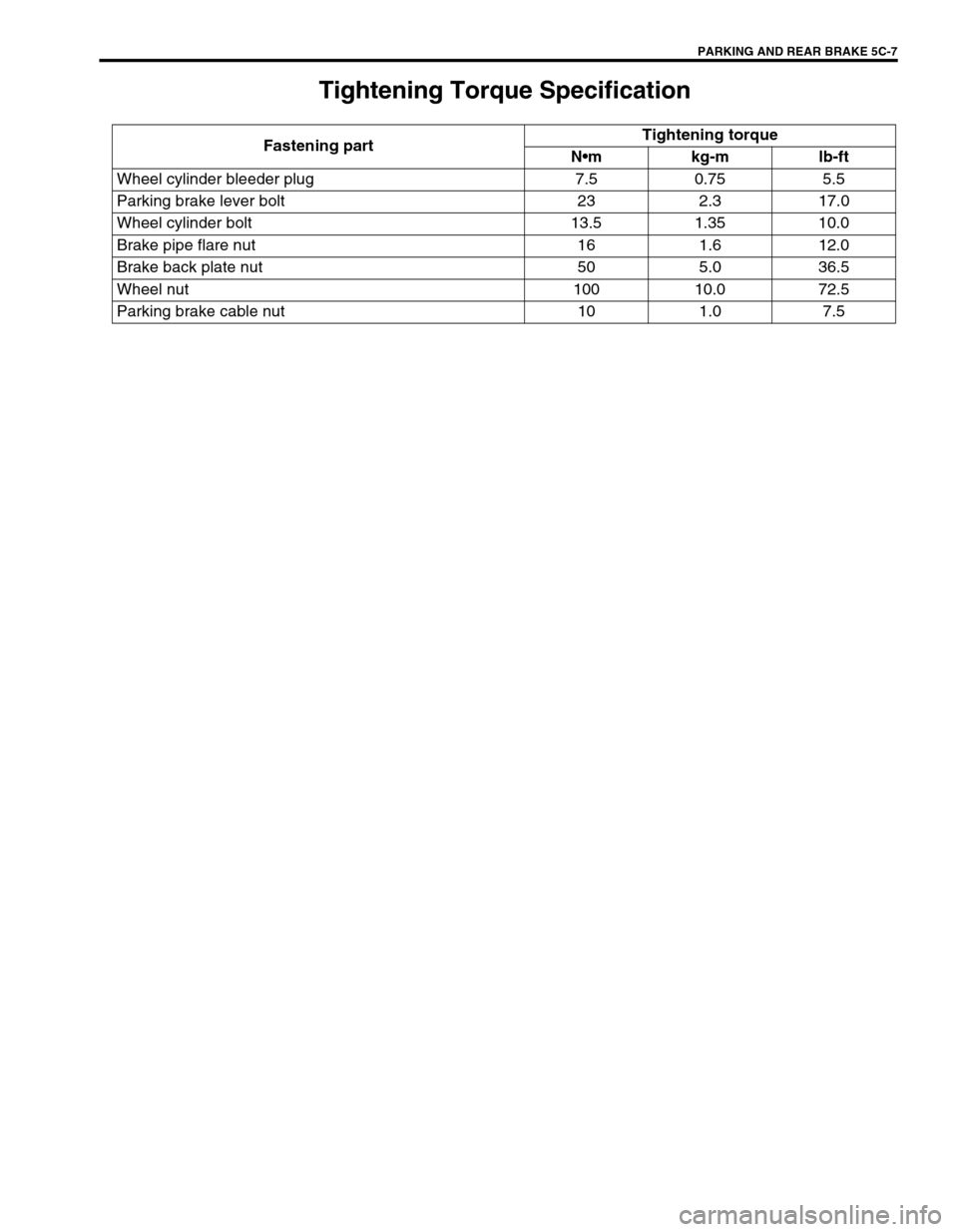

SUZUKI GRAND VITARA 1999 2.G Owners Manual PARKING AND REAR BRAKE 5C-7
Tightening Torque Specification
Fastening partTightening torque
Nmkg-mlb-ft
Wheel cylinder bleeder plug 7.5 0.75 5.5
Parking brake lever bolt 23 2.3 17.0
Wheel cylinder bo

Page 125 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 5C-8 PARKING AND REAR BRAKE

Page 126 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ANTILOCK BRAKE SYSTEM (ABS) 5E2-1
5E2
SECTION 5E2
ANTILOCK BRAKE SYSTEM (ABS)
CONTENTS
General Description .....................................  5E2-3
Components/Parts Location ......................

Page 127 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 5E2-2 ANTILOCK BRAKE SYSTEM (ABS)
Sensor Circuit or Sensor Ring .................  5E2-22
DTC C1031 (DTC 31), DTC C1032
(DTC 32) – Right-Rear Wheel Speed
Sensor Circuit or Sensor Ring ............

Page 128 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ANTILOCK BRAKE SYSTEM (ABS) 5E2-3
General Description
Components/Parts Location
The ABS (Antilock Brake System) controls the fluid pressure applied to the wheel cylinder of each brake from
the master
