3E-8 REAR SUSPENSION

WHEELS AND TIRES 3F-1
3F

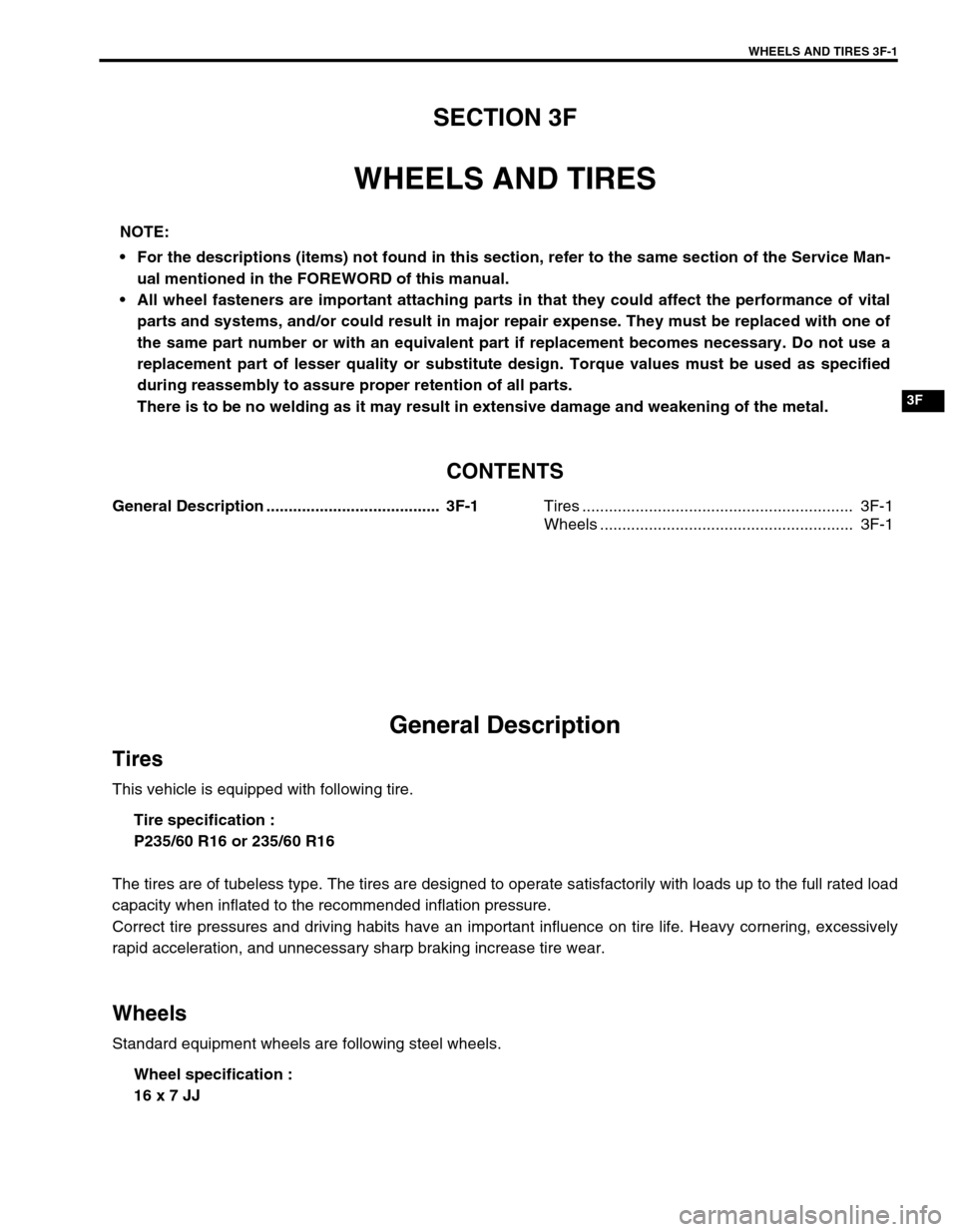

SECTION 3F
WHEELS AND TIRES
CONTENTS
General Description ....................................... 3F-1
Tires ............................................................. 3F-1
Wheels ......................................................... 3F-1

General Description
Tires
This vehicle is equipped with following tire.
Tire specification :
P235/60 R16 or 235/60 R16
The tires are of tubeless type. The tires are designed to operate satisfactorily with loads up to the full rated load
capacity when inflated to the recommended inflation pressure.
Correct tire pressures and driving habits have an important influence on tire life. Heavy cornering, excessively
rapid acceleration, and unnecessary sharp braking increase tire wear.
Wheels
Standard equipment wheels are following steel wheels.
Wheel specification :
16 x 7 JJ NOTE:
For the descriptions (items) not found in this section, refer to the same section of the Service Man-
ual mentioned in the FOREWORD of this manual.
All wheel fasteners are important attaching parts in that they could affect the performance of vital
parts and systems, and/or could result in major repair expense. They must be replaced with one of
the same part number or with an equivalent part if replacement becomes necessary. Do not use a
replacement part of lesser quality or substitute design. Torque values must be used as specified
during reassembly to assure proper retention of all parts.
There is to be no welding as it may result in extensive damage and weakening of the metal.

3F-2 WHEELS AND TIRES

FRONT DRIVE SHAFT/SHAFT BEARING, OIL SEAL 4A2-1
4A2
SECTION 4A2
FRONT DRIVE SHAFT/SHAFT BEARING,
OIL SEAL
CONTENTS
On-Vehicle Service....................................... 4A2-2
Drive Shaft ................................................. 4A2-2Required Service Material ........................... 4A2-4

NOTE:
For the descriptions (items) not found in this section, refer to the same section of the Service Manual
mentioned in the FOREWORD of this manual.

4A2-2 FRONT DRIVE SHAFT/SHAFT BEARING, OIL SEAL

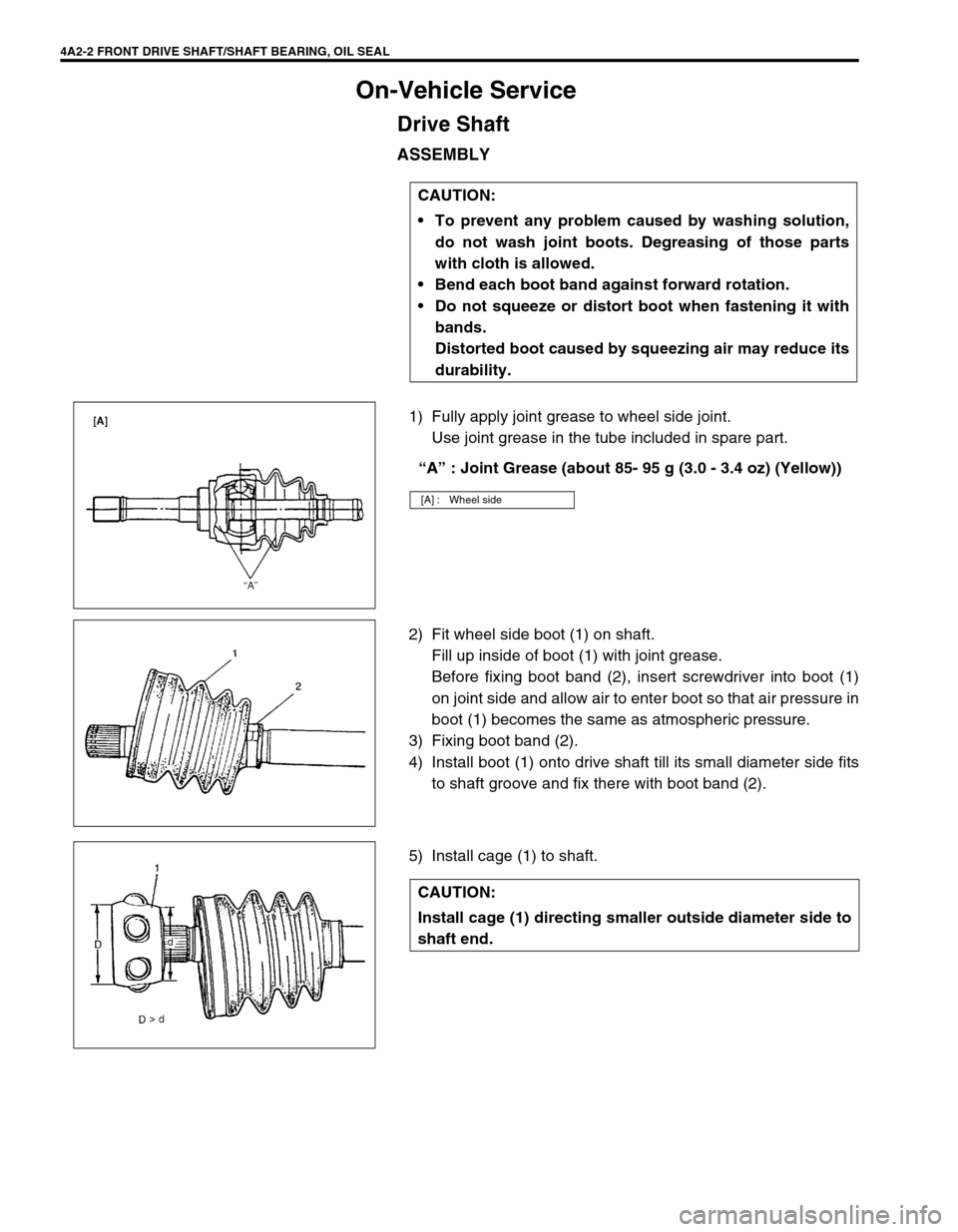

On-Vehicle Service
Drive Shaft
ASSEMBLY
1) Fully apply joint grease to wheel side joint.
Use joint grease in the tube included in spare part.
“A” : Joint Grease (about 85- 95 g (3.0 - 3.4 oz) (Yellow))
2) Fit wheel side boot (1) on shaft.
Fill up inside of boot (1) with joint grease.
Before fixing boot band (2), insert screwdriver into boot (1)
on joint side and allow air to enter boot so that air pressure in
boot (1) becomes the same as atmospheric pressure.
3) Fixing boot band (2).
4) Install boot (1) onto drive shaft till its small diameter side fits
to shaft groove and fix there with boot band (2).
5) Install cage (1) to shaft.CAUTION:
To prevent any problem caused by washing solution,
do not wash joint boots. Degreasing of those parts
with cloth is allowed.
Bend each boot band against forward rotation.
Do not squeeze or distort boot when fastening it with
bands.
Distorted boot caused by squeezing air may reduce its
durability.
[A] : Wheel side
CAUTION:
Install cage (1) directing smaller outside diameter side to
shaft end.

FRONT DRIVE SHAFT/SHAFT BEARING, OIL SEAL 4A2-3

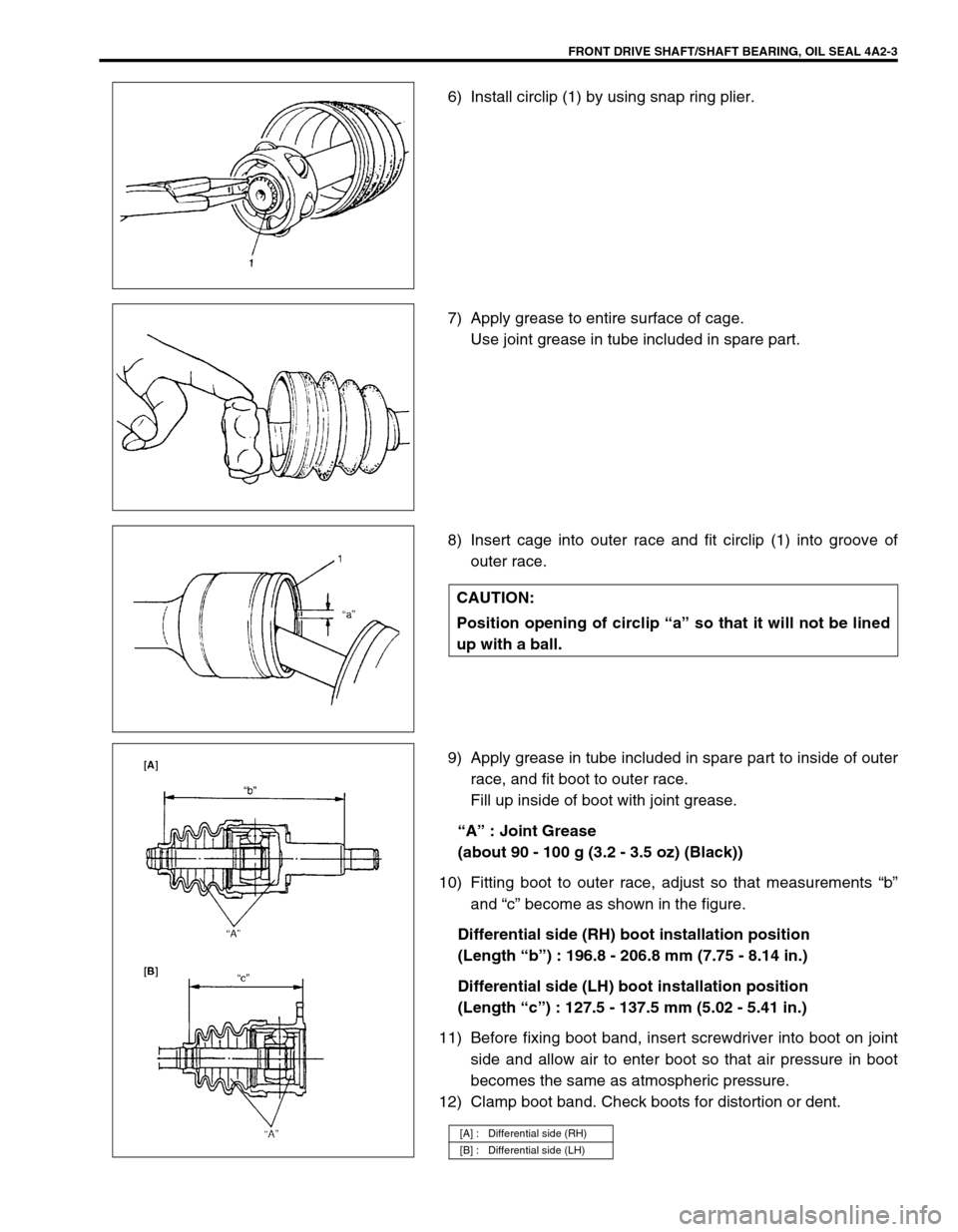

6) Install circlip (1) by using snap ring plier.
7) Apply grease to entire surface of cage.
Use joint grease in tube included in spare part.
8) Insert cage into outer race and fit circlip (1) into groove of
outer race.
9) Apply grease in tube included in spare part to inside of outer
race, and fit boot to outer race.
Fill up inside of boot with joint grease.
“A” : Joint Grease
(about 90 - 100 g (3.2 - 3.5 oz) (Black))
10) Fitting boot to outer race, adjust so that measurements “b”
and “c” become as shown in the figure.
Differential side (RH) boot installation position
(Length “b”) : 196.8 - 206.8 mm (7.75 - 8.14 in.)
Differential side (LH) boot installation position
(Length “c”) : 127.5 - 137.5 mm (5.02 - 5.41 in.)
11) Before fixing boot band, insert screwdriver into boot on joint
side and allow air to enter boot so that air pressure in boot
becomes the same as atmospheric pressure.
12) Clamp boot band. Check boots for distortion or dent.
CAUTION:
Position opening of circlip “a” so that it will not be lined
up with a ball.
[A] : Differential side (RH)
[B] : Differential side (LH)

4A2-4 FRONT DRIVE SHAFT/SHAFT BEARING, OIL SEAL

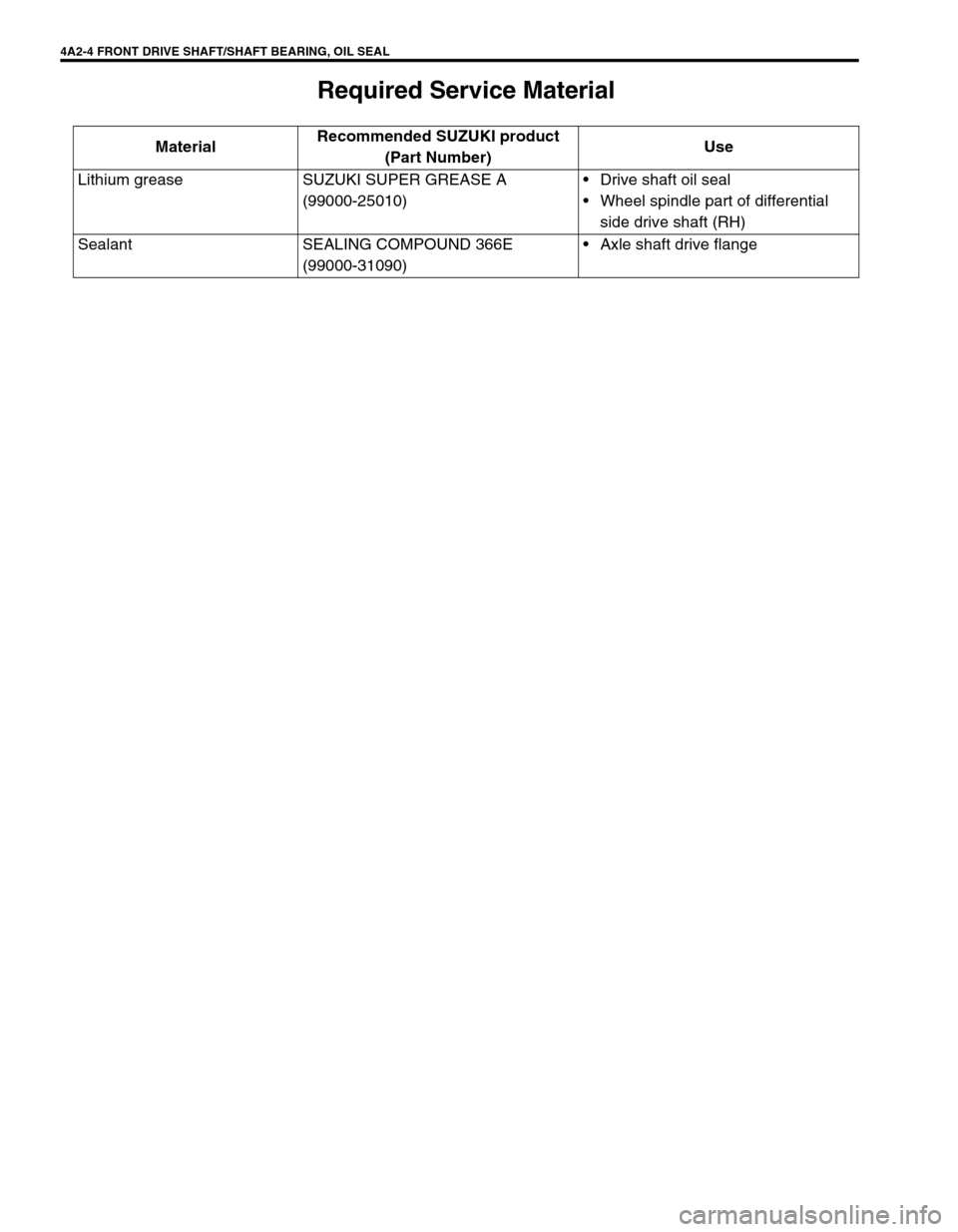

Required Service Material
MaterialRecommended SUZUKI product
(Part Number)Use
Lithium grease SUZUKI SUPER GREASE A
(99000-25010)Drive shaft oil seal
Wheel spindle part of differential
side drive shaft (RH)
Sealant SEALING COMPOUND 366E
(99000-31090)Axle shaft drive flange

PROPELLER SHAFTS 4B-1
4B
SECTION 4B
PROPELLER SHAFTS
CONTENTS
General Description ....................................... 4B-1
On-Vehicle Service......................................... 4B-2
Propeller Shaft ............................................. 4B-2Tightening Torque Specification .................. 4B-2
Required Service Material ............................. 4B-2

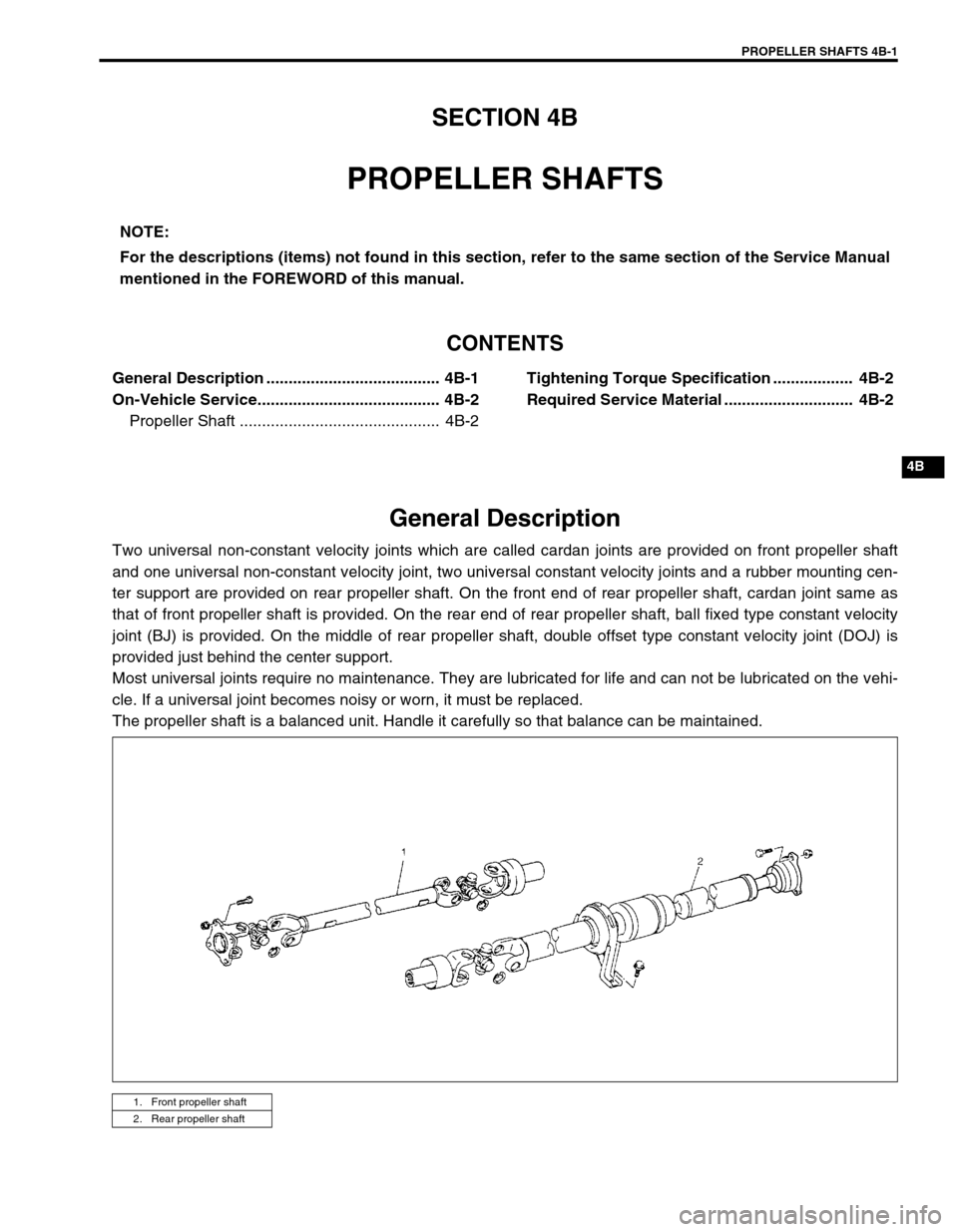

General Description
Two universal non-constant velocity joints which are called cardan joints are provided on front propeller shaft
and one universal non-constant velocity joint, two universal constant velocity joints and a rubber mounting cen-
ter support are provided on rear propeller shaft. On the front end of rear propeller shaft, cardan joint same as
that of front propeller shaft is provided. On the rear end of rear propeller shaft, ball fixed type constant velocity
joint (BJ) is provided. On the middle of rear propeller shaft, double offset type constant velocity joint (DOJ) is
provided just behind the center support.
Most universal joints require no maintenance. They are lubricated for life and can not be lubricated on the vehi-
cle. If a universal joint becomes noisy or worn, it must be replaced.
The propeller shaft is a balanced unit. Handle it carefully so that balance can be maintained.NOTE:
For the descriptions (items) not found in this section, refer to the same section of the Service Manual
mentioned in the FOREWORD of this manual.
1. Front propeller shaft
2. Rear propeller shaft
