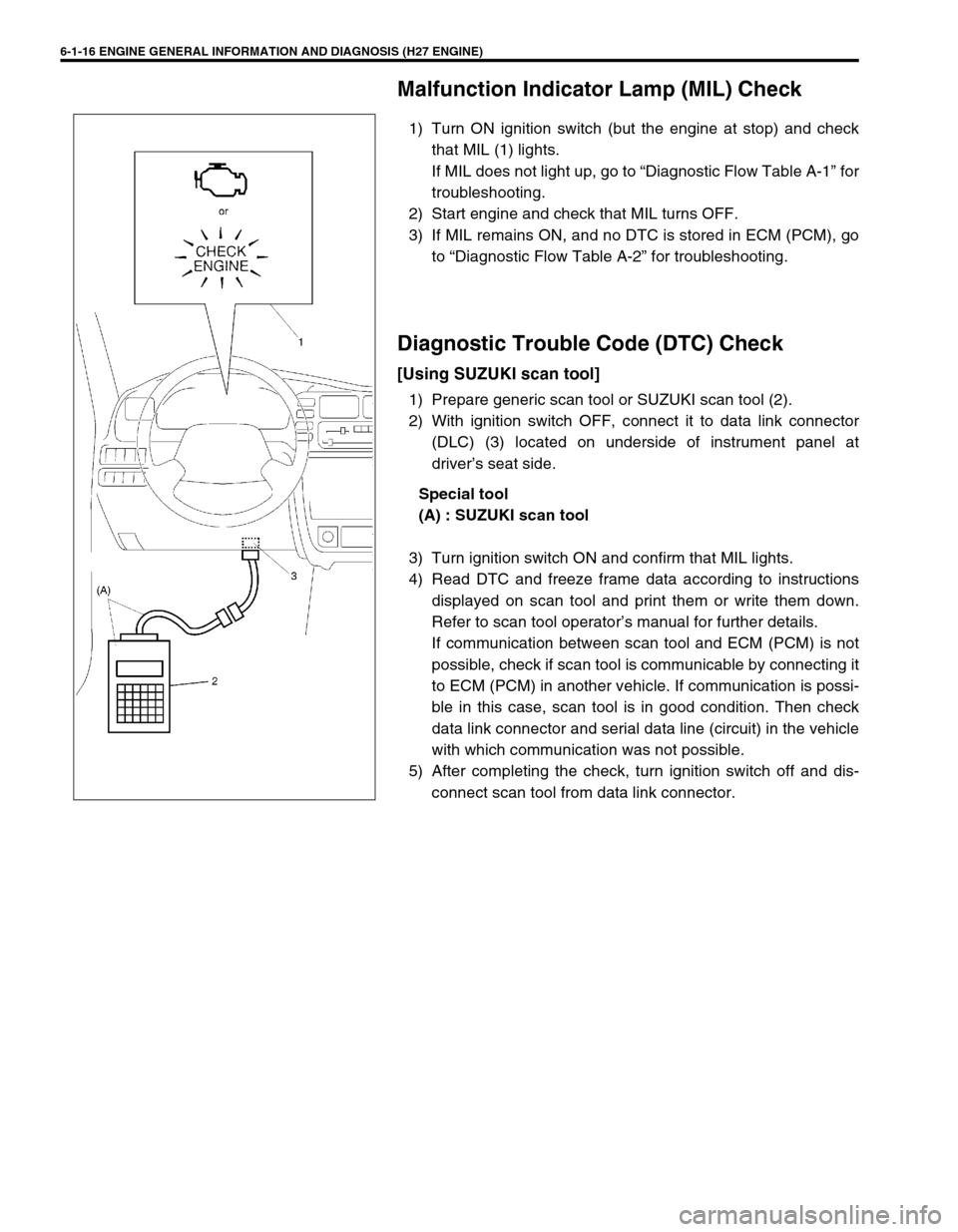

6-1-16 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
Malfunction Indicator Lamp (MIL) Check
1) Turn ON ignition switch (but the engine at stop) and check
that MIL (1) lights.
If MIL does not light up, go to “Diagnostic Flow Table A-1” for
troubleshooting.
2) Start engine and check that MIL turns OFF.
3) If MIL remains ON, and no DTC is stored in ECM (PCM), go
to “Diagnostic Flow Table A-2” for troubleshooting.
Diagnostic Trouble Code (DTC) Check
[Using SUZUKI scan tool]
1) Prepare generic scan tool or SUZUKI scan tool (2).
2) With ignition switch OFF, connect it to data link connector
(DLC) (3) located on underside of instrument panel at
driver’s seat side.
Special tool
(A) : SUZUKI scan tool
3) Turn ignition switch ON and confirm that MIL lights.
4) Read DTC and freeze frame data according to instructions
displayed on scan tool and print them or write them down.
Refer to scan tool operator’s manual for further details.
If communication between scan tool and ECM (PCM) is not
possible, check if scan tool is communicable by connecting it
to ECM (PCM) in another vehicle. If communication is possi-
ble in this case, scan tool is in good condition. Then check
data link connector and serial data line (circuit) in the vehicle
with which communication was not possible.
5) After completing the check, turn ignition switch off and dis-
connect scan tool from data link connector.

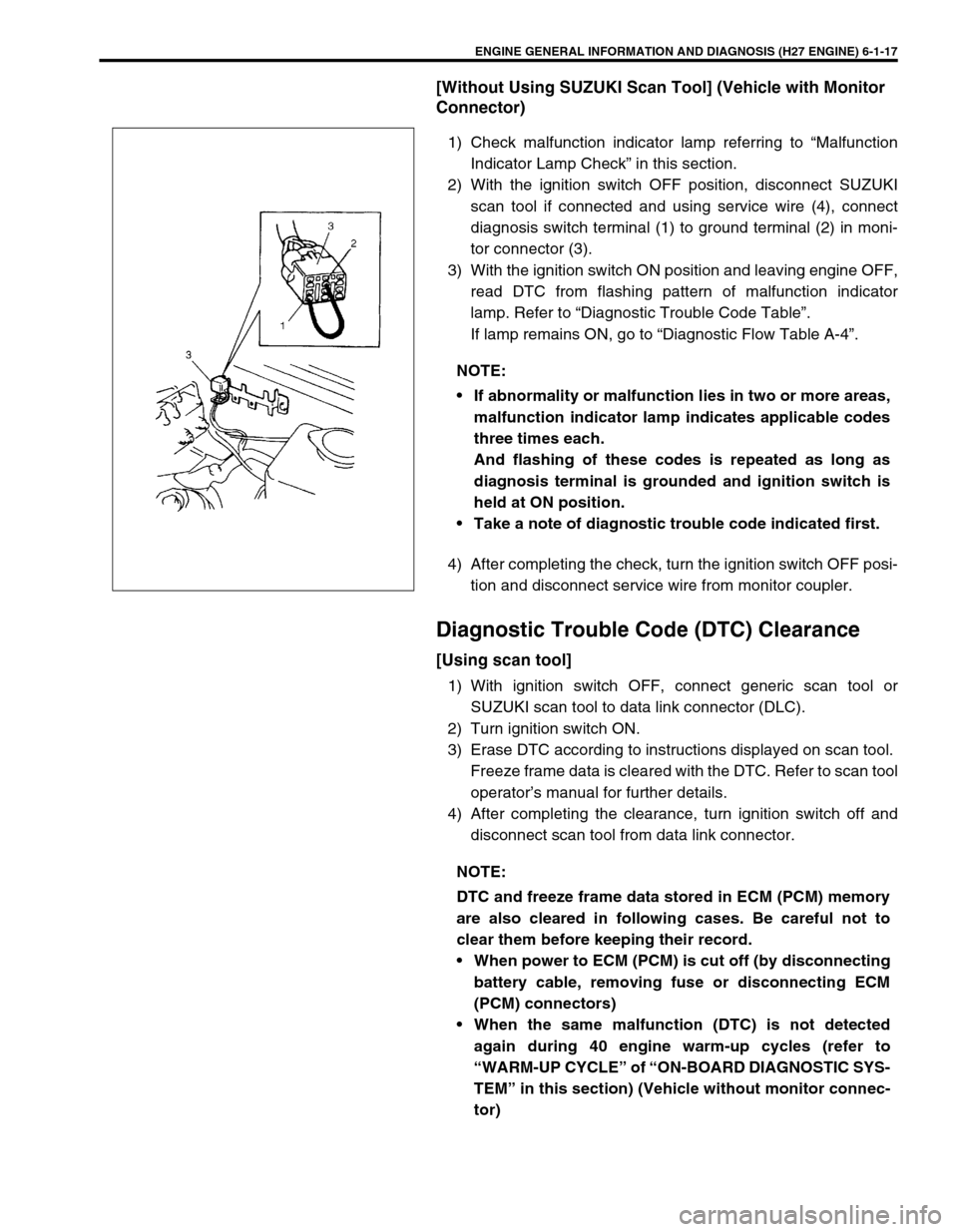

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-17
[Without Using SUZUKI Scan Tool] (Vehicle with Monitor
Connector)
1) Check malfunction indicator lamp referring to “Malfunction
Indicator Lamp Check” in this section.
2) With the ignition switch OFF position, disconnect SUZUKI
scan tool if connected and using service wire (4), connect
diagnosis switch terminal (1) to ground terminal (2) in moni-
tor connector (3).
3) With the ignition switch ON position and leaving engine OFF,
read DTC from flashing pattern of malfunction indicator
lamp. Refer to “Diagnostic Trouble Code Table”.
If lamp remains ON, go to “Diagnostic Flow Table A-4”.
4) After completing the check, turn the ignition switch OFF posi-
tion and disconnect service wire from monitor coupler.
Diagnostic Trouble Code (DTC) Clearance
[Using scan tool]
1) With ignition switch OFF, connect generic scan tool or
SUZUKI scan tool to data link connector (DLC).
2) Turn ignition switch ON.
3) Erase DTC according to instructions displayed on scan tool.
Freeze frame data is cleared with the DTC. Refer to scan tool
operator’s manual for further details.
4) After completing the clearance, turn ignition switch off and
disconnect scan tool from data link connector. NOTE:
If abnormality or malfunction lies in two or more areas,
malfunction indicator lamp indicates applicable codes
three times each.
And flashing of these codes is repeated as long as
diagnosis terminal is grounded and ignition switch is
held at ON position.
Take a note of diagnostic trouble code indicated first.
NOTE:
DTC and freeze frame data stored in ECM (PCM) memory
are also cleared in following cases. Be careful not to
clear them before keeping their record.
When power to ECM (PCM) is cut off (by disconnecting
battery cable, removing fuse or disconnecting ECM
(PCM) connectors)
When the same malfunction (DTC) is not detected
again during 40 engine warm-up cycles (refer to
“WARM-UP CYCLE” of “ON-BOARD DIAGNOSTIC SYS-
TEM” in this section) (Vehicle without monitor connec-
tor)

6-1-18 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
[Without using scan tool]
1) Turn the ignition switch OFF position.
2) Disconnect battery negative cable for specified time below to
erase diagnostic trouble code stored in ECM memory and
reconnect it.
Time required to erase DTC:
Diagnostic Trouble Code (DTC) Table
Ambient
temperatureTime to cut power to ECM
Over 0°C (32°F) 30 sec. or longer
Under 0°C
(32°F)Not specifiable.
Select a place with higher than 0°C
(32°F) temperature.
DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
P0100
(No.34)
Mass air flow circuit malfunc-
tionSensor output too low
1 driving
cycle1 driving
cycle
P0100
(No.33)Sensor output too high
P0110
(No.25)
Intake air temp. circuit mal-
functionIntake air temp. circuit low input
1 driving
cycle1 driving
cycle
P0110
(No.23)Intake air temp. circuit high input
P0115
(No.15)
Engine coolant temp. circuit
malfunctionEngine coolant temp. circuit low input
1 driving
cycle1 driving
cycle
P0115
(No.14)Engine coolant temp. circuit high input
P0120
(No.22)
Throttle position circuit mal-
functionThrottle position circuit low input
1 driving
cycle1 driving
cycle
P0120
(No.21)Throttle position circuit high input
P0121Throttle position circuit perfor-
mance problemPoor performance of TP sensor2 driving
cyclesNot
applicable
*P0130HO2S circuit malfunction
(Bank 1 - Sensor 1)Min. output voltage of HO2S-1 is
higher than specification.
2 driving
cyclesNot
applicable Min. output voltage of HO2S-1 is
lower than specification.
Output voltage of HO2S-1 fails to go
above specification.
**P0130
(No.13)HO2S (Bank 1 - Sensor 1) no
activity detectedOutput voltage of HO2S-1 fails to go
above specification (or HO2S-1 cir-
cuit open).2 driving
cycles2 driving
cycles

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-19
P0133HO2S circuit slow response
(Bank 1 - Sensor 1)Response time of HO2S-1 output volt-
age between rich and lean is longer
than specification.2 driving
cyclesNot
applicable
P0135HO2S heater circuit malfunc-
tion (Bank 1 - Sensor 1)Terminal voltage is lower than specifi-
cation at heater OFF or it is higher at
heater ON.2 driving
cyclesNot
applicable
P0136HO2S circuit malfunction
(Bank 1 - Sensor 2)Max. voltage of HO2S-2 is lower than
specification or its min. voltage is
higher than specification.2 driving
cyclesNot
applicable
P0141HO2S heater circuit malfunc-
tion (Bank 1 - Sensor 2)Terminal voltage is lower than specifi-
cation at heater OFF or it is higher at
heater ON.2 driving
cyclesNot
applicable
*P0150HO2S circuit malfunction
(Bank 2 - sensor 1)Min. output voltage of HO2S-1 is
higher than specification.
2 driving
cyclesNot
applicable Min. output voltage of HO2S-1 is
lower than specification.
Output voltage of HO2S-1 fails to go
above specification.
**P0150
(No.26)HO2S (Bank 2 - Sensor 1) no
activity detectedOutput voltage of HO2S-1 fails to go
above specification (or HO2S-1 cir-
cuit open).2 driving
cycles2 driving
cycles
P0153HO2S circuit slow response
(Bank 2 - Sensor 1)Response time HO2S-1 output volt-
age between rich and lean is longer
than specification.2 driving
cyclesNot
applicable
P0155HO2S heater circuit malfunc-
tion (Bank 2 - Sensor 1)Terminal voltage i lower than specifi-
cation at heater OFF or it is higher at
heater ON.2 driving
cyclesNot
applicable
P0156HO2S circuit malfunction
(Bank 2 - Sensor 2)Max. voltage of HO2S-2 is lower than
specification or its min. voltage is
higher than specification.2 driving
cyclesNot
applicable
P0161HO2S heater circuit malfunc-
tion (Bank 2 - Sensor 2)Terminal voltage is lower than specifi-
cation at heater OFF or it is higher at
heater ON (or heater circuit or short).2 driving
cyclesNot
applicable
P0171 Fuel system too lean (Bank 1)Short term fuel trim or total fuel trim
(short and long terms added) is larger
than specification for specified time or
longer. (Fuel trim toward rich side is
large.)2 driving
cyclesNot
applicable
P0172 Fuel system too rich (Bank 1)Short term fuel trim or total fuel trim
(short and long terms added) is
smaller than specification for specified
time or longer. (Fuel trim toward lean
side is large.)2 driving
cyclesNot
applicable DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)

6-1-20 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
P0174 Fuel system too lean (Bank 2)Short term fuel trim or total fuel trim
(short and long terms added) is larger
than specification for specified time or
longer. (Fuel trim toward rich side is
large.)2 driving
cyclesNot
applicable
P0175 Fuel system too rich (Bank 2)Short term fuel trim or total fuel trim
(short and long terms added) is
smaller than specification for specified
time or longer. (Fuel trim toward lean
side is large.)2 driving
cyclesNot
applicable
P0300
P0301
P0302
P0303
P0304
P0305
P0306Random misfire detected
Cylinder 1 misfire detected
Cylinder 2 misfire detected
Cylinder 3 misfire detected
Cylinder 4 misfire detected
Cylinder 5 misfire detected
Cylinder 6 misfire detectedMisfire of such level as to cause dam-
age to three way catalystMIL flashing
during mis-
fire detec-
tionNot
applicable
Misfire of such level as to deteriorate
emission but not to cause damage to
three way catalyst2 driving
cyclesNot
applicable
P0325
(No.43)Knock sensor circuit malfunc-
tionSensor output too low
1 driving
cycle1 driving
cycle
Sensor output too high
P0335Crankshaft position sensor cir-
cuit malfunctionNo signal during engine running and
CMP sensor signal inputting1 driving
cycleNot
applicable
P0340
(No.42)Camshaft position sensor cir-
cuit malfunctionNo signal for 3 sec. during engine
cranking, REF signal pattern incor-
rect or POS signal voltage too high or
too low1 driving
cycleNot
applicable
P0400Exhaust gas recirculation flow
malfunction detectedExcessive or insufficient EGR flow.2 driving
cyclesNot
applicable
P0403
(No.51)EGR valve circuit malfunctionEGR valve electrical circuit open or
shot to ground1 driving
cycle1 driving
cycle
P0420Catalyst system efficiency
below threshold (Bank 1)Output waveforms of HO2S-1 and
HO2S-2 are similar.
(Time from output voltage change of
HO2S-1 to that of HO2S-2 is shorter
than specification.)2 driving
cyclesNot
applicable
P0430Catalyst system efficiency
below threshold (Bank 2)Output waveforms of HO2S-1 and
HO2S-2 are similar.
(Time from output voltage change of
HO2S-1 to that of HO2S-2 is shorter
than specification.)2 driving
cyclesNot
applicable
P0443Purge control valve circuit
malfunctionPurge control valve circuit is open or
shorted to ground.2 driving
cyclesNot
applicable
P0500
(No.24)Vehicle speed sensor mal-
functionNo signal while running in “D” range
or during fuel cut at decelerating.2 driving
cycles1 driving
cycle DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-21
For A/T system (Refer to Section 7B1 for diagnosis)
P0505Idle air control system mal-
functionDifference between desired idle speed
and actual idle speed continues to
exceed specified value for longer than
specified time.2 driving
cyclesNot
applicable
P0601
(No.71)Internal control module mem-
ory check sum errorData write error (or check sum error)
when written into ECM1 driving
cycle1 driving
cycle
P1408Manifold absolute pressure
sensor circuit malfunctionManifold absolute pressure sensor
output voltage is higher or lower than
specified value (or sensor circuit
shorted to ground or open).2 driving
cyclesNot
applicable
P1450Barometric pressure sensor
circuit malfunctionBarometric pressure is lower or higher
than specification.1 driving
cycleNot
applicable
P1451Barometric pressure sensor
performance problemDifference between intake manifold
pressure and barometric pressure is
larger than specification.2 driving
cyclesNot
applicable
P1500Engine starter signal circuit
malfunctionEngine starts with no starter signal or
signal input during long period after
start.2 driving
cyclesNot
applicable
P1510ECM back-up power supply
malfunctionNo back-up power after starting
engine.1 driving
cycleNot
applicable DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
P0705
(No.72)Transmission range switch cir-
cuit malfunctionMultiple signals inputted simulta-
neously or P, R, N, D, 2 or L range sig-
nal not inputted while running at
60km/h or more.2 driving
cyclesNot
applicable
P0715
(No.76)Input speed sensor circuit
malfunctionInput speed sensor signal is lower
than specification while running.2 driving
cyclesNot
applicable
P0720
(No.75)Output speed sensor circuit
malfunctionOutput speed sensor signal not input-
ted while VSS signal being inputted.2 driving
cyclesNot
applicable
P0741TCC (lock-up) solenoid perfor-
mance or stuck offActual TCC operation does not agree
with ON/OFF control from PCM to
TCC.2 driving
cyclesNot
applicable
P0743
(No.65)
(No.66)TCC (lock-up) solenoid electri-
calMonitor signal OFF is detected when
TCC control solenoid is ON or monitor
signal ON is detected when it is OFF.1 driving
cycleNot
applicable
P0751Shift solenoid A (#1) perfor-
mance or stuck offGear change control from PCM to A/T
does not agree with actual gear posi-
tion of A/T.2 driving
cyclesNot
applicable

6-1-22 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
For immobilizer control system (Refer to Section 8G for diagnosis)
P0753
(No.61)
(No.62)Shift solenoid A (#1) electricalMonitor signal OFF is detected when
shift solenoid A (#1) is ON or monitor
signal ON is detected when it is OFF.1 driving
cycleNot
applicable
P0756Shift solenoid B (#2) perfor-
mance or stuck offGear change control from PCM to A/T
does not agree with actual gear posi-
tion of A/T.2 driving
cyclesNot
applicable
P0758
(No.63)
(No.64)Shift solenoid B (#2) electricalMonitor signal OFF is detected when
shift solenoid B (#2) is ON or monitor
signal ON is detected when it is OFF.1 driving
cycleNot
applicable
P18754WD low switch circuit mal-
functionDifference between vehicle speed
detected by VSS and vehicle speed
detected by output speed sensor and
compensated by 4WD low switch is
larger than specification.2 driving
cyclesNot
applicable DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
P1620
(No.84)ECU code not registered
Refer to Section 8G P1621
(No.83)NO ECU code transmitted
from Immobilizer Control Mod-
ule
P1622
(No.82)Fault ECM
P1623
(No.81)ECU code not matched
NOTE:
DTC NO. with (*) is detected only vehicle without monitor connector.
DTC No. with (**) is detected only vehicle with monitor connector.
For ( ) marked No. in DTC column, it is used for vehicle with monitor connector.
DTC No.12 appears when none of the other codes is identified.

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-23
Fail-Safe Table
When any of the following DTCs is detected, ECM (PCM) enters fail-safe mode as long as malfunction continues
to exist but that mode is canceled when ECM (PCM) detects normal condition after that.
DTC NO. TROUBLE AREA FAIL SAFE OPERATION
P0100
(No.33, 34)MAF SENSOR• Injector drive time (fuel injection volume) is determined according to
throttle valve opening and engine speed.
• EGR valve stops.
• Air flow of IAC valve is limited.
P0110
(No.23, 25)IAT SENSOR Each control is performed on the basis of 22.1°C intake air temp.
P0115
(No.14, 15)ECT SENSOR• Each control except 4-A/T is performed on the basis of 29.9°C engine
coolant temp.
• 4-A/T control is performed assuming 31°C (engine warmed up) or
higher after 15 min. from engine start.
P0120
(No.21, 22)TP SENSOR• Each control except 4-A/T is performed on the basis of 124.5° throttle
valve opening.
• 4-A/T control is performed on the basis of 0° throttle valve opening.
P0460 FUEL LEVEL SENSOR Each control is performed in the basis of full fuel level.
P0500VEHICLE SPEED
SENSORAir flow of IAC valve is limited.
P1450BAROMETRIC
PRESSURE SENSOREach control is performed based on 760 mmHg barometric pressure.
P0705 TR SWITCH A/T control is performed in priority order of L, 2, N, D, R and P.
P0720OUTPUT SPEED
SENSOR CIRCUIT
MALFUNCTIONA/T control is performed by using signal from VSS.
P0753SHIFT SOLENOID
A (#1)• A/T control using 3rd gear is performed when D range, 1st, or 2nd
gear is used.
• TCC solenoid OFF
P0758SHIFT SOLENOID
B (#2)• A/T control using 4th gear is performed when D range, 2nd or 3rd
gear is used.
• When both shift solenoids A (#1) and B (#2) failed simultaneously,
A/T control using 4th gear is always performed in D range.
• TCC solenoid OFF
P0743TCC (Lock-up)
SOLENOIDTCC (Lock-up) solenoid OFF
