1999 NISSAN FRONTIER Owners Manual

After the child restraint is removed and the
seat belt is fully retracted the automatic
locking mode (child restraint mode) is can-
celed.
TOP STRAP CHILD RESTRAINT
If your child restraint has a top strap, install
the anchor bracket to the provided anchor
point. Anchor bracket hardware must be
installed. The top strap anchor bracket hard-
ware is available through an authorized
NISSAN dealer.
Part # 88894-89900
Secure the child restraint with the three-
point seat belt and latch the top strap hook
onto the anchor bracket. Make sure the
shoulder belt is placed between the seat
back and child restraint. To install the an-chor bracket, a metric bolt of the dimensions
listed below must be used.
Bolt diameter: 8.0 mm
Bolt length: at least 1.18 in (30 mm)
Thread pitch: 1.25 mm
WARNING
IDo not install a child restraint in the
center position of the front bench
seat. This position is not suitable for
child restraint installation.
IA child restraint anchor point is de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances is
it to be used for adult seat belts or
harnesses.
ARS1191
Seats, restraints and supplemental air bag systems1-35
ZX

Anchor point location
An anchor point is located under the rear
window. The back panel carpet is perforated
to allow access to the anchor point.
An authorized NISSAN dealer can assist
you with the installation of your child re-
straint.
ARS1129
1-36Seats, restraints and supplemental air bag systems
ZX

2 Instruments and controls
Meters and gauges ................................................2-2
Speedometer and odometer ..................................2-3
Tachometer (if so equipped) ..................................2-5
Engine coolant temperature gauge ........................2-5
Fuel gauge .............................................................2-6
Warning/indicator lights and chimes ......................2-7
Theft warning (if so equipped) .............................2-13
Headlight and turn signal switch ..........................2-15
Daytime running light system (Canada only) .......2-15
Front fog light switch (if so equipped)..................2-16
Windshield wiper and washer switch ...................2-17
Instrument brightness control ...............................2-17Hazard warning flasher switch .............................2-18
Cigarette lighter (accessory) and ash tray ...........2-18
Power point (if so equipped) ................................2-19
Cup holder (if so equipped) .................................2-20
Dome light and cargo light ...................................2-21
Map lights (if so equipped)...................................2-21
Manual windows ...................................................2-22
Power windows (if so equipped) ..........................2-22
Automatic power window switch ..........................2-23
Rear sliding window (if so equipped) ...................2-23
Sunroof (if so equipped).......................................2-24
ZX

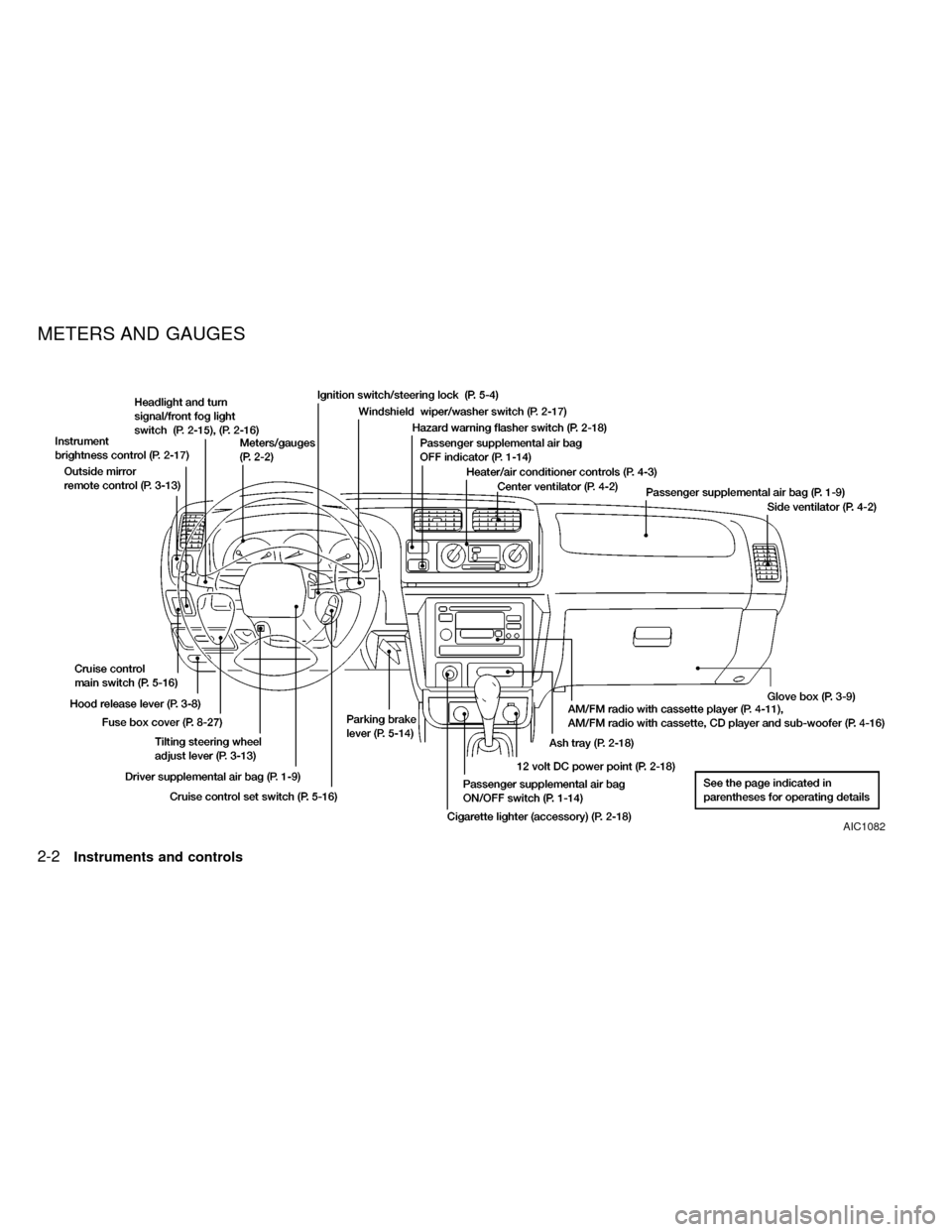

AIC1082
METERS AND GAUGES
2-2Instruments and controls
ZX

Speedometer
The speedometer indicates vehicle speed.
Odometer
The odometer records the total distance the
vehicle has been driven.
AIC1022
SPEEDOMETER AND
ODOMETER
Instruments and controls2-3
ZX

Trip odometer
The trip odometer records the distance of
individual trips. Before each trip reset the
trip odometer.Push the reset knob to change the display
as follows:ODO (odometer),TRIP A,TRIP B,ODO.
Push and hold the reset knob for more than
1 second to reset either trip odometer.
AIC1086
2-4Instruments and controls
ZX

The tachometer indicates engine speed in
revolutions per minute (r/min).
CAUTION
When engine speed approaches the
red zone, shift to a higher gear. Operat-
ing the engine in the red zone may
cause serious engine damage.The gauge indicates the engine coolant
temperature.
The engine coolant temperature varies with
the outside air temperature and driving con-
ditions.
CAUTION
If the gauge indicates over the normal
range, stop the vehicle as soon as
safely possible. If the engine is over-
heated, continued operation of the ve-
hicle may seriously damage the engine.
See the ``In case of emergency'' section
for immediate action required.
AIC0744AIC0737
TACHOMETER
(if so equipped)ENGINE COOLANT
TEMPERATURE GAUGE
Instruments and controls2-5
ZX

The gauge indicates the APPROXIMATE
fuel level in the tank.
The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
downhill.
The gauge needle is designed to hold its
position when the ignition key is turned OFF.
Refill the fuel tank before the gauge
registers E (Empty).
CAUTION
If the vehicle is driven with the fuel level
very low, the malfunction indicator light
may come on. Refuel as soon as pos-
sible. After driving for a while, the light
should remain off. If the light remains
on, have the vehicle inspected by an
authorized NISSAN dealer.
For additional information, see the
²Malfunction indicator light (MIL)²later
in this section.
AIC0738
FUEL GAUGE
2-6Instruments and controls
ZX
