INSTRUMENTS
88-22 DESCRIPTION AND OPERATION

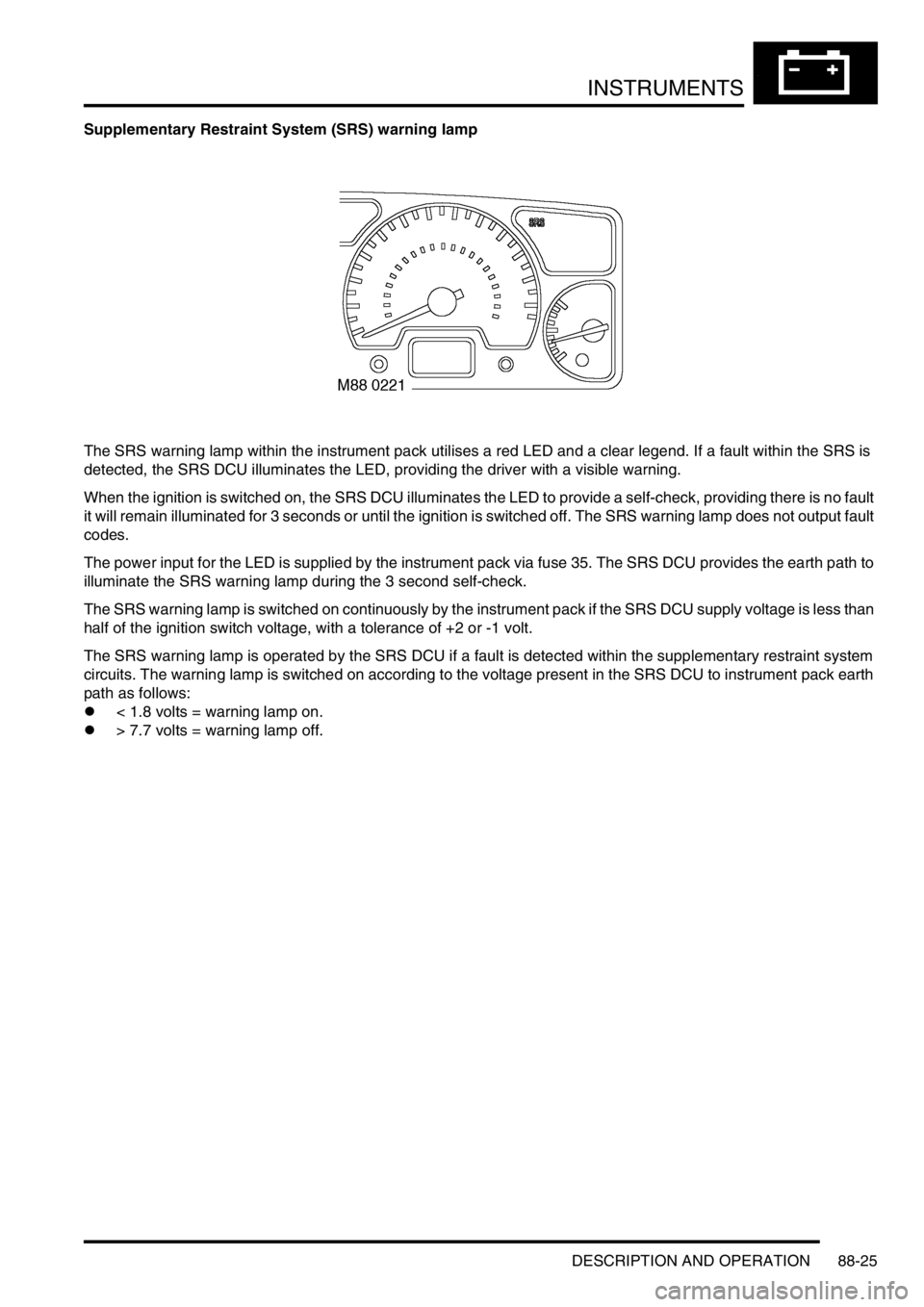

Brake system warning lamp
The brake system warning lamp within the instrument pack utilises a red LED and a clear legend. If the brake fluid
level is low, the hand brake is operated or there is a brake system fault, the LED will be illuminated providing the driver
with a visible warning.
When the ignition is switched on, the instrument pack illuminates the LED to provide a self-check, providing there is
no fault it will remain illuminated for 3 seconds or until the ignition is switched off.
There are two configurations of the legend for the warning lamp:
lNAS only.
lAll other markets.
The power input for the LED is supplied by the instrument pack via fuse 27. The hand brake switch, the low brake fluid
level switch or the SLABS ECU provides the earth path illuminating the warning lamp.
The hand brake switch has a separate connection to the vehicle body. The low brake fluid switch connects to an earth
header joint.
On the earth paths to the instrument pack the warning lamp is controlled according to these voltages:
l< 1.8 volts = warning lamp on.
l> 7.7 volts = warning lamp off.

INSTRUMENTS
DESCRIPTION AND OPERATION 88-23
Differential lock warning lamp (If fitted)
The differential lock is a device used for rolling road testing only on vehicles up to 03 model year. On vehicles from
03 model year, the differential is a driver selectable option which can also be used for off road driving. Refer to the
service procedures for details of rolling road testing on vehicles up to and from 03 model year.
CAUTION: Engage the differential lock when testing the vehicle on a two wheel rolling road. The propeller
shaft connecting the axle not on the rolling road must also be removed.
Differential lock warning lamp – vehicles up to 03 model year
The differential lock warning lamp within the instrument pack utilises a red LED and a clear legend. When the
differential lock is engaged, using the lever on the side of the transfer box, the differential lock switch is operated and
the warning lamp is switched on providing the driver with a visible warning.
When the differential lock is engaged, the warning lamp will be illuminated continuously when the ignition switch is in
position II.
Differential lock warning lamp – vehicles from 03 model year
The differential lock warning lamp is located in the top left hand corner of the instrument pack and uses an amber LED
and a clear legend. When the differential lock is engaged, the warning lamp illuminates when the ignition is on to
provide a visual indication to the driver that the differential lock is engaged. The instrument pack, simultaneously emits
three audible warning chimes as a confirmation.
When the differential lock is disengaged, the warning lamp is extinguished and the instrument pack simultaneously
emits three audible warning chimes as a confirmation.
All vehicles
The power input for the LED is supplied by the instrument pack via fuse 13 in the engine compartment fusebox. The
differential lock switch or switches provide(s) the earth path illuminating the warning lamp.
The voltage on the differential lock switch or switches to instrument pack earth path produces the following warning
lamp functions:
l< 1.8 volts = warning lamp on.
l> 7.7 volts = warning lamp off.

INSTRUMENTS
88-24 DESCRIPTION AND OPERATION

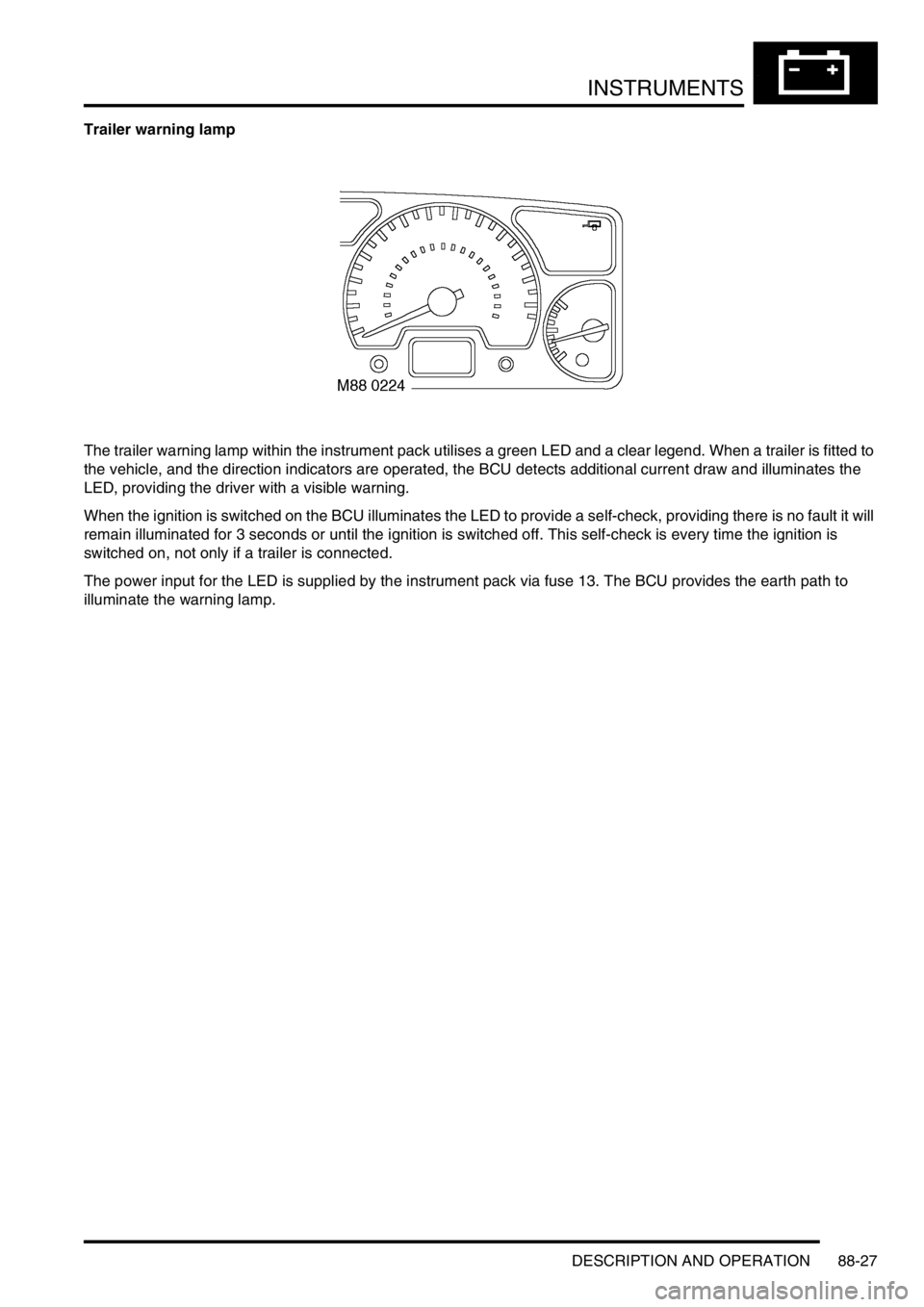

Traction control warning lamp
The traction control warning lamp within the instrument pack utilises a red LED and a clear legend. The traction control
warning lamp informs the driver that the traction control system is enabled. The warning lamp is hard wired to the
SLABS ECU. The SLABS ECU controls the warning lamp on or off via a high or low voltage signal to the instrument
pack.
When the ignition is switched on, the SLABS ECU illuminates the LED to provide a self-check, providing there is no
fault it will remain illuminated for 3 seconds or until the ignition is switched off.
The power input for the LED is supplied by the instrument pack via fuse 27. The SLABS ECU provides the earth path
to illuminate the warning lamp.
The voltage on the SLABS ECU earth path to the instrument pack is as follows:
l< 1.8 volts = warning lamp on.
l> 7.7 volts = warning lamp off.

INSTRUMENTS
DESCRIPTION AND OPERATION 88-25
Supplementary Restraint System (SRS) warning lamp
The SRS warning lamp within the instrument pack utilises a red LED and a clear legend. If a fault within the SRS is
detected, the SRS DCU illuminates the LED, providing the driver with a visible warning.
When the ignition is switched on, the SRS DCU illuminates the LED to provide a self-check, providing there is no fault
it will remain illuminated for 3 seconds or until the ignition is switched off. The SRS warning lamp does not output fault
codes.
The power input for the LED is supplied by the instrument pack via fuse 35. The SRS DCU provides the earth path to
illuminate the SRS warning lamp during the 3 second self-check.
The SRS warning lamp is switched on continuously by the instrument pack if the SRS DCU supply voltage is less than
half of the ignition switch voltage, with a tolerance of +2 or -1 volt.
The SRS warning lamp is operated by the SRS DCU if a fault is detected within the supplementary restraint system
circuits. The warning lamp is switched on according to the voltage present in the SRS DCU to instrument pack earth
path as follows:
l< 1.8 volts = warning lamp on.
l> 7.7 volts = warning lamp off.

INSTRUMENTS
88-26 DESCRIPTION AND OPERATION
Off road mode warning lamp
The off road mode warning lamp is available on vehicles equipped with self levelling suspension. The off road mode
warning lamp within the instrument pack utilises an amber LED and a clear legend. On vehicles fitted with self levelling
suspension the driver can enable the function using the off road mode fascia switch.
The SLABS ECU illuminates the LED, providing the driver with a visible warning.
When the ignition is switched on the SLABS ECU illuminates the LED to provide a self-check, providing there is no
fault it will remain illuminated for 3 seconds or until the ignition is switched off.
The off road mode is only enabled if the transfer box is in low range.
The off road mode warning lamp will flash at the rate of 2 Hz during the transition phase (up and down), and is
illuminated continuously when at full height.
The vehicle may be parked in off road mode the driver is reminded when the ignition is switched on that off road mode
is still active by the warning lamp flashing twice at a ratio 2 Hz then illuminates continuously.
The warning lamp will flash at 2 Hz in belly out mode. Belly out mode is if the vehicle grounds out, then the suspension
will raise to try and clear the underside of the vehicle.
If a new SLABS ECU is fitted the warning lamp remains illuminated until the ECU has been calibrated using TestBook.
The warning lamp will illuminate continuously if the voltage supply is less than 10 volts for 1 second.
The power input for the LED is supplied by the instrument pack via fuse 27. The warning lamp is switched on
according to the voltage present in the SLABS ECU to instrument pack earth path as follows:
l< 1.8 volts = warning lamp on.
l> 7.7 volts = warning lamp off.

INSTRUMENTS
DESCRIPTION AND OPERATION 88-27
Trailer warning lamp
The trailer warning lamp within the instrument pack utilises a green LED and a clear legend. When a trailer is fitted to
the vehicle, and the direction indicators are operated, the BCU detects additional current draw and illuminates the
LED, providing the driver with a visible warning.
When the ignition is switched on the BCU illuminates the LED to provide a self-check, providing there is no fault it will
remain illuminated for 3 seconds or until the ignition is switched off. This self-check is every time the ignition is
switched on, not only if a trailer is connected.
The power input for the LED is supplied by the instrument pack via fuse 13. The BCU provides the earth path to
illuminate the warning lamp.

INSTRUMENTS
88-28 DESCRIPTION AND OPERATION
Glow plug warning lamp
The glow plug warning lamp within the instrument pack utilises an amber LED and a clear legend. On vehicles with
diesel engines the LED illuminates when the ECM operates the glow plugs. After a predetermined time calculated by
the ECM, dependent on engine temperature, the LED is switched off providing the driver with a visible warning that
the engine can be started.
The power input for the LED is supplied by the instrument pack via fuse 27. The ECM provides the earth path to
illuminate the warning lamp.
The voltage on the earth path from the ECM to the instrument pack is as follows:
l< 1.8 volts = warning lamp on.
l> 7.7 volts = warning lamp off.

INSTRUMENTS
DESCRIPTION AND OPERATION 88-29
Water in fuel filter warning lamp
The water in fuel filter warning lamp within the instrument pack utilises an amber LED and a clear legend. On vehicles
with diesel engines the LED is illuminated when the water sensor detects water is present in the fuel filter, providing
the driver with a visible warning.
When the ignition is switched on, the instrument pack illuminates the LED to provide a self-check, providing there is
no water present in the fuel filter it will remain illuminated for 3 seconds or until the ignition is switched off.
The power input for the LED is supplied by the instrument pack via fuse 27. The water sensor provides the earth path
to illuminate the warning lamp. The voltage on the earth path from the sensor to the instrument pack is as follows:
l< 1.8 volts = warning lamp on.
l> 7.7 volts = warning lamp off.
