systems may lose memory data. Driveability problems may exist
until computer systems have completed a relearn cycle. See
COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION
before disconnecting battery.
NOTE: Testing of instrument panel and gauges requires using a scan
tool to check circuits connected to Body Control Module
(BCM). See appropriate BODY CONTROL COMPUTER TESTS article.
PRELIMINARY DIAGNOSIS
NOTE: There are 2 instrument cluster connectors. These connectors
look identical. Identify connectors by wire color. See WIRING
DIAGRAMS.
Ram Pickup
1) If CCD bus controlled indicator lights and gauges do not
operate, go to step 4). If indicator lights operate and all gauges do
not operate, go to next step.
2) Check for battery voltage between ground and both sides of
fuse No. 14 in junction block. If battery voltage exists on both
sides, go to next step. If battery voltage exists on one side only,
repair short circuit and replace fuse. If battery voltage does not
exist on both sides, locate and repair open circuit. See WIRING
DIAGRAMS.
3) Disconnect negative battery cable. Remove instrument
cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Connect
negative battery cable. Measure voltage between ground and terminal
No. 6 (Yellow wire) of instrument cluster connector C1. See Fig. 1. If
battery voltage is present, reinstall instrument cluster and go to
SELF-DIAGNOSTICS. If battery voltage is not present, repair open
circuit between fuse No. 14 in junction block and instrument cluster
connector C1.
4) Turn ignition on. Measure voltage between ground and both
sides of fuse No. 17 (10-amp) in junction block. If battery voltage
exists on both sides, go to next step. If battery voltage exists on
one side only, repair short circuit and replace fuse. If battery
voltage does not exist on both sides, repair open Dark Blue wire
between ignition switch and junction block.
5) Turn ignition off. Disconnect negative battery cable.
Reconnect instrument cluster. See INSTRUMENT CLUSTER under REMOVAL &
INSTALLATION. Connect negative battery cable. Turn ignition on. Set
parking brake and observe instrument cluster brake warning light. If
brake warning light is off, go to step 7). If brake warning light is
on, go to next step.
6) Turn ignition off. Turn parking lights on and adjust
instrument panel lights dimmer rheostat to full bright position. If
instrument panel lights are on, go to step 8). If instrument panel
lights are off, repair open ground circuit to instrument cluster
connector C1 terminal No. 4 (Black/Light Green wire) or No. 5
(Black/Orange wire). See WIRING DIAGRAMS.
7) Turn ignition off and disconnect negative battery cable.
Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL &
INSTALLATION. Connect negative battery cable. Turn ignition on.
Measure voltage between ground and instrument cluster connector C1
terminal No. 2 (Dark Blue/White wire). If battery voltage exists, go
to SELF-DIAGNOSTICS. If battery voltage does not exist, repair open
Dark Blue/White wire.
8) Turn ignition off. Disconnect negative battery cable.
Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL &
INSTALLATION. Using an ohmmeter, check continuity between ground and
instrument cluster connector C1 terminals No. 4 (Black/Light Green
wire) and No. 5 (Black/Orange wire). If continuity exists, go to SELF\
-

DIAGNOSTICS. If continuity does not exist, repair open Black/Light
Green or Black/Orange wire.

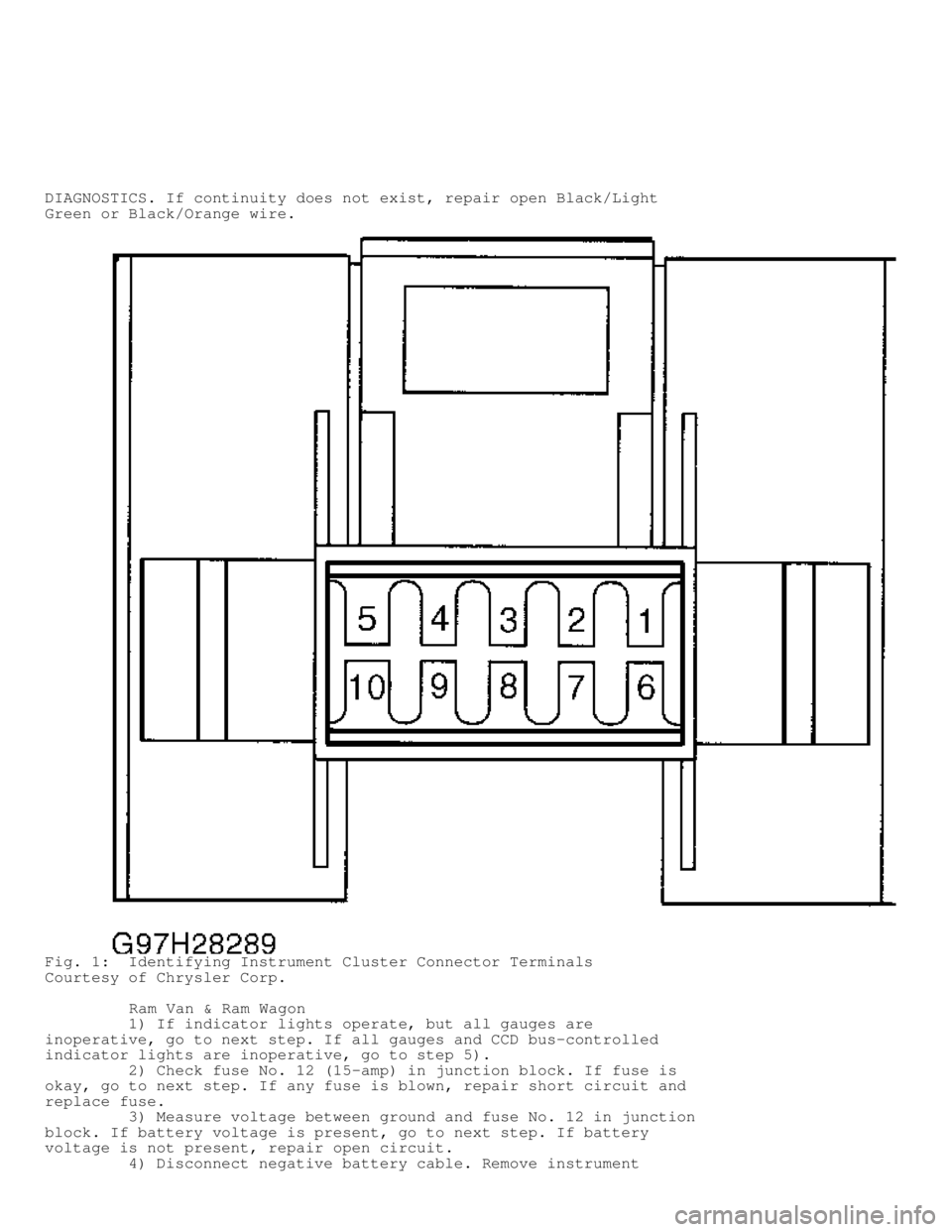

Fig. 1: Identifying Instrument Cluster Connector Terminals
Courtesy of Chrysler Corp.
Ram Van & Ram Wagon
1) If indicator lights operate, but all gauges are
inoperative, go to next step. If all gauges and CCD bus-controlled
indicator lights are inoperative, go to step 5).
2) Check fuse No. 12 (15-amp) in junction block. If fuse is
okay, go to next step. If any fuse is blown, repair short circuit and
replace fuse.
3) Measure voltage between ground and fuse No. 12 in junction
block. If battery voltage is present, go to next step. If battery
voltage is not present, repair open circuit.
4) Disconnect negative battery cable. Remove instrument

cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION.
Reconnect negative battery cable. Measure voltage between ground and
terminal No. 6 (Pink/White wire) of instrument cluster connector C1.
See Fig. 1 . If battery voltage is present, reinstall instrument
cluster and go to SELF- DIAGNOSTICS. If battery voltage is not
present, repair open circuit between fuse No. 12 (15-amp) in junction
block and instrument cluster connector C1 and go to next step.
5) Remove and inspect fuse No. 11 (10-amp) in junction block\
.
If fuse is okay, go to next step. If fuse is blown, locate and repair
cause of blown fuse. Install new fuse and recheck system operation.
6) Turn ignition on. Measure voltage between ground and power
side (Dark Blue/White wire) of fuse No. 11 (10-amp) in junction bloc\
k.
If battery voltage is present, go to step 8). If battery voltage is
not present, locate and repair open circuit to fuse No. 11. See WIRING
DIAGRAMS.
7) Turn ignition off and disconnect negative battery cable.
Install instrument cluster. Connect negative battery cable. Turn
ignition on. Set parking brake and observe instrument cluster brake
warning light. If brake warning light is on, go to next step. If brake
warning light is off, go to step 9).
8) Turn ignition off. Turn parking lights on and adjust
instrument panel lights dimmer rheostat to full bright position. If
instrument panel lights are on, go to step 10). If instrument panel
lights are off, repair instrument cluster illumination ground circuit
between instrument cluster connector C2 terminal No. 7 (Black wire)
and ground. See WIRING DIAGRAMS.
9) Turn ignition off and disconnect negative battery cable.
Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL &
INSTALLATION. Connect negative battery cable. Turn ignition on.
Measure voltage between ground and terminal No. 2 (Dark Blue/White
wire) at instrument cluster connector C1. If battery voltage is
present, go to SELF-DIAGNOSTICS. If battery voltage is not present,
repair open circuit between junction block fuse No. 11 and instrument
cluster.
10) Turn ignition off and disconnect negative battery cable.
Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL &
INSTALLATION. Check continuity between ground and terminal No. 4
(Black/Dark Green wire) at instrument cluster connector C1. If
continuity exists, go to SELF-DIAGNOSTICS. If continuity does not
exist, locate and repair open in ground circuit.
SELF-DIAGNOSTICS
1) With ignition off, press and hold trip odometer RESET
button while turning ignition switch to ON position. Continue to hold
RESET button until odometer window displays CHEC (about 10 seconds).
Release RESET button. If problem exists, system will display
Diagnostic Trouble Codes (DTC). See DIAGNOSTIC CODE CHART table. For
repairs of DTCs, see appropriate BODY CONTROL COMPUTER TESTS article.
DIAGNOSTIC TROUBLE (DTC) CODE CHART







\









\









\









\








\









\









\







DTC Description  Correction




\b





\









\









\









\


\b





\









\









\






110 Cluster CPU, RAM Or EEPROM Fault  Replace Cluster




\b





\









\









\









\


\b





\









\









\






900 CCD Bus Inoperative Check CCD Bus Connections At

  Cluster; Check Cluster

  Fuses; Check CCD Bus Bias;

  Check CCD Bus Voltage;

  Check CCD Bus Terminations




\b





\









\









\









\


\b





\









\









\






920 Not Receiving VSS Message From PCM Check PCM Software Level;

   Use Scan Tool To Verify VSS

  Signal Is Sent By PCM




\b





\









\









\









\


\b





\









\









\






921 Not Receiving Distance Pulse  Check PCM Software Level;

 Message From PCM  Use Scan Tool To Verify

  Distance Pulse Message Is

  Sent By PCM




\b





\









\









\









\


\b





\









\









\






940 Not Receiving Air Bag Light On Check CCD Bus Connections At

 Message From Air Bag Module  ACM; Check ACM Fuse




\b





\









\









\









\


\b





\









\









\






950 Not Receiving ABS Light On Message Check CCD Bus Connections

From Anti-lock Brake Control ModuleAt Anti-Lock Control Module;

  Check Anti-Lock Control

  Module Fuse




\b





\









\









\









\


\b





\









\









\






999 Undefined Error  Record Failure Message;

  Press RESET Button To

  Continue Self-Diagnostic

  Test










\









\









\









\








\









\









\





\f
2) If no DTCs appear, cluster will start a walking segment
test. First, all segments will be illuminated, then each segment in
sequence. If any segment does not illuminate, repeat test to confirm
and replace instrument cluster. When walking segment test is complete,
bulb check will start.
3) If any bulb does not light, remove instrument cluster and
check bulb and bulb holder. See INSTRUMENT CLUSTER under REMOVAL &
INSTALLATION. Ensure bulb holder is properly installed in cluster. If
bulb and bulb holder are okay, replace instrument cluster. If LED does
not light, replace instrument cluster. When bulb check is complete,
gauge actuator test will start.
4) Each gauge needle should stop at 3 calibration points,
then return to relaxed position. If any gauge does not perform as
specified, remove instrument cluster. See INSTRUMENT CLUSTER under
REMOVAL & INSTALLATION. Inspect all connections between printed
circuit board and gauge terminals, repair as necessary. If connections
are okay, replace instrument cluster. Instrument cluster will
automatically exit self-diagnostics when test is complete.

SYSTEM TESTS
NOTE: There are 2 instrument cluster connectors. These connectors
look identical. Identify connector by wire color. See WIRING
DIAGRAMS.
BRAKE WARNING LIGHT INOPERATIVE
1) Ensure parking brake is released. Turn ignition on. If
brake warning light stays on, check and repair hydraulic brake system
as necessary. See appropriate DISC & DRUM article in BRAKES section.
2) If brake warning light does not illuminate when ignition
is on, check fuse No. 17 (10-amp) on Ram Pickup or fuse No. 11 (10-
amp) on Ram Van and Ram Wagon in junction block. Junction block is
located at left end cover of instrument panel. If fuse is okay, go to
next step. If fuse is blown, locate and repair cause of blown fuse.
Install new fuse and recheck system operation.
3) Turn ignition on. Measure voltage between ground and power
side of fuse No. 17 on Ram Pickup or fuse No. 11 on Ram Van and Ram
Wagon. If battery voltage is present, go to next step. If battery
voltage is not present, locate and repair open circuit between to

junction block. See WIRING DIAGRAMS.
4) Turn ignition off. Disconnect negative battery cable.
Disconnect parking brake switch connector. Switch is located at base
of parking brake lever. Ensure parking brake lever is released. Check
continuity between ground and parking brake switch terminal. If
continuity does not exist, go to next step. If continuity exists,
adjust or replace parking brake switch.
5) Ensure parking brake switch is still disconnected. Turn
ignition off. Remove instrument cluster. See INSTRUMENT CLUSTER under
REMOVAL & INSTALLATION. Check continuity between ground and park brake
switch connector. If continuity does not exist, go to next step. If
continuity exists, repair short to ground between instrument cluster
and park brake switch.
6) Check continuity between park brake switch connector and
instrument cluster connector C1, terminal No. 3 (White/Pink wire on
Ram Van and Ram Wagon; White/Light Green wire on Ram Pickup). See
Fig. 1. If continuity does not exist, repair open circuit. See WIRING
DIAGRAMS. If continuity exists, see PRELIMINARY DIAGNOSIS under SELF-
DIAGNOSTIC SYSTEM.
FOUR WHEEL DRIVE (4WD) LIGHT INOPERATIVE (RAM PICKUP)
1) Remove and inspect fuse No. 17 (10-amp) in junction block\
.
Junction block is located at left end cover of instrument panel. If
fuse is okay, go to next step. If fuse is blown, locate and repair
cause of blown fuse. Install new fuse and recheck system operation.
2) Turn ignition on. Measure voltage between ground and power
side of fuse No. 17. If battery voltage is present, go to next step.
If battery voltage is not present, locate and repair open circuit
between ignition switch and junction block.
3) Turn ignition off. Disconnect negative battery cable.
Disconnect 4WD switch connector. 4WD switch connector is located at
right side of front axle. Check continuity between 4WD switch
connector Black wire and ground. If continuity does not exist, repair
open Black wire between 4WD switch and ground. If continuity exists,
go to next step.
4) Reconnect battery cable. Turn ignition on. Install jumper
wire between 4WD switch connector terminals. 4WD light should
illuminate. If light illuminates, replace 4WD switch. If light does
not illuminate, go to next step.
5) Turn ignition off. Disconnect negative battery cable.
Ensure 4WD switch is still disconnected. Remove instrument cluster.
See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Check continuity
between ground and instrument cluster connector C2 terminal No. 10
(Gray wire). See Fig. 1. If continuity does not exist, go to next
step. If continuity exists, repair short to ground in wire between
instrument cluster and 4WD switch.
6) Check continuity of wire between 4WD switch connector and
terminal No. 10 at instrument cluster connector C2. If continuity does
not exist, repair open wire. If continuity exists, replace bulb.
LOW WASHER FLUID LIGHT INOPERATIVE
1) Remove and inspect fuse No. 17 (10-amp) on Ram Pickup or
fuse No. 11 (10-amp) on Ram Van and Ram Wagon in junction block.
Junction block is located at left end cover of instrument panel. If
fuse is okay, go to next step. If fuse is blown, locate and repair
cause of blown fuse. Install new fuse and recheck system operation.
2) Turn ignition on. Measure voltage between ground and power
side of fuse No. 14 (10-amp) on Ram Pickup or fuse No. 11 (10-amp) o\
n
Ram Van and Ram Wagon. If battery voltage is present, go to next step.
If battery voltage is not present, locate and repair open circuit
between ignition switch and junction block.

3) Turn ignition off. Disconnect washer fluid level sensor
connector. Install jumper wire between washer fluid level sensor
connector terminals. Turn ignition on. Low washer fluid level light
should illuminate. Disconnect jumper wire and light should go off. If
light performs as specified, replace washer fluid level sensor. If
light does not perform as specified, go to next step.
4) Turn ignition off. Check continuity between ground and
washer fluid level sensor connector Black wire. If continuity does not
exist, repair open Black wire between washer fluid level sensor and
ground. If continuity exists, go to next step.
5) Ensure washer fluid level sensor is still disconnected.
Turn ignition off. Remove instrument cluster. See INSTRUMENT CLUSTER
under REMOVAL & INSTALLATION. Check continuity between ground and
instrument cluster connector C2 terminal No. 2 (Black/White wire) on
Ram Pickup and terminal No. 9 (Black/Gray wire) on Ram Van and Ram
Wagon. If continuity does not exist, go to next step. If continuity
exists, repair short to ground in White/Black or Black/Gray wire
between instrument cluster and washer fluid level sensor.
6) Check continuity of Black/White wire on Ram Pickup or
Black/Gray wire on Ram Van and Ram Wagon between washer fluid level
sensor connector and instrument cluster connector C2 terminal No. 2 on
Ram Pickup or terminal No. 9 on Ram Van and Ram Wagon. See Fig. 1. If
continuity does not exist, repair open Black/White wire on Ram Pickup
or Black/Gray wire on Ram Van and Ram Wagon. If continuity exists,
replace bulb.
WAIT-TO-START LIGHT INOPERATIVE (RAM PICKUP - DIESEL)
1) Remove and inspect fuse No. 17 (10-amp) in junction block\
.
Junction block is located at left end cover of instrument panel. If
fuse is okay, go to next step. If fuse is blown, locate and repair
cause of blown fuse. Install new fuse and recheck system operation.
2) Turn ignition on. Measure voltage between ground and power
side of fuse No. 17. If battery voltage is present, go to next step.
If battery voltage is not present, locate and repair open circuit
between Power Distribution Center (PDC) and junction block.
3) Disconnect negative battery cable. Remove instrument
cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Check
for battery voltage between ground and instrument cluster connector C1
terminal No. 2 (Dark Blue/White wire). See Fig. 1. Turn ignition on.
If battery voltage exists, go to next step. If battery voltage does
not exist, repair open Dark Blue/White wire between junction block and
instrument cluster.
4) Turn ignition off. Disconnect Powertrain Control Module
(PCM) White connector C2. PCM is located at firewall in right side of
engine compartment. Connector C2 is center connector. Check continuity
between ground and instrument cluster connector C1 terminal No. 8
(Orange/Black wire). If continuity does not exist, go to next step. If\
continuity exists, repair short to ground in Orange/Black wire between
instrument cluster and ground.
5) Install instrument cluster. Connect battery cable. Install
jumper wire between PCM White connector C2 terminal No. 20
(Orange/Black wire) and ground. See Fig. 2. Turn ignition on. Wait-to-
start light should illuminate. If wait-to-start light illuminates, see
appropriate SELF-DIAGNOSTICS article in ENGINE PERFORMANCE section. If
wait-to-start light does not illuminate, see SELF-DIAGNOSTICS.

been submerged in water. Water can enter through the axle
vent hole and contaminate the lubricant.
BATTERY WARNING
WARNING: When battery is disconnected, vehicles equipped with
computers may lose memory data. When battery power is
restored, driveability problems may exist on some vehicles.
These vehicles may require a relearn procedure.
WARNING: Batteries produce flammable hydrogen gas. Keep flames and
sparks away from the battery or and explosion may occur.
Never smoke when working in the vicinity of the battery.
WARNING: When checking or servicing the battery, disconnect the
negative cable. Be careful not to cause a short circuit by
allowing metal objects to contact the battery posts and the
vehicle at the same time.
REPLACING BLOWN FUSES
CAUTION: Before replacing a blown fuse, remove ignition key, turn off
all lights and accessories to avoid damaging the electrical
system. Be sure to use fuse with the correct indicated
amperage rating. The use of an incorrect amperage rating fuse
may result in a dangerous electrical system overload.
BRAKE PAD WEAR INDICATOR
Indicator will cause a squealing or scraping noise, warning
that brake pads need replacement.
BRAKE HOSES
WARNING: Worn brake hoses can burst and cause brake failure. If
any sign of cracking, scuffing, or worn spots are found,
replace the brake hoses immediately.
BRAKE FLUID
WARNING: The use of incorrect fluid in the brake system may cause
damage to components. DO NOT use any fluid other than DOT-3
brake fluid. DO NOT use reclaimed fluid or fluid that has
been stored in old or open containers. It is essential that
foreign particles and other liquids are kept out of the
brake fluid reservoir.
CATALYTIC CONVERTER
CAUTION: Continued operation of vehicle with a severe malfunction
could cause converter to overheat, resulting in possible
damage to converter and vehicle.
COOLANT
CAUTION: To avoid possible damage to vehicle use only ethylene-glycol
based coolants with a mixture ratio from 50-70% anti-freeze.
DO NOT use 100% anti-freeze as it will cause the formation
of cooling system deposits.
DIESEL FUEL ANTI-FUNGAL ADDITIVES
