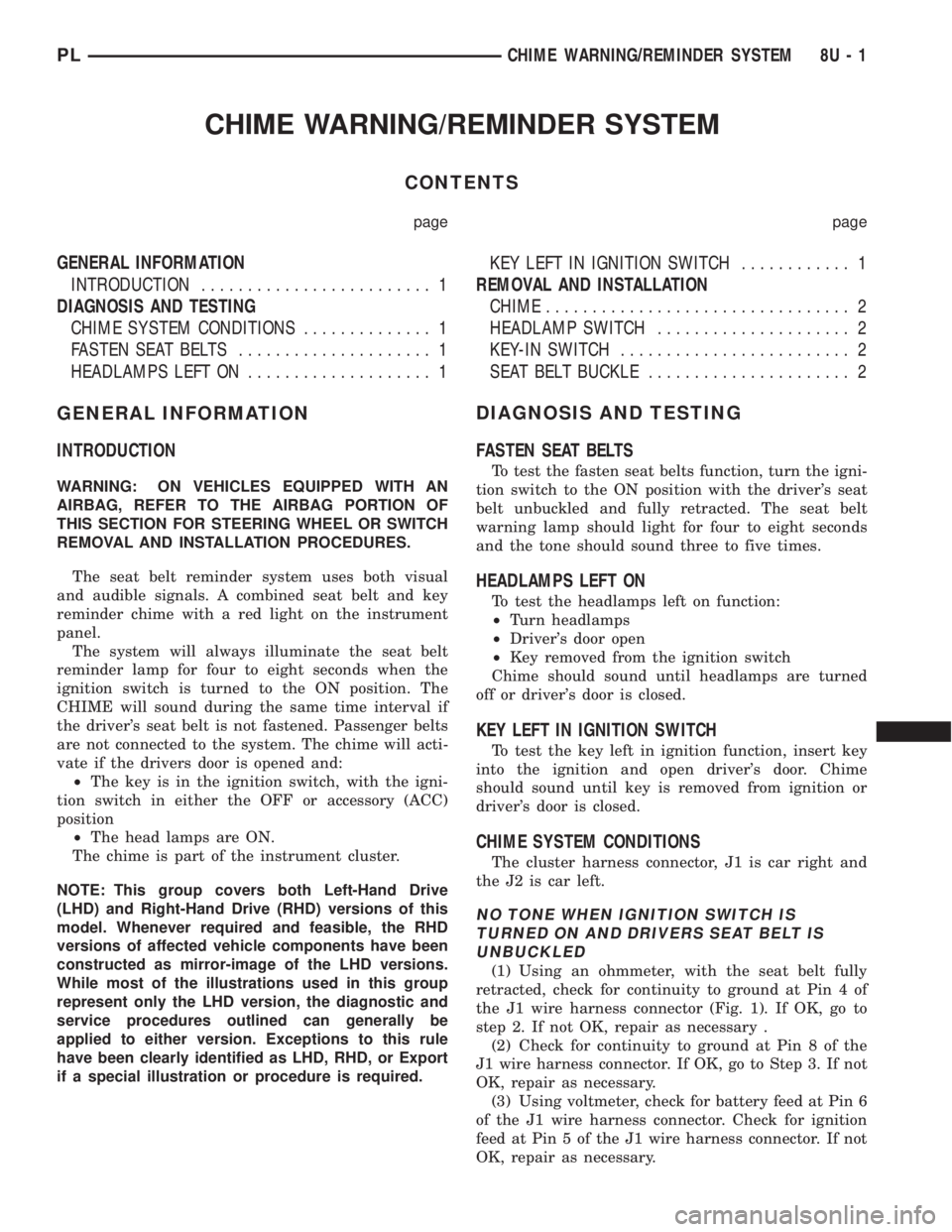

1999 DODGE NEON headlamp

CHIME WARNING/REMINDER SYSTEM
CONTENTS
page page
GENERAL INFORMATION
INTRODUCTION......................... 1
DIAGNOSIS AND TESTING
CHIME SYSTEM CONDITIONS.............. 1
FASTEN SEAT BELTS..................... 1
HEADLAMPS LEFT ON.................... 1KEY LEFT IN IGNITION SWITCH............ 1
REMOVAL AND INSTALLATION
CHIME................................. 2
HEADLAMP SWITCH..................... 2
KEY-IN SWITCH......................... 2
SEAT BELT BUCKLE...................... 2
GENERAL INFORMATION
INTRODUCTION
WARNING: ON VEHICLES EQUIPPED WITH AN
AIRBAG, REFER TO THE AIRBAG PORTION OF
THIS SECTION FOR STEERING WHEEL OR SWITCH
REMOVAL AND INSTALLATION PROCEDURES.
The seat belt reminder system uses both visual
and audible signals. A combined seat belt and key
reminder chime with a red light on the instrument
panel.
The system will always illuminate the seat belt
reminder lamp for four to eight seconds when the
ignition switch is turned to the ON position. The
CHIME will sound during the same time interval if
the driver's seat belt is not fastened. Passenger belts
are not connected to the system. The chime will acti-
vate if the drivers door is opened and:
²The key is in the ignition switch, with the igni-
tion switch in either the OFF or accessory (ACC)
position
²The head lamps are ON.
The chime is part of the instrument cluster.
NOTE: This group covers both Left-Hand Drive
(LHD) and Right-Hand Drive (RHD) versions of this
model. Whenever required and feasible, the RHD
versions of affected vehicle components have been
constructed as mirror-image of the LHD versions.
While most of the illustrations used in this group
represent only the LHD version, the diagnostic and
service procedures outlined can generally be
applied to either version. Exceptions to this rule
have been clearly identified as LHD, RHD, or Export
if a special illustration or procedure is required.
DIAGNOSIS AND TESTING
FASTEN SEAT BELTS
To test the fasten seat belts function, turn the igni-
tion switch to the ON position with the driver's seat
belt unbuckled and fully retracted. The seat belt
warning lamp should light for four to eight seconds
and the tone should sound three to five times.
HEADLAMPS LEFT ON
To test the headlamps left on function:
²Turn headlamps
²Driver's door open
²Key removed from the ignition switch
Chime should sound until headlamps are turned
off or driver's door is closed.
KEY LEFT IN IGNITION SWITCH
To test the key left in ignition function, insert key
into the ignition and open driver's door. Chime
should sound until key is removed from ignition or
driver's door is closed.
CHIME SYSTEM CONDITIONS
The cluster harness connector, J1 is car right and
the J2 is car left.
NO TONE WHEN IGNITION SWITCH IS
TURNED ON AND DRIVERS SEAT BELT IS
UNBUCKLED
(1) Using an ohmmeter, with the seat belt fully
retracted, check for continuity to ground at Pin 4 of
the J1 wire harness connector (Fig. 1). If OK, go to
step 2. If not OK, repair as necessary .
(2) Check for continuity to ground at Pin 8 of the
J1 wire harness connector. If OK, go to Step 3. If not
OK, repair as necessary.
(3) Using voltmeter, check for battery feed at Pin 6
of the J1 wire harness connector. Check for ignition
feed at Pin 5 of the J1 wire harness connector. If not
OK, repair as necessary.
PLCHIME WARNING/REMINDER SYSTEM 8U - 1

NO FASTEN SEAT BELT LAMP WHEN
IGNITION SWITCH IS ON.
(1) Check for burned out lamp.
(2) Check for battery feed at cluster wire harness
connector terminal J1-6 (Fig. 1).
(3) Check for ignition feed at cluster wire harness
connector terminal J1-5. Repair as necessary.
NO TONE WHEN HEADLAMPS ARE ON AND
DRIVERS DOOR IS OPEN
(1) Check left door jamb switch for good ground
when drivers door is open.
(2) Check for ground at J2-5.
(3) Check for battery feed at cluster wire harness
connector terminal J1-6 (Fig. 1).
(4) Check for NO voltage at J1-5. Ignition voltage
must not be present for the chime to work.
(5) Check headlamp switch.
NO TONE WHEN KEY IS LEFT IN IGNITION
AND DRIVERS DOOR IS OPEN
(1) Check for continuity to ground at Pin 8 of the
J1 wire harness connector. If OK, go to Step 3. If not
OK, repair as necessary.(2) Using voltmeter, check for battery feed at Pin 6
of the J1 wire harness connector. Check for NO igni-
tion feed at Pin 5 of the J1 wire harness connector. If
OK, go to Step 3. If not OK, repair as necessary.
(3) Open driver's door and ensure the ignition key
is in the OFF or ACC position. Check for continuity
to ground at Pin 5 of the J2 wire harness connector.
If ground OK, replace cluster printed circuit board. If
no ground, check key-in switch or door switch wiring
and repair as necessary.
CHIMES CONTINUE WHEN HEADLAMPS ARE
TURNED OFF AND/OR KEY IS REMOVED
FROM IGNITION
Check for ground at J2-5. If grounded the chime
should activate. Make sure the door is closed, key is
in ignition and parking lamps are OFF. If ground is
still present check door switch, key in switch, head-
lamp switch and repair as necessary.
REMOVAL AND INSTALLATION
CHIME
The chime is built into the instrument cluster print
circuit board. Refer to Group 8E, Instrument Panel
and Gauges.
SEAT BELT BUCKLE
Refer to Group 23, Body of this service manual.
HEADLAMP SWITCH
Refer to Group 8E, Instrument Panel and Systems.
KEY-IN SWITCH
The Key-in switch is built into the ignition switch
assembly. Should the Key-in switch require service,
the ignition switch assembly must be replaced. Refer
to Group 8D Ignition System of this service manual.

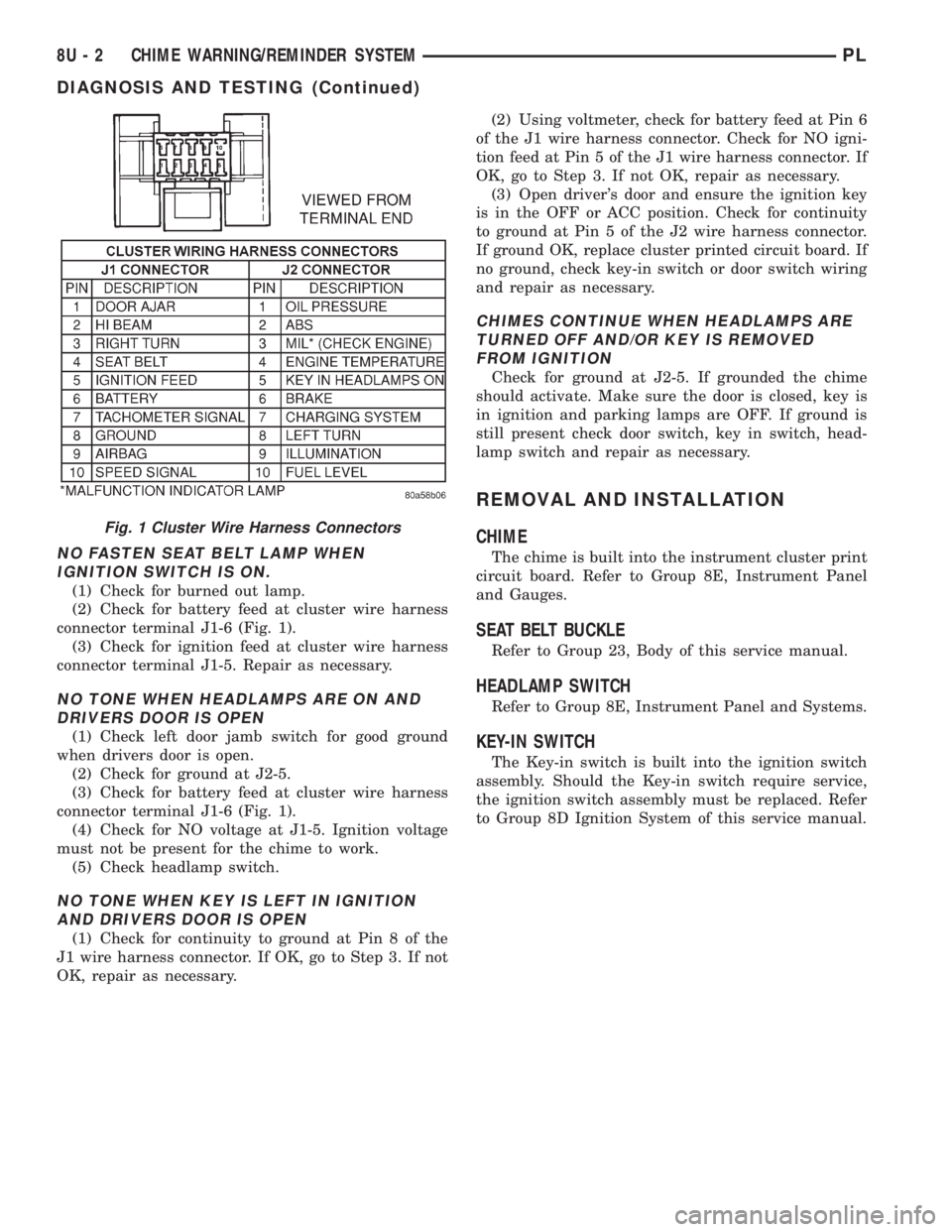

Fig. 1 Cluster Wire Harness Connectors
8U - 2 CHIME WARNING/REMINDER SYSTEMPL
DIAGNOSIS AND TESTING (Continued)

8W-02 COMPONENT INDEX
Component Page
A/C Compressor Clutch..................8W-42
A/C Compressor Clutch Relay.............8W-42
A/C Cycling Switch.....................8W-42
A/C Heater Blower Motor................8W-42
A/C Heater Control.....................8W-42
A/C Pressure Switches...................8W-42
ABS Warning Lamp Relay................8W-35
Airbag Control Module...................8W-43
Airbags..............................8W-43
Antenna..............................8W-47
Ash Receiver Lamp.....................8W-44
Automatic Shut Down Relay..............8W-30
Back-Up Lamp Switch...................8W-51
Back-Up Lamps........................8W-51
Battery..............................8W-20
Battery Temperature Sensor..............8W-30
Blower Motor Resistor Block..............8W-42
Brake Warning Lamp Switch...........8W-40, 50
Camshaft Position Sensor................8W-30
Center High Mounted Stop Lamp..........8W-51
Cigar Lighter Relay.....................8W-41
Cigar Lighter/Power Outlet...............8W-41
Circuit Breakers.......................8W-11
Clockspring.....................8W-30, 41, 61
Clutch Pedal Position Switch...........8W-10, 21
Combination Flasher....................8W-52
Controller Anti-Lock Brake...............8W-35
Crankshaft Position Sensor...............8W-30
Data Link Connector....................8W-30
Daytime Running Lamp Module...........8W-50
Diode No. 1........................8W-15, 42
Diode No. 2......................8W-10, 11, 44
Diode No. 3......................8W-11,44,70
Dome Lamp...........................8W-44
Door Ajar Switches.....................8W-44
Door Jamb Switches....................8W-44
Door Lock Motors......................8W-61
Door Lock Motors......................8W-61
Door Lock Switches.....................8W-61
Duty Cycle Evap/Purge Solenoid...........8W-30
EGR Transducer Solenoid................8W-30
Engine Coolant Temperature Sensor........8W-30
Engine Oil Pressure Switch...............8W-40
Engine Starter Motor....................8W-21
Engine Starter Motor Relay...............8W-21
Fog Lamp Relays....................8W-50, 51
Fog Lamp Switches..................8W-50, 51
Fog Lamps.........................8W-50, 51
Fuel Injectors..........................8W-30
Fuel Pump Module.....................8W-30
Fuel Pump Relay.......................8W-30
Fuse Block............................8W-11Component Page
Fuses (FB)............................8W-11
Fuses (PDC)...........................8W-10
Fusible Link........................8W-20, 21
Generator.............................8W-20
Glove Box Lamp And Switch..............8W-44
Grounds..............................8W-15
Halo Lamp............................8W-44
Headlamp Dimmer And Optical Horn Switch .8W-50
Headlamp Leveling Motors...............8W-50
Headlamp Leveling Switch...............8W-50
Headlamp Switch.......................8W-50
Headlamps............................8W-50
High Speed Warning Module..............8W-40
Horn Relay...........................8W-41
Horn Switches.........................8W-41
Horns................................8W-41
IAT/Map Sensor........................8W-30
Idle Air Control Motor...................8W-30
Ignition Coil Pack......................8W-30
Ignition Switch........................8W-10
Illumination Lamps.....................8W-40
Immobilizer...........................8W-61
Immobilizer Engine Sensor............8W-30, 61
Indicator Lamps........................8W-40
Instrument Cluster.....................8W-40
Intermittent Wipe/Wash Switch............8W-53
Key-In Switch.........................8W-40
Knock Sensor..........................8W-30
License Lamps.........................8W-51
Map/Reading Lamps....................8W-44
Noise Supressor.....................8W-10, 30
Oxygen Sensors........................8W-30
Park Brake Switch...................8W-40, 50
Park/Neutral Position Switch...........8W-30, 51
Park/Turn Signal Lamps..............8W-50, 52
Power Distribution Center................8W-10
Power Folding Mirror Relay...............8W-62
Power Mirror Fuse Holder................8W-62
Power Mirrors.........................8W-62
Power Steering Pressure Switch...........8W-30
Power Sunroof Motor....................8W-64
Power Window Motors...................8W-60
Power Window Switches.................8W-60
Powertrain Control Module...............8W-30
PRNDL Lamp.........................8W-44
Radiator Fan Motor.....................8W-42
Radio................................8W-47
Rear Window Defogger..................8W-48
Rear Window Defogger Switch.............8W-48
Remote Keyless Entry Module.............8W-61
Remote Keyless Entry Program
Module Connector....................8W-61
PL8W - 02 COMPONENT INDEX 8W - 02 - 1

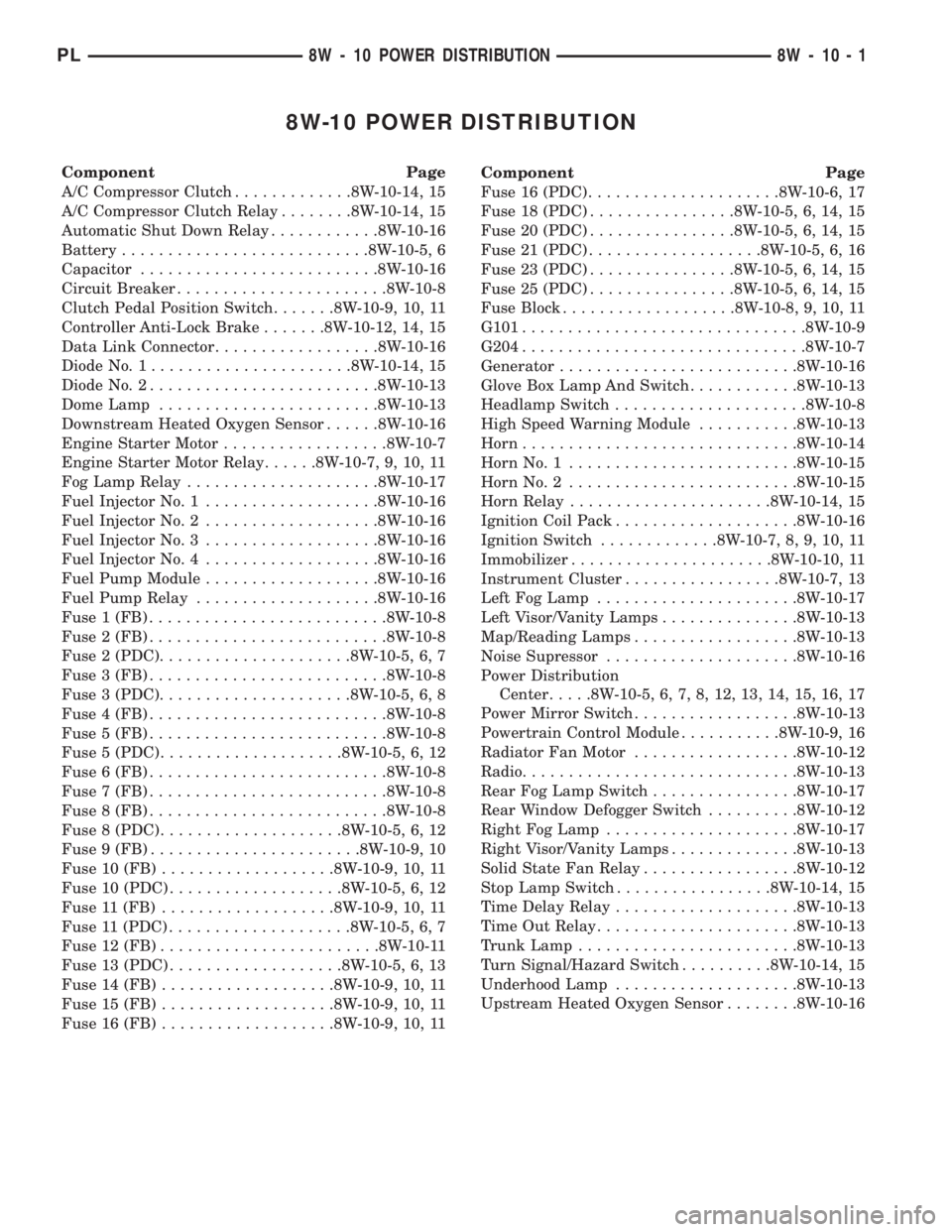

8W-10 POWER DISTRIBUTION
Component Page
A/C Compressor Clutch.............8W-10-14, 15
A/C Compressor Clutch Relay........8W-10-14, 15
Automatic Shut Down Relay............8W-10-16
Battery...........................8W-10-5, 6
Capacitor..........................8W-10-16
Circuit Breaker.......................8W-10-8
Clutch Pedal Position Switch.......8W-10-9, 10, 11
Controller Anti-Lock Brake.......8W-10-12, 14, 15
Data Link Connector..................8W-10-16
Diode No. 1......................8W-10-14, 15
Diode No. 2.........................8W-10-13
Dome Lamp........................8W-10-13
Downstream Heated Oxygen Sensor......8W-10-16
Engine Starter Motor..................8W-10-7
Engine Starter Motor Relay......8W-10-7, 9, 10, 11
Fog Lamp Relay.....................8W-10-17
Fuel Injector No. 1...................8W-10-16
Fuel Injector No. 2...................8W-10-16
Fuel Injector No. 3...................8W-10-16
Fuel Injector No. 4...................8W-10-16
Fuel Pump Module...................8W-10-16
Fuel Pump Relay....................8W-10-16
Fuse 1 (FB)..........................8W-10-8
Fuse 2 (FB)..........................8W-10-8
Fuse 2 (PDC).....................8W-10-5, 6, 7
Fuse 3 (FB)..........................8W-10-8
Fuse 3 (PDC).....................8W-10-5, 6, 8
Fuse 4 (FB)..........................8W-10-8
Fuse 5 (FB)..........................8W-10-8
Fuse 5 (PDC)....................8W-10-5, 6, 12
Fuse 6 (FB)..........................8W-10-8
Fuse 7 (FB)..........................8W-10-8
Fuse 8 (FB)..........................8W-10-8
Fuse 8 (PDC)....................8W-10-5, 6, 12
Fuse 9 (FB).......................8W-10-9, 10
Fuse 10 (FB)...................8W-10-9, 10, 11
Fuse 10 (PDC)...................8W-10-5, 6, 12
Fuse 11 (FB)...................8W-10-9, 10, 11
Fuse 11 (PDC)....................8W-10-5, 6, 7
Fuse 12 (FB)........................8W-10-11
Fuse 13 (PDC)...................8W-10-5, 6, 13
Fuse 14 (FB)...................8W-10-9, 10, 11
Fuse 15 (FB)...................8W-10-9, 10, 11
Fuse 16 (FB)...................8W-10-9, 10, 11Component Page
Fuse 16 (PDC).....................8W-10-6, 17
Fuse 18 (PDC)................8W-10-5, 6, 14, 15
Fuse 20 (PDC)................8W-10-5, 6, 14, 15
Fuse 21 (PDC)...................8W-10-5, 6, 16
Fuse 23 (PDC)................8W-10-5, 6, 14, 15
Fuse 25 (PDC)................8W-10-5, 6, 14, 15
Fuse Block...................8W-10-8, 9, 10, 11
G101...............................8W-10-9
G204...............................8W-10-7
Generator..........................8W-10-16
Glove Box Lamp And Switch............8W-10-13
Headlamp Switch.....................8W-10-8
High Speed Warning Module...........8W-10-13
Horn..............................8W-10-14
Horn No. 1.........................8W-10-15
Horn No. 2.........................8W-10-15
Horn Relay......................8W-10-14, 15
Ignition Coil Pack....................8W-10-16
Ignition Switch.............8W-10-7, 8, 9, 10, 11
Immobilizer......................8W-10-10, 11
Instrument Cluster.................8W-10-7, 13
Left Fog Lamp......................8W-10-17
Left Visor/Vanity Lamps...............8W-10-13
Map/Reading Lamps..................8W-10-13
Noise Supressor.....................8W-10-16
Power Distribution
Center.....8W-10-5, 6, 7, 8, 12, 13, 14, 15, 16, 17
Power Mirror Switch..................8W-10-13
Powertrain Control Module...........8W-10-9, 16
Radiator Fan Motor..................8W-10-12
Radio..............................8W-10-13
Rear Fog Lamp Switch................8W-10-17
Rear Window Defogger Switch..........8W-10-12
Right Fog Lamp.....................8W-10-17
Right Visor/Vanity Lamps..............8W-10-13
Solid State Fan Relay.................8W-10-12
Stop Lamp Switch.................8W-10-14, 15
Time Delay Relay....................8W-10-13
Time Out Relay......................8W-10-13
Trunk Lamp........................8W-10-13
Turn Signal/Hazard Switch..........8W-10-14, 15
Underhood Lamp....................8W-10-13
Upstream Heated Oxygen Sensor........8W-10-16
PL8W - 10 POWER DISTRIBUTION 8W - 10 - 1

3FUSE40A
3
BATT A0
A3
12
RD/WT
3C102
A3
12
RD/WT
1FUSE15A3FUSE20A4FUSE10A
BLOCK
FUSE
A3
12
RD/WTA3
12
RD/WT
S213 POWER
DISTRIBUTION
CENTER
4
212324
8
SWITCH HEADLAMP IGNITION
SWITCH
4
3
0 2 1
BATT A2
A22
12
BK/OR
S217
8FUSE
10A
2825
10A
FUSE
5
27
25A
FUSE
7
26
10A
FUSE
6CIRCUIT
BREAKER
30A
41
42
A22
12
BK/OR
BK/OR12 A22
FUSE
BLOCK
2215A
FUSE
2
5
678
4321
3 ACC 1 START
2 RUN
0 OFF
BK/OR12 A22
WINDOWSPOWER
OTHER(8W-11-7)
(8W-11-8)
(8W-11-9)(8W-11-11) (8W-11-11)(8W-11-2)
(8W-11-3)
(8W-11-4) (8W-50-2)
(8W-50-3)
(8W-50-4) (8W-10-5)
(8W-10-6) (8W-10-7)
(8W-11-15)
(8W-11-16) (8W-11-12)
(8W-11-13)(8W-11-12)
(8W-11-13)(8W-11-12)
(8W-11-13)(8W-11-12)
(8W-11-13)(8W-11-2)
(8W-11-3)
(8W-11-4) (8W-10-5)
(8W-11-7)
(8W-11-8)
(8W-11-9) (8W-10-7)
8W - 10 - 8 8W-10 POWER DISTRIBUTIONPL
J988W-18197

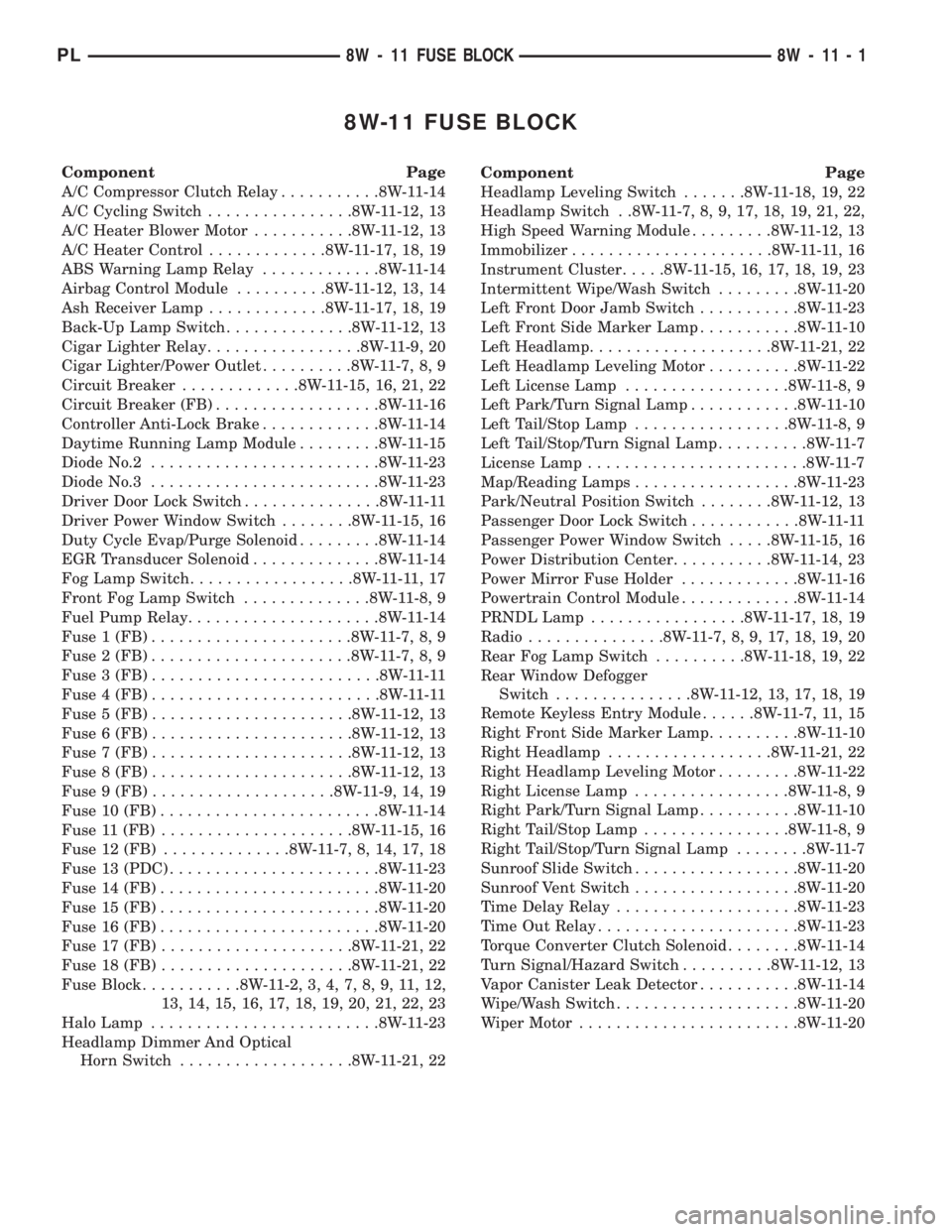

8W-11 FUSE BLOCK
Component Page
A/C Compressor Clutch Relay...........8W-11-14
A/C Cycling Switch................8W-11-12, 13
A/C Heater Blower Motor...........8W-11-12, 13
A/C Heater Control.............8W-11-17, 18, 19
ABS Warning Lamp Relay.............8W-11-14
Airbag Control Module..........8W-11-12, 13, 14
Ash Receiver Lamp.............8W-11-17, 18, 19
Back-Up Lamp Switch..............8W-11-12, 13
Cigar Lighter Relay.................8W-11-9, 20
Cigar Lighter/Power Outlet..........8W-11-7, 8, 9
Circuit Breaker.............8W-11-15, 16, 21, 22
Circuit Breaker (FB)..................8W-11-16
Controller Anti-Lock Brake.............8W-11-14
Daytime Running Lamp Module.........8W-11-15
Diode No.2.........................8W-11-23
Diode No.3.........................8W-11-23
Driver Door Lock Switch...............8W-11-11
Driver Power Window Switch........8W-11-15, 16
Duty Cycle Evap/Purge Solenoid.........8W-11-14
EGR Transducer Solenoid..............8W-11-14
Fog Lamp Switch..................8W-11-11,17
Front Fog Lamp Switch..............8W-11-8, 9
Fuel Pump Relay.....................8W-11-14
Fuse 1 (FB)......................8W-11-7, 8, 9
Fuse 2 (FB)......................8W-11-7, 8, 9
Fuse 3 (FB).........................8W-11-11
Fuse 4 (FB).........................8W-11-11
Fuse 5 (FB)......................8W-11-12, 13
Fuse 6 (FB)......................8W-11-12, 13
Fuse 7 (FB)......................8W-11-12, 13
Fuse 8 (FB)......................8W-11-12, 13
Fuse 9 (FB)....................8W-11-9, 14, 19
Fuse 10 (FB)........................8W-11-14
Fuse 11 (FB).....................8W-11-15, 16
Fuse 12 (FB)..............8W-11-7, 8, 14, 17, 18
Fuse 13 (PDC).......................8W-11-23
Fuse 14 (FB)........................8W-11-20
Fuse 15 (FB)........................8W-11-20
Fuse 16 (FB)........................8W-11-20
Fuse 17 (FB).....................8W-11-21, 22
Fuse 18 (FB).....................8W-11-21, 22
Fuse Block...........8W-11-2, 3, 4, 7, 8, 9, 11, 12,
13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23
Halo Lamp.........................8W-11-23
Headlamp Dimmer And Optical
Horn Switch...................8W-11-21, 22Component Page
Headlamp Leveling Switch.......8W-11-18, 19, 22
Headlamp Switch . .8W-11-7, 8, 9, 17, 18, 19, 21, 22,
High Speed Warning Module.........8W-11-12, 13
Immobilizer......................8W-11-11,16
Instrument Cluster.....8W-11-15, 16, 17, 18, 19, 23
Intermittent Wipe/Wash Switch.........8W-11-20
Left Front Door Jamb Switch...........8W-11-23
Left Front Side Marker Lamp...........8W-11-10
Left Headlamp....................8W-11-21, 22
Left Headlamp Leveling Motor..........8W-11-22
Left License Lamp..................8W-11-8, 9
Left Park/Turn Signal Lamp............8W-11-10
Left Tail/Stop Lamp.................8W-11-8, 9
Left Tail/Stop/Turn Signal Lamp..........8W-11-7
License Lamp........................8W-11-7
Map/Reading Lamps..................8W-11-23
Park/Neutral Position Switch........8W-11-12, 13
Passenger Door Lock Switch............8W-11-11
Passenger Power Window Switch.....8W-11-15, 16
Power Distribution Center...........8W-11-14, 23
Power Mirror Fuse Holder.............8W-11-16
Powertrain Control Module.............8W-11-14
PRNDL Lamp.................8W-11-17, 18, 19
Radio...............8W-11-7, 8, 9, 17, 18, 19, 20
Rear Fog Lamp Switch..........8W-11-18, 19, 22
Rear Window Defogger
Switch...............8W-11-12, 13, 17, 18, 19
Remote Keyless Entry Module......8W-11-7, 11, 15
Right Front Side Marker Lamp..........8W-11-10
Right Headlamp..................8W-11-21, 22
Right Headlamp Leveling Motor.........8W-11-22
Right License Lamp.................8W-11-8, 9
Right Park/Turn Signal Lamp...........8W-11-10
Right Tail/Stop Lamp................8W-11-8, 9
Right Tail/Stop/Turn Signal Lamp........8W-11-7
Sunroof Slide Switch..................8W-11-20
Sunroof Vent Switch..................8W-11-20
Time Delay Relay....................8W-11-23
Time Out Relay......................8W-11-23
Torque Converter Clutch Solenoid........8W-11-14
Turn Signal/Hazard Switch..........8W-11-12, 13
Vapor Canister Leak Detector...........8W-11-14
Wipe/Wash Switch....................8W-11-20
Wiper Motor........................8W-11-20
PL8W - 11 FUSE BLOCK 8W - 11 - 1

1FUSE15A
21
BATT A3
F30
16
RD
2FUSE15A
22
F33
20
PK/RD
HEADLAMP
SWITCH
4
L7
20
BK/YLL7
20
BK/YL
S218
L7
20
BK/YL
7C230
L7
20
BK/YL
4
RADIO
54
RADIO
L7
20
BK/YLL7
20
BK/YL
MODULE ENTRY
KEYLESS
REMOTE
L7
20
BK/YL
L7
18
BK/YL
222
LAMP LICENSE
L7
18
BK/YLL7
20
BK/YL
S306
L7
20
BK/YL
1
FUSE
BLOCK12
32
4A
FUSE
12
RKE
OTHER
E1
20
TN
9
2
1 0
FUSE
BLOCK
TO
C105 OUTLET POWER
LIGHTER/
CIGAR
C2C2
0 OFF
1 PARK
2 HEAD 1
1
2
C2
LAMP SIGNAL
TURN
STOP/
TAIL/
LEFT RIGHT
TAIL/
STOP/
TURN
SIGNAL
LAMP
A
(8W-11-10) (8W-41-4)(8W-11-2)
(8W-11-17)(8W-11-2)
(8W-51-5) (8W-61-7)(8W-47-2)(8W-47-2) (8W-10-8)
(8W-50-2)
(8W-50-9)
(8W-50-10)
(8W-51-5) (8W-51-5)
PL8W-11 FUSE/FUSE BLOCK
EXCEPT BUILT-UP-EXPORT8W - 11 - 7
8213J988W-1

1FUSE15A
21
BATT A3
1
2FUSE15A
22
F33
20
PK/RD
HEADLAMP
SWITCH
4
7C230
L7
20
BK/YL
4
RADIO
12
L7
20
BK/YL
L7
20
BK/YL
L7
20
BK/YL
L7
18
BK/YL
2
LAMP STOP
TAIL/
RIGHT
22
LEFT
TAIL/
STOP
LAMP
L7
18
BK/YL
L7
20
BK/YL
S306
L7
20
BK/YL
1
12
32
4A
FUSE
12
E1
20
TN
9
2
1 0
FUSE
BLOCK
A
(8W-11-10)TO
C105 C2
SWITCH LAMP
FOG
FRONT
L7
20
BK/YL
RIGHT
LICENSE
LAMP LAMP LICENSE
LEFT
2C340C3412
BLOCK
FUSE
S218
CIGAR
LIGHTER/
POWER
OUTLET
1
RD16 F30
2
BK/YL20 L7
L7
18
BK/YLL7
18
BK/YL
0 OFF
1 PARK
2 HEAD (8W-10-8)
(8W-47-2)
(8W-50-13)(8W-51-8) (8W-51-8)
(8W-51-8) (8W-51-8) (8W-11-3)
(8W-11-3)
(8W-11-18) (8W-41-4)(8W-50-3)
8W - 11 - 8 8W-11 FUSE/FUSE BLOCK
LHD BUILT-UP-EXPORTPL
J988W-18214
