1999 CADILLAC SEVILLE Owners Manual

yellowblue
6-33

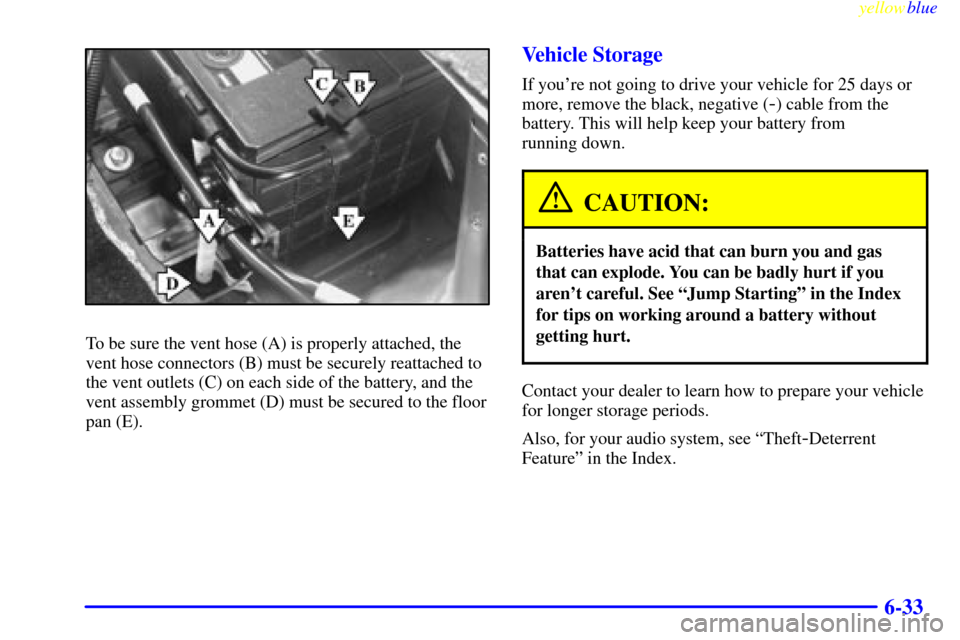

To be sure the vent hose (A) is properly attached, the
vent hose connectors (B) must be securely reattached to
the vent outlets (C) on each side of the battery, and the
vent assembly grommet (D) must be secured to the floor
pan (E).
Vehicle Storage
If you're not going to drive your vehicle for 25 days or
more, remove the black, negative (
-) cable from the
battery. This will help keep your battery from
running down.
CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren't careful. See ªJump Startingº in the Index
for tips on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see ªTheft
-Deterrent
Featureº in the Index.

yellowblue
6-34
Bulb Replacement
For any bulb changing procedure not listed in this
section, contact your dealer service department.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Headlamps
1. Open the hood and remove the upper filler panel by
loosening all the screws and then lifting the whole
panel. You can later reinstall the upper filler panel by
inserting the grommets, along with the screws, back
into the holes.
2. Remove the two bolts fastening the headlamp to the
headlamp mounting bracket.
3. Pull the headlamp straight forward to disengage the
locator pin at the outboard edge of the headlamp.

yellowblue
6-35

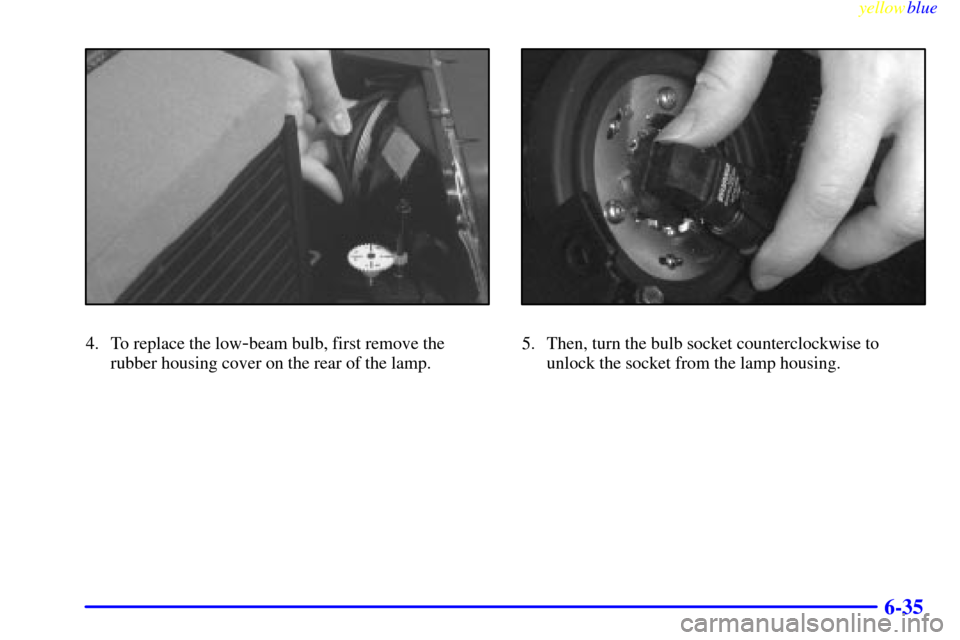

4. To replace the low-beam bulb, first remove the
rubber housing cover on the rear of the lamp.5. Then, turn the bulb socket counterclockwise to
unlock the socket from the lamp housing.

yellowblue
6-36
6. Remove the headlamp bulb socket.7. After removing the wiring harness connector from
the headlamp bulb socket, replace the bulb assembly.
Reconnect it to the wiring harness and reinstall the
headlamp bulb assembly back into the
headlamp housing.
8. After reinstalling the bulb and socket, reinstall
the rubber cover. Make sure it fully covers the
headlamp socket.
9. To replace the high
-beam bulb, turn the bulb socket
counterclockwise to unlock the socket from the lamp
housing. Follow the instructions in Step 6 through 8
to install the new bulb.

yellowblue
6-37
Headlamp Aiming
Your vehicle has a headlamp system equipped with
horizontal and vertical aim indicators. The aim has been
pre
-set at the factory and should need no further
adjustment. This is true even though your vertical and
horizontal aim indicators may not fall exactly on the
ª0º (zero) marks on their scales.
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment may be necessary
if it is difficult to see lane markers (for horizontal aim),
or if oncoming drivers flash their high beams at you (for
vertical aim). If you believe your headlamps need to be
re
-aimed, we recommend that you take it to your dealer
for service; however, it is possible for you to re
-aim
your headlamps as described in the following procedure.
NOTICE:
To make sure your headlamps are aimed
properly, read all the instructions before
beginning. Failure to follow these instructions
could cause damage to headlamp parts.
The vehicle should be properly prepared as follows:

The vehicle must have all four tires on a perfectly
level surface.

If necessary, pads may be used on an uneven surface.

The vehicle should not have any snow, ice or mud
attached to it.

The vehicle should be fully assembled and all other
work stopped while headlamp aiming is being done.

There should not be any cargo or loading of the
vehicle, except it should have a full tank of fuel and
one person or 160 lbs. (75 kg) on the driver's seat.

Close all doors.

Tires should be properly inflated.

Rock the vehicle to stabilize the suspension.

yellowblue
6-38
A. Horizontal Aiming Screw
B. Vertical Aiming Screw
Start with the horizontal aim. The adjustment screws can be
turned with an E8 Torx

socket or T15 Torx screwdriver.
Once the horizontal aim is adjusted, then adjust the
vertical aim.
A. Horizontal Aiming
Screw
C. Indicator
1. Turn the horizontal aiming screw until the indicator
is lined up with zero.

yellowblue
6-39
B. Vertical Aiming Screw
D. Level Bubble
2. Turn the vertical aiming screw until the level bubble
is lined up with zero.Front Turn Signal Lamps
1. The turn signal lamps are located on the outboard
side of the headlamps. To access, remove the
headlamp, (see Steps 1, 2 and 3 under ªHeadlampsº).
2. Press the bulb socket tab and turn the bulb socket
counterclockwise to unlock the socket from the
lamp housing.
3. To remove the bulb, grasp the socket firmly and pull
the bulb out. Install the new bulb and reverse the
steps to replace.

yellowblue

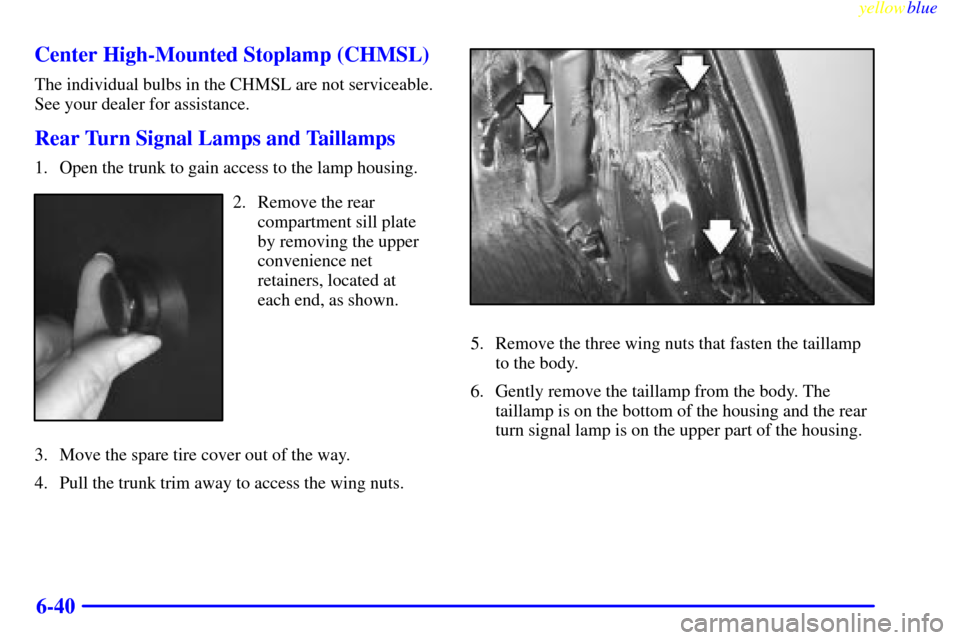

6-40 Center High-Mounted Stoplamp (CHMSL)
The individual bulbs in the CHMSL are not serviceable.
See your dealer for assistance.
Rear Turn Signal Lamps and Taillamps
1. Open the trunk to gain access to the lamp housing.
2. Remove the rear
compartment sill plate
by removing the upper
convenience net
retainers, located at
each end, as shown.
3. Move the spare tire cover out of the way.
4. Pull the trunk trim away to access the wing nuts.
5. Remove the three wing nuts that fasten the taillamp
to the body.
6. Gently remove the taillamp from the body. The
taillamp is on the bottom of the housing and the rear
turn signal lamp is on the upper part of the housing.
