117-13
Camshaft Timing chain1
< Install seal removing tool (BMW special tool 11 2 380) and
screw in body of puller until it makes firm contact with seal.
Tighten center screw in end of tool to draw out seal.
4 Coat new seal with oil, and use BMW special tool 11 1 220
and crankshaft center bolt to draw seal in flush with timing
case cover.
- Install damper hub and tighten new center bolt finger tight
4 Install angle gauge BMW special tool 11 3 460 as shown.

Downloaded from www.Manualslib.com manuals search engine
I Camshaft Timing Chain
Mark 0" location on socket (arrow). Tighten hub bolt in four
stages.
Tightening torque Vibration damper
hub to cranlrshaft
Stage 1 100 Nm (74 it-lb)
Stage
2 60" Torque angle
Stage
3 60" Torque angle
Stage
4 30" Torque angle
- install vibration damper and mounting bolts
NOTE-
Male sure to align vibration damper with locating dowel pin
in hub.
Tightening torque Vibration damper to
cranltshait hub (ME) 22 Nm (16 ft-lb)
- Install drive belts. See 020 Maintenance.
- Install cooling fan. See 170 Radiator and Cooling System.
- Replace under engine splash shield, then reconnect nega-
tive battery cable.
!/ANBS CONTROL UNIT AND
TIMING CHAIN (M52 ENGINE)
VANOS control unit, removing (M52 engine)
NOTE-
Special BMW service tools are required to remove and in-
stall the
VANOS control unit. Read the procedure through
before starting the job.
If the camshafts are notproperly timed, the pistons can
contact the valves.
- Disconnect negative (-) cable from battery.
CAUTION-
Disconnecting the battery may erase fault code(s) stored in
control module memory. Prior to disconnecting the
battev,
check for fault codes using special BMW diagnostic equip-
ment.
* Prior to disconnecting the battery, read the battery dis-
connection cautions given in
001 General Cautions
and Warnings.

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timina chain1
- Remove viscous clutch cooling fan. See 170 Radiator and
Cooling
System.
CA UTlOEIC
The radiator cooling fan nut (32mm wrench) has left- hand
threads.
.
< Remove engine trim covers:
Pry out plastic trim caps (arrows).
. Remove cover fasteners and covers.
4 Remove ignition coils:
0 Disconnect ignition coil electrical harness connectors
Remove
coil mounting fasteners and remove coils.
Remove spark plugs.
NOTE-
Make note of ignition coil ground strap locations.
Disconnect VANOS electrical harness connector
(A) and oil
line fitting
(B) from VANOS control unit.
NOTE-
Wrap the VANOS oil line fitting with a shop rag to absorb
leaking oil.
- Disconnect cranltcase breather by squeezing at arrows,
- Remove cylinder cover mounting fasteners and remove
cylinder head cover.
NOTE-
The cylinder head cover mounting bolt insulators and gas.
kets should be reinstalled in their original positions. Make
note of their arrangement during removal.

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing Chain -- - -1
Q Remove oil baffle cover
from intake
camshaft
Remove front engine lifting bracket fasteners (arrows
A) and
remove bracket.
- Remove cable duct clips (arrows B) from front of VANOS
control unit.
Rotate engine
clocltwise and set camshafts to Top Dead
Center (TDC). Cylinder
1 camshaft lobes will point towards
each other (arrows).
4 Remove plug from below starter and install crankshaft lock-
ing tool
(BMW special tool 11 2 300).

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing Chain
4 Unscrew and remove cylinder head cover studs (arrows) at
rear of cylinder head.
% Secure camshafts in TDC position using BMW special tool
set
11 3 240.
4 Remove access plugs (arrows) from VANOS control unit.

Downloaded from www.Manualslib.com manuals search engine

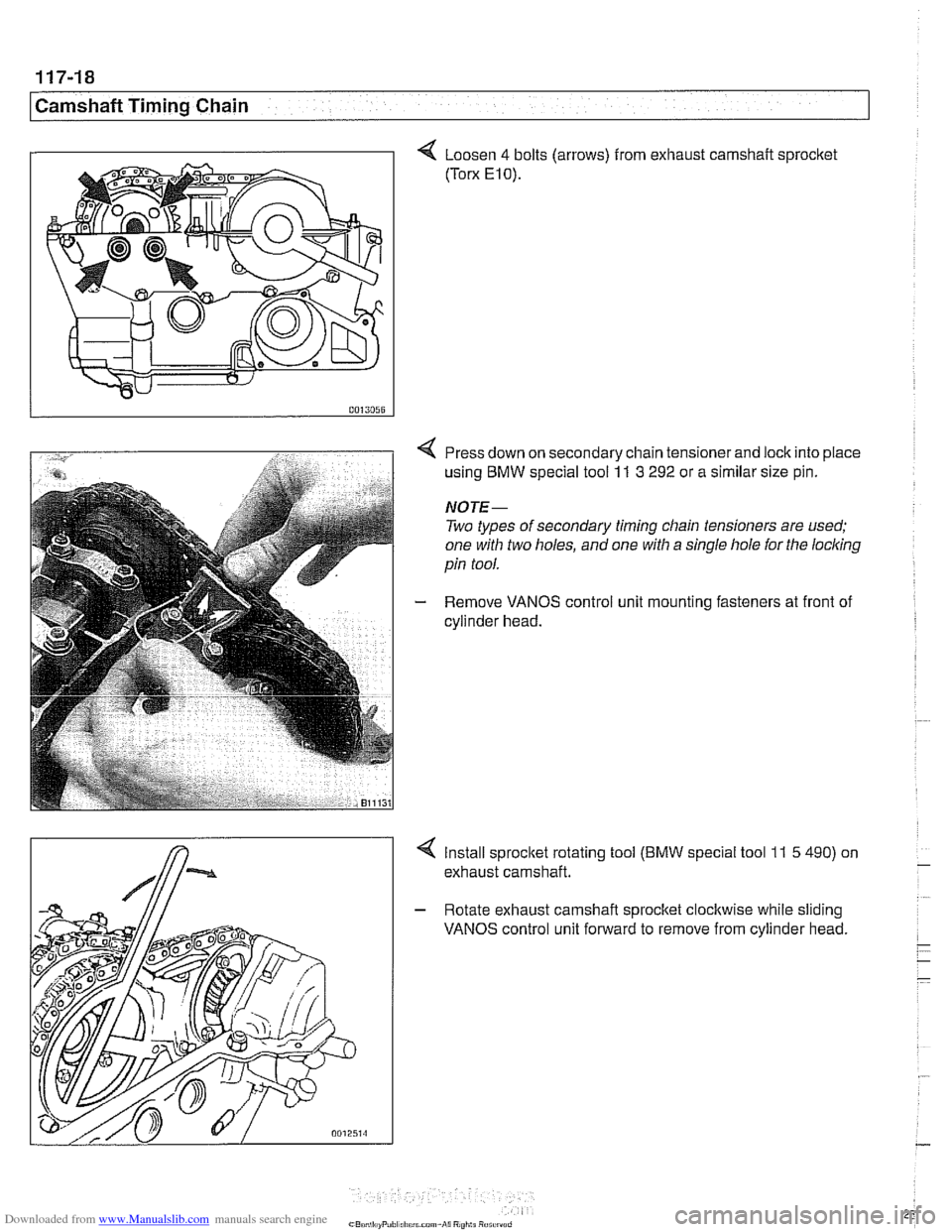

117-18
Camshaft Timing Chain
4 Loosen 4 bolts (arrows) from exhaust camshait sprocket
(Torx E10).
Press down on secondary chain tensioner and lock into place
using BMW special tool
11 3 292 or a similar size pin.
NOTE-
Two types of secondary timing chain tensioners are used;
one with two holes, and one with a single hole for the
locl pin tool.
Remove VANOS control unit mounting fasteners at front of
cylinder head.
4 Install sprocltet rotating tool (BMW special tool 11 5 490) on
exhaust camshaft.
- Rotate exhaust camshaft sprocket clockwise while sliding
VANOS control unit forward to remove from cylinder head.

Downloaded from www.Manualslib.com manuals search engine
Camshaft Timing chain1
VANOS control unit, installing (M52 engine)
CAUTION-
Incorrect installation of the VANOS control unit may result in
damage to the engine.
- Make sure camshafts and crankshaft are loclted in TDC po-
sition with BMW special tools as described during VANOS
removal.
< Rotate exhaust camshaft sprocket clocltwise (as viewed from
front of engine) using BMW special tool
11 5 490, until detent
position stop is reached.
4 Apply a small amount of liquid gasket sealer (Three Bond
1209
8 or equivalent) to VANOS housing alignment dowels
on front of cylinder head. Install a new
gasket.
< Push VANOS piston gear cup (arrow) into VANOS housing
until it bottoms out. Position VANOS control unit in front of
camshafts, but do not engage splines on gear cup.

Downloaded from www.Manualslib.com manuals search engine
11 7-20
Camshaft Timing Chain
4 lnstall BMW special tool 1 I 5 490 on exhaust camshaft.
- Insert the helical-toothed splined shafl (arrow) into the heli-
cal-toothed sprocket while rotating gears and chain counter-
clockwise with special tool.
CAUTION- Ensure
that the first available tooth engages. It is important
that the exhaust camshaft sprocket be turned only the mini-
mum amount necessary to engage the gear cup. If this pro-
cedure is done
incorrectlq: the VANOS system may not fully
function.
- Install and tighten down VANOS control unit fasteners
Tightening torques
VANOS control unit to cylinder head
M6 nuts 10 Nm (89 in-lb)
M8 bolts 22 Nrn (17 ft-lbj
- Press down on secondary timing chain tensioner and remove
lock tool.
Remove primary timing chain tensioner
(arrow)
CAUTION-
Timing chain tensioner is under spring tension.
lnstall adjustable primary chain tensioner
(BMW special tool
11 4 220) and preload timing chain by tightening to 1.3 Nm
(I I in-lb).
