41 0-3
Fenders, Engine ~oodl
Carefully pry front turn signal assembly from fender and dis-
connect electrical harness (arrow).
< Release headlight trim panel locking clip with a screwdrivel
(arrow).
* Working at corner of side trim panel, pull trim panel out
from side of fender to remove.
- Remove front bumper. See 510 Exterior Trim, Bumpers.
Working at rear of
teners (arrows). fender
well, , remove
fender
'mounting fas-
< Remove lower
housing. 'attaching
bolts
(arrow) at rear of wheel

Downloaded from www.Manualslib.com manuals search engine
41 0-4
Fenders, Engine Hood
Working from below, remove front wheel arch fastener (ar-
row).
With door open remove fastener
fender to door post. (arrow) attaching upper
Remove screw
(arrow) at front of fender.
Remove ground strap nut and hood hinge bolts
(arrows)
CAUTION-
Secure hood in such a way that the windshield and body pan-
els
wiN not be damaged.

Downloaded from www.Manualslib.com manuals search engine
-
... ---- - Fenders, -- Engine ~oodl
4 Remove bolts (arrows) along top edge of fender.
- Carefully remove fender from body.
Detent screw on left and right hood hinge
(1) must be set at
25 i- 1 mm (1 k .04 in).
- Installation is reverse of removal, noting the following:
Before installing new fender, clean old sealant and protec-
tive coating from mounting surfaces.
Position new fender and loosely install all mounting bolts.
Align fender with door pillar and inner fender, then tighten
bolts.
Repair any paint damage and paint any exposed metal.
Reseal and apply protective coating to mounting surfaces.

Downloaded from www.Manualslib.com manuals search engine
Hood, raising to service position
CAUTION-
Do not switch on the windshield wipers with the engine
hood raised. As a precaution, remove the wiper
motor
fuse. See 610 Electrical Component Locations.
The
hoodis heavy Before removing the hoodsupports,
be sure to have an assistant help support the hood.
< Open hood fully. With the help of a partner, support hood and
remove retaining clips (arrow) on upper end of pressurized
lifting struts. Pull struts off hood.
< Raise hood to service position and loclc in position by placing
bolts (arrow) in right and
left hinges.

Downloaded from www.Manualslib.com manuals search engine
Fenders, Engine ~ood/
Hood, removing and installing
With hood open:
Remove hood wiring harness mounting clip
(A)
Disconnect electrical harness connector (B).
Unplug windshield washer hose (C).
WARNING-
The hood is heavy Before removing the hoodsupports, be
sure to have an assistant help
support the hood.
Mark position of hinge plates.
With the help of a assistant, support hood and remove retain-
ing clips
(A) on upper end of pressurized lifting struts. Pull
struts off hood.
Loosen upper hinge bolts
(B)
Remove lower hinge bolts (C). Lift hood off carefully.
Installation is reverse of removal.
* Repair any paint damage and paint any exposed metal
Check hood alignment. See
Hood, aligning.
NOTE-
The hood was fitted and attached to an unfinished body at
the factory Unfinished
sun'aces exposed by this procedure
must be touched up with paint,

Downloaded from www.Manualslib.com manuals search engine
41 0-8
(Fenders, Engine Hood

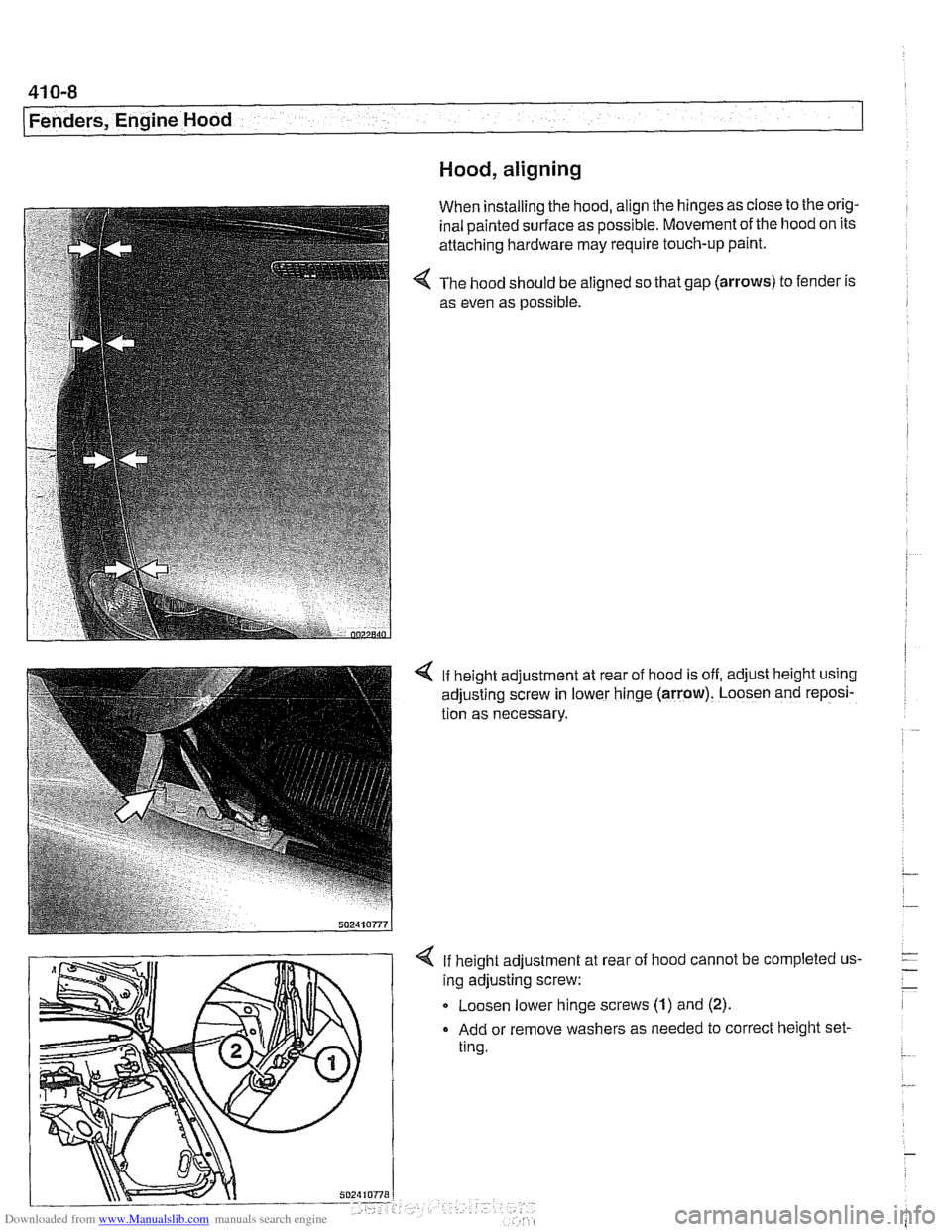

Hood, aligning
When installing the hood, align the hinges as close to the orig-
inal painted surface as possible. Movement of the hood on its
attaching hardware may require touch-up paint.
The hood should be aligned so that gap
(arrows) to fender is
as even as possible.
4 If height adjustment at rear of hood is off, adjust height using
adjusting screw in lower hinge
(arrow). Loosen and reposi-
tion as necessary.
If height adjustment at
ing adjusting screw: rear
of
hood cannot be completed us-
Q Loosen lower hinge screws (1) and (2).
Add or remove washers as needed to correct height set-
ting.

Downloaded from www.Manualslib.com manuals search engine
Fenders, Engine ~oodl
Adjusting detent buffers for hood:
Raise hood.
* Shape pieces of rubber (butyl) tape into two IOmm col-
umns and place on buffers
(A).
* Close hood.
Measure dimension of the compressed rubber tape.
Using measurement dimension, adjust detent buffer
(A)
Hood should be under a slight preload. (+0.5 mm).
Fellow the same procedure on the front buffers
(B).
- After adjustment have been made, check that hood lid is flush
against detent buffers and
if necessary repeat the adjust-
ment.
CAUTION-
To avoid excessive wind noise, the hood must not protrude
beyond the front side panels.

Downloaded from www.Manualslib.com manuals search engine
41 0-1 0
I Fenders, Engine Hood
Hood latch components
1. Hood
2. Gas pressurized
Strut
3. Spacer
4. Hinge
5. Ground stud
6. Torx
bolt
7. Torx bolt
8. Hex bolt
9. Bowden cable bracket
10. Ball pin
11. Torx bolt
12. Spring pin
13. Stop buffer
14.
Bowden cable
15. Lower hood lock
16.
Bowden cable
17. Torx
bolt
18. Stop buffer
19. Hex nut
20. Torx bolt
21. Hood latch
