Door Windows
Vertical adjustment
- Adjustments are made with window in open position
4 Loosen window clamping fasteners (arrows), but do not
remove.
Adjust rear clamp and tighten fastener.
Tighten front clamp fastener.
4 Raise door window up to stop:
Check gap (A) at window front edge,
Checlc gap (5) at window top edge.
NOJE-
Measure window frame between door window edge and
panel.
Front window gap settings
Front of window
(A) 5.4 mm (0.21 in)
Top of window
(6) 10 mm (0.39 in)
Tightening torque Window regulator guide
rail to door 10 Nm (89 in-lb)
Door window, removing and installing
- Remove door panel as described in 411 Doors
- Reconnect window switch and lower window down to conve-
nient height and disconnect window switch.
- Disconnect negative (-) cable from battery, then remove air-
bag unit and vapor barrier from door. See 721 Airbag Sys-
tem (SRS).
WARNING -
Prior to disconnecting the battery, read the battery discon-
nection cautions given
in 001 General Warnings and
Cautions.

Downloaded from www.Manualslib.com manuals search engine
Door Windows
Worlting carefully with a plastic prying tool, remove window
trim strip from door.
Starting from rear of inner window trim strip, carefully
on trim strip clips
(arrows) to remove window trim.
< Loosen 1 clamping jaw ' fasteners (arrows)

Downloaded from www.Manualslib.com manuals search engine
Door Windows
Tilt window glass carefully inside door cavity and lift out of
door.
Installation is reverse of removal.
Replace plastic window retainers once glass is inside door.
Use new mounting bolts when reinstalling side-impact
air-
bag to door.
Adjust window as described earlier,
Sedan and Sport Wagon doors are similar. There are two win-
dow rails in each front window regulator, only one in the rear.
Otherwise the front and rear regulators are similar.
WARNING-
E39 cars are Wed with side-impact airbags in the front
doors. Some are equipped with
airbags in the rear doors
as well. When servicing the door windows on cars with
side-impact airbags, always disconnect the negative
(-)
battery cable. See 721 Airbag System (SRS) for cau-
tions and procedures relating to the
airbag system.
Prior to disconnecting the battery, read the battery dis-
connection cautions given at the front
001 General
Warnings and Cautions.
NOTE-
Because window operation is electronically controlled, a win-
dow motor does not have mechanical endpositions. For this
reason it can be removed and installed with the window in
any position and does not need reinitialization.
Front window regulator removing and
installing
NOTE-
BMW recommends removing the window regulator and mo-
tor as one unit, then separating the two on the bench.
- Remove front door panel as described in 411 Doors.
- Disconnect negative (-) cable from battery, then remove air-
bag unit and vapor barrier from door. See 721 Airbag Sys-
tem (SRS).

Downloaded from www.Manualslib.com manuals search engine
512-12
I Door Windows
- Disconnect window from window guide rail as described in
Door window, removing
and installing. Do not remove
window from door.
* Push window up and use wedge to hold in position.
- If necessary, remove speaker unit from door.
- Removing window regulator from door:
Disconnect window motor electrical harness connector.
4 Remove lower window regulator fasteners (arrows).
Remove window regulator fasteners (arrows)
Loosen fasteners (arrows) and slide regulator up to remove
from mounts.
- Remove window regulatorthrough opening in bottom of door,
checking for any wiring that might become snagged during
removal.
- Installation is reverse of removal.
Be sure to route wiring harnesses to keep them away from
moving window mechanism. Use new wire ties as neces-
sary.
-
Tightening torques -
Window motor to regulator 5 Nm (44 in-lb)
502512211
Window regulator to door 8 Nm (71 in-lb)
Adjust window
as described earlier.
- -
W~ndow to guide 8 Nm (71 in-lb)
--

Downloaded from www.Manualslib.com manuals search engine
Door windows1

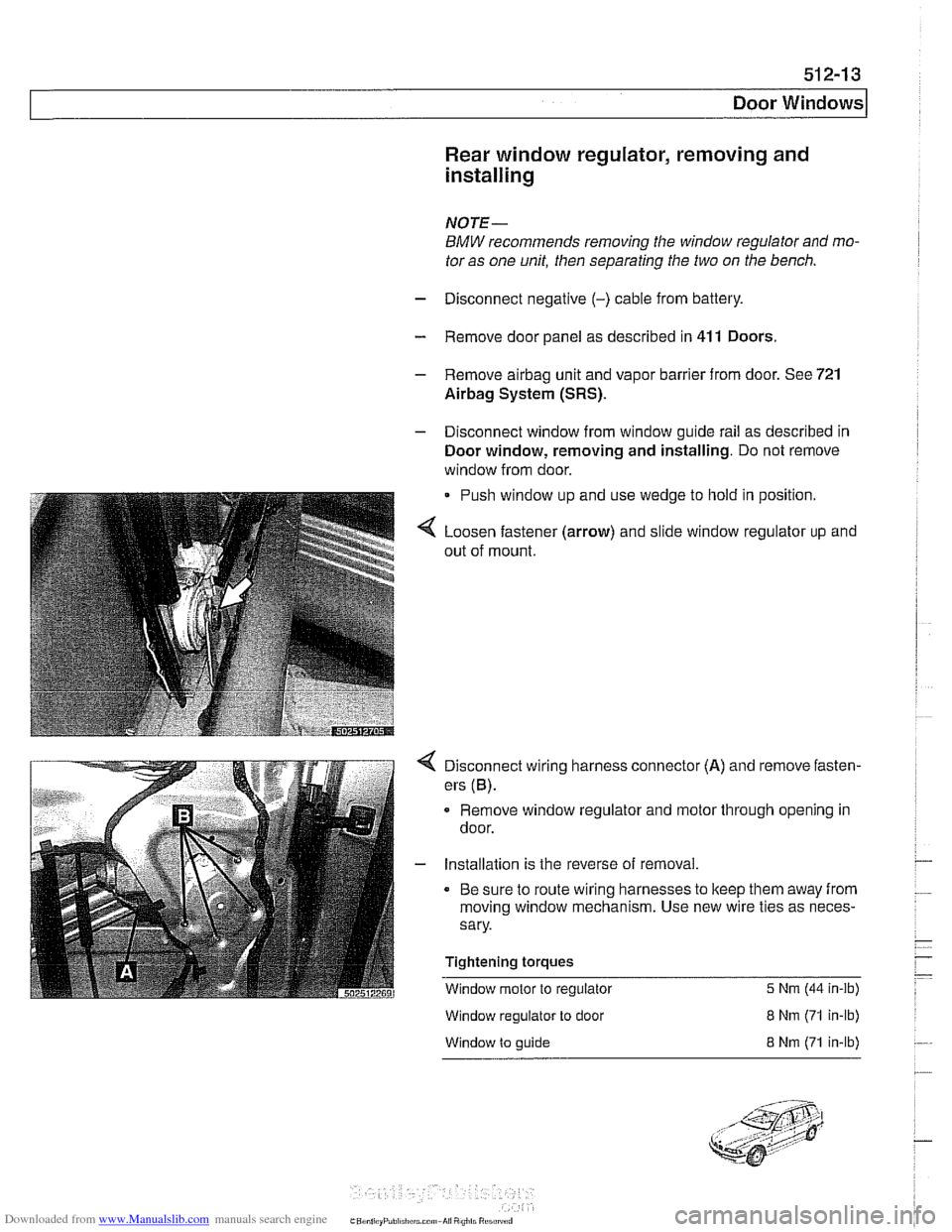

Rear window regulator, removing and
installing
NOTE-
BMW recommends removing the window regulator and mo-
tor as one unit, then separating the
two on the bench.
- Disconnect negative (-) cable from battery
- Remove door panel as described in 411 Doors
- Remove airbag unit and vapor barrier from door. See 721
Airbag System (SRS).
- Disconnect window from window guide rail as described in
Door window, removing and installing. Do not remove
window from door.
Push window up and use wedge to
hold in position.
Loosen fastener (arrow) and slide window regulator up and
out of mount.
Disconnect wiring harness connector (A) and remove fasten-
ers
(6).
Remove window regulator and motor through opening in
door.
- Installation is the reverse of removal.
Be sure to route wiring harnesses to keep them away from
moving window mechanism. Use new wire ties as neces-
sary.
Tightening torques
Window motor to regulator
5 Nrn (44 in-ib)
Window regulator to door
Window to guide
8 Nrn (71 in-lb)
8 Nrn (71 in-lb)

Downloaded from www.Manualslib.com manuals search engine
