Short to positive
Current flows incorrectly to a live component
without supplying a consumer.

Brake pressure release solenoid -F84-
The trip switch is installed in the brake booster
and is required by the control module to
recognize the braking desired by the driver.

Magnetic coil for brake pressure, in brake
booster, -N247-
The brake pressure solenoid is installed in the
brake booster and ensures that a pre-pressure
of 10 bar is available for the ABS/ESP pump.

Read measured value block
The control module can transfer a considerable
amount of test data. This test data delivers
information on the operational condition of the
system and/or sensors connected to it. In many
cases the transferred test data supports
troubleshooting and malfunction repair. The
test data has been summarized into single
display groups because all the information
cannot be evaluated at the same time. The
information can be selected via display group
numbers.

EBC
Engine braking control
Стр. 4из 6 Definitions

Downloaded from www.Manualslib.com manuals search engine 01-330



Sensor for transverse acceleration -G200-
The lateral acceleration sensor is used to
register the speed through curves/bends on the
road and decides which side of the vehicle the
ESP is to brake.

Sender 1 for brake booster/Sensor -2- for
brake pressure -G201-/-G214-
Recognizes the pressure exerted by the driver
and is required to control the pressure of the
pre-pressure system.

Program card version
Always use the most up-to-date program card.
Further information can be found in the test unit
operating instructions.

Sporadic
Happens occasionally

Infinity
The resistance is infinite, open circuit.

= Ohm

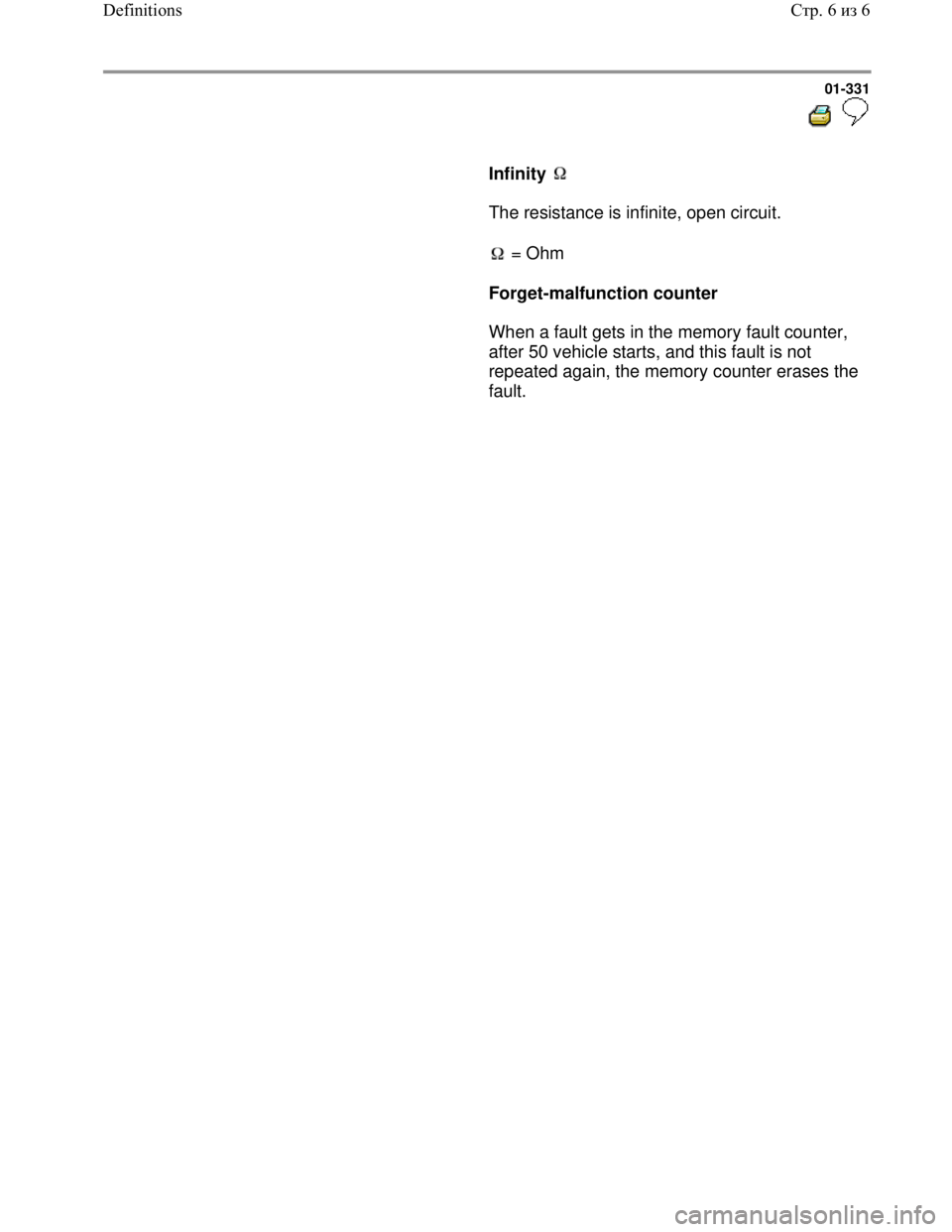

Стр. 5из 6 Definitions

Downloaded from www.Manualslib.com manuals search engine 01-331



Infinity
The resistance is infinite, open circuit.

= Ohm

Forget-malfunction counter
When a fault gets in the memory fault counter,
after 50 vehicle starts, and this fault is not
repeated again, the memory counter erases the
fault.
