1998 VOLKSWAGEN JETTA Service Manual

Downloaded from www.Manualslib.com manuals search engine 01-161


Scan tool, connecting
All functions which could previously be
performed with V.A.G 1551/1552 can also
be performed with the new tester VAS 5051
in the operating mode vehicle OBD.
Operating instructions for Vehicle
Diagnosis, Testing and Information System
VAS 5051.

Special tools and equipment
VAS 5051 Vehicle Diagnosis, Testing
and Information System
Diagnostic cable VAS 5051/1 or VAS
5051/3
The ABS function is switched off in the
control module during the On Board
Diagnostic (OBD).
The Diagnostic Trouble Code (DTC)
memory can be erased after
successfully checking and repair.
Стр. 3из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-162

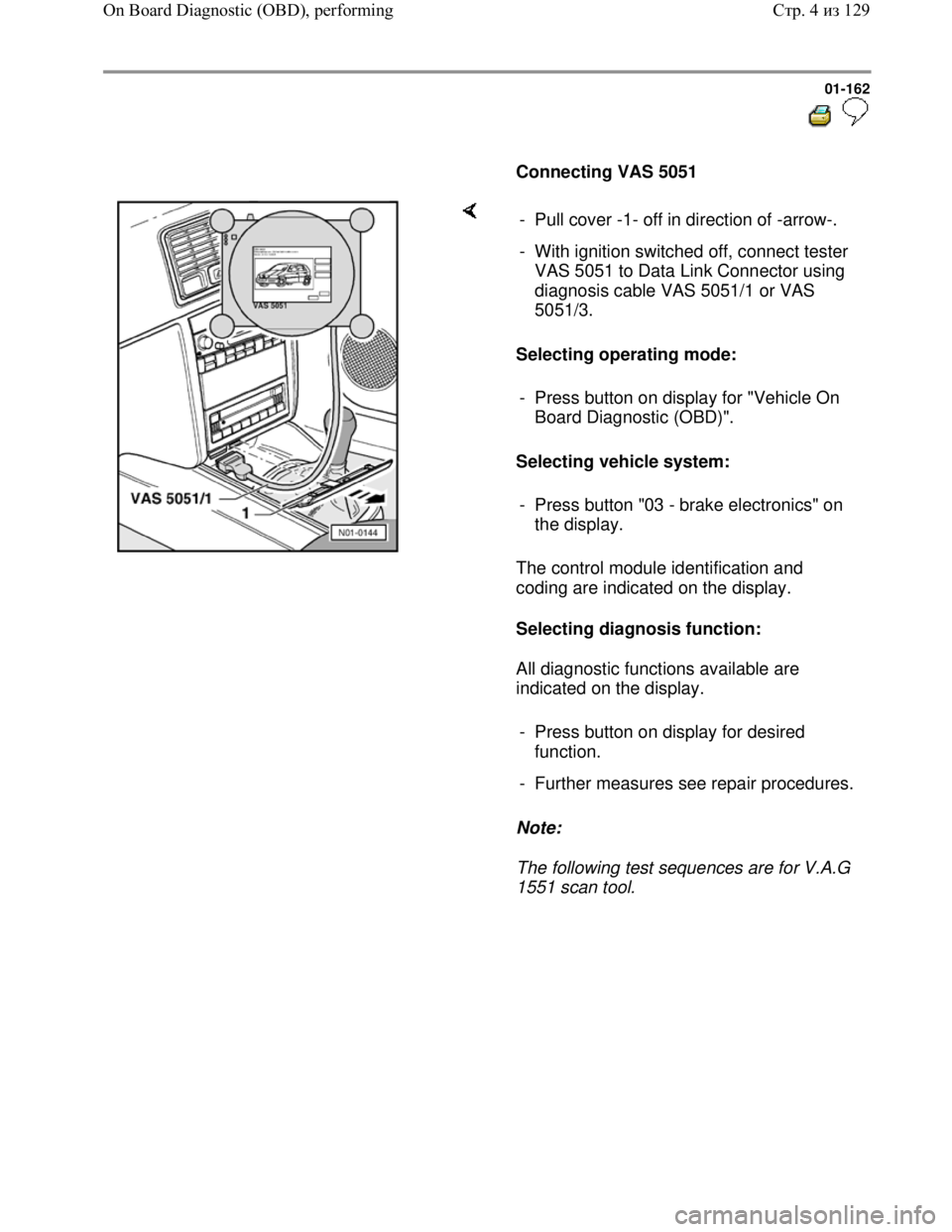

Connecting VAS 5051

Selecting operating mode:
Selecting vehicle system:
The control module identification and
coding are indicated on the display.
Selecting diagnosis function:
All diagnostic functions available are
indicated on the display.
Note:
The following test sequences are for V.A.G
1551 scan tool. - Pull cover -1- off in direction of -arrow-.
- With ignition switched off, connect tester
VAS 5051 to Data Link Connector using
diagnosis cable VAS 5051/1 or VAS
5051/3.
- Press button on display for "Vehicle On
Board Diagnostic (OBD)".
- Press button "03 - brake electronics" on
the display.
- Press button on display for desired
function.
- Further measures see repair procedures.
Стр. 4из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-163

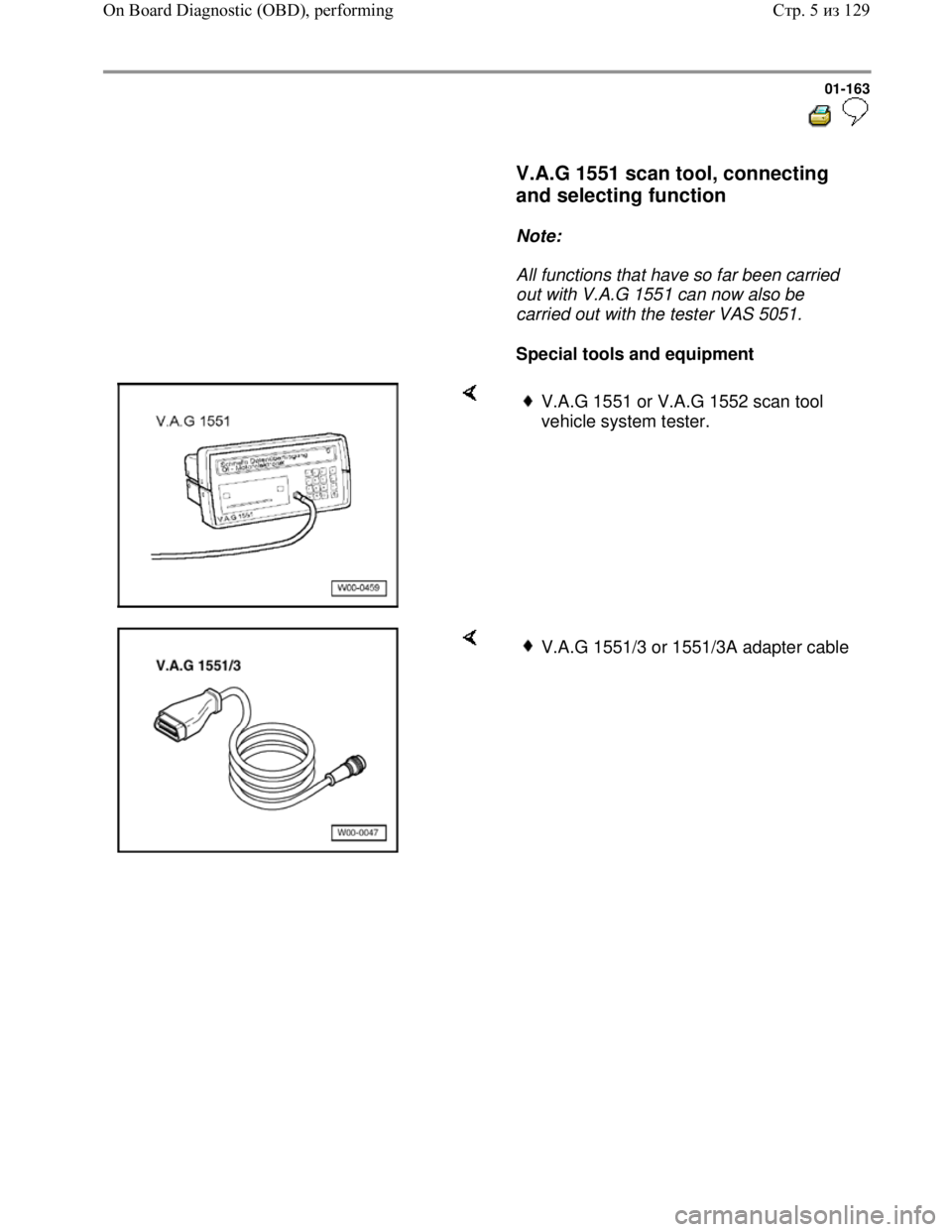

V.A.G 1551 scan tool, connecting
and selecting function


Note:
All functions that have so far been carried
out with V.A.G 1551 can now also be
carried out with the tester VAS 5051.

Special tools and equipment
V.A.G 1551 or V.A.G 1552 scan tool
vehicle system tester.
V.A.G 1551/3 or 1551/3A adapter cable
Стр. 5из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-164



Note:

The ABS function is switched off in the control
module during the OBD. This is indicated by th
e
flashing of ABS warning light -K47- and warning
light for brake system -K118-. If there is a
malfunction currently, it will be indicated by the
lights being on constantly.

The DTC memory can be erased after
successful check and repair.
- With ignition switched off, connect V.A.G 1551
to diagnostic connection using cable V.A.G
1551/3 A.
- Connect VAS 5051 Page 01
-31 .
V.A.G - On Board Diagnostic HELP
1 - Ra
pid data transfer1)
2 - Blink code output1)
Indicated on display:
1) Is displayed alternately
If the display remains blank, check Data Link
Connector connection, Electrical check, Page
01-288 , test steps 21 and 22.
Note:
Depending on the program, additional operating
information can be printed out by pressing the
HELP key of V.A.G 1551.
The key is used for moving forward within
the program
The PRINT key is used for switching on the
printer (warning lamp in key comes on).
Стр. 6из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-165



- Switch on ignition.

- Switch on printer with the Print key (indicator
lamp in key lights up).

- Press key -1- for "Rapid data transfer" operating
mode.
Rapid data transfer HELP
Enter address word XX Indicated on display:
- Press keys -0- and -3-; 03 to input address word
of vehicle system to be tested:"Brake
electronics".
Rapid data transfer Q
03 - Brake electronics Indicated on display:
- Confirm input with Q key.
1C0 907 379 E ESP FRONT MK60 0103
Coding 0011266 WSC XXXXX
And then the display shows e.g.:
Displayed is:
e.g. (1C0 907 379 E).
Allocation of control module see Parts catalog
The control module identification number.
Стр. 7из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-166


System designation (ESP).

Type of drive (front wheel).

ABS (Mark 60).

Control module coding (0011266).
Coding control module Page 01
-232 .
Workshop code
V.A.G 1551 scan tool operating
instructions
If the control module identification number
does not appear; Summary of functions
Page 01
-168 .

-
Press key.
Rapid data transfer HELP
Select function XX Indicated on display (select function, e.g. 02
- Interrogate fault memory).
Rapid data transfer HELP
Control module does not answer! Indicated on display:
- By pressing the HELP key, a list of
possible fault causes is printed out.
- After eliminating the possible causes of
malfunctions, enter the address word 03
for "Brake electronics" again and
confirm.
Стр. 8из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-167


If "control module does not answer!" again
appears:
Rapid data transfer HELP
control module does not answer! Indicated on display:
- Perform test steps 1, 2 and 3 Page
01-288 , Electrical check.
Rapid data transfer
No signal from control module!
Control module identification influenced
during checking (possibly influenced from
external sources?)
- Check diagnostic wire as well as voltage
supply and Ground connection for ABS
Control Module (w/EDL) -J104-,
Electrical check, Page 01
-288 .
- After repairing the possible causes of the
malfunction, again enter the address
word 03 for "Brake electronics" and
confirm with Q key.
Стр. 9из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-168


List of selectable functions

Page
00
- Automatic test sequence Page
01-169
01
- Check control module version
Connecting V.A.G 1551 scan
tool and selecting function Page
01-163
01
- Check control module version
Connecting tester VAS 5051 and
selecting function Page
01-31
02
- Check Diagnostic Trouble Code
(DTC) memory Page
01-170
03
- Output Diagnostic Test Mode
(DTM) Page
01-74
04
- Initiate basic setting Page
01-264
05
- Erase DTC memory Page
01-230
06
- End output Page
01-230
07
- Code control module Page
01-232
08
- Read measured value block Page
01-240
11
- Login procedure Page
01-287
Стр. 10из 129 On Board Diagnostic (OBD), performing
