Function
As the control modules are interconnected with
a data bus wire, always start troubleshooting by
the Diagnostic Trouble Code (DTC) memories
of all the control modules in the vehicle.
This occurs in "Automatic test sequence" and is
activated with key function 00.
When doing this, check to see if there are
DTCs stored which may influence the ABS.
The On Board Diagnostic (OBD) relates to the
electrical/electronic part of the ABS, in other
words only malfunctions via the electrical
connection to the control module are
recognized (e.g. speed sensor open circuit).
The 47 pin ABS Control Module (w/EDL) -J104-
forms with the hydraulic unit a compact unit.
The unit is located on the left of the engine
compartment. The control module is equipped
with a DTC memory. The Data Link Connector
(DLC) is located in the center console below
the heating/air conditioning controls.
The control module recognizes malfunctions
during vehicle operation and stores them in a
permanent memory, the contents of which
remain even during periods of no battery
voltage.
Стр. 2из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-135


Sporadic (irregular) malfunctions will also be
recognized and stored. But if malfunctions
affecting the data bus system do not occur again
within the next 15 vehicle start and driving off
sequences, or other malfunctions within the next
50 vehicle start and driving off sequences, they
will be erased from DTC memory except for the
malfunction "Control module faulty" (forget-
malfunction counter).
After switching on the ignition and/or starting the
engine, the ABS warning light -K47- and the ESP
control lamp -K155- will light up for approx. 2
seconds.
During this period a test sequence (self-check) is
run in the control module for the following
functions:

To check if the supply voltage is at least 10.0
Volt,

To check control module including the valve
windings,

To check the coding of the control module,

A static check of the speed sensor (no speed
signal),

If the wheel speed signal is not OK after the car
has been driven and a speed of approx. 20
km/h (approx. 13 mph) has been exceeded, the
ABS warning light -K47- will light up again.
Стр. 3из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-136



Features of 4MOTION
In order to utilize the engine's maximum
performance for a test, e.g. on a rolling road
test bed, the longitudinal acceleration sensor -
G251- must be switched off Page 01
-264 ,
Initiating basic setting, Display group number
040.
Switch ignition off and on again to reactivate
the longitudinal acceleration sensor -G251-.
All-wheel drive vehicles with a Haldex coupling
are equipped with EDL (Electronic Differential
Lock).

Special detail for bleeding brake systems
with ABS/EDL
If a chamber in the brake fluid reservoir has run
empty, basic setting must be performed for
bleeding the brakes Page 01
-264 .

V.A.G 1551 scan tool or tester VAS 5051
The On Board Diagnostic must be initiated at
the commencement of troubleshooting.
Electrical malfunctions which influence the
braking characteristics will be stored.
They can be checked with the V.A.G 1551
Scan Tool, Vehicles system tester V.A.G 1552
or Vehicle Diagnosis, Testing and Information
System VAS 5051.
The program card in the V.A.G 1551 must be at
least version 9.0 and in vehicle system tester
V.A.G 1552, at least version 6.0.
Стр. 4из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-137

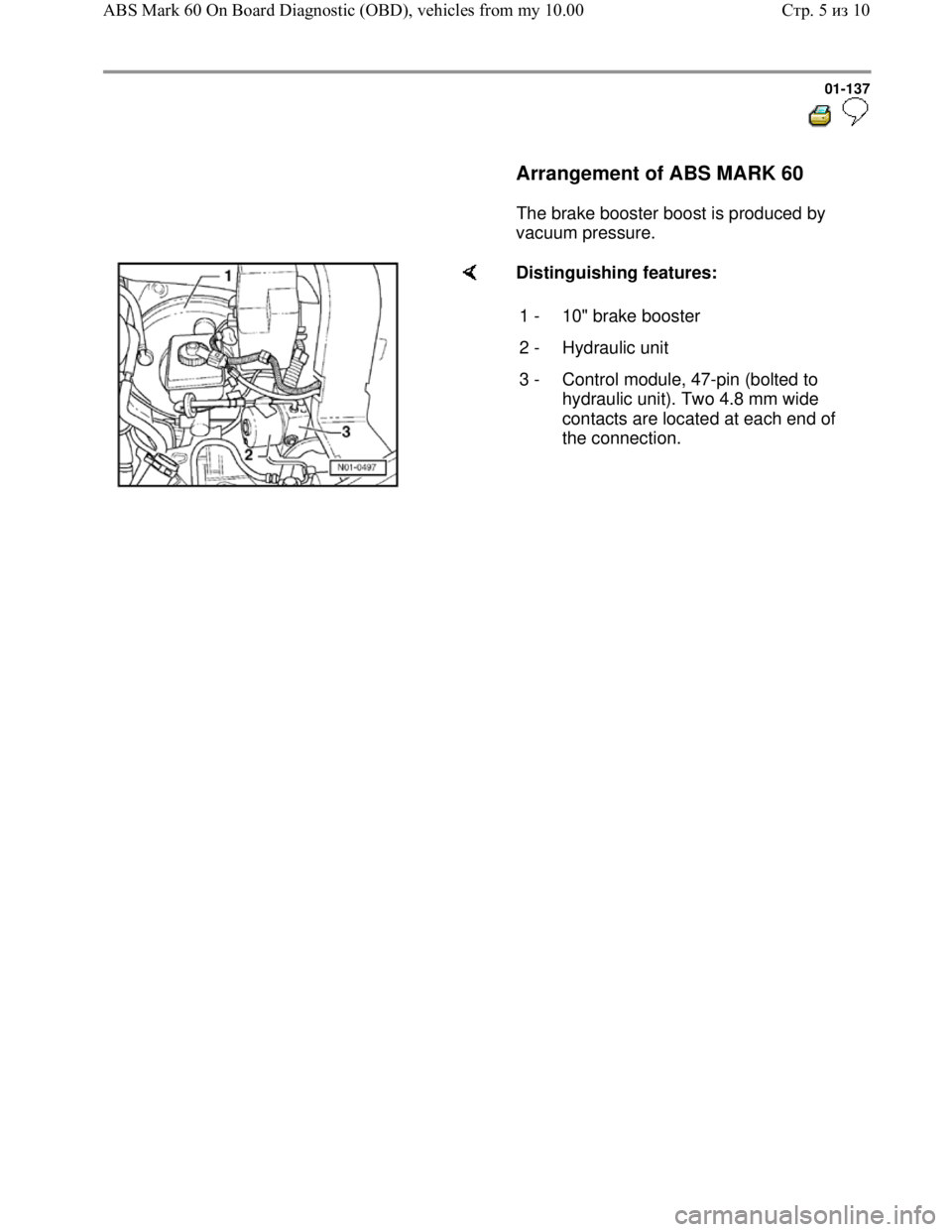

Arrangement of ABS MARK 60
The brake booster boost is produced by
vacuum pressure.
Distinguishing features:
1 - 10" brake booster
2 - Hydraulic unit
3 - Control module, 47-pin (bolted to
hydraulic unit). Two 4.8 mm wide
contacts are located at each end of
the connection.
Стр. 5из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-138


Technical data

Control module identification
The version of the control module is displayed
after the V.A.G 1551 scan tool or the tester VAS
5051 has been connected and the control
module for brake electronics has been selected
Page 01
-163 .

1C0 907 379 C /
J ABS
1C0 907 379 D /
K ABS/EDL/ASR
1C0 907 379 E /
G ABS/EDL/ASR/ESP
1C0 907 379 F /
H ABS/EDL/ASR/ESP
4MOTION

Diagnostic Trouble Code (DTC) memory
A non-volatile memory ensures that the contents
of the DTC memory are retained even without
voltage.
Data output takes place on V.A.G 1551 scan tool
in operating mode 1 (rapid data transfer), and on
tester VAS 5051 in operating mode "vehicle
OBD".
Стр. 6из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-139


Safety precautions and fundamental
points regarding troubleshooting


Note:

The ABS is a vehicle safety system; the
appropriate knowledge is necessary to work on
the system.

In order to check complaints and to be able to
carry out pin-pointed troubleshooting, the
Diagnostic Trouble Code (DTC) memory must
be checked before commencing work on the
ABS system.

Only separate connectors when the ignition is
switched off.

Observe the appropriate instructions regarding
the handling of brake fluid.
Repair Manual, Brake System, Repair Group
47
ABS malfunctions are indicated by the ABS
warning light illuminating. Certain malfunctions
will only be recognized at speeds above 20
km/h (approx. 13 mph) (carry out road test).

If the ABS -K47- and the brake system -K118-
warning lights do not illuminate, but the brake
system is not functioning correctly then the
malfunction must be sought in the conventional
braking system.
Repair Manual, Brake System, Repair Group
45
Стр. 7из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-140



Technical information

Electrical Wiring Diagrams, Troubleshooting
&Component Locations binder
Repair Manual, Brake System
Repair Manual, Suspension, Wheels,
Steering
Стр. 8из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-141


Troubleshooting with V.A.G 1551 scan tool or tester VAS 5051 on ABS Mark 60
(flow chart)




Start
Connect V.A.G 1551 Scan Tool and
select 1-rapid data transfer

or Connect tester VAS
5051 and select
vehicle self-
diagnosis




Compare control
module
identification
Select address word 03-Brake
electronics







Check DTC memory
02







Correct DTCs using DTC table No DTCs
recognized









Read measured
value block 08 Perform output Diagnostic
Test Mode (DTM) 03












Replace
comp.

1. Perform test drive at more than 20
km/h





2. Check DTC memory 02 again





3. "No DTCs recognized" is
displayed again








A B
C
D
E
