1998 TOYOTA SIENNA Owners Manual

name. SIENNA (U)
249
Fuses

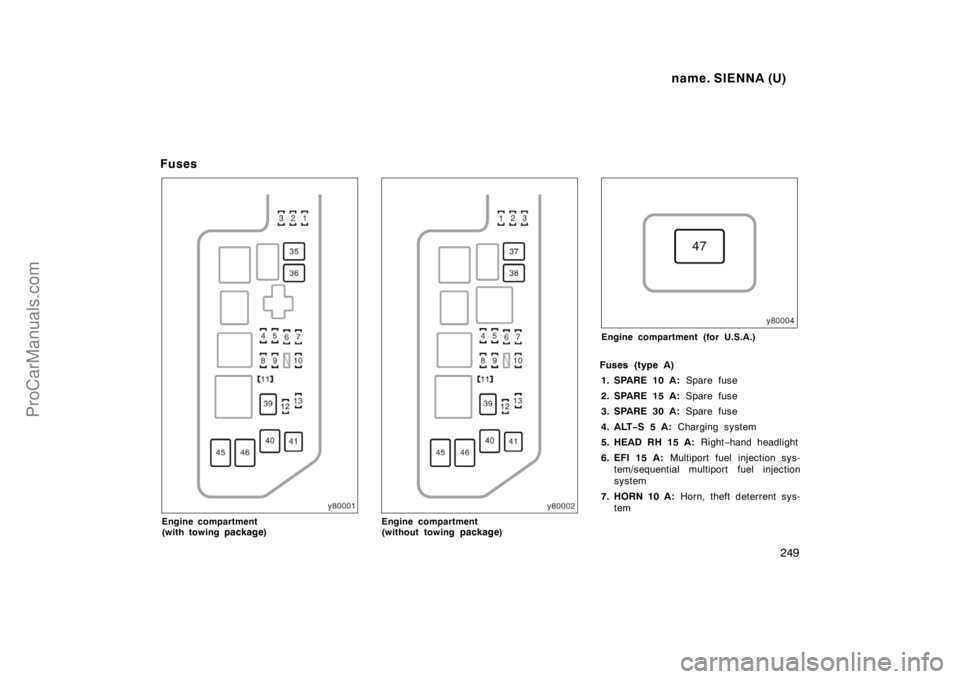

Engine compartment
(with towing package)Engine compartment
(without towing package)
Engine compartment (for U.S.A.)
Fuses (type A)
1. SPARE 10 A: Spare fuse
2. SPARE 15 A: Spare fuse
3. SPARE 30 A: Spare fuse
4. ALT−S 5 A: Charging system
5. HEAD RH 15 A: Right−hand headlight
6. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
7. HORN 10 A: Horn, theft deterrent sys-
tem
ProCarManuals.com

name. SIENNA (U)
250

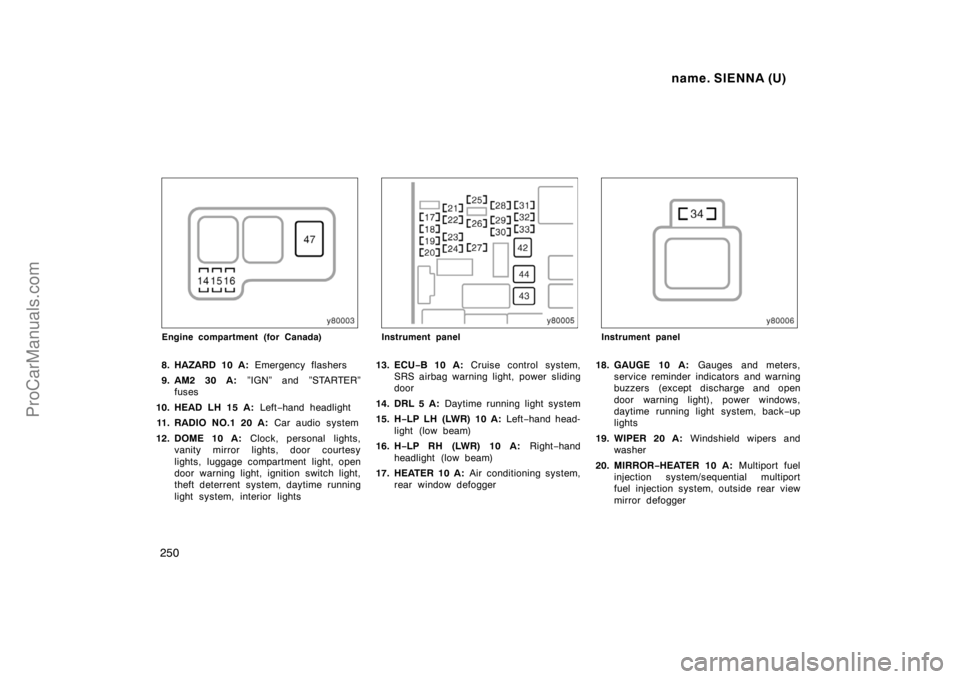

Engine compartment (for Canada)
8. HAZARD 10 A: Emergency flashers
9. AM2 30 A: ”IGN” and ”STARTER”
fuses
10. HEAD LH 15 A: Left−hand headlight
11. RADIO NO.1 20 A: Car audio system
12. DOME 10 A: Clock, personal lights,
vanity mirror lights, door courtesy
lights, luggage compartment light, open
door warning light, ignition switch light,
theft deterrent system, daytime running
light system, interior lights
Instrument panel
13. ECU−B 10 A: Cruise control system,
SRS airbag warning light, power sliding
door
14. DRL 5 A: Daytime running light system
15. H−LP LH (LWR) 10 A: Left−hand head-
light (low beam)
16. H−LP RH (LWR) 10 A: Right−hand
headlight (low beam)
17. HEATER 10 A: Air conditioning system,
rear window defogger
Instrument panel
18. GAUGE 10 A: Gauges and meters,
service reminder indicators and warning
buzzers (except discharge and open
door warning light), power windows,
daytime running light system, back−up
lights
19. WIPER 20 A: Windshield wipers and
washer
20. MIRROR−HEATER 10 A: Multiport fuel
injection system/sequential multiport
fuel injection system, outside rear view
mirror defogger
ProCarManuals.com

name. SIENNA (U)
251
21. ECU−IG 15 A: Cruise control system,
anti−lock brake system, locking with
wireless remote control system, theft
deterrent system
22. IGN 5 A: Gauges and meters, charg-
ing system, SRS airbag system, seat
belt pretensioners, multiport fuel injec-
tion system/sequential multiport fuel in-
jection system
23. STOP 15 A: Stop lights, cruise control
system, high−mounted stoplight, tail
lights
24. TAIL 10 A: Parking lights, front side
marker lights, license plate lights, tail
lights
25. PWR−VENT 15 A: Power rear quarter
windows
26. OBD 7.5 A: On−board diagnosis sys-
tem
27. PWR−OUTLET 15 A: Power outlet
28. STARTER 5 A: Gauges and meters,
SRS airbag system, seat belt preten-
sioners, multiport fuel injection system/
sequential multiport fuel injection sys-
tem
29. DOOR 20 A: Power door lock system,
theft deterrent system30. PANEL 7.5 A: Gauge and meter, car
audio system, clock, air conditioning
system, instrument panel light control,
rear window defogger, electronically
controlled automatic transmission sys-
tem, emergency flashers, parking lights
31. TURN 7.5 A: Turn signal lights, emer-
gency flashers
32. RADIO NO.2 7.5 A: Car audio system
33. CIG 15 A: Cigarette lighter, clock, pow-
er rear view mirror controls, SRS air-
bag system, seat belt pretensioners,
back−up lights, theft deterrent system
34. A/C 5 A: Air conditioning system
Fuses (type B)
35. CDS 40 A: Electric cooling fans
36. RDI 40 A: Electric cooling fans
37. CDS 30 A: Electric cooling fans
38. RDI 30 A: Electric cooling fans
39. MAIN 40 A: ”DRL”, ”HEAD RH” and
”HEAD LH” fuses
40. R/R A/C 40 A: Rear air conditioning
system
41. HTR 50 A: Air conditioning system
42. DEF 30 A: Rear window defogger,
“MIRROR−HEATER” fuse43. AM1 40 A: “INP” fuse
44. PWR 30 A: Power windows, electric
moon roof, power seat, power sliding
door, “PWR−VENT” fuse
Fuses (type C)
45. ALT 140 A: Charging system, “FL
ABS”, “INP”, “HTR” and “R/R A/C”
fuses
46. INP 100 A: “AM1” and “DEF” fuses
47. FL ABS 60 A: Anti−lock brake system
ProCarManuals.com

name. SIENNA (U)
252
ProCarManuals.com

name. SIENNA (U)
253
Part 9
REPORTING SAFETY
DEFECTS FOR U.S.
OWNERS AND
UNIFORM TIRE
QUALITY GRADING
Reporting safety defects for U.S.
owners
Uniform tire quality grading
If you believe that your vehicle has
a defect whi ch coul d cause a cr ash
or could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Ad-
ministration (NHTSA) in addition to
notifying Toyota Motor Sales,
U.S.A., Inc.
(Toll−free: 1−800−331−4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety de-
fect exists in a group of vehicles, it
may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual prob-
lems between you, your dealer, or
Toyota Motor Sales, U.S.A., Inc.To contact NHTSA, you may either
call the Auto Safety Hotline toll−free
at 1−800−424−9393 (or 366−0123 in
Washington.D.C. area) or write to:
NHTSA. U.S.Department of Trans-
portation. Washington.D.C. 20590.
You can also obtain other information
about motor vehicle safety from the
Hotline.
Reporting safety defects
for U.S. owners
ProCarManuals.com

name. SIENNA (U)
254
Uniform tire quality grading
This information has been prepared in ac-
cordance with regulations issued by the
National Highway Traffic Safety Adminis-
tration of the U.S. Department of Trans-
portation. It provides the purchasers and/
or prospective purchasers of Toyota
vehicles with information on uniform tire
quality grading.
Your Toyota dealer will help answer any
questions you may have as you read this
information.
DOT quality grades—All passenger ve-
hicle tires must conform to Federal
Safety Requirements in addition to
these grades. These quality grades are
molded on the sidewall.
Treadwear—The treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (1−1/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.Traction A, B, C—The traction grades,
from highest to lowest, are A, B, and C,
and they represent the tire’s ability to stop
on wet pavement as measured under con-
trolled conditions on specified government
test surfaces of asphalt and concrete. A
tire marked C may have poor traction per-
formance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.
Temperature A, B, C—The temperature
grades are A (the highest), B, and C,
representing the tire’s resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades
B and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure.
ProCarManuals.com

i
Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle we
build.
This Owner ’s Manual explains the features of your new Toyota. Please read it and
follow the instructions carefully so that you can enjoy many years of safe motoring.
When it comes to service, remember that your Toyota dealer knows your vehicle
best and is interested in your complete satisfaction. He will provide quality mainte-
nance and any other assistance you may require.
Please leave this Owner ’s Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of
printing. However, because of Toyota’s policy of continual product improve-
ment, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
©1998 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of Toyota Motor Corporation.
ProCarManuals.com

Publication No. OM45402U
Part No. 01999-45402
Printed in Japan 01−9803−00
(U)
Quick index
If a service reminder indicator or warning buzzer comes on 106. . . .
If your vehicle will not start 189. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 192. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 193. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 194. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 202. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving during break-in period 167. . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 179. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 214. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octan Rating 87 (Research Octane Number
91) or higher.
For improved vehicle performance, the use of premium unleaded
gasoline with an Octane Rating of 91 (Research Octane Number
96) or higher is recommended.
See page 167 for detailed information.
Fuel tank capacity:
79 L (21 gal., 17.5 lmp. gal.)
Engine oil:
API grade SH, ’’Energy−Conserving II’’ or SJ, ’’Energy−Conserving’’
multigrade engine oil or ILSAC multigrade engine oil is
recommended.
See page 226 for detailed information.
Automatic transmission fluid:
Automatic transmission fluid D−II or DEXRONIII (DEXRONII)
Tire information: See pages 229 through 233.
