Part 1
OPERATION OF
INSTRUMENTS
AND CONTROLS—
Chapter 1−1
Overview of instruments
and controls
Instrument panel overview
Instrument cluster overview
Indicator symbols on the
instrument panel
ProCarManuals.com

name. SIENNA (U)
2

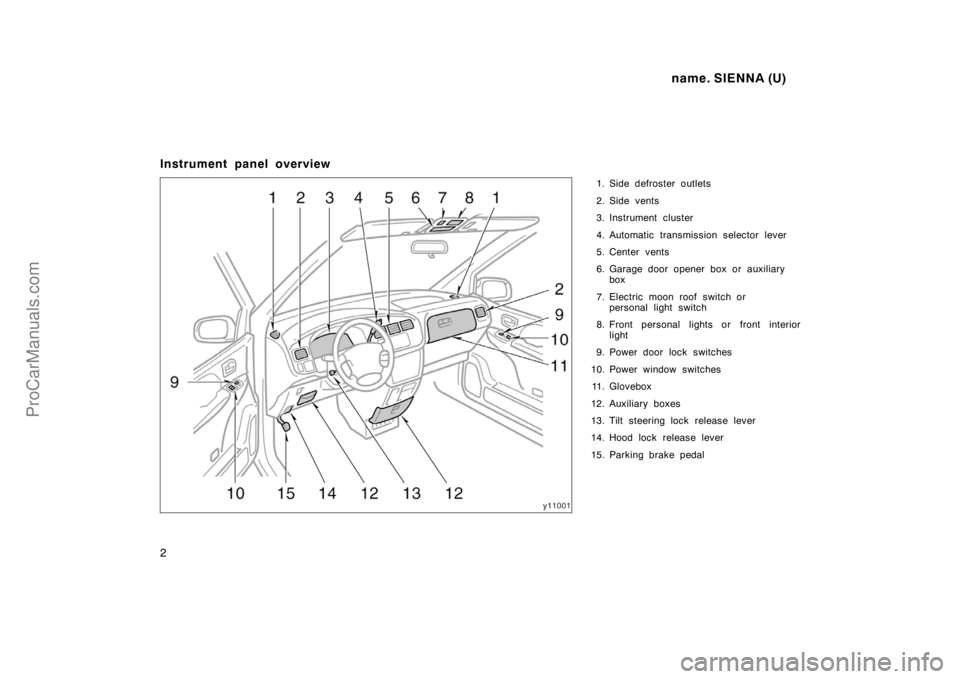

Instrument panel overview
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Automatic transmission selector lever
5. Center vents
6. Garage door opener box or auxiliary
box
7. Electric moon roof switch or
personal light switch
8. Front personal lights or front interior
light
9. Power door lock switches
10. Power window switches
11. Glovebox
12. Auxiliary boxes
13. Tilt steering lock release lever
14. Hood lock release lever
15. Parking brake pedal
ProCarManuals.com

name. SIENNA (U)

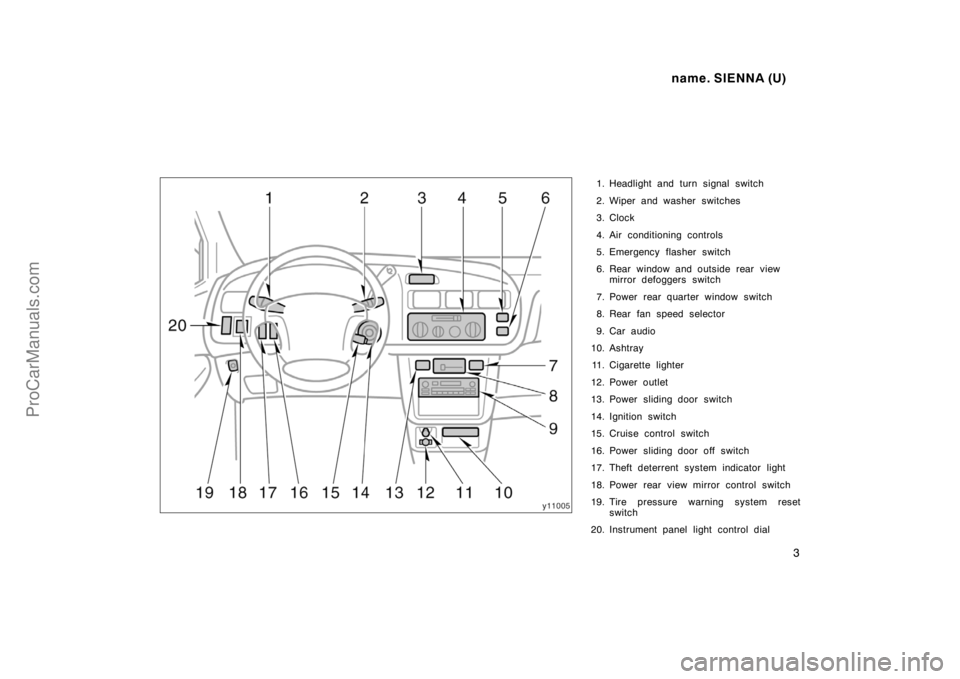

3
1. Headlight and turn signal switch
2. Wiper and washer switches
3. Clock
4. Air conditioning controls
5. Emergency flasher switch
6. Rear window and outside rear view
mirror defoggers switch
7. Power rear quarter window switch
8. Rear fan speed selector
9. Car audio
10. Ashtray
11. Cigarette lighter
12. Power outlet
13. Power sliding door switch
14. Ignition switch
15. Cruise control switch
16. Power sliding door off switch
17. Theft deterrent system indicator light
18. Power rear view mirror control switch
19. Tire pressure warning system reset
switch
20. Instrument panel light control dial
ProCarManuals.com

name. SIENNA (U)

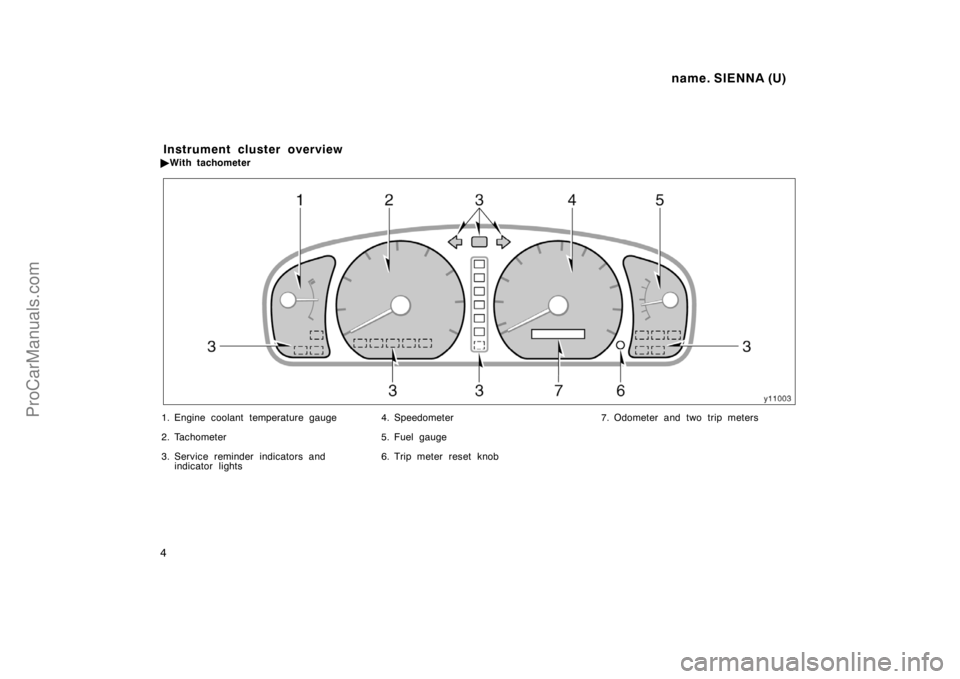

4
With tachometer
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights4. Speedometer
5. Fuel gauge
6. Trip meter reset knob7. Odometer and two trip meters
Instrument cluster overview
ProCarManuals.com

name. SIENNA (U)
5

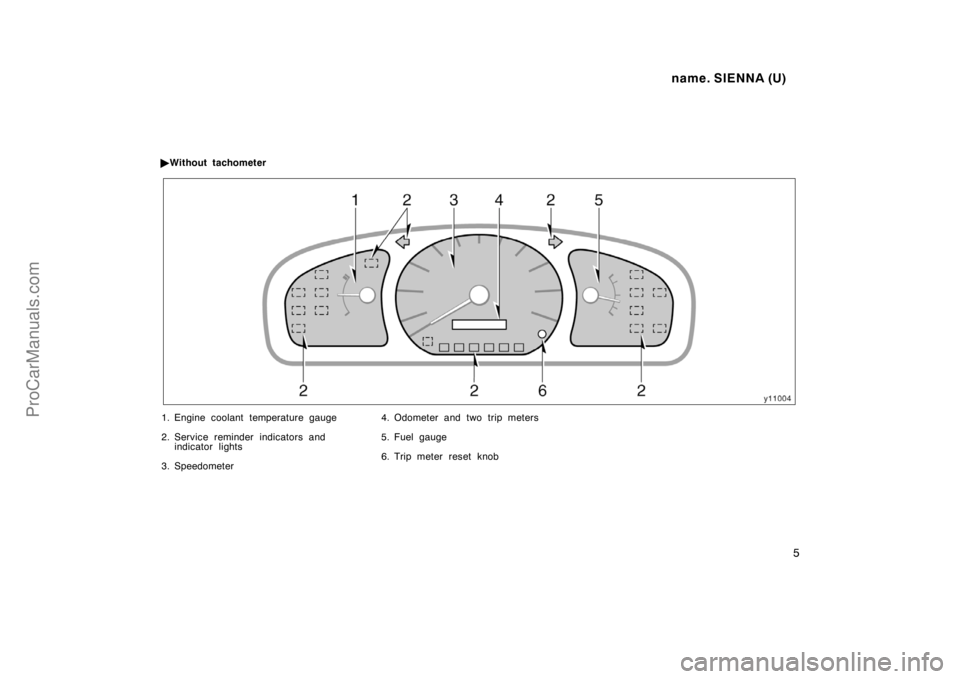

Without tachometer
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Speedometer4. Odometer and two trip meters
5. Fuel gauge
6. Trip meter reset knob
ProCarManuals.com

name. SIENNA (U)
6
Indicator symbols on the instrument panel
Brake system warning light∗
1
Seat belt reminder light∗
1
Malfunction indicator lamp∗
1
Low fuel level warning light∗
1
(type A)
Low oil level warning light∗
1
(type B)
Discharge warning light
∗
1
(type A)
(type B)
(type A)
(type B)Anti−lock brake system warning light∗
1
Open door warning light∗
1
SRS airbag warning light∗
1
Low windshield washer fluid level warning light∗
1
Low tire pressure warning light∗
1
Open power sliding door warning light∗
1
ProCarManuals.com

name. SIENNA (U)
7
Overdrive−off indicator light
Cruise control indicator light
∗
2
Automatic transmission indicator light
∗
1: For details, see ”Service reminder indicators and warning
buzzers” in Chapter 1−5.
∗
2: If this light flashes, see ”Cruise control” in Chapter 1−6. Headlight high beam indicator light Turn signal indicator lights
ProCarManuals.com

name. SIENNA (U)
8
