1998 TOYOTA SIENNA Owners Manual

name. SIENNA (U)
241

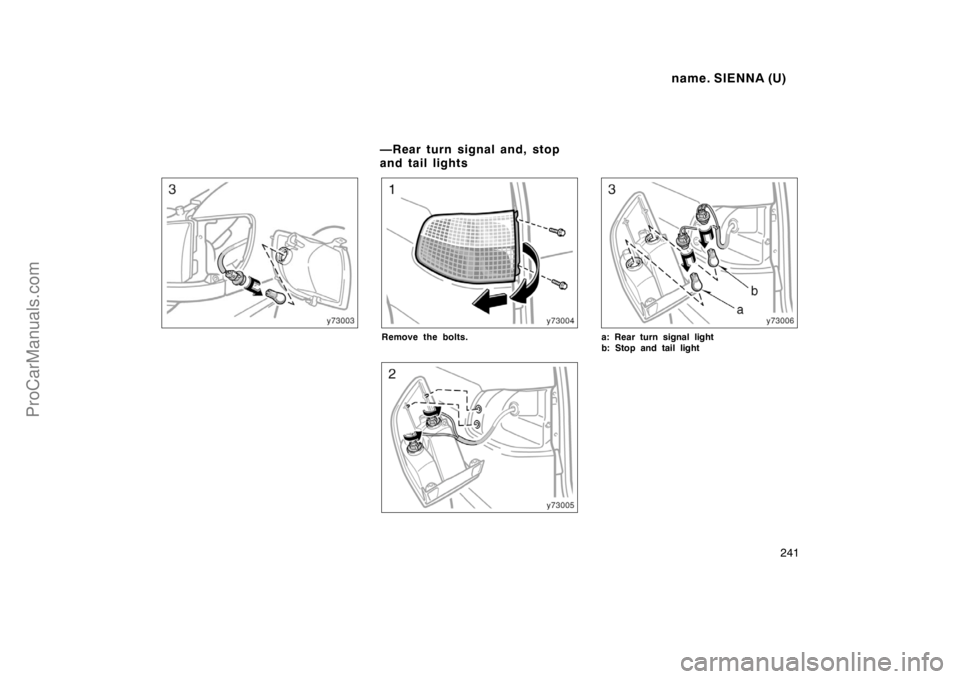

Remove the bolts.a: Rear turn signal light
b: Stop and tail light
—Rear turn signal and, stop
and tail lights
ProCarManuals.com

name. SIENNA (U)
242
Left side of the vehicle
Right side of the vehicle
Remove the strap and handle.
a: Stop and tail light
b: Back−up light
—Stop and tail, and back−up
lights
ProCarManuals.com

name. SIENNA (U)
243
—License plate lights
Use a phillips−head screwdriver.
—High mounted stoplight
Use a Phillips−head screwdriver.
ProCarManuals.com

name. SIENNA (U)
244
ProCarManuals.com

name. SIENNA (U)
245
Part 8
SPECIFICATIONS
Dimensions and weight
Engine
Fuel
Service specifications
Ti r es
Fuses
Dimensions and weight
ProCarManuals.com

name. SIENNA (U)
246
Engine
Model:
1MZ−FE
Type:
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.):
87.5 x 83.0 (3.44 x 3.27)
Displacement, cm
3 (cu. in.):
2995 (182.8)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the use
of premium unleaded gasoline with an
Octane Rating of 91 (Research Octane
Number 96) or higher is recommended.
Fuel tank capacity, L (gal., Imp. gal.):
79 (21, 17.5)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO PK20TR11
NGK BKR6EKPB11
Spark plug gap, mm(in.):
1.1 (0.043)
Drive belt tension measured with Borroughs
drive belt tension gauge No. BT−33−73F
(used belt), Ibf:
Generator belt 12510
Power steering pump belt 11520
ProCarManuals.com

name. SIENNA (U)
247
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
Oil grade:
API grade SH, ”Energy−Conserving II” or
SJ, ”Energy−Conserving” multigrade en-
gine oil or ILSAC multigrade engine oil is
recommended.

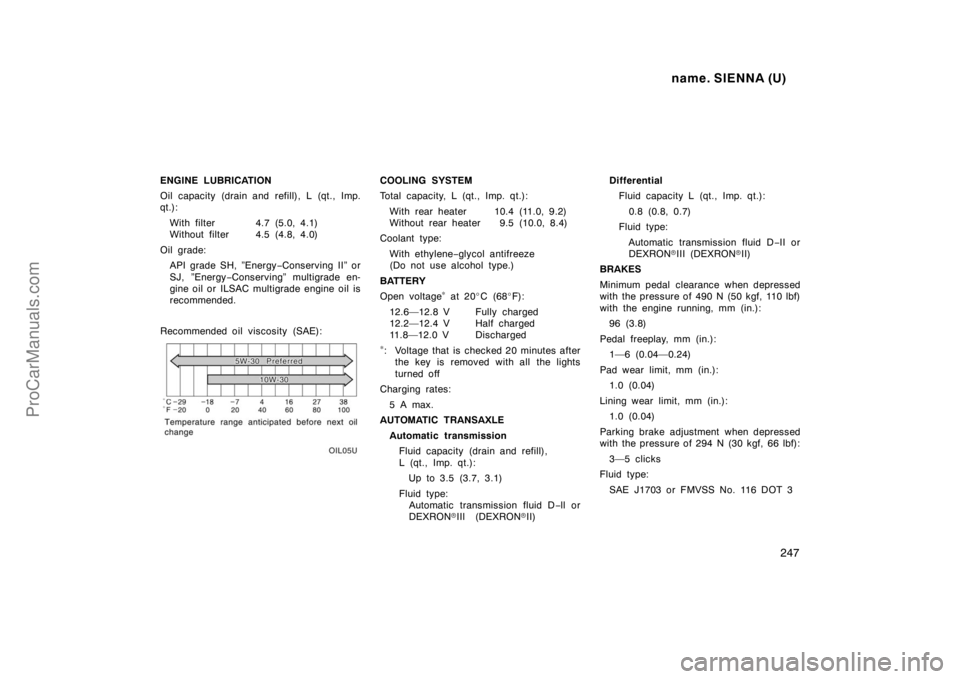

Recommended oil viscosity (SAE):COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
With rear heater 10.4 (11.0, 9.2)
Without rear heater 9.5 (10.0, 8.4)
Coolant type:
With ethylene−glycol antifreeze
(Do not use alcohol type.)
BATTERY
Open voltage
∗ at 20C (68F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes after
the key is removed with all the lights
turned off
Charging rates:
5 A max.
AUTOMATIC TRANSAXLE
Automatic transmission
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 3.5 (3.7, 3.1)
Fluid type:
Automatic transmission fluid D−ll or
DEXRONIIl (DEXRONII)Differential
Fluid capacity L (qt., Imp. qt.):
0.8 (0.8, 0.7)
Fluid type:
Automatic transmission fluid D−II or
DEXRONIII (DEXRONII)
BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
96 (3.8)
Pedal freeplay, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when depressed
with the pressure of 294 N (30 kgf, 66 lbf):
3—5 clicks
Fluid type:
SAE J1703 or FMVSS No. 116 DOT 3
ProCarManuals.com

name. SIENNA (U)
248
STEERING
Wheel freeplay:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III
Tires
Wheel nut torque, Nm (kgfm, ftlbf):
104 (10.5, 77)Tire sizeTire pressure,
kPa (kgf/cm
2 or bar, psi)Wheel size
P205/70R15 95S240 (2.4, 35)
15 x 6.5JJ
220 (2.2, 32)
T145/80D16 420 (4.2, 60)
15 x 6.5JJ
16 x 4T P215/65R15 95S Normal driving
Trailer towing
Tire sizeTire pressure,
kPa (kgf/cm
2 or bar, psi)Wheel size
P205/70R15 95S 240 (2.4, 35) 15 x 6.5JJ
240 (2.4, 35)
15 x 6.5JJ P215/65R15 95S
When driving under the above vehicle load conditions at sustained high
speeds above 160 km/h (100 mph), in countries where such speeds are
permitted by−law, inflate the front and rear tires to 240 kPa (2.4 kgf/cm
2
or bar, 35 psi) provided that it does not exceed the maximum cold tire
pressure molded on the tire sidewall. Tire size and pressure:
