1998 TOYOTA SIENNA Owners Manual

name. SIENNA (U)
137
For high−pitch tone adjustment, push
“AUDIO CONTROL / MODE” repeatedly
until “TRE” appears on the display. Then
turn the knob to suit your preference.
The display will show the range from
“TRE −5” to “TRE 5”.
Sound balance adjustment function—
This knob is also to adjust the sound
balance between the front and rear, and
the right and left speakers.
For front/rear adjustment, push “AUDIO
CONTROL / MODE” repeatedly until “FAd”
appears on the display. Then turn the
knob to adjust the front/rear balance.
The display will show the range from “FAd
F7” to “FAd R7”.
For left/right adjustment, push “AUDIO
CONTROL / MODE” repeatedly until “BAL”
appears on the display. Then turn the
knob to adjust the left/right balance.
The display will show the range from “BAL
L7” to “BAL R7”.CD (Compact Disc)
Push “CD” to switch from radio or cas-
sette operation to compact disc operation.
If the audio system is off, you can turn
on the compact disc player by pushing
“CD”. In both cases, a disc must already
be loaded in the player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push “CD”, the
system changes between built−in single
disc player and automatic changer.
Your audio system shows six different dis-
play if the player malfunctions.
If “WAIT” appears on the display, it indi-
cates inside the player unit may be too
hot due to the very high ambient tempera-
ture. Remove the disc or magazine from
the player and allow the player to cool
down.
If “Err 1” appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up−side down. Clean the
disc or insert it correctly.If “Err 2” appears on the display, it
indicates no disc is loaded inside the
magazine, insert a disc.
If “Err 3” or “Err 4” on the display, it
indicates there is a trouble inside the sys-
tem. Eject the disc or magazine. Set the
disc or magazine again.
If “OPEn” appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not recovered, take
your vehicle to your Toyota dealer.
DISC
∨∧
Compact disc auto changer only—
By using this button, you can select a
disc you wish to listen to.
Push the either side of the button until the
number of the disc you want to listen to
appears on the display.
ProCarManuals.com

name. SIENNA (U)
138
Dolby B NR∗
If you are listening to a tape that was
recorded with Dolby B Noise Reduction,
push the button marked with the double−D
symbol. The double−D symbol will appear
on the display. Push the button again to
turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. ”DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
MTL (Metal) Display
If a metal or chrome equivalent cassette
tape is put in the cassette player, the
player will automatically adapt to it and
“MTL” will appear on the display.PROG (Program)
Push “PROG” to select the other side of
a cassette tape. The display indicates
which side is currently selected (“
” indi-
cates top side, “
” indicates bottom
side).
Auto−reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
PWR·VOL (Power·Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RAND (Random)
There are two random features—you can
either listen to the tracks on all the com-
pact discs in the magazine in random or-
der, or only listen to the tracks on a
specific compact disc in random order.Random playing for the tracks on a disc:
Quickly push and release “RAND”. “RAND”
will appear on the display and the disc
you are listening to in random order. If
you hear a beep, you held the button too
long, and the player will play all the
tracks in the magazine in random order.
To turn off the random feature, push the
“RAND” a second time.
Compact disc auto changer only—
Random playing for all the tracks in the
magazine:
Push and hold “RAND” until you hear a
beep. “D·RAND” will appear on the dis-
play and the player will perform all the
tracks on all the discs in the magazine in
random order. To turn off the random fea-
ture, push “RAND” a second time.
RPT (Repeat)
Cassette Player
Push “RPT” while the track is playing.
“RPT” will appear on the display. When
the track ends, it will automatically be
rewound and replayed. This process will
be continued until you push the button
again to turn off the repeat feature.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
ProCarManuals.com

name. SIENNA (U)
139
Compact Disc Player
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” while the
track is playing. “RPT” will appear on the
display. If you hear a beep, you held the
button too long, and the player will repeat
the whole disc. When the track ends, it
will automatically be replayed. This pro-
cess will be continued until you push the
button again to turn off the repeat feature.
Compact disc auto changer only—
Repeating a disc:
Push and hold “RPT” until you hear a
beep. “D·RPT” will appear on the display.
The player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the top track of the disc and replay.
This process will be continued until you
push the button again to turn off the re-
peat feature.SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “SCAN” until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for a
few seconds, and then move to the next
preset station. To select a station, push
“SCAN” a second time.
To scan all the frequencies:
Quickly push and release “SCAN”. If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for a few
seconds, and then scan again. To select
a station, push “SCAN” a second time.Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning for the tracks on a disc:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first tracks of all the discs
in the magazine. To select a track, push
the “SCAN” a second time. If the player
scanned all the tracks on the disc, it will
stop scanning.
Compact disc auto changer only—
Scanning for the first tracks of all the
discs in the magazine:
Push “SCAN” until you hear a beep.
“D·SCAN” will appear on the display and
the player will perform the first track of
the next disc. To select a disc, push the
“SCAN” a second time. If the player has
scanned all the discs, it will stop scan-
ning.
ProCarManuals.com

name. SIENNA (U)
140
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, push and hold the “∧”
or “∨” side of “SEEK” until you hear a
beep. Do this again to find another sta-
tion.
Cassette Player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
“FF 1” or “REW 1” will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off.When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until “REW
3” appears on the display.
If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced.
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.SKIP
The skip feature allows you to fast for-
ward past long stretches of blank tape.
This is especially useful at the end of
cassettes.
Push “SKIP”. “SKIP” will appear on the
display. The cassette player will keep
track of how much blank space it plays.
Any time it has played about 10 seconds
of blank tape, it will automatically fast
forward to the next track and begin to
play.
Push the button a second time to turn off
the skip feature.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
ProCarManuals.com

name. SIENNA (U)
141
TA P E
Push “TAPE” to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing “TAPE”.
In both cases, a cassette must already be
loaded in the player.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return the beginning of the current track,
push the down side of the button one
time, quickly.
TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Push and release the “∧” (up) or
“∨” (down) side of “TUNE” to step up or
down the station band. (If you hear a
beep, you held the button too long and
the radio will go into the seek mode.)NOTICE
To ensure the correct audio system
operation:
Be careful not to spill beverages
over the audio system.
Do not put anything other than a
cassette tape or Compact Disc into
the slot.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range, and the farther you
are from a station, the weaker its signal
will be. In addition, reception conditions
change constantly as your vehicle moves.Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi−path—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
—Car audio system operating
hints
ProCarManuals.com

name. SIENNA (U)
142
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For high performance from your cassette
player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)Use high−quality cassettes.
Low−quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto−reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Use only compact discs labeled as
shown.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
ProCarManuals.com

name. SIENNA (U)
143
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening
to them. Store them in their plastic
cases away from moisture, heat, and
direct sunlight.
To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint−free cloth. Do not use a conventional
record cleaner or anti−static device.
A new disc may have rough edges on
its inner and outer perimeter. Remove
the rough edges by pressing the side
of a ball−point pen or pencil against
the inner and outer perimeter of the
disc as shown.
If you continue to play a disc with rough
edges, flakes will fall on to the signal side
of the disc and cause sound skipping or
other problems.
CAUTION
Compact disc players use invisible la-
ser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly as instructed.
ProCarManuals.com

name. SIENNA (U)
144

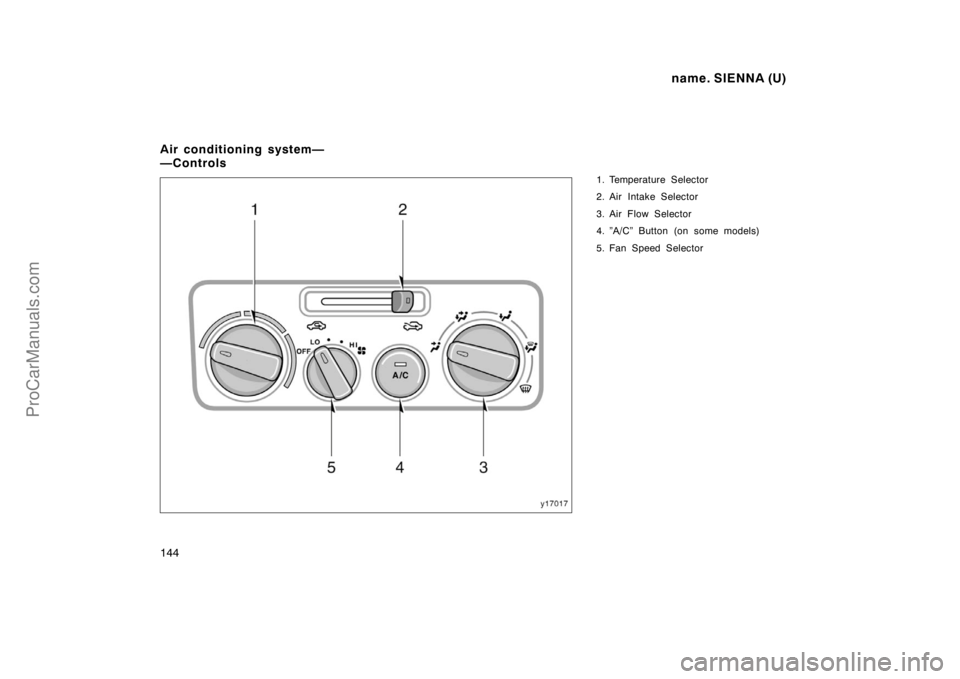

1. Temperature Selector
2. Air Intake Selector
3. Air Flow Selector
4. ”A/C” Button (on some models)
5. Fan Speed Selector
Air conditioning system—
—Controls
ProCarManuals.com
