1998 PONTIAC FIREBIRD Owners Manual

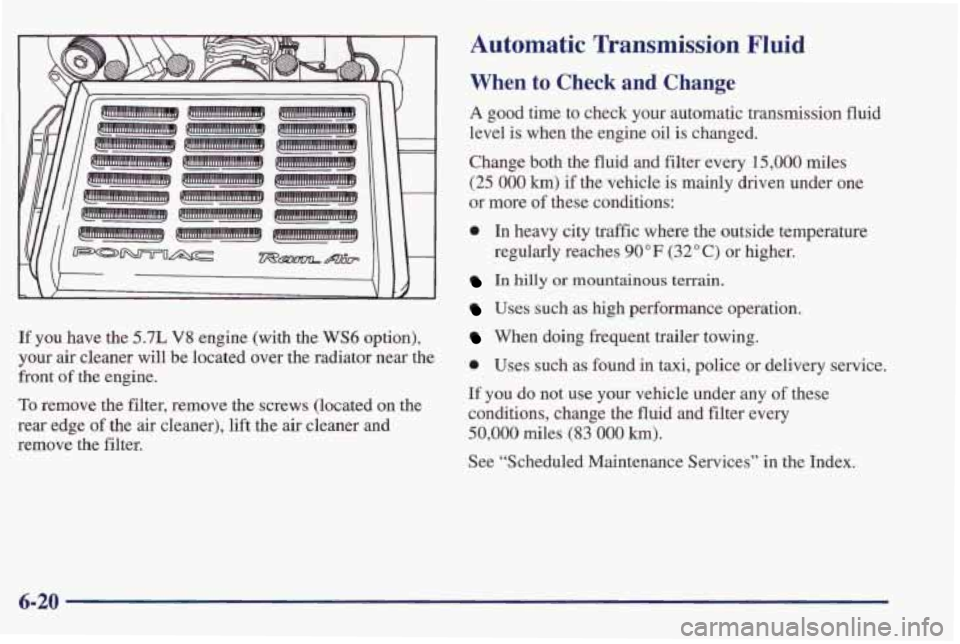

If you have the 5.7L V8 engine (with the WS6 option),
your air cleaner will be located over the radiator near the
front of the engine.
To remove the filter, remove the screws (located on the
rear edge of the air cleaner), lift the
air cleaner and
remove the filter.
Automatic Transmission Fluid
When to Check and Change
A good time to check your automatic transmission fluid
level is when
the engine oil is changed.
Change both the fluid and filter every
15,000 miles
(25 000 km) if the vehicle is mainly driven under one
or more
of these conditions:
0 In heavy city traffic where the outside temperature
regularly reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
Uses such as high performance operation.
When doing frequent trailer towing.
0 Uses such as found in taxi, police or delivery service.
If you
do not use your vehicle under any of these
conditions, change the fluid and filter every
50,000 miles (83 000 km).
See “Scheduled Maintenance Services” in the Index.
6-20

How to Check
Because this operation can be a little difficult, you may
choose to have
this done at your Pontiac dealership
Service Department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading on the dipstick.
NOTICE:
Too much or too little fluid can damage your
transmission.
Too much can mean that some of
the fluid could come out and fall on hot engine
parts
or exhaust system parts, starting a fire. Be
sure to get an accurate reading if you check your transmission fluid.
Wait at least 30 minutes before checking the
transmission fluid level
if you have been driving:
When outside temperatures are above 90°F (32°C).
At high speed for quite a while.
In heavy traffic -- especially in hot weather.
While pulling a trailer.
To get the right reading, the fluid should be at
normal operating temperature, which
is 180°F to
200°F (82°C to 93°C). See “Checking Transmission
Fluid Hot” in
the Index.
Checking Transmission Fluid Hot
Get the vehicle warmed up by driving about 15 miles
(24 km) when outside temperatures are above 50°F
(10°C). If it’s colder than
50°F ( 10°C), drive the
vehicle in
DRIVE (D) until the engine temperature
gage moves and then remains steady for
10 minutes.
Then follow
the hot check procedures.

Checking Transmission Fluid Cold
A cold check is made after the vehicle has been sitting
for eight
hours or more with the engine off and is used
only as a reference. Let the engine run at idle for
five
minutes if outside temperatures are 50°F (1 0°C) or
more. If it's colder than 50°F (lO°C), you may have to
idle the engine longer. Should the fluid level be low
during a cold check,
you must perform a hot check
before adding fluid. This will give
you a more accurate
reading
of the fluid level.
Checking the Fluid Hot or Cold
0 Park your vehicle on a level place. Keep the
0 With the parking brake applied, place the shift lever
0 With your foot on the brake pedal, move the shift
engine
running.
in
PARK (P).
lever through each gear range, pausing for about
three seconds in each range, Then, position the shift
lever
in PARK (P).
Let the engine run at idle for three minutes or more. ~nen,
without shutting
off the engine, follow these steps:
k 'rll
3800 V6 Engine Transmission Dipstick

5.7L V8 Engine Transmission Dipstick
The Transmission fluid handle is the red loop near the
back
of the engine.
1. Pull out the dipstick and wipe it with a clean rag or
paper towel.
2. Push it back in all the way, wait three seconds and then pull it back out again.
5.7L V8 Engine llransmission Dipstick
3800 V6 Engine Transmission Dipstick
6-23

3. Check both sides of the dipstick, and read the lower
level.
The fluid level must be in the COLD area for a
cold check or in the
HOT area or cross-hatched area
for a hot check.
4. If the fluid level is in the acceptable range, push the
dipstick back in all the way.
How to Add Fluid
Refer to the Maintenance Schedule to determine what
kind
of transmission fluid to use. See “Recommended
Fluids and Lubricants” in the Index.
Add fluid only after checking the transmission fluid
while it is hot. (A cold check is used only as a
reference.) If the fluid level
is low, add only enough of
the proper fluid to bring the level up to the
HOT area
for a hot check. It doesn’t take much fluid, generally less than one pint
(0.5 L). Don’t ove@ZZ.
I NOTICE:
We recommend you use only fluid labeled
DEXRON@-111, because fluid with that label is
made especially for your automatic transmission.
Damage caused
by fluid other than DEXRON-I11
is not covered by your new vehicle warranty.
After adding fluid, recheck the fluid level as
described under “How to Check.”
When the correct fluid level is obtained, push the
dipstick back in all the
way.
Manual Transmission Fluid
When to Check
A good time to have it checked is when the engine
oil is changed. However, the fluid in your manual
transmission doesn’t require changing.
6-24

How to Check
Because this operation can be difficult, you may
choose to have this done at your Pontiac dealership Service Department.
If you do it yourself, be sure to follow all the
instructions here, or you could get a false reading.
NOTICE:
Too much or too little fluid can damage your
transmission.
Too much can mean that some of
the fluid could come out and fall on hot engine
parts or exhaust system parts, starting a fire. Be
sure to get an accurate reading if you check your
transmission fluid.
Check the fluid level only when your engine is off, the
vehicle
is parked on a level place and the transmission is
cool enough for you to rest your fingers on the
transmission case. Then,
follow these steps:
c
5-Speed (6-Speed Similar)
1. Remove the filler plug.
2. Check that the lubricant level is up to the bottom of
the filler plug hole.
3. If the fluid level is good, install the plug and be sure
it is fully seated.
If the fluid level is low, add more
fluid as described
in the next steps.
6-25

How to Add Fluid When to Check and What to Use
Here’s how to add fluid. Refer to the Maintenance
Schedule to determine what kind of fluid to use. See
“Recommended Fluids and Lubricants” in the Index.
1. Remove the filler plug.
2. Add fluid at the filler plug hole. Add only enough
fluid to bring the fluid level
up to the bottom of the
filler plug hole.
3. Install the filler plug. Be sure the plug is fully seated.
Hydraulic Clutch
The hydraulic clutch linkage in your vehicle is
self-adjusting. The clutch master cylinder reservoir is
filled with hydraulic clutch fluid.
It isn’t
a good idea to “top off’ your clutch fluid. Adding Refer to the Maintenance Schedule to determine how
fluid won’t correct a leak. often you should check the fluid level in your clutch
A fluid loss in this system could indicate a problem. master cylinder reservoir and
for the proper fluid. See
Have the system inspected
and repaired. “Owner Checks and Services’’ and “Recommended
Fluids and Lubricants” in the Index.
6-26

How to Check Limited-Slip Differential
The proper fluid should be added if the level is below
the
STEP mark on the reservoir. See the instructions on
the reservoir cap.
Rear Axle
When to Check and Change Lubricant
Refer to the Maintenance Schedule to determine how
often to check the lubricant and when to change it. See
“Scheduled Maintenance Services” in the Index.
How to Check Lubricant
If the level is below the bottom of the filler plug hole,
you’ll need to add some lubricant. Add enough lubricant
to raise the level to the bottom of the filler plug hole.
What to Use
Standard Differential
Use SAE 75W-90 Synthetic Gear Lubricant (GM Part
No. 12378261) or equivalent meeting GM
Specification
9986 1 15.
To add lubricant when the level is low, use SAE 75W-90
Synthetic Gear Lubricant (GM Part No. 12378261) or
equivalent meeting
GM Specification 99861 15. To
completely refill after draining, add
4 ounces (1 18 ml)
of Limited-Slip Differential Lubricant Additive (GM
Part No. 1052358) or equivalent. Then fill to the bottom
of the filler plug hole with Synthetic Gear Lubricant.
Engine Coolant
The cooling s stem in your vehicle is filled with
DEX-COOL
8 engine coolant. This coolant is designed
to remain in your vehicle for
5 years or 150,000 miles
(240
000 kmb whichever occurs first, if you add only
DEX-COOL extended life coolant.
The following explains your cooling system and
how
to add coolant when it is low. If you have a problem
with engine overheating or if you need to add coolant to
your radiator, see “Engine Overheating” in the Index.
6-27
