I
nstallation

20
.
Disconnect drive cable and gearbox assembly from
motor/potentiometer and remo ve motor/potentiometer from
seat.
1. Position motor/potentiometer at seat and connect drive
cable/gearbox assembly
2. Connect RH drive cable to motor.
3. Seat motor/potentiometer on fra me and fit and tighten motor
securing bolts.
4. Align potentiometer with gearbo x and fit and tighten gearbox
securing bolt.
5. Position and fully seat slider assembly to potentiometer and
gearbox.
6. Position motor frame on LH sl ider and secure with new pop
rivets.
7. Connect motor/potentiometer harness multiplug and install in
mounting bracket.
8. Connect seat cushion rearward tilt motor drive cable.
9. Connect seat cushion forwar d tilt motor drive cable.
10. Place seat upright in mounting position.
11. Position RH seat buckle mounting bracket between runner
and seat pivot bracket and fit but do not tighten securing bolt.
12. Position LH seat buckle mounting bracket between runner and
seat pivot bracket an d fit but do not tighten securing bolt.
13. Fit but do not tighten slider front securing bolts.
14. Fit and tighten slider rear securing bolts
15. Tighten slider front securing bolts.
16. Install forward tilt potentiome ter on drive shaft and fit and
fully seat retaining clip.
17. Position seat harness in frame retaining clips.
18. Fit seat harness main multiplug to retaining bracket.
19. Fit seat heater relay to retaining bracket.
20. Connect seat control module harness multiplugs.
21. Connect forward tilt motor harn ess multiplug and fit multiplug
in retaining bracket.
22. Connect rearward tilt motor harness multiplug and fit
multiplug in retaining bracket.
23. Install seat in vehicle. Refer to 76.70.01.
24. Connect ground cable to batt ery terminal and fit battery
cover. Refer to 86.15.15.
25. Power seat fully forward and rearward ensuring satisfactory


op

eration.
26. Return seat to original position.

Seating - Lumbar Motor
Removal and Installation
Removal
Installation

1.
Power seat fully forward and position squab in fully upright
position.
2. Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
3. Remove seat back fini sher. Refer to 76.70.09

4. Remove lumbar support motor ha rness multiplug (yellow) from
mounting bracket and di sconnect multiplug.

5. Sever and remove motor/cover ba g to seat frame tie straps.
6. Release motor/cover bag from seat vertical support rod.
7. Sever and remove tie straps se curing lumbar support bag to
squab suspension and guiding bag through squab suspension,
remove motor/bag assembly.
1. Position motor/bag assembly in seat and pass lumbar support
bag through squab suspension.
2. Using new tie straps , secure lumbar support bag to squab
suspension.
3. Position new tie strap on se at vertical support rod.
4. Position motor/bag assembly on seat frame support rod and fit
and tighten tie st rap to secure.
5. Connect motor harness multiplug and fully seat in mounting
bracket.
6. Fit seat back finisher. Refer to 76.70.09.
7. Connect ground cable to battery terminal and fit battery cover.
Refer to 86.15.15.
8. Return seat to original position.

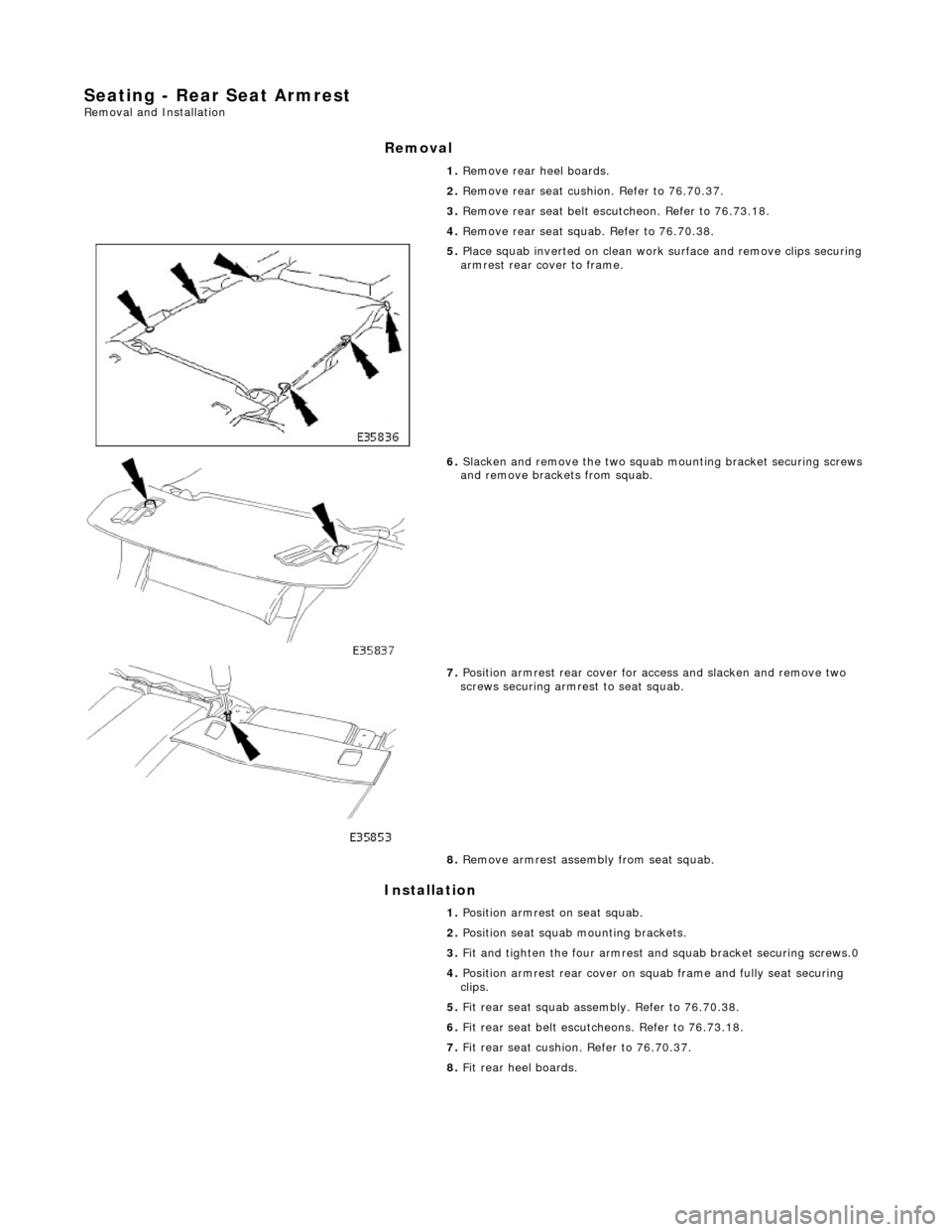

Seating - Rear Seat Armrest Removal and Installation
Removal
Installation

1.
Remove rear heel boards.
2. Remove rear seat cushion. Refer to 76.70.37.
3. Remove rear seat belt escu tcheon. Refer to 76.73.18.
4. Remove rear seat squab. Refer to 76.70.38.

5. Place squab inverted on clean work surface and remove clips securing
armrest rear cover to frame.

6. Slacken and remove the two squab mounting bracket securing screws
and remove brackets from squab.

7. Position armrest rear cover for access and slacken and remove two
screws securing armrest to seat squab.
8. Remove armrest assembly from seat squab.
1. Position armrest on seat squab.
2. Position seat squab mounting brackets.
3. Fit and tighten the four armrest and squab bracket securing screws.0
4. Position armrest rear cover on sq uab frame and fully seat securing
clips.
5. Fit rear seat squab assembly. Refer to 76.70.38.
6. Fit rear seat belt escutc heons. Refer to 76.73.18.
7. Fit rear seat cushion. Refer to 76.70.37.
8. Fit rear heel boards.

Seating - Rear Seat Backrest
Removal and Installation
Removal
1. Heated seat only. Remove batt ery cover and disconnect ground cable from battery terminal. Refer to 86.15.19.
2. Remove rear seat cushion. Refer to 76.70.37.
3. Remove rear he ad restraints.

4. Slacken and remove outer seat belt lower anchor securing
bolts.

5. Slacken and remove bolt securi ng centre seat belt lower
anchor plate and buckle cable to seat pan.

6. Remove seat be lt escutcheon.
1. Using a flat-bladed screwdriver in the two rectangular apertures, carefully withdraw
escutcheon from squab top roll.
2. Remove escutcheon from belt via split in moulding.
7. Slacken and remove the four seat squab securing screws.

Installation




8. Remove seat squab.
Lift squab clear of inertia reel assemblies withdrawing
dowels from top panel.
Carefully feed seat belt anch or plates and tongues through squab apertures.
9. Disconnect heater element harness multiplugs (if fitted) and
remove seat squab via rear passenger door.
1. Position squab in vehicle and pass seat belt tongues and
anchor plates through apertures.
2. Lift squab top roll over inertia reel assemblies, locate dowels in
panel apertures and lower and fully seat squab.
3. Fit and tighten the four squab securing screws.
4. Fit seat belt escutcheons to squab top roll.
5. Fit and fully tighten outer seat be lt lower anchor securing bolts.

6. Fit and fully tighten bolts securing centre seat belt lower
anchor plate and buckle cable.
7. Fit rear cushion. Refer to 76.70.37.
8. Fit rear head restraints.

Seating - Rear Seat Backrest Cover
Removal and Installation
Removal
1. Remove rear heel boards.
2. Remove rear seat cushion. Refer to 76.70.37.
3. Remove rear seat belt ecutcheon. Refer to 76.73.18.
4. Remove rear seat squa b. Refer to 76.70.38.
5. Place seat squab inverted on clean work surface.

6. Withdraw clips from headrest supports and remove headrests
from seat squab.

7. Remove the six clips securing re ar seat armrest aperture cover
to frame and position cover for access.

8. Slacken and remove the two sq uab mounting bracket screws
and remove brackets from frame.

9. Remove and discard the three ho g rings securing armrest rear
cover retaining strip, release strip from frame and remove arm
rest.

10. Releasing lower ends , withdraw headrest guide tubes and
trims from support boxes.

11. Release squab cover from the eight armrest aperture securing tangs.

12. Remove and discard all hog rings securing cover to outer
edge of frame.

13. Release cover retaining strip from frame top and free cover
from cushion edges.
14. Position cover for access an d remove and discard 17 hog
rings securing cover left hand panel to frame.

Installation

15. Position cover for access an d remove and discard 17 hog
rings securing cover right hand panel to frame.
16. Remove cover from seat squab.
1. Position cover on front of squab.

2. Secure cover right hand panel to frame using 17 hog rings.
3. Secure cover left hand panel to frame using 17 hog rings.

4. Position squab for access and pull cover over squab pad.

5. Ensuring that top of cover is ev enly tensioned, fit and fully seat retaining strip on frame.
