1998 JAGUAR X308 vi number

Hydraulic B
rake Actuation -
Lubri
cants, Fluids, Sealants and Adhesives
Torques
Torques - Brembo Brakes
Brake Tube, Hoses and Bracket Torques
CAUTI
ON: Replacement of
nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the
vehicle. These devices restrict the number of times a nut or bolt can be used. See section 100-00 for information.


UnitS
pecification
Brake flu

id
ITT Supe
r Dot 4
Com

ponent
Nm
N

ut - master cylinder to brake booster
21
-29
Nu

t - brake pedal pivot-pin to pedal housing
17
-23
Nu

t - brake switch to pedal housing
3
Nu

t - pedal housing to body
15
-20
Nu

t - brake booster to pedal housing
22
-28
Com

ponent
Nm
Bleed n

ipple
12
-16
U

nion bolt - brake hose to caliper
22
-26
Com

ponent
Nm
Bleed n

ipple - front
4-
6
Bleed n

ipple - rear
8-1
1
Hose to fr

ont caliper
10
-14
U

nion to rear caliper - union bolt
30
-40
M1

0 hose locknut
15
-20
M10

brake tube female-nut
13
-17
M10

brake tube male-nut
13
-17
M12

brake tube male-nut
15
-20
M18

brake tube male-nut
22
-28
Brake tube clip retention

-bracket to body
4-
6

Hydraulic Br
ake Actuation
- Brake Fluid Reservoir
Remo
val and Installation
Remov
a
l
• C
A
UTIONS:
Replacement of nuts and bolts: Various thread-locking de vices are used on nuts and bolts throughout the vehicle.
These devices restrict the number of times a nut or bolt can be used. See section 100-00 for information.
Remove brake fluid spilla ge immediately from paint work, with clean water.
1. Position vehicl
e on a four-post lift.
2. Open engine compartment and fit paint work protection covers
to fenders.
3. Disconnect battery ground cable (IMPORTANT, see operation
86.15.19 for further information).
4. Remove engine compartment rear cover. Refer to operation
76.11.35.
5. Remove pedal housing, brake booster and master cylinder
assembly. Refer to operation 70.35.39.
6. Remove reservoir filler cap and empty residual brake fluid into
a container. Refit cap.

7. Re
move fluid reservoir from master cylinder.
R
e
move locating pin.
Pull reservoir

from master cylinder.

8. Install plugs into f
luid reservoir ports.
9. Remove and discard seal s from master cylinder.

Hydraulic B
rake Actuation
- Brake Master Cylinder
Re
moval and Installation
Remov

al
• C
AUTIONS:
Replacement of nuts and bolts: Various thread-locking de vices are used on nuts and bolts throughout the vehicle.
These devices restrict the number of times a nut or bolt can be used. See section 100-00 for information.
Remove brake fluid spilla ge immediately from paint work, with clean water.
1. Position vehi
cle on a four-post lift.
2. Open engine compartment and fit paint work protection covers
to fenders.
3. Disconnect battery ground cable (IMPORTANT, refer to
operation 86.15.19 for fu rther information).
4. Remove engine compartment rear cover. Refer to operation
76.11.35.
5. Remove pedal housing, brake booster and master cylinder
assembly. Refer to operation 70.35.39.
6. Place assembly on a work bench.

7. R
emove nuts securing master cylinder to brake booster.

8. R
emove master cylinder from brake booster.
Re

move master cylinder.
Remove an

d discard seal.
9. Remove filler cap and empty residual brake fluid into a
container. Fit cap.
10. Remove fluid reservoir from master cylinder.
R
emove locating pin.
Pull

reservoir from master cylinder.

Hydrau
lic Brake Actuation - Brake Pedal and Bracket
Re
mo
val and Installation
Remov
a
l
• C
A
UTIONS:
Replacement of nuts and bolts: Various thread-locking de vices are used on nuts and bolts throughout the vehicle.
These devices restrict the number of times a nut or bolt can be used. See section 100-00 for information.
Remove brake fluid spilla ge immediately from paint work, with clean water.
In
stallation
1.
Position vehicl
e on a four-post lift.
2. Open hood and fit suitable pa intwork protection equipment.
3. Disconnect battery ground cabl e. (IMPORTANT, see 86.15.19
for further information).
4. Remove engine compartment rear cover. Refer to operation
76.11.35.
5. Remove pedal housing, brake booster and master cylinder
assembly. Refer to operation 70.35.39.
6. Remove brake booster and master cylinder assembly. Refer to
operation 70.50.18.

7. Remove brake wa
rning-light switch.
Remove n
u
t and bolt.
Slide sw

itch forward to release from locating tag.

8. Re
move throttle pedal assembly.
1. Remove and discard retaining wire.
2. Remove pivot pins.
3. Remove throttle pedal assembly.
4. Remove return spring.
9. Clean components and mating surfaces.
1. Apply grease to pivot pins.
2. Install throttle pedal assembly.
1. Align throttle assembly.

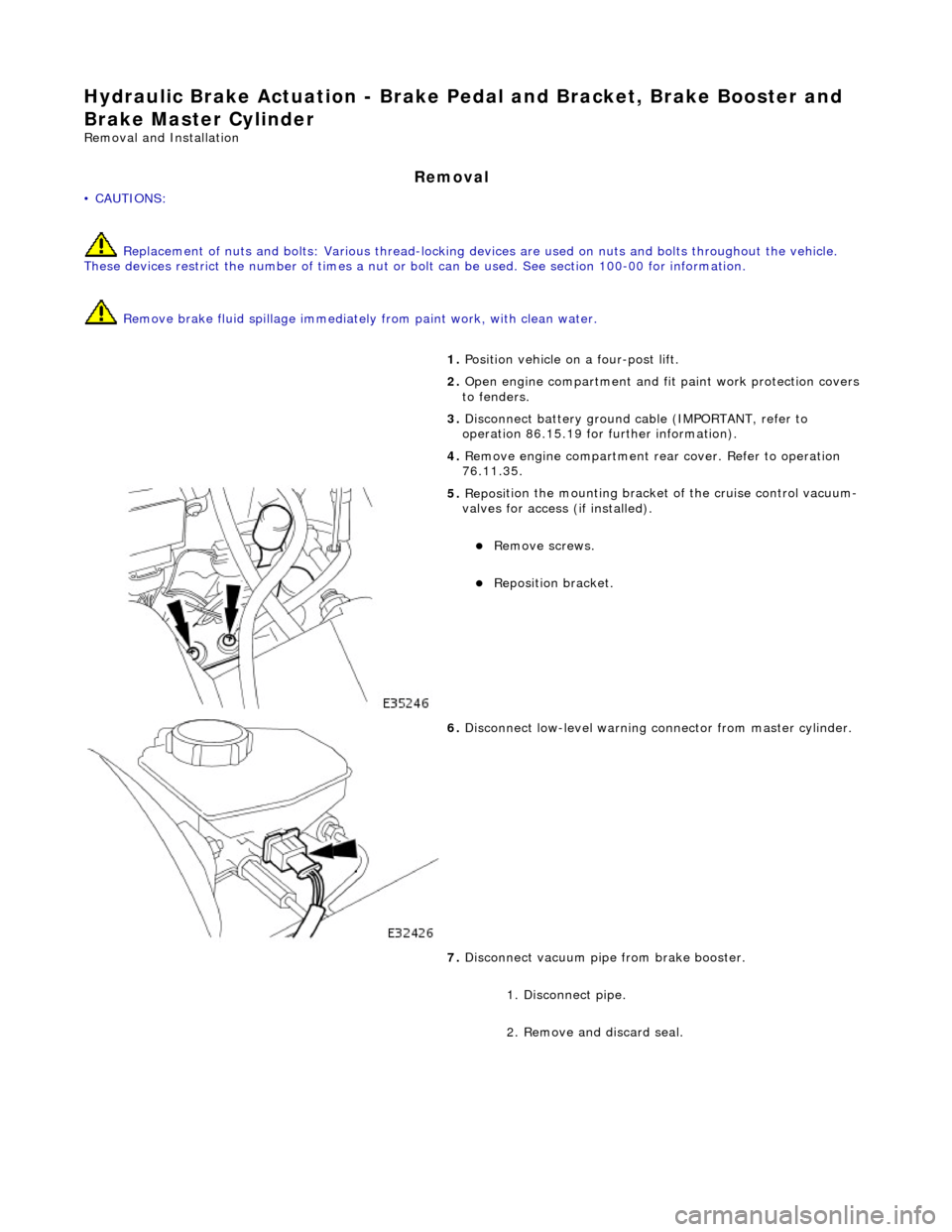

Hydrau
lic Brake Actuation - Brake Pedal and Bracket, Brake Booster and
Brake Master Cylinder
Re mo
val and Installation
Remova

l
• C
A
UTIONS:
Replacement of nuts and bolts: Various thread-locking de vices are used on nuts and bolts throughout the vehicle.
These devices restrict the number of times a nut or bolt can be used. See section 100-00 for information.
Remove brake fluid spilla ge immediately from paint work, with clean water.
1. Position vehi cl
e on a four-post lift.
2. Open engine compartment and fit paint work protection covers
to fenders.
3. Disconnect battery ground cable (IMPORTANT, refer to
operation 86.15.19 for fu rther information).
4. Remove engine compartment rear cover. Refer to operation
76.11.35.

5. Reposi
tion the mounting bracket of the cruise control vacuum-
valves for access (if installed).
R e
move screws.
Reposition bracket.


6. Disc
onnect low-level warning connector from master cylinder.
7. Disconnect vacuum pipe from brake booster.
1. Disconnect pipe.
2. Remove and discard seal.

Power Brake Actuation -
Lubri
cants, Fluids, Sealants and Adhesives
Brake Ratio
Torques
CAUTI
ON: Replacement of
nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the
vehicle. These devices restrict the number of times a nut or bolt can be used. See section 100-00 for information.
B
rake Tube, Hoses and Bracket Torques
CAUTI

ON: Replacement of
nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the
vehicle. These devices restrict the number of times a nut or bolt can be used. See section 100-00 for information.


UnitS
pecification
Brake flu

id
ITT Supe
r Dot 4
Fr

ont Brakes
6
5 per cent
Rear B

rakes
3
5 per cent
Com

ponent
Nm
N

ut - master cylinder to brake booster
21
-29
Nu

t - brake pedal pivot-pin to pedal housing
17
-23
Nu

t - brake switch to pedal housing
3
Nu

t - pedal housing to body
15
-20
Nu

t - brake booster to pedal housing
22
-28
Com

ponent
Nm
Bleed n

ipple - front
4-
6
Bleed n

ipple - rear
8-
11
Hose to fr

ont caliper
10
-14
Hose banjo to rear caliper -

bolt
30
-40
M1

0 hose locknut
15
-20
M10

brake tube female-nut
13
-17
M10

brake tube male-nut
13
-17
M12

brake tube male-nut
15
-20
Bolt -

3-way tube connector to body
9-
12

Power Brake Actuation - Brake Booster
Description and Operation


The brake b
ooster provides assi
stance by reinforcing the driver's effort when brakin g. The reinforced assistance
provided by the booster is proportional to the driver's effort applied to the brake pedal.
The brake force applied by
the driver is incr
eased by the booster in a ratio of 6.5:1.
Th
e vacuum used to operate the booster
is formed in the engine's intake manifold. The booster is connected to the
intake manifold by a hose.
The boost
er is fail-safe therefore, if a fault develops in
the vacuum unit, the braking system will still function.
However, the driver will have to apply a greater fo rce to the brake pedal to slow down the vehicle.


It e
m
Par
t
Number
De
scr
iption
1—Mas
t
er Cylinder / Reservoir - refer to 206-06
2—Booster

3—Pedal Box
- refer to 206-06
4—Vacuu
m
Hose
5—No
n
-Return Valve

Power Brake Actuatio
n - Brake Booster
Re
moval and Installation
Remov

al
• C
AUTIONS:
Replacement of nuts and bolts: Various thread-locking de vices are used on nuts and bolts throughout the vehicle.
These devices restrict the number of times a nut or bolt can be used. See section 100-00 for information.
Remove brake fluid spilla ge immediately from paint work, with clean water.
I
nstallation
1.
Position vehi
cle on a four-post lift.
2. Open engine compartment and fit paint work protection covers
to fenders.
3. Disconnect battery ground cable (IMPORTANT, see operation
86.15.19 for further information).
4. Remove engine compartment rear cover. Refer to operation
76.11.35.
5. Remove pedal housing, brake booster and master cylinder
assembly. Refer to operation 70.35.39.
6. Remove brake booster and master cylinder assembly. Refer to
operation 70.50.18.

7. R
emove nuts securing master cylinder to brake booster.

8. R
emove master cylinder from brake booster.
Re

move master cylinder.
Remove an

d discard seal.
9. Remove filler cap and empty residual brake fluid into a
container.
10. Clean components and mating surfaces.
1. Install master cylinder to brake booster.
Inst
all seal to master cylinder.
