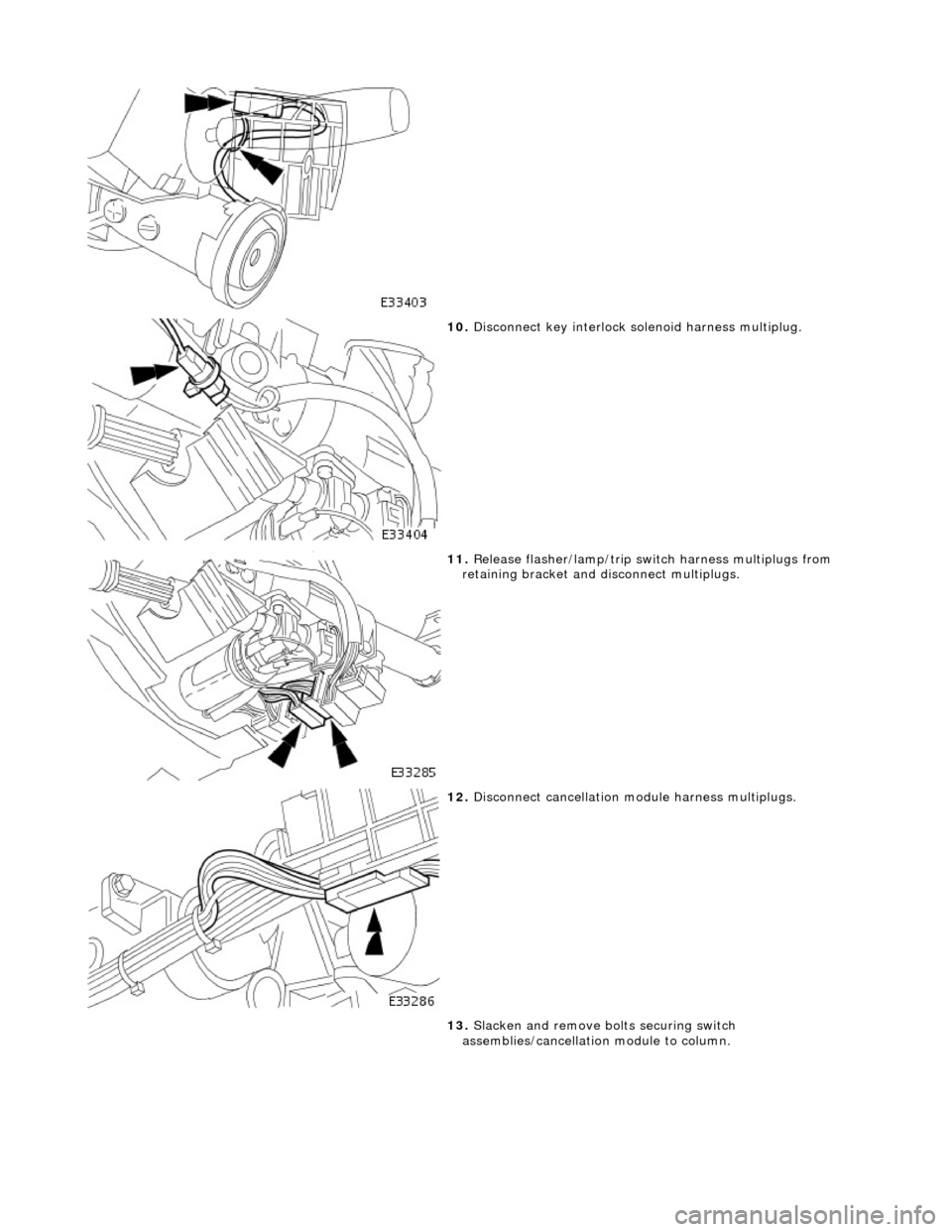

10. Disconnect key interlock solenoid harness multiplug.

11. Release flasher/lamp/trip swit ch harness multiplugs from
retaining bracket and di sconnect multiplugs.

12. Disconnect cancellation module harness multiplugs.
13. Slacken and remove bolts securing switch
assemblies/cancellation module to column.

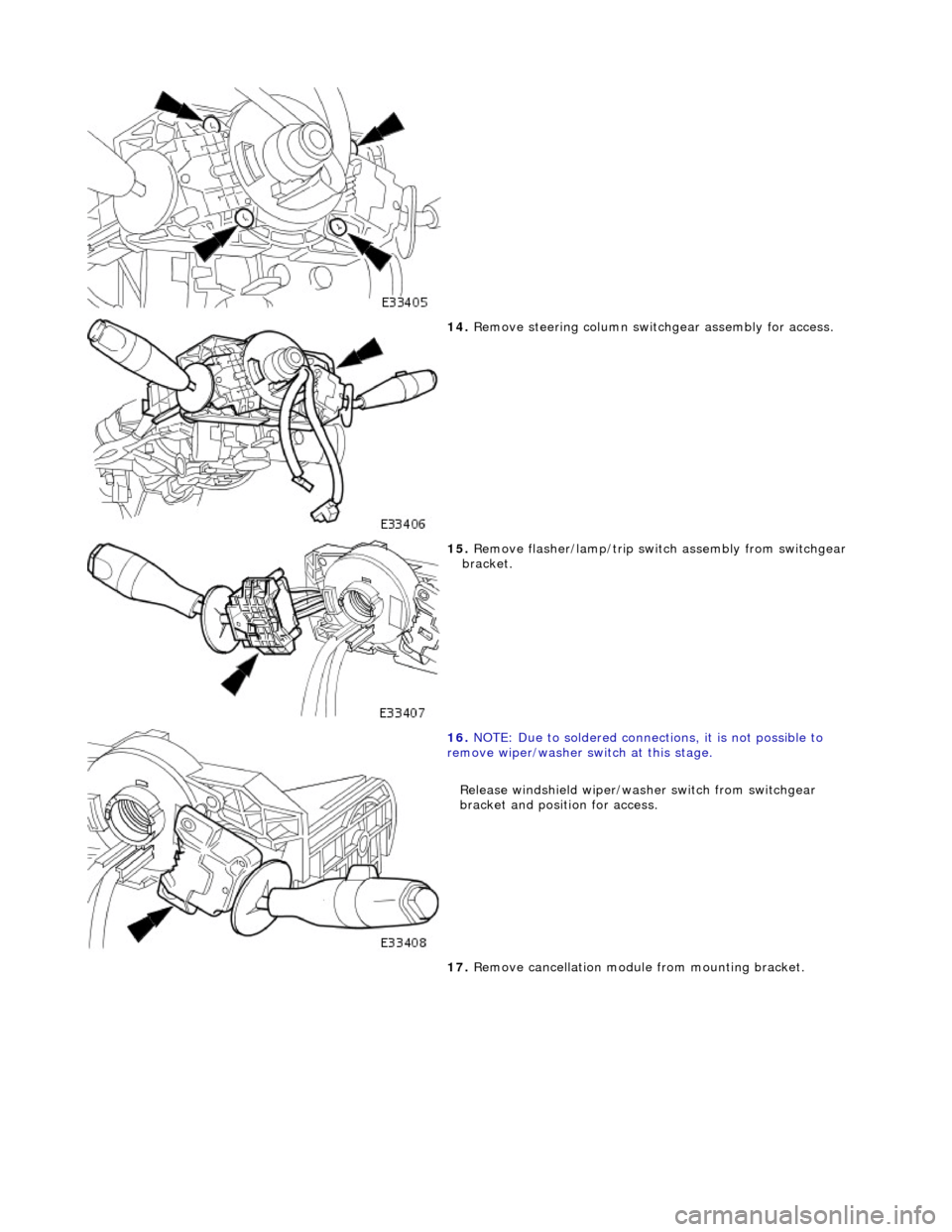

14. Remove steering column swit chgear assembly for access.

15. Remove flasher/lamp/trip switch assembly from switchgear
bracket.

16. NOTE: Due to soldered connections, it is not possible to
remove wiper/washer sw itch at this stage.
Release windshield wiper/washer switch from switchgear
bracket and position for access.
17. Remove cancellation module from mounting bracket.

Installation

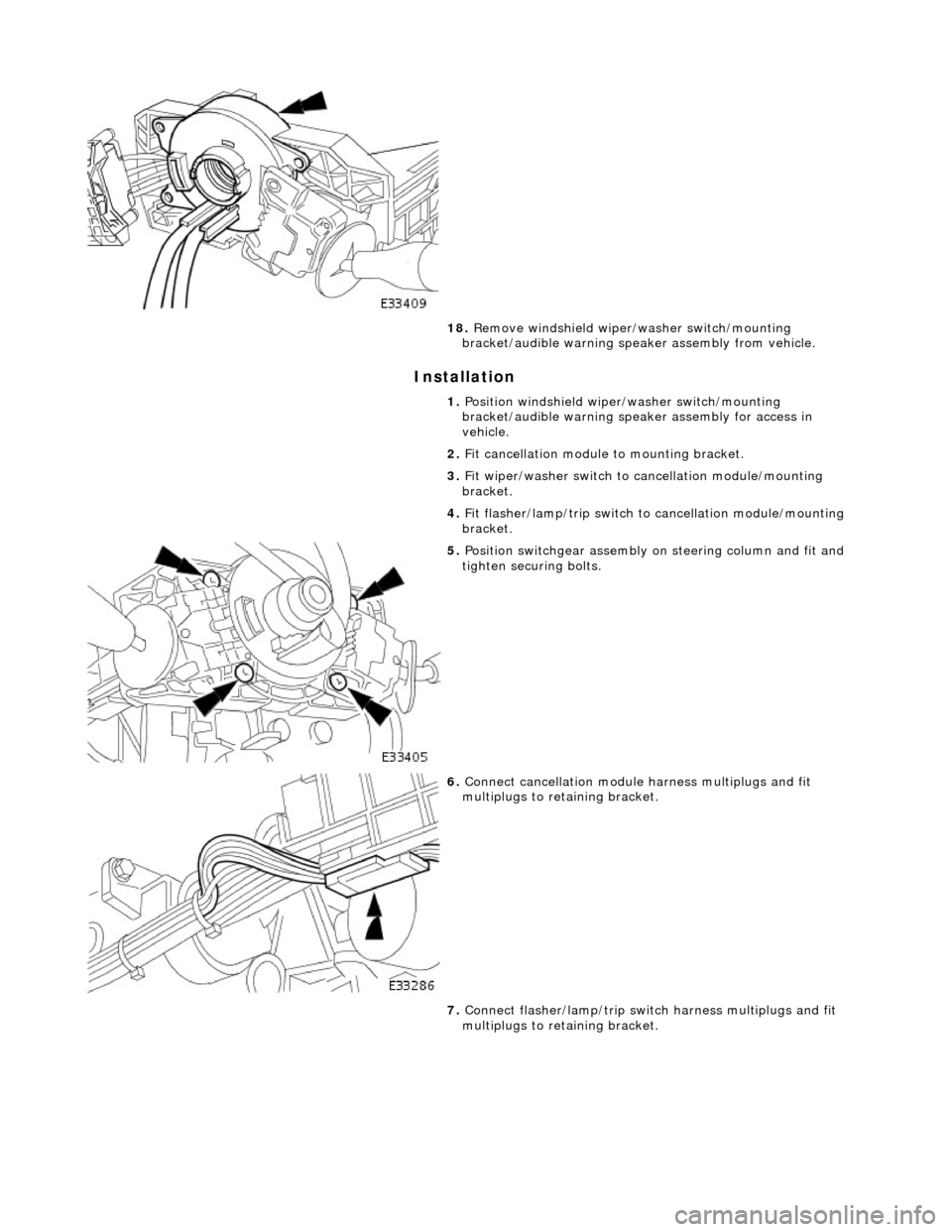

18. Remove windshield wiper/ washer switch/mounting
bracket/audible warning speaker assembly from vehicle.
1. Position windshield wipe r/washer switch/mounting
bracket/audible warning speaker assembly for access in
vehicle.
2. Fit cancellation module to mounting bracket.
3. Fit wiper/washer switch to cancellation module/mounting
bracket.
4. Fit flasher/lamp/trip switch to cancellation module/mounting
bracket.

5. Position switchgear assembly on steering column and fit and
tighten securing bolts.

6. Connect cancellation module harness multiplugs and fit
multiplugs to retaining bracket.
7. Connect flasher/lamp/trip switch harness multiplugs and fit
multiplugs to retaining bracket.

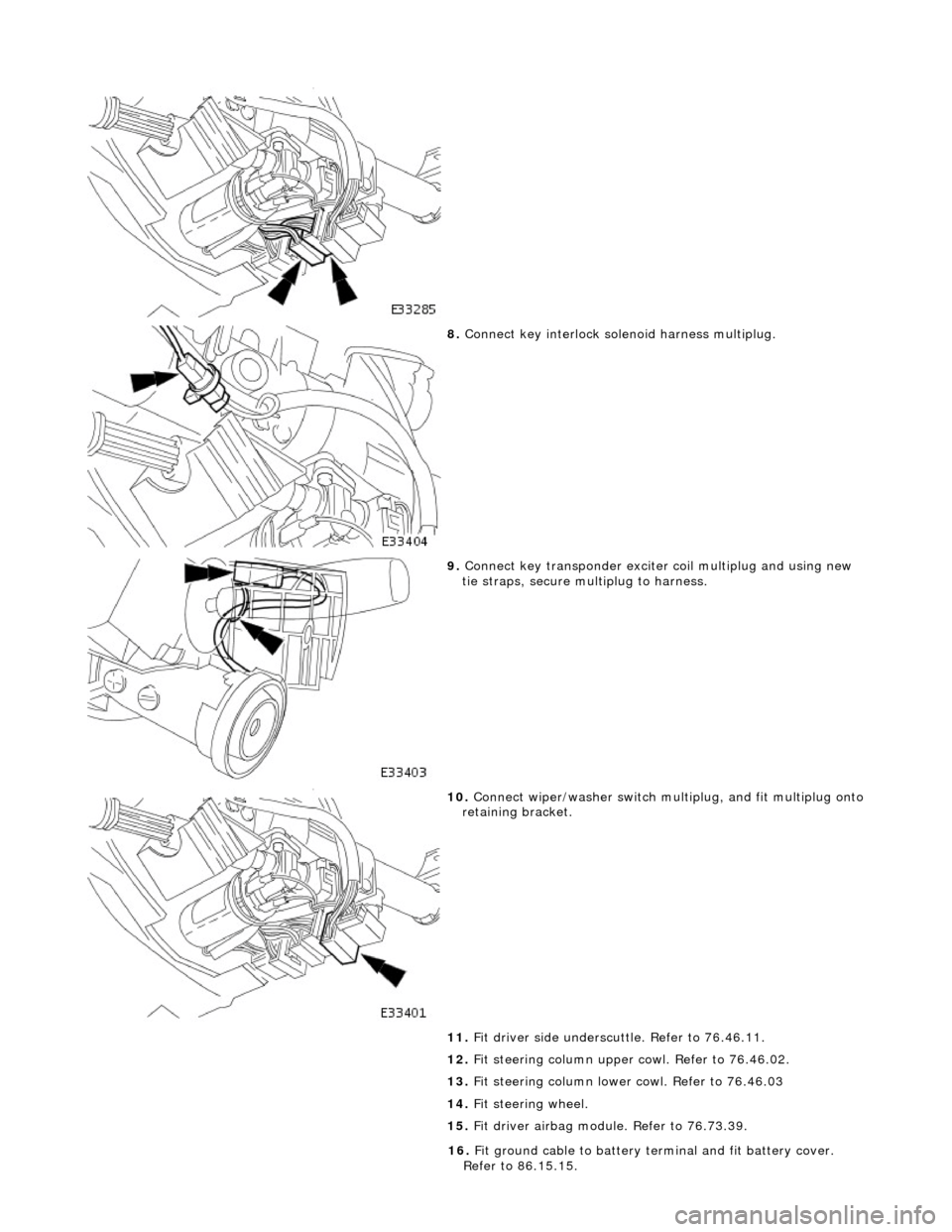

8. Conne
ct key interlock solenoid harness multiplug.

9. Connect key t
ransponder exciter
coil multiplug and using new
tie straps, secure mu ltiplug to harness.

10 . Conne
ct wiper/washer switch mu
ltiplug, and fit multiplug onto
retaining bracket.
11. Fit driver side underscu ttle. Refer to 76.46.11.
12. Fit steering column uppe r cowl. Refer to 76.46.02.
13. Fit steering column lower cowl. Refer to 76.46.03
14. Fit steering wheel.
15. Fit driver airbag module. Refer to 76.73.39.

16. Fit groun
d cable to battery te
rminal and fit battery cover.
Refer to 86.15.15.

Roof Opening Panel - Roof Opening Panel

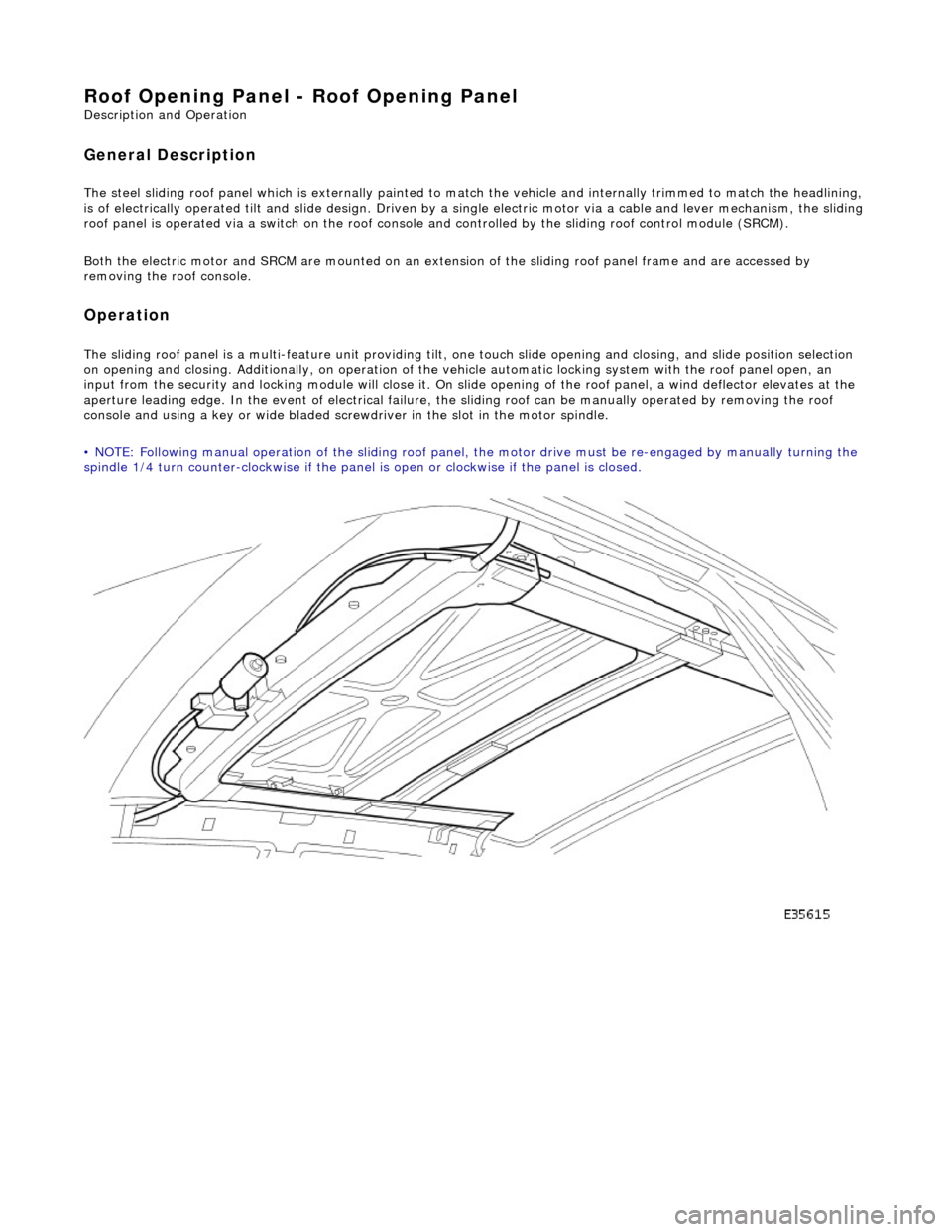

Description and Operation
General Description
The steel sliding roof panel which is externally painted to ma tch the vehicle and internally trimmed to match the headlining,
is of electrically operated tilt and slide design. Driven by a single electric motor via a cable and lever mechanism, the slidi ng
roof panel is operated via a switch on the roof console and controlled by the sliding roof control module (SRCM).
Both the electric motor and SRCM are mounted on an extens ion of the sliding roof panel frame and are accessed by
removing the roof console.
Operation
The sliding roof panel is a multi-feature unit providing tilt, one touch slide opening and closing, and slide position selectio n
on opening and closing. Additi onally, on operation of the vehicle automatic locking system with the roof panel open, an
input from the security and lockin g module will close it. On slide opening of the roof panel, a wind deflector elevates at the
aperture leading edge. In the event of electrical failure, the sliding roof can be manually operated by removing the roof
console and using a key or wide bladed scre wdriver in the slot in the motor spindle.
• NOTE: Following manual operation of the sliding roof panel, the motor drive must be re-engaged by manually turning the
spindle 1/4 turn counter-clockwise if the panel is open or clockwise if the panel is closed.

Roof Opening Panel - Motor Synchronization

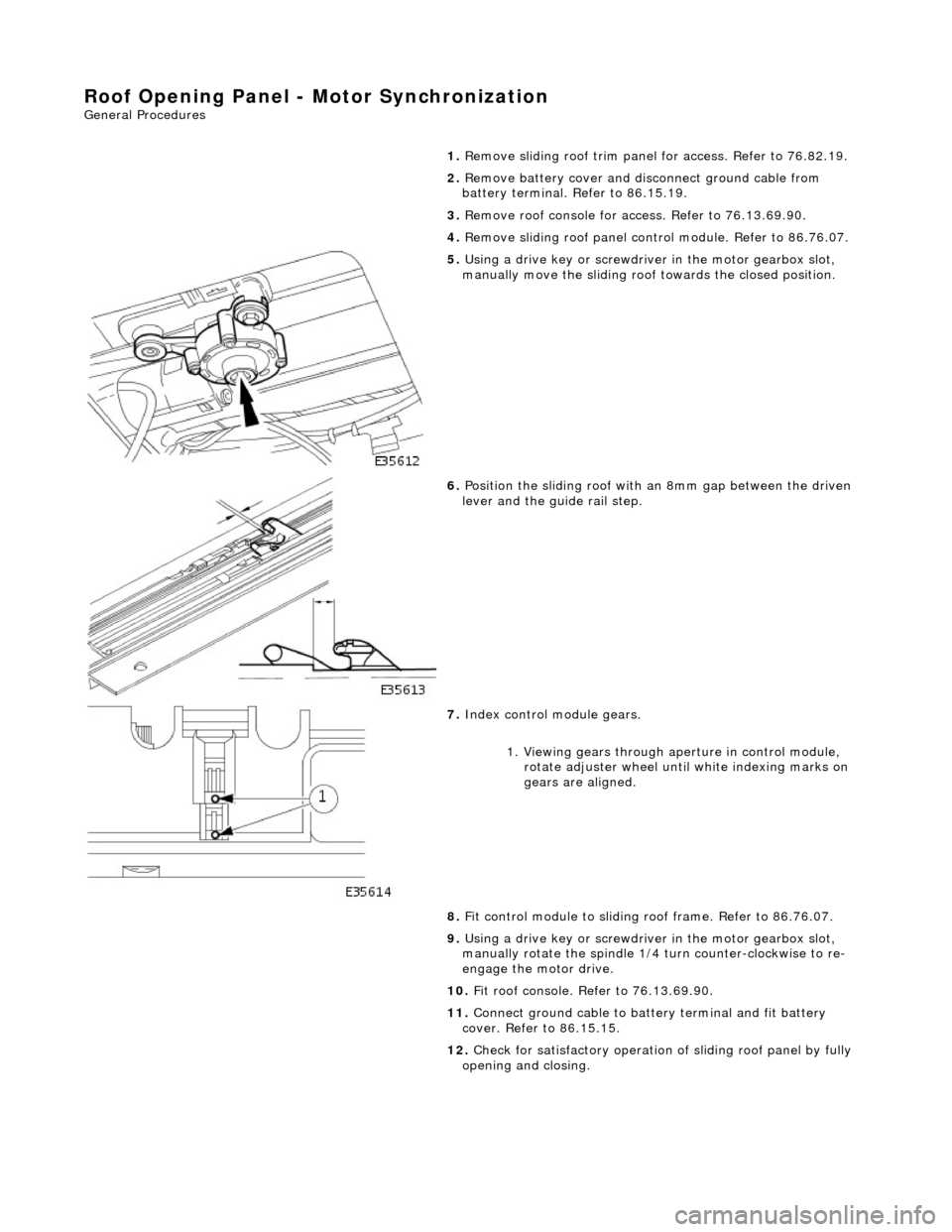

General Procedures

1.
Remove sliding roof trim panel for access. Refer to 76.82.19.
2. Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
3. Remove roof console for ac cess. Refer to 76.13.69.90.
4. Remove sliding roof panel cont rol module. Refer to 86.76.07.

5. Using a drive key or screwdriver in the motor gearbox slot,
manually move the sliding roof towards the closed position.

6. Position the sliding roof with an 8mm gap between the driven
lever and the guide rail step.

7. Index control module gears.
1. Viewing gears through aperture in control module, rotate adjuster wheel until white indexing marks on
gears are aligned.
8. Fit control module to sliding r oof frame. Refer to 86.76.07.
9. Using a drive key or screwdriver in the motor gearbox slot,
manually rotate the spindle 1/4 turn counter-clockwise to re-
engage the motor drive.
10. Fit roof console. Refer to 76.13.69.90.
11. Connect ground cable to batt ery terminal and fit battery
cover. Refer to 86.15.15.
12. Check for satisfactory operation of sliding roof panel by fully
opening and closing.

Roof Opening Panel - Roof Opening Panel Frame

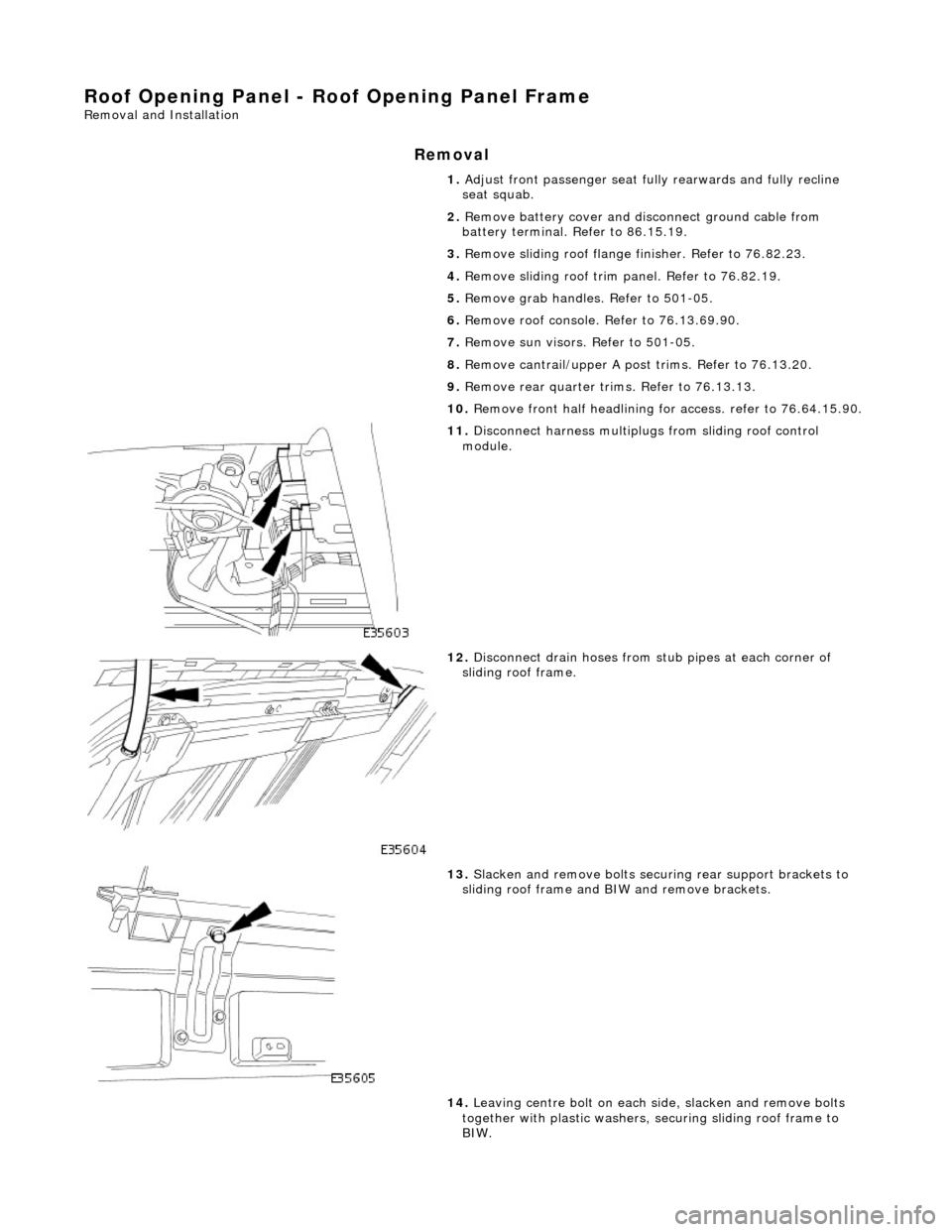

Removal and Installation
Removal
1. Adjust front passenger seat fu lly rearwards and fully recline
seat squab.
2. Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
3. Remove sliding roof flange finisher. Refer to 76.82.23.
4. Remove sliding roof trim panel. Refer to 76.82.19.
5. Remove grab handles. Refer to 501-05.
6. Remove roof console. Refer to 76.13.69.90.
7. Remove sun visors. Refer to 501-05.
8. Remove cantrail/upper A post trims. Refer to 76.13.20.
9. Remove rear quarter trim s. Refer to 76.13.13.
10. Remove front half headlining for access. refer to 76.64.15.90.


11. Disconnect harness multiplugs from sliding roof control
module.

12. Disconnect drain hoses from stub pipes at each corner of
sliding roof frame.

13. Slacken and remove bolts securi ng rear support brackets to
sliding roof frame and BIW and remove brackets.
14. Leaving centre bolt on each side, slacken and remove bolts
together with plastic washers, securing sliding roof frame to
BIW.

Roof Opening Panel - Roof Opening Panel Module

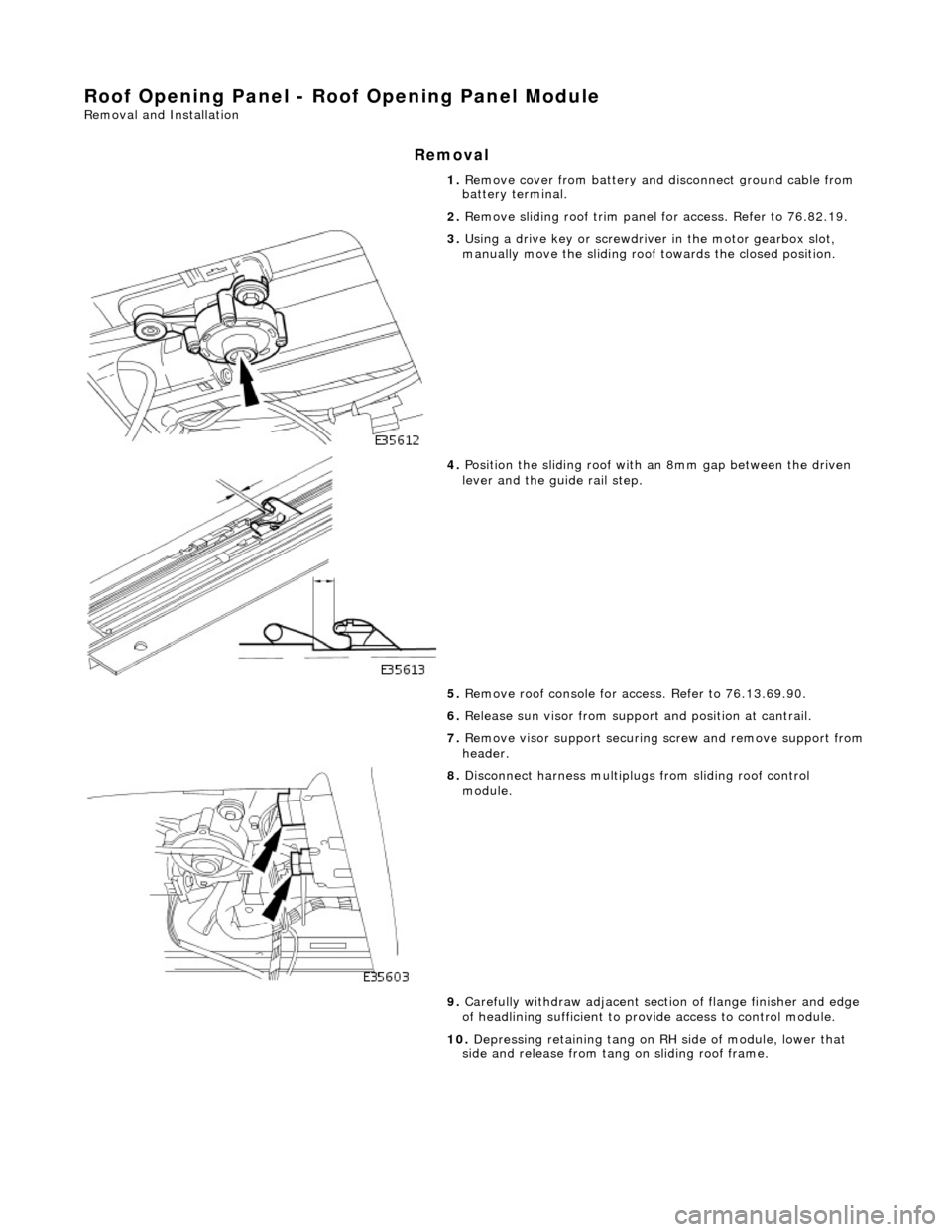

Removal and Installation
Removal
1. Remove cover from battery and disconnect ground cable from
battery terminal.
2. Remove sliding roof trim panel for access. Refer to 76.82.19.

3. Using a drive key or screwdriver in the motor gearbox slot,
manually move the sliding roof towards the closed position.

4. Position the sliding roof with an 8mm gap between the driven
lever and the guide rail step.
5. Remove roof console for ac cess. Refer to 76.13.69.90.
6. Release sun visor from support and position at cantrail.
7. Remove visor support securing screw and remove support from
header.

8. Disconnect harness multiplugs from sliding roof control
module.
9. Carefully withdraw adjacent sectio n of flange finisher and edge
of headlining sufficient to prov ide access to control module.
10. Depressing retaining tang on RH side of module, lower that
side and release from tang on sliding roof frame.
