ENGINE ELECTRICAL 6D – 11
5) Polish the commutator surface with sand paper
#500 to #600 if it is rough.
6) Measure the depth of insulator in commutator.
Repair, if it is below the limit.
Standard: 0.5 – 0.8 mm (0.02 – 0.03 in)
Limit: 0.2 mm (0.008 in)
Legend
(1) Steel Saw
(2) Chamfer
(3) Correct Condition
(4) Depth of Insulator
(5) Incorrect Condition
(6) Insulator
(7) Commutator SegmentBrush
1) Measure the length of brush.
Replace with a new one, if it is below the limit.
Standard: 18.0 mm (0.71 in)
Limit: 11.0 mm (0.43 in)
Brush holder
1) Check for continuity between brush holder (+) and
base (–). Replace, if there is continuity (i.e.,
insulation is broken).
065RW105
1
6
53 42 7
065RW102
065RW103
065RW104

6D – 12 ENGINE ELECTRICAL
2) Inspect the brush springs for wear, damage or other
abnormal conditions.
Standard: 28 – 35 N (2.9 – 3.6 kg/6.4 – 7.9 lb)
Magnetic switch
1) Continuity of shunt coil
Check for continuity between terminals S and coil
case.
Replace, if there is not continuity (i.e., coil is
disconnected.)2) Continuity of series coil
Check for continuity between terminals S and M.
Replace, if there is no continuity (i.e., coil is
disconnected).
3) Continuity of contacts
With the plunger faced downward, push down the
magnetic switch. In this state, check for continuity
between terminals B and M. Replace, if there is no
continuity (i.e., contacts are faulty).
065RW052
065RW017
065RW018
065RW016

ENGINE ELECTRICAL 6D – 13
Pinion
1) Check by hand to see if the pinion rotates smoothly
in the dirve direction, or if it is locked when it is
rotated reversely.
If not, replace the pinion.
Yoke assembly
1) Check the magnet inside the yoke.
Replace the yoke assembly if it is broken.
REASSEMBLY
To install, follow the removal steps in the reverse order,
noting the following points:
Grease application places
1) Gears in reduction gear
2) Shift lever operating portion
3) Sliding potion of pinion
4) Plunger sliding portion of magnetic switch
Pinion jump-out dimension
1) Connect the (+) cable of battery to terminal S and
the (–) cable to terminal M. Turn the switch on, and
measure pinion travel dimension “L” in thrust
direction from the jump-out position.
In measuring the dimension, pull the pinion out a little in
the arrow direction.
Dimension L: 0.3 – 1.5 mm (0.01 – 0.06 in)If the measured value is out of standard, adjust the of
shims.
Legend
(1) Shim
065RW048
S
+
L M
065RW054
1
065RW053

6D – 16 ENGINE ELECTRICAL
DIAGNOSIS
GENERAL ON-VEHICLE INSPECTION
The operating condition of the charging system is
indicated by the charge warning lamp. The warning
lamp comes on when the starter swtich is turned to
“ON” position. The charging system operates normallyif the lamp goes off when the engine starts. If the
warning lamp shows abnormality or if undercharged or
overcharged battery condition is suspected, perform
diagnosis by checking the charging system as follows:
Condenser
GeneratorStator Coil
IC RegulatorStarter
SW
Rotor Coil
Battery
P F
EBS LRelay B
S
L
QOS
065R200028
1. Check visually the belt and wiring connector.
2. With the engine in stop status, turn the starter
switch to “ON” position and observe the warning
lamp.
1) If lamp does not come on:
Disconnect wiring connector from generator,
and ground terminal “L” on connector side.
2) If lamp comes on:
Repair or replace the generator.

ENGINE ELECTRICAL 6D – 19
7. Remove bolts which secure stator terminal to
rectifier terminal, and remove stator.
8. Remove Bolts which secure regulator, rectifier and
brush-holder, and separate these parts.
NOTE: Do not apply a shock or load to regulator,
rectifier and brush holder.INSPECTION AND REPAIR
Repair or replace necessary parts if extreme wear or
damage is found during inspection.
Rotor Assembly
1. Check the face of the slip rings for contamination
and roughness. If found to be scored, dress with a
fine sandpaper (#500 – 600). If found to be
contaminated, clean with a cloth saturated with
alcohol.
2. Measure the outside diameter of the slip rings.
Standard: 27 mm (1.06 in)
Limit: 26 mm (1.02 in)
3. Check resistance between slip rings, and replace if
there is no continuity.
Standard: 3.75 Ωor less
066RS030
066RW025
066RS032
066RS033

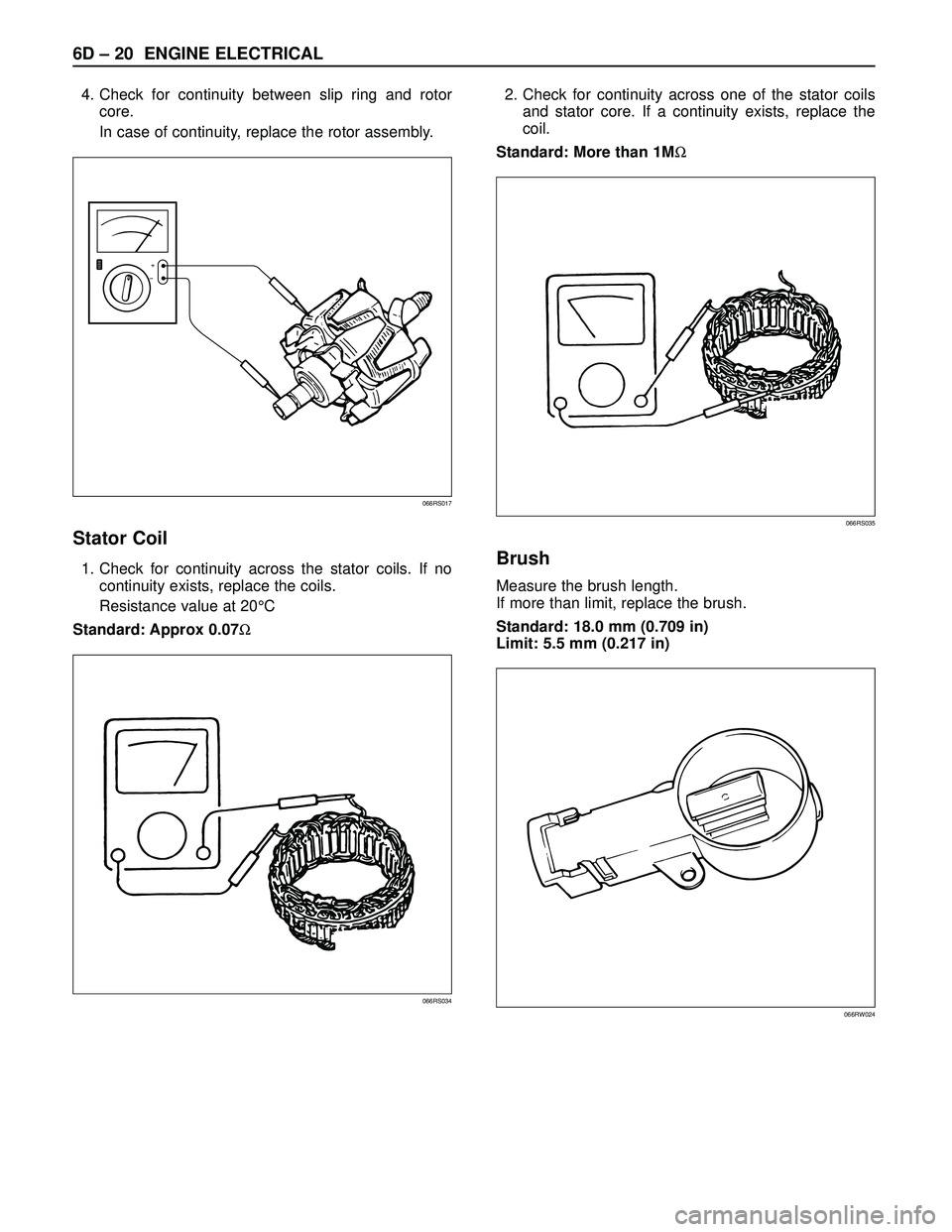

6D – 20 ENGINE ELECTRICAL
4. Check for continuity between slip ring and rotor
core.
In case of continuity, replace the rotor assembly.
Stator Coil
1. Check for continuity across the stator coils. If no
continuity exists, replace the coils.
Resistance value at 20°C
Standard: Approx 0.07Ω2. Check for continuity across one of the stator coils
and stator core. If a continuity exists, replace the
coil.
Standard: More than 1MΩBrush
Measure the brush length.
If more than limit, replace the brush.
Standard: 18.0 mm (0.709 in)
Limit: 5.5 mm (0.217 in)
´

µ

066RS017
066RS035
066RW024066RS034

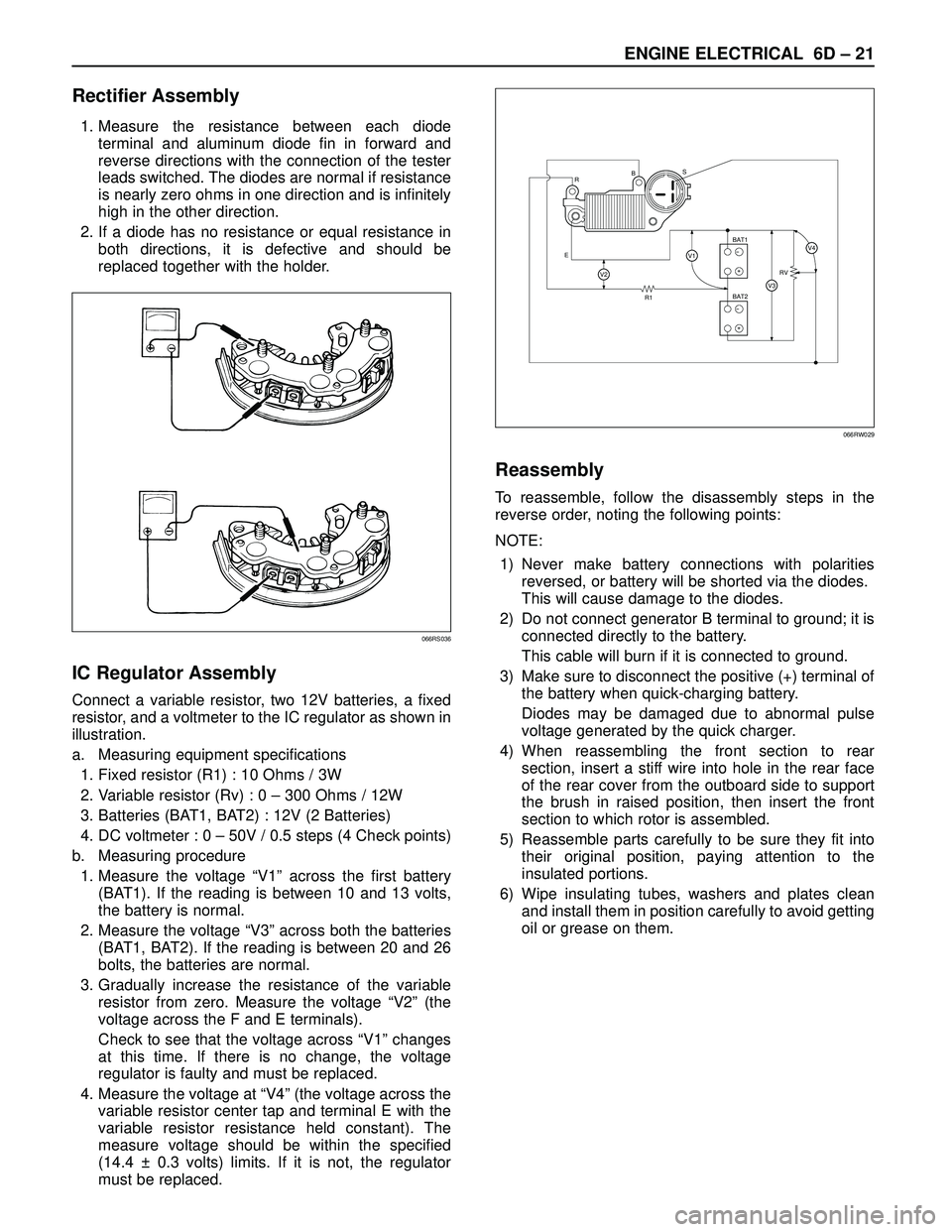

ENGINE ELECTRICAL 6D – 21
Rectifier Assembly
1. Measure the resistance between each diode
terminal and aluminum diode fin in forward and
reverse directions with the connection of the tester
leads switched. The diodes are normal if resistance
is nearly zero ohms in one direction and is infinitely
high in the other direction.
2. If a diode has no resistance or equal resistance in
both directions, it is defective and should be
replaced together with the holder.
IC Regulator Assembly
Connect a variable resistor, two 12V batteries, a fixed
resistor, and a voltmeter to the IC regulator as shown in
illustration.
a. Measuring equipment specifications
1. Fixed resistor (R1) : 10 Ohms / 3W
2. Variable resistor (Rv) : 0 – 300 Ohms / 12W
3. Batteries (BAT1, BAT2) : 12V (2 Batteries)
4. DC voltmeter : 0 – 50V / 0.5 steps (4 Check points)
b. Measuring procedure
1. Measure the voltage “V1” across the first battery
(BAT1). If the reading is between 10 and 13 volts,
the battery is normal.
2. Measure the voltage “V3” across both the batteries
(BAT1, BAT2). If the reading is between 20 and 26
bolts, the batteries are normal.
3. Gradually increase the resistance of the variable
resistor from zero. Measure the voltage “V2” (the
voltage across the F and E terminals).
Check to see that the voltage across “V1” changes
at this time. If there is no change, the voltage
regulator is faulty and must be replaced.
4. Measure the voltage at “V4” (the voltage across the
variable resistor center tap and terminal E with the
variable resistor resistance held constant). The
measure voltage should be within the specified
(14.4 ± 0.3 volts) limits. If it is not, the regulator
must be replaced.
Reassembly
To reassemble, follow the disassembly steps in the
reverse order, noting the following points:
NOTE:
1) Never make battery connections with polarities
reversed, or battery will be shorted via the diodes.
This will cause damage to the diodes.
2) Do not connect generator B terminal to ground; it is
connected directly to the battery.
This cable will burn if it is connected to ground.
3) Make sure to disconnect the positive (+) terminal of
the battery when quick-charging battery.
Diodes may be damaged due to abnormal pulse
voltage generated by the quick charger.
4) When reassembling the front section to rear
section, insert a stiff wire into hole in the rear face
of the rear cover from the outboard side to support
the brush in raised position, then insert the front
section to which rotor is assembled.
5) Reassemble parts carefully to be sure they fit into
their original position, paying attention to the
insulated portions.
6) Wipe insulating tubes, washers and plates clean
and install them in position carefully to avoid getting
oil or grease on them.
066RS036
R
EBS
R1RV
BAT2 BAT1
V2V3
V4V1´
µ
´
µ
066RW029

6E±1 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
4JX1±TC 3.0L ENGINE
DRIVEABILITY AND EMISSIONS
CONTENTS
Specification 6E±7. . . . . . . . . . . . . . . . . . . . . . . . . .
Tightening Specifications 6E±7. . . . . . . . . . . . . . .
Diagrams and Schematics 6E±8. . . . . . . . . . . . . . . .
ECM Wiring Diagram (1 of 6) 6E±8. . . . . . . . . . . .
ECM Wiring Diagram (2 of 6) 6E±9. . . . . . . . . . . .
ECM Wiring Diagram (3 of 6) 6E±10. . . . . . . . . . . .
ECM Wiring Diagram (4 of 6) 6E±11. . . . . . . . . . . .
ECM Wiring Diagram (5 of 6) 6E±12. . . . . . . . . . . .
ECM Wiring Diagram (6 of 6) 6E±13. . . . . . . . . . . .
ECM Pinouts 6E±14. . . . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J1
RED ± Upper 6E±14. . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J1
RED ± Lower 6E±15. . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J2
BLUE ± Upper 6E±16. . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J2
BLUE ± Lower 6E±17. . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 5-Way Connector ± J3 6E±18
Component Locator 6E±19. . . . . . . . . . . . . . . . . . . . .
Sensors and Miscellaneous Component
Locators 6E±21. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Abbreviations Charts 6E±23. . . . . . . . . . . . . . . . . . . .
Diagnosis 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±24. . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±24. . . . . . . . . . . . .
DTC Stored 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . .
No DTC 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
No Matching Symptom 6E±24. . . . . . . . . . . . . . . . .
Intermittents 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . .
No Trouble Found 6E±24. . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±24. . . . . . . . . . . . . . . .
General Service Information 6E±25. . . . . . . . . . . . . .
Serviceability Issues 6E±25. . . . . . . . . . . . . . . . . . .
Visual/Physical Engine Compartment
Inspection 6E±25. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic Knowledge of Tools Required 6E±25. . . . . .
Serial Data Communications 6E±25. . . . . . . . . . . . . .
Class II Serial Data Communications 6E±25. . . . .
On-Board Diagnostic (OBD) 6E±25. . . . . . . . . . . . . .
On-Board Diagnostic Tests 6E±25. . . . . . . . . . . . .
Comprehensive Component Monitor
Diagnostic Operation 6E±25. . . . . . . . . . . . . . . . . .
Common OBD Terms 6E±26. . . . . . . . . . . . . . . . . .
The Diagnostic Executive 6E±26. . . . . . . . . . . . . . .
DTC Types 6E±26. . . . . . . . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±27. . . . . . . . . . . . . . . . Reading Flash Diagnostic Trouble Codes 6E±27.
Reading Diagnostic Trouble Codes Using
a TECH 2 6E±28. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tech 2 Scan Tool 6E±29. . . . . . . . . . . . . . . . . . . . . .
Getting Started 6E±30. . . . . . . . . . . . . . . . . . . . . . . .
DTC Modes 6E±32. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC Information Mode 6E±32. . . . . . . . . . . . . . . . .
Injector Test 6E±32. . . . . . . . . . . . . . . . . . . . . . . . . .
EGR Valve Test 6E±32. . . . . . . . . . . . . . . . . . . . . . .
Rail Pressure Control Valve Test 6E±32. . . . . . . . .
Injector Balance Test 6E±32. . . . . . . . . . . . . . . . . . .
Data Programming in Case of ECM Change 6E±32
Rail Pressure Sensor Programming 6E±33. . . . . .
Injector Group Sign Programming
(Injector Change) 6E±33. . . . . . . . . . . . . . . . . . . . .
On-Board Diagnostic (OBD) System Check 6E±35.
Circuit Description 6E±37. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±37. . . . . . . . . . . . . . . . . . . . . . . .
Engine Control Module ECM Diagnosis 6E±39. . . .
Multiple ECM Information Sensor DTCS Set 6E±39
Circuit Description 6E±39. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±39. . . . . . . . . . . . . . . . . . . . . . . .
EGR (Exhaust Gas Recirculation) Diagnosis 6E±41
Tech 2 Data Definitions and Ranges 6E±41. . . . . . .
Typical Scan Data Values 6E±41. . . . . . . . . . . . . . . .
Test Conditions 6E±41. . . . . . . . . . . . . . . . . . . . . . . .
4JX1-TC Engine (Automatic and Manual
Transmission) 6E±42. . . . . . . . . . . . . . . . . . . . . . . .
No Malfunction Indicator Lamp (MIL) 6E±44. . . . . . .
Circuit Description 6E±44. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±44. . . . . . . . . . . . . . . . . . . . . . . .
Malfunction Indicator Lamp (MIL) ªONº
Steady 6E±47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit description 6E±47. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±47. . . . . . . . . . . . . . . . . . . . . . . .
Engine Cranks But Will Not Run 6E±49. . . . . . . . . . .
Circuit Description 6E±49. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±49. . . . . . . . . . . . . . . . . . . . . . . .
Exhaust Gas Recirculation (EGR) System
Check 6E±52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±52. . . . . . . . . . . . . . . . . . . . .
ECM Diagnostic Trouble Codes 6E±54. . . . . . . . . . .
ECM Diagnostic Trouble Codes 6E±54. . . . . . . . .
Diagnostic Trouble Code (DTC) P0107
(Flash DTC 34)
MAP Sensor Circuit Low Voltage 6E±56. . . . . . . . . .
