WIRING SYSTEM 8DÐ455

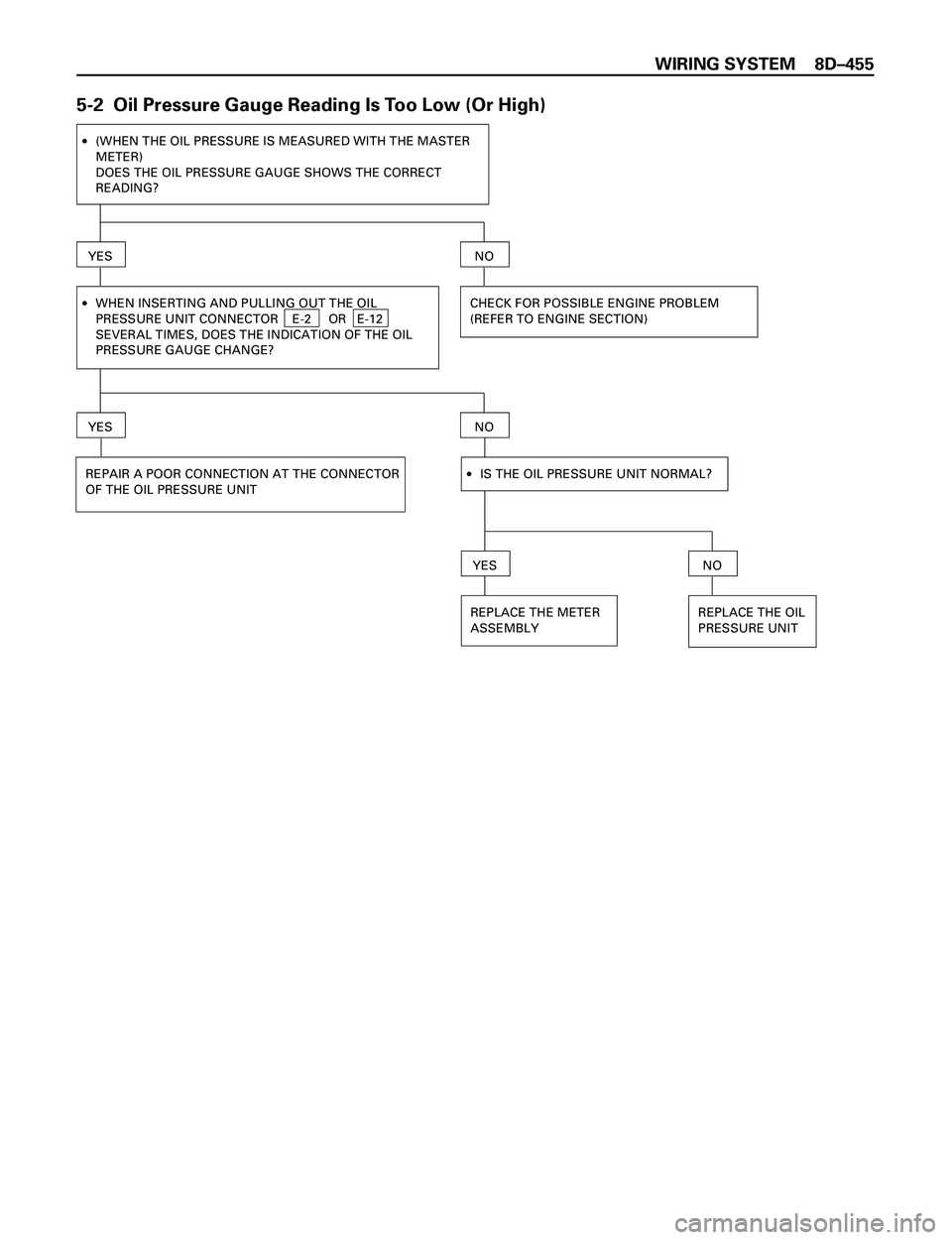

5-2 Oil Pressure Gauge Reading Is Too Low (Or High)
·(WHEN THE OIL PRESSURE IS MEASURED WITH THE MASTER
METER)
DOES THE OIL PRESSURE GAUGE SHOWS THE CORRECT
READING?
YES
·WHEN INSERTING AND PULLING OUT THE OIL
PRESSURE UNIT CONNECTOR E-2 OR E-12
SEVERAL TIMES, DOES THE INDICATION OF THE OIL
PRESSURE GAUGE CHANGE?
YES
CHECK FOR POSSIBLE ENGINE PROBLEM
(REFER TO ENGINE SECTION)
NO
REPAIR A POOR CONNECTION AT THE CONNECTOR
OF THE OIL PRESSURE UNIT
NO
·IS THE OIL PRESSURE UNIT NORMAL?
YES
REPLACE THE OIL
PRESSURE UNIT
NO
REPLACE THE METER
ASSEMBLY

METER AND GAUGE8E–9

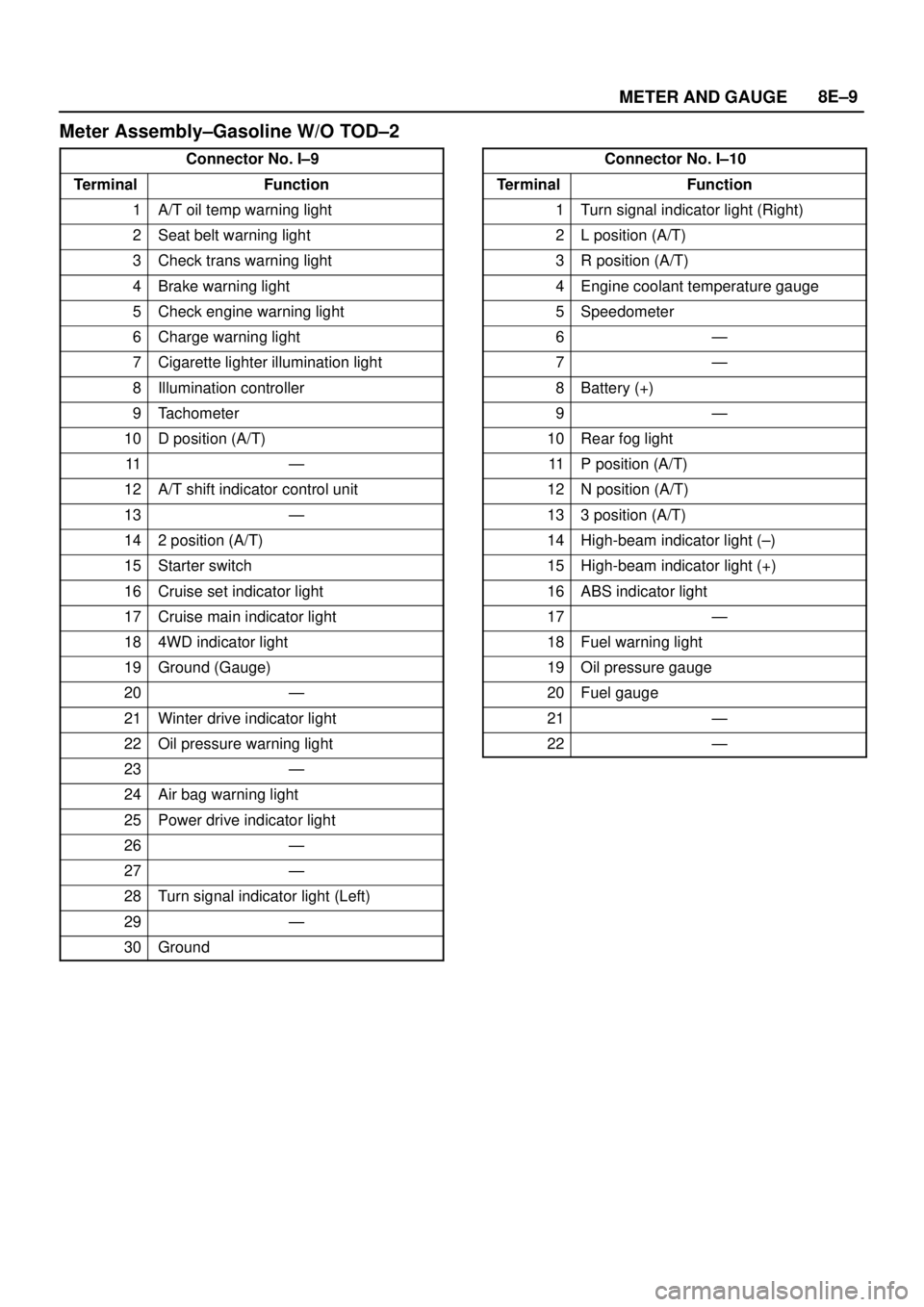

Meter Assembly–Gasoline W/O TOD–2
Connector No. I–9
TerminalFunction
1A/T oil temp warning light
2Seat belt warning light
3Check trans warning light
4Brake warning light
5Check engine warning light
6Charge warning light
7Cigarette lighter illumination light
8Illumination controller
9Tachometer
10D position (A/T)
11—
12A/T shift indicator control unit
13—
142 position (A/T)
15Starter switch
16Cruise set indicator light
17Cruise main indicator light
184WD indicator light
19Ground (Gauge)
20—
21Winter drive indicator light
22Oil pressure warning light
23—
24Air bag warning light
25Power drive indicator light
26—
27—
28Turn signal indicator light (Left)
29—
30Ground
Connector No. I–10
TerminalFunction
1Turn signal indicator light (Right)
2L position (A/T)
3R position (A/T)
4Engine coolant temperature gauge
5Speedometer
6—
7—
8Battery (+)
9—
10Rear fog light
11P position (A/T)
12N position (A/T)
133 position (A/T)
14High-beam indicator light (–)
15High-beam indicator light (+)
16ABS indicator light
17—
18Fuel warning light
19Oil pressure gauge
20Fuel gauge
21—
22—

METER AND GAUGE8E–11

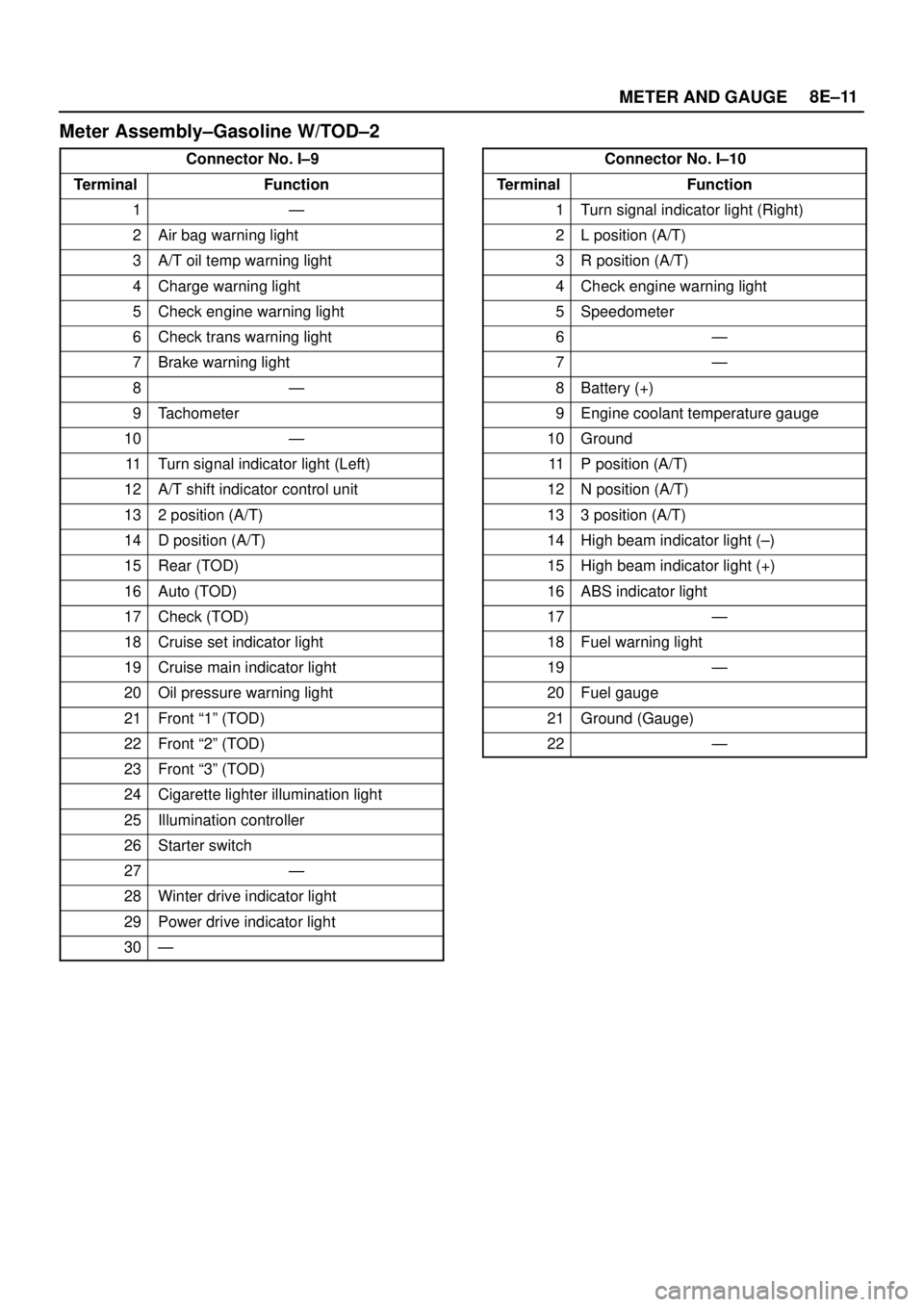

Meter Assembly–Gasoline W/TOD–2
Connector No. I–9
TerminalFunction
1—
2Air bag warning light
3A/T oil temp warning light
4Charge warning light
5Check engine warning light
6Check trans warning light
7Brake warning light
8—
9Tachometer
10—
11Turn signal indicator light (Left)
12A/T shift indicator control unit
132 position (A/T)
14D position (A/T)
15Rear (TOD)
16Auto (TOD)
17Check (TOD)
18Cruise set indicator light
19Cruise main indicator light
20Oil pressure warning light
21Front “1” (TOD)
22Front “2” (TOD)
23Front “3” (TOD)
24Cigarette lighter illumination light
25Illumination controller
26Starter switch
27—
28Winter drive indicator light
29Power drive indicator light
30—
Connector No. I–10
TerminalFunction
1Turn signal indicator light (Right)
2L position (A/T)
3R position (A/T)
4Check engine warning light
5Speedometer
6—
7—
8Battery (+)
9Engine coolant temperature gauge
10Ground
11P position (A/T)
12N position (A/T)
133 position (A/T)
14High beam indicator light (–)
15High beam indicator light (+)
16ABS indicator light
17—
18Fuel warning light
19—
20Fuel gauge
21Ground (Gauge)
22—

8F±1 BODY STRUCTURE
BODY AND ACCESSORIES
BODY STRUCTURE
CONTENTS
Service Precaution 8F±3. . . . . . . . . . . . . . . . . . . . . .
Frame 8F±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 8F±3. . . . . . . . . . . . . . . . . . . . . .
Frame Dimensions (L W B) 8F±4. . . . . . . . . . . . . . .
Frame Dimensions (S W B) 8F±5. . . . . . . . . . . . . . .
General Description 8F±6. . . . . . . . . . . . . . . . . . . . .
Front Bumper 8F±6. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±6. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Bumper Slider Bracket 8F±7. . . . . . . . . . . . . .
Removal 8F±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Bumper 8F±8. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±8. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location (W/Rear Combination Light
and License Light) 8F±10. . . . . . . . . . . . . . . . . . . .
Removal 8F±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location (W/Rear Combination Light) 8F±12
Removal 8F±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Bumper Slider 8F±14. . . . . . . . . . . . . . . . . . . . .
Removal 8F±14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±14. . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 8F±15. . . . . . . . . . . . . . . . . . . . .
Cowl Cover 8F±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±15. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Hood 8F±16. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Bulge 8F±17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±17. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±17. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±17. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Hood Hinge 8F±18. . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±18. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±18. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±18. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Hood Lock 8F±19. . . . . . . . . . . . . . . . . . . . . . . Parts Location 8F±19. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±19. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±20. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiator Grille And Front End Lower Panel 8F±20.
Parts Location 8F±20. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±20. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±21. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Fender Panel 8F±22. . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±22. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±23. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Body Mounting 8F±24. . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±24. . . . . . . . . . . . . . . . . . . . . . . .
Removal (No.1 ± No. 2) 8F±24. . . . . . . . . . . . . . . .
Removal (No. 3 Ð No. 6) 8F±25. . . . . . . . . . . . . . .
Installation 8F±26. . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 8F±27. . . . . . . . . . . . . . . . . . . . .
Body Dimension 8F±28. . . . . . . . . . . . . . . . . . . . . . . .
Instrument Panel Assembly 8F±48. . . . . . . . . . . . . . .
Parts Location 8F±48. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±49. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±53. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cross Beam Assembly 8F±54. . . . . . . . . . . . . . . . . . .
Parts Location 8F±54. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±54. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±55. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Door Assembly 8F±56. . . . . . . . . . . . . . . . . . . .
Parts Location 8F±56. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±56. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±56. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Assembly 8F±57. . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±57. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±57. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±58. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Strikers 8F±58. . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustment 8F±58. . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Check Arm Assembly (Front & Rear) 8F±59. .
Parts Location 8F±59. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±59. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8F±60. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Window Regulator, Glass And Glass
Run 8F±60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8F±60. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8F±60. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8F±16BODY STRUCTURE
5. Remove cowl cover.

Disconnect three screws.
6. Remove cowl cover seals.
7. Remove front window lower molding.8. Remove cowl cover stoppers.
Installation
To install, follow the removal steps in reverse order.
Engine Hood
Removal
1. Open the hood.
2. Support the hood.
3. Remove windowshield washer nozzle tube.
880RS001
4. Remove hood hinge bolts (3).

Before removing the hinges from the Engine hood
(1), scribe a mark (2) showing location of the hinges
to facilitate installation in the original position.
610RS003
5. Remove engine hood.
Installation
To install, follow the removal steps in the reverse order
noting the following points:
1. Tighten the engine hood fixing bolts to the specified
torque.
Torque: 13 Nwm (1.3kg´m/113 lb in)
2. Adjust the engine hood mounting gap with reference
to Body Dimension in this section.
3. Check and see if the engine hood lock operates
normally.

SUPPLEMENTAL RESTRAINT SYSTEM9J±7
Steering Column
The steering column absorbs energy and is designed to
compress in a frontal crash to decrease the chance of
injury to the driver.
431RW019
Knee Bolster
The knee bolsters are used to absorb energy to protect
knees and control the forward movement of the vehicle's
front seat occupants during a frontal crash, by limiting leg
movement.
740RT015
Definitions
Air Bag
An inflatable cloth cushion designed to deploy in certain
frontal crashes. It supplements the protection offered by
the seat belts by distributing the impact load more evenly
over the vehicle occupant's head and torso.
Asynchronous
Performed in a nonperiodic fashion, (i.e., no defined time
or interval).B+
Battery voltage, (B+) The voltage available at the battery
at the time of the indicated measurement. With the key
ªONº and the engine not running, the system voltage will
likely be between 12 and 12.5 volts. At idle, the voltage
may be 14 to 16 volts. The voltage could be as low as 10
volts during engine cranking.
Bulb Check
The SDM will cause the ªAIR BAGº warning lamp to turn
on 3.5 seconds and then go ªOFFº whenever the ignition
switch transitions to the ON position from any other
ignition switch position and no malfunctions are detected.
ªContinuous Monitoringº
Tests performed by the SDM on the SRS every 100
milliseconds while ªIgnition 1º voltage is in the normal
operating voltage range at the SDM.
Data Link Connector (DLC)
Formerly ªDLCº a connector which allows communication
with an external computer, such as a scan tool.
Datum Line
A base line parallel to the plane of the underbody or frame
from which all vertical measurements originate.
Deploy
To inflate the air bag.
Deployment Loops
The circuits which supply current to the air bag
assemblies to deploy the air bag.
Diagnostic Trouble Code (DTC)
Formerly ªCodeº, a numerical designator used by the
SDM to indicate specific SRS malfunctions.
Driver Current Source
An output of the SDM which applies current into the driver
air bag assembly circuit during the ªInitiator Assembly
Resistance Testº.
Driver Air Bag Assembly
An assembly located in the steering wheel hub consisting
of an inflatable bag, an inflator and an initiator.
EEPROM
Electrically Erasable Programmable Read Only Memory.
Memory which retains its contents when power is
removed from the SDM.
Ignition Cycle
The voltage at the SDM ªIgnition 1º inputs, with ignition
switch ªONº, is within the normal operating voltage range
for at least ten seconds before turning ignition switch
ªOFFº.
Ignition 1
A battery voltage (B+) circuit which is only powered with
the ignition switch in the ON, or START positions.
Initiator
The electrical component inside the air bag assembly
which, when sufficient current flows, sets off the chemical
reaction that inflates the air bag.
ªInitiator Assembly Resistance Testº
Tests performed once each ignition cycle when no
malfunctions are detected during ªTurn±ONº or
ªContinuous Monitoringº. This test checks for the correct
SDM configuration for the vehicle, shorts to ªIgnition 1º in
