1998 ISUZU TROOPER relay

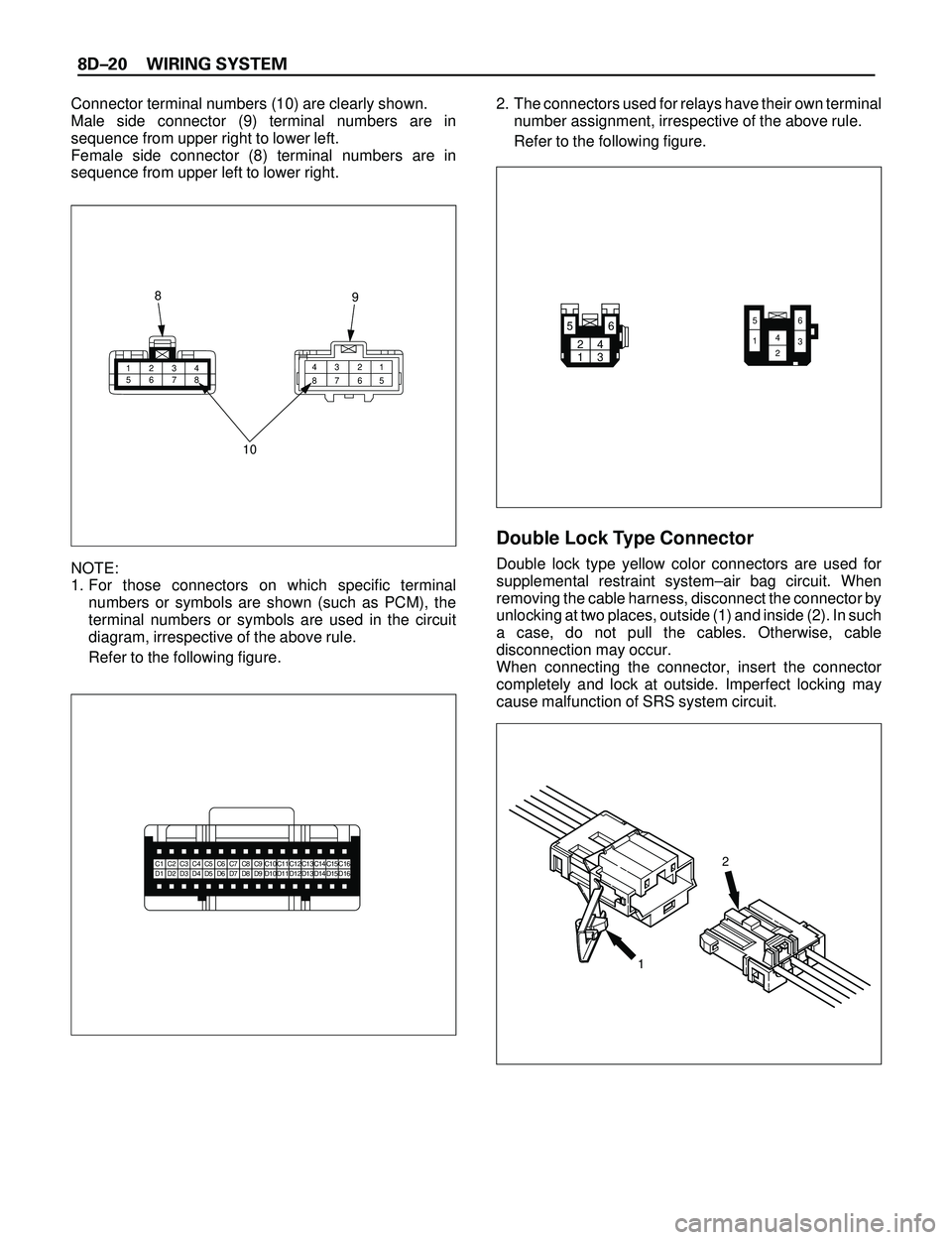

8DÐ20 WIRING SYSTEM
Connector terminal numbers (10) are clearly shown.
Male side connector (9) terminal numbers are in
sequence from upper right to lower left.
Female side connector (8) terminal numbers are in
sequence from upper left to lower right.
NOTE:
1. For those connectors on which specific terminal
numbers or symbols are shown (such as PCM), the
terminal numbers or symbols are used in the circuit
diagram, irrespective of the above rule.
Refer to the following figure.2. The connectors used for relays have their own terminal
number assignment, irrespective of the above rule.
Refer to the following figure.
Double Lock Type Connector
Double lock type yellow color connectors are used for
supplemental restraint systemÐair bag circuit. When
removing the cable harness, disconnect the connector by
unlocking at two places, outside (1) and inside (2). In such
a case, do not pull the cables. Otherwise, cable
disconnection may occur.
When connecting the connector, insert the connector
completely and lock at outside. Imperfect locking may
cause malfunction of SRS system circuit.
1234
56781 2 3 4
5 6 7 8
10 8
9
C1C2C3C4C5C6C7C8C9C10C11C12C13C14C15C16D1D2D3D4D5D6D7D8D9D10D11D12D13D14D15D162
1
24
136 5
65
1423

8DÐ22 WIRING SYSTEM

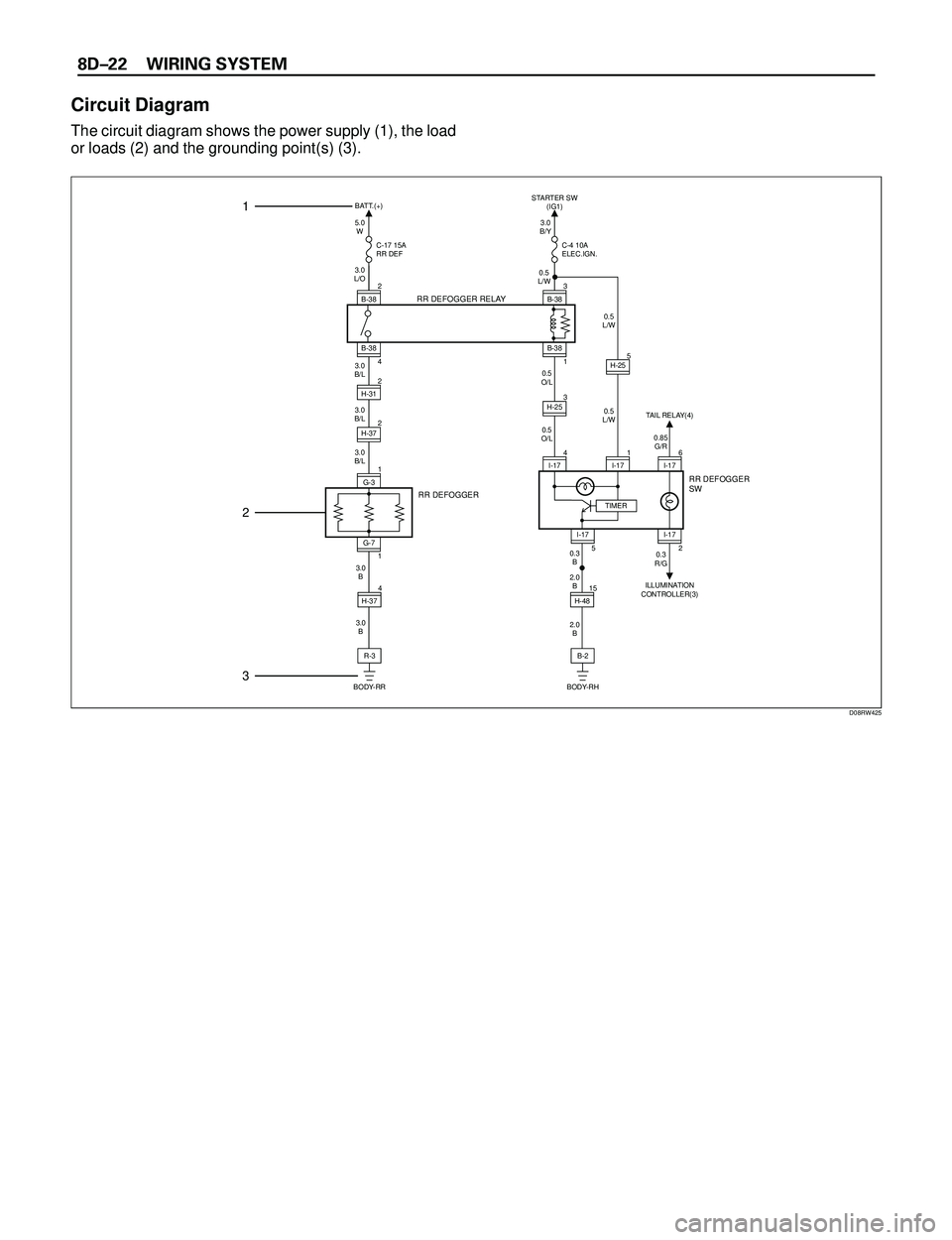

Circuit Diagram
The circuit diagram shows the power supply (1), the load
or loads (2) and the grounding point(s) (3).
5.0
W BATT.(+)
C-17 15A
RR DEF
RR DEFOGGER RELAY
3.0
L/O
3.0
B/L
3.0
B/L
3.0
B/L
B-38
4
I-17
5I-17
ILLUMINATION
CONTROLLER(3)
RR DEFOGGER
SW
RR DEFOGGER
2
H-37
G-7
1 2
B-38
2
2
H-31
1
G-3
3.0
B/Y
0.5
L/W
0.5
L/W
0.5
L/W 0.5
O/L
0.5
O/L STARTER SW
(IG1)
C-4 10A
ELEC.IGN.
3
B-38
4
I-17
15
H-48TIMER6
I-17 0.85
G/R TAIL RELAY(4)
B-38
1
H-253
H-255
1
I-17
B-2 2.0
B 3.0
B 3.0
B
2.0
B 0.3
B0.3
R/G
BODY-RHR-3
BODY-RR4
H-37
1
2
3
D08RW425

8DÐ24 WIRING SYSTEM
12
D08RWA03
Legend
(1) Relay and Fuse Box
(2) Fuse Box
Main Data and Specifications
Fuse, Fusible Link and Circuit Breaker Location

WIRING SYSTEM 8DÐ25
Relay & Fuse Box
FL-1
FL-2 FL-6 FL-5 FL-4 FL-3
F-12 F-11 F-10 F-9 F-8 F-7 F-6 F-5 F-4 F-3 F-2 F-1 RELAY AND FUSE BOX
RHD
FUSIBLE LINK FUSE
MODEL
No.
FL-1
FL-2
FL-3
FL-4
FL-5
FL-6
F-1
F-2
F-3
F-4
F-5
F-6
F-7
F-8
F-9
F-10
F-11
F-12LHD
80A MAIN
50A KEY SW
30A ECM (GASOLINE)
30A CONDENSER FAN
50A GLOW (4JG2)
40A ABS
10A O
2 SENSOR (GASOLINE)
15A HORN HAZARD
15A H/LAMP-LH
15A H/LAMP-RH
15A ANTI-THEFT
20A FOG
20A ABS
15A FUEL PUMP (GASOLINE)
15A TAIL80A MAIN
50A KEY SW
30A ECM (GASOLINE)
30A CONDENSER FAN
50A GLOW (4JG2)
40A ABS
10A O2 SENSOR (GASOLINE)
15A HORN HAZARD
10A H/LAMP-LH (HI)
10A H/LAMP-RH (HI)
10A H/LAMP-LH (LOW)
10A H/LAMP-RH (LOW)
20A FOG
20A ABS
15A FUEL PUMP (GASOLINE)
10A TAIL-LH
10A TAIL-RH —
—
——
810RS027

8DÐ26 WIRING SYSTEM
Fuse Box
This illustration is based on RHD
C/B-1 C/B-2
C-10
C-20C-9 C-8 C-7 C-6 C-5 C-4 C-3 C-2 C-1
C-19 C-18 C-17 C-16 C-15 C-14 C-13 C-12 C-11
C-21 C-22 C-23 C-24
FUSE BOX
RHDNo.
C-1
C-2
C-3
C-4
C-5
C-6
C-7
C-8
C-9
C-10
C-11
C-12
C-13
C-14
C-15
C-16
C-17
C-18
C-19
C-20
C-21
C-22
C-23
C-24LHD
10A STARTER RELAY
15A SEAT HEATER
10A TURN, BACK
10A ELEC. IGN.
15A FRT WIPER AND WASHER
10A RR WIPER AND WASHER
10A H/LAMP WIPER
15A ENGINE
15A IGN. COIL (GASOLINE)
15A FUEL CUT (4JG2)
10A METER, GAUGE
10A AUDIO, MIRROR
20A CIGARETTE
10A ANTI-THEFT
15A STOP, A/T CONT.
20A TELEPHONE
10A CLOCK, ROOM
25A RR DEFOG.
20A DOOR LOCK
25A BLOWER
10A AIR CON.
10A SRS-110A STARTER RELAY
15A SEAT HEATER
10A TURN, BACK
10A ELEC. IGN.
15A FRT WIPER AND WASHER
10A RR WIPER AND WASHER
10A H/LAMP WIPER
15A ENGINE
15A IGN. COIL (GASOLINE)
15A FUEL CUT (4JG2)
10A METER, GAUGE
10A AUDIO, MIRROR
20A CIGARETTE
10A ANTI-THEFT
15A STOP, A/T CONT.
20A TELEPHONE
10A CLOCK, ROOM
25A RR DEFOG.
20A DOOR LOCK
25A BLOWER
10A AIR CON.
10A SRS-1 FUSE
RHDNo.
C/B-1
C/B-2LHD
30A P/W, P/S, S/R 30A P/W, P/S, S/R—— CIRCUIT BREAKER
—
—
——
—
—
810RV026

WIRING SYSTEM 8DÐ27
Relay Location-1 (Relay and Fuse Box)
RHDNo.
X-1
X-2
X-3
X-4
X-5
X-6
X-7
X-8
X-9
X-10
X-11
X-12
X-13
X-16
X-17
X-18
X-19
X-20
X-21
X-22
X-23LHD
RELAY ; LIGHTING
RELAY ; A/C THERMO
RELAY ; COMPRESSOR (GASOLINE)
RELAY ; HORN
RELAY ; TAIL
RELAY ; FUEL PUMP (GASOLINE)
RELAY ; ECM MAIN (GASOLINE)
RELAY ; ANTI-THEFT
RELAY ; STARTER (GASOLINE)
RELAY ; CHARGE (DIESEL)
RELAY ; SHIFT ON THE FLY
RELAY ; CONDENSER FAN
(GASOLINE)
RELAY ; RR FOG LIGHT
RELAY ; FRT FOG LIGHTRELAY ; LIGHTING
RELAY ; DIMMER
RELAY ; A/C THERMO
RELAY ; COMPRESSOR (GASOLINE)
RELAY ; HORN
RELAY ; TAIL
RELAY ; FUEL PUMP (GASOLINE)
RELAY ; ECM MAIN (GASOLINE)
RELAY ; ANTI-THEFT
RELAY ; STARTER (GASOLINE)
RELAY ; CHARGE (DIESEL)
RELAY ; SHIFT ON THE FLY
RELAY ; CONDENSER FAN
RELAY ; FRT FOG LIGHT
—
—
—
—
—
—
—
——
—
—
—
—
—
—
—
X-1
X-2
X-3
X-4X-5
X-6
X-7
X-8X-9
X-10 X-12X-11X-13X-16
X-17X-18
X-19X-20
X-21
X-22
X-23 RELAY AND FUSE BOX
810RS029

8DÐ28 WIRING SYSTEM
Relay Location-2 (Fuse Box)
1234
5
810RW330
Legend
(1) Heater & A/C Relay
(2) Power Window Relay
(3) H-63(4) Flasher Unit
(5) Rear Defogger Relay

WIRING SYSTEM 8DÐ29
Relay Location-3
5
3
2
14
810RW331
Legend
(1) Relay and Fuse Box
(2) Glow Relay-1
(3) Glow Relay-2(4) Starter Relay
(5) Fuse Box
